GLD2000／7.5／S甲带式给煤机图==1124823=200（ID:3041068）
查找相似图纸
查找相似图纸
截图
AI截图渲染
✨AI图片渲染
0.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | GLD2000S-0201角钢.dwg | 85.28K |
| 2 | GLD2000S-0201角钢.exb | 83.50K |
| 3 | GLD2000S-0202角钢.dwg | 88.78K |
| 4 | GLD2000S-0202角钢.exb | 86.00K |
| 5 | GLD2000S-0203槽钢.dwg | 86.28K |
| 6 | GLD2000S-0203槽钢.exb | 83.50K |
| 7 | GLD2000S-0204角钢.dwg | 86.03K |
| 8 | GLD2000S-0204角钢.exb | 84.00K |
| 9 | GLD2000S-0205钢板.dwg | 85.28K |
| 10 | GLD2000S-0205钢板.exb | 83.50K |
| 11 | GLD2000S-0206钢板.dwg | 87.78K |
| 12 | GLD2000S-0206钢板.exb | 84.50K |
| 13 | GLD2000S-0207钢板.dwg | 88.03K |
| 14 | GLD2000S-0207钢板.exb | 84.50K |
| 15 | GLD2000S-0208吊耳.dwg | 88.53K |
| 16 | GLD2000S-0208吊耳.exb | 85.00K |
| 17 | GLD2000S-0209筋板.dwg | 86.78K |
| 18 | GLD2000S-0209筋板.exb | 84.50K |
| 19 | GLD2000S-0210筋板.dwg | 92.03K |
| 20 | GLD2000S-0210筋板.exb | 86.50K |
| 21 | GLD2000S-0211角钢.dwg | 93.53K |
| 22 | GLD2000S-0211角钢.exb | 86.00K |
| 23 | GLD2000S-0212角钢.dwg | 89.28K |
| 24 | GLD2000S-0212角钢.exb | 86.00K |
| 25 | GLD2000S-0213底板.dwg | 86.28K |
| 26 | GLD2000S-0213底板.exb | 84.00K |
| 27 | GLD2000S-0214钢板.dwg | 92.53K |
| 28 | GLD2000S-0214钢板.exb | 87.00K |
| 29 | GLD2000S-0215钢板.dwg | 86.28K |
| 30 | GLD2000S-0215钢板.exb | 84.00K |
| 31 | GLD2000S-0216后板.dwg | 89.53K |
| 32 | GLD2000S-0216后板.exb | 85.50K |
| 33 | GLD2000S-02出料槽.dwg | 173.88K |
| 34 | GLD2000S-02出料槽.exb | 137.00K |
| 35 | GLD2000S-0301外密封盖.dwg | 96.16K |
| 36 | GLD2000S-0301外密封盖.exb | 87.50K |
| 37 | GLD2000S-0302不锈钢片.dwg | 87.66K |
| 38 | GLD2000S-0302不锈钢片.exb | 84.00K |
| 39 | GLD2000S-0303隔离环.dwg | 89.66K |
| 40 | GLD2000S-0303隔离环.exb | 85.50K |
| 41 | GLD2000S-0304中间密封.dwg | 93.88K |
| 42 | GLD2000S-0304中间密封.exb | 88.00K |
| 43 | GLD2000S-0305内密封.dwg | 90.91K |
| 44 | GLD2000S-0305内密封.exb | 85.50K |
| 45 | GLD2000S-0306轴承盖.dwg | 97.38K |
| 46 | GLD2000S-0306轴承盖.exb | 88.50K |
| 47 | GLD2000S-0307轴承座.dwg | 155.44K |
| 48 | GLD2000S-0307轴承座.exb | 99.50K |
| 49 | GLD2000S-0401压轮.dwg | 90.28K |
| 50 | GLD2000S-0401压轮.exb | 85.50K |
| 51 | GLD2000S-0402杆子.dwg | 93.03K |
| 52 | GLD2000S-0402杆子.exb | 87.00K |
| 53 | GLD2000S-0403套.dwg | 87.03K |
| 54 | GLD2000S-0403套.exb | 84.50K |
| 55 | GLD2000S-04链条涨紧装置.dwg | 106.22K |
| 56 | GLD2000S-04链条涨紧装置.exb | 93.50K |
| 57 | GLD2000S-0601吊臂.dwg | 89.03K |
| 58 | GLD2000S-0601吊臂.exb | 85.50K |
| 59 | GLD2000S-0602钢板.dwg | 86.53K |
| 60 | GLD2000S-0602钢板.exb | 84.50K |
| 61 | GLD2000S-0603钢板.dwg | 87.28K |
| 62 | GLD2000S-0603钢板.exb | 84.50K |
| 63 | GLD2000S-0604角钢.dwg | 93.28K |
| 64 | GLD2000S-0604角钢.exb | 85.50K |
| 65 | GLD2000S-0605槽钢.dwg | 93.53K |
| 66 | GLD2000S-0605槽钢.exb | 88.00K |
| 67 | GLD2000S-0606槽钢.dwg | 87.78K |
| 68 | GLD2000S-0606槽钢.exb | 84.50K |
| 69 | GLD2000S-0607槽钢.dwg | 87.03K |
| 70 | GLD2000S-0607槽钢.exb | 85.00K |
| 71 | GLD2000S-06底架.dwg | 141.09K |
| 72 | GLD2000S-06底架.exb | 117.50K |
| 73 | GLD2000S-08轴承座.dwg | 144.00K |
| 74 | GLD2000S-08轴承座.exb | 116.00K |
| 75 | GLD2000S-0901筒皮.dwg | 87.53K |
| 76 | GLD2000S-0901筒皮.exb | 84.00K |
| 77 | GLD2000S-0902轴.dwg | 97.25K |
| 78 | GLD2000S-0902轴.exb | 87.00K |
| 79 | GLD2000S-0903筋板.dwg | 85.53K |
| 80 | GLD2000S-0903筋板.exb | 83.50K |
| 81 | GLD2000S-0904单眼板.dwg | 86.28K |
| 82 | GLD2000S-0904单眼板.exb | 83.50K |
| 83 | GLD2000S-0905法兰.dwg | 89.28K |
| 84 | GLD2000S-0905法兰.exb | 85.00K |
| 85 | GLD2000S-09驱动滚筒.dwg | 106.97K |
| 86 | GLD2000S-09驱动滚筒.exb | 96.00K |
| 87 | GLD2000S-140101摇把.exb | 81.50K |
| 88 | GLD2000S-140101摇把zongzhuangtu.dwg | 83.56K |
| 89 | GLD2000S-140102小齿轮.dwg | 90.78K |
| 90 | GLD2000S-140102小齿轮.exb | 87.50K |
| 91 | GLD2000S-140103小轮轴.dwg | 85.28K |
| 92 | GLD2000S-140103小轮轴.exb | 83.50K |
| 93 | GLD2000S-1401手轮.dwg | 95.53K |
| 94 | GLD2000S-1401手轮.exb | 90.50K |
| 95 | GLD2000S-1402大齿轮.dwg | 107.47K |
| 96 | GLD2000S-1402大齿轮.exb | 100.00K |
| 97 | GLD2000S-1403手轮轴.dwg | 87.28K |
| 98 | GLD2000S-1403手轮轴.exb | 83.50K |
| 99 | GLD2000S-1404支座.dwg | 97.00K |
| 100 | GLD2000S-1404支座.exb | 88.50K |
| 101 | GLD2000S-140501改向轮轴.dwg | 86.28K |
| 102 | GLD2000S-140501改向轮轴.exb | 83.50K |
| 103 | GLD2000S-140502改向轮.dwg | 87.78K |
| 104 | GLD2000S-140502改向轮.exb | 84.00K |
| 105 | GLD2000S-140503夹板.dwg | 84.78K |
| 106 | GLD2000S-140503夹板.exb | 82.50K |
| 107 | GLD2000S-1405改向轮系.dwg | 93.53K |
| 108 | GLD2000S-1405改向轮系.exb | 90.00K |
| 109 | GLD2000S-1406闸板.dwg | 93.53K |
| 110 | GLD2000S-1406闸板.exb | 89.00K |
| 111 | GLD2000S-14闸门.dwg | 125.69K |
| 112 | GLD2000S-14闸门.exb | 113.00K |

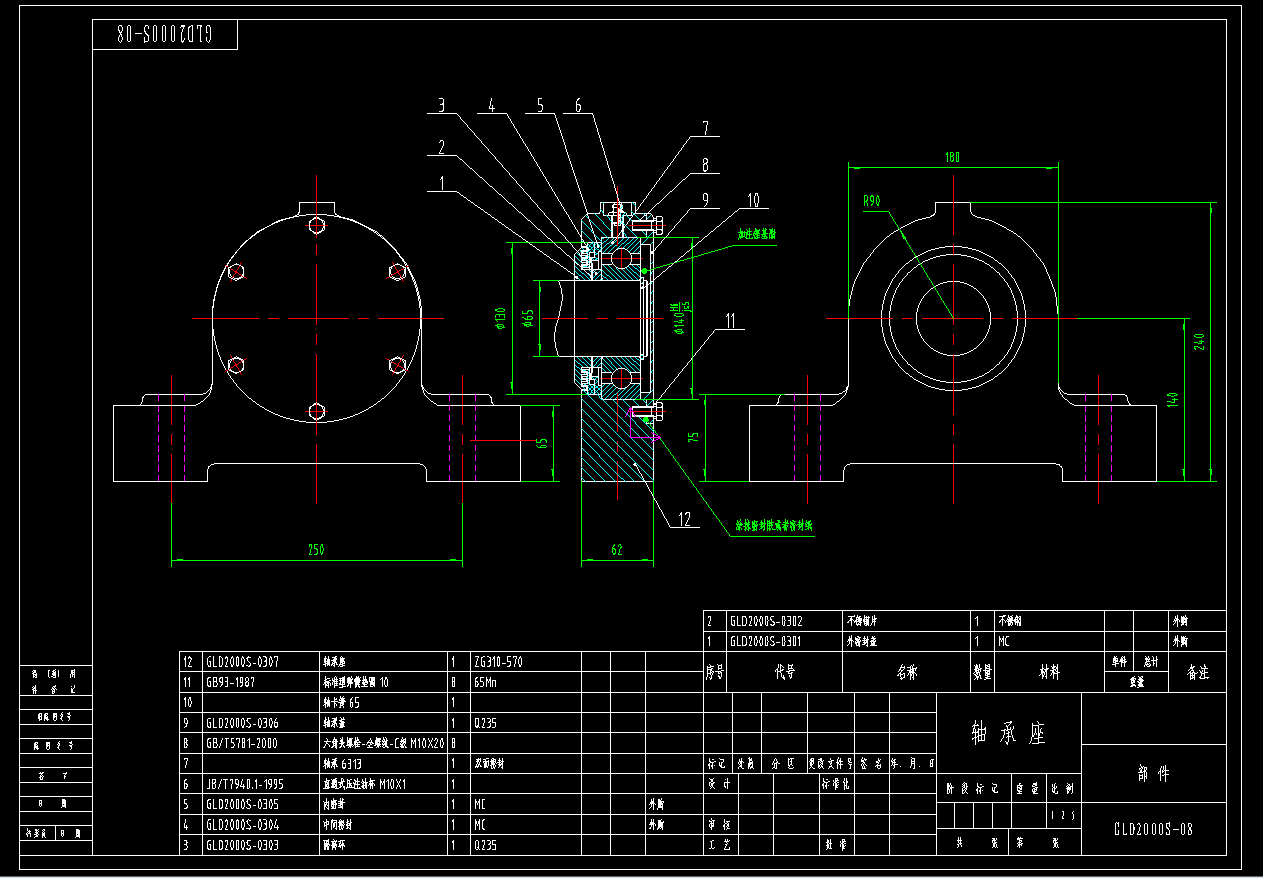

| 113 | GLD2000／7.5／S甲带式给煤机总图.dwg | 418.72K |
| 114 | GLD2000／7.5／S甲带式给煤机总图.exb | 216.50K |

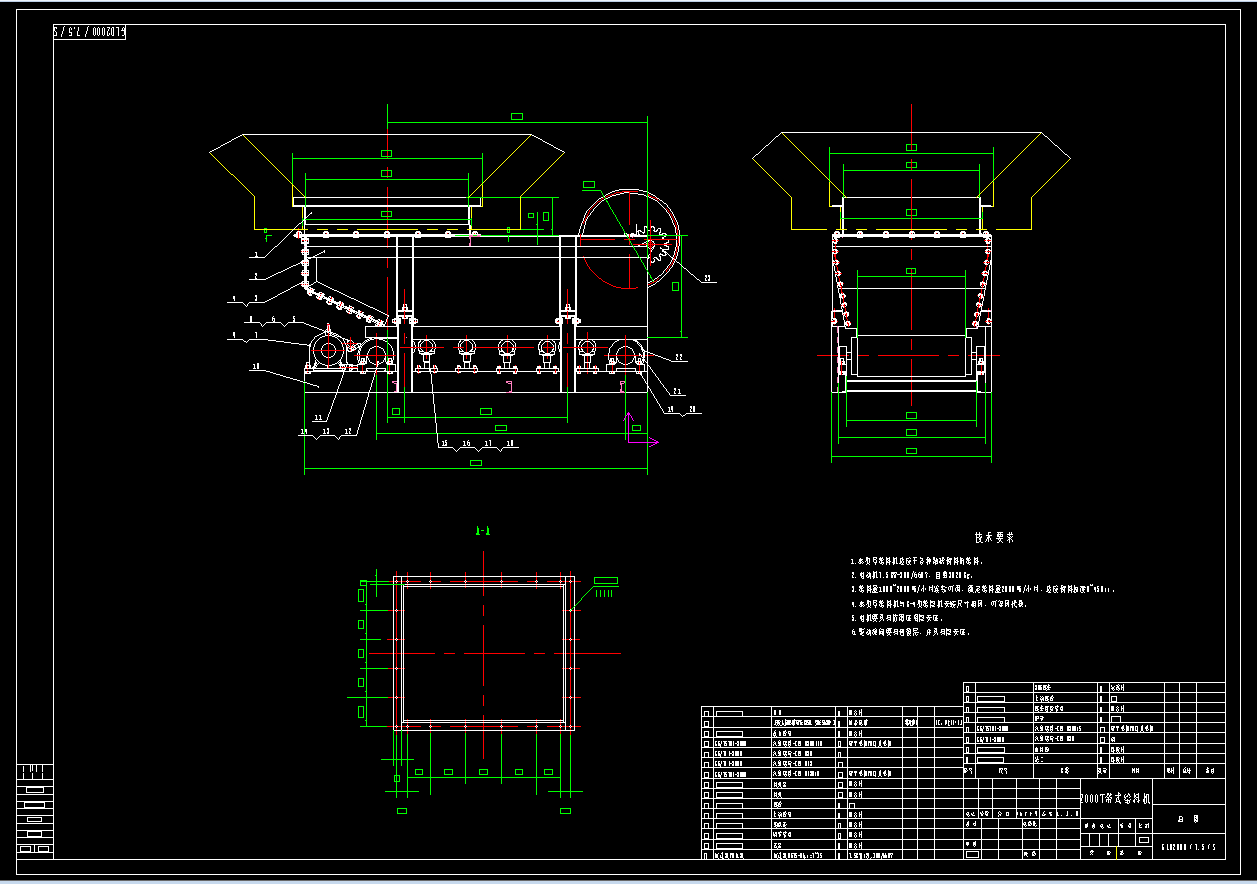

| 115 | GLD2000／7.5／S甲带式给煤机总图.png | 29.48K |
| 116 | 中间密封.png | 6.38K |

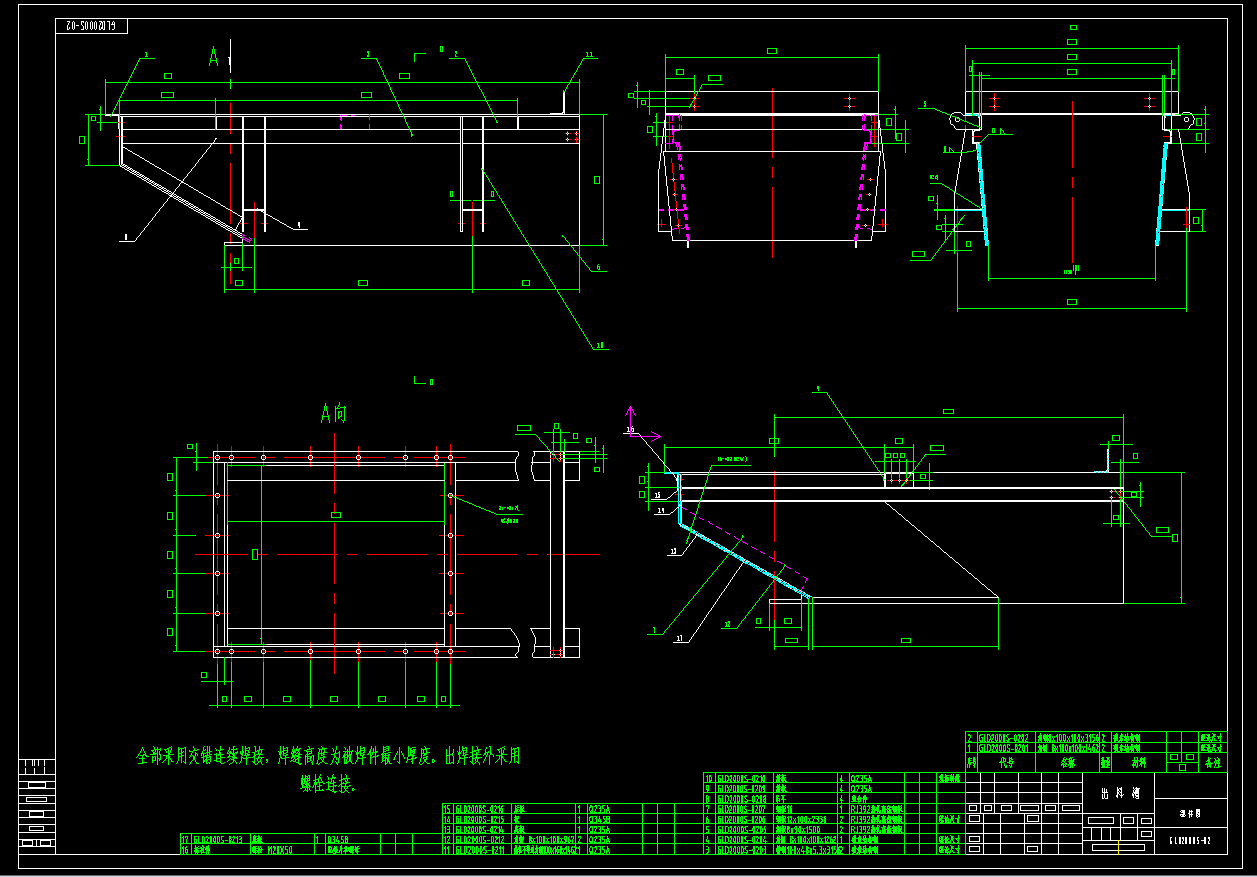

| 117 | 出料槽.png | 31.11K |
| 118 | 大齿轮.png | 10.11K |

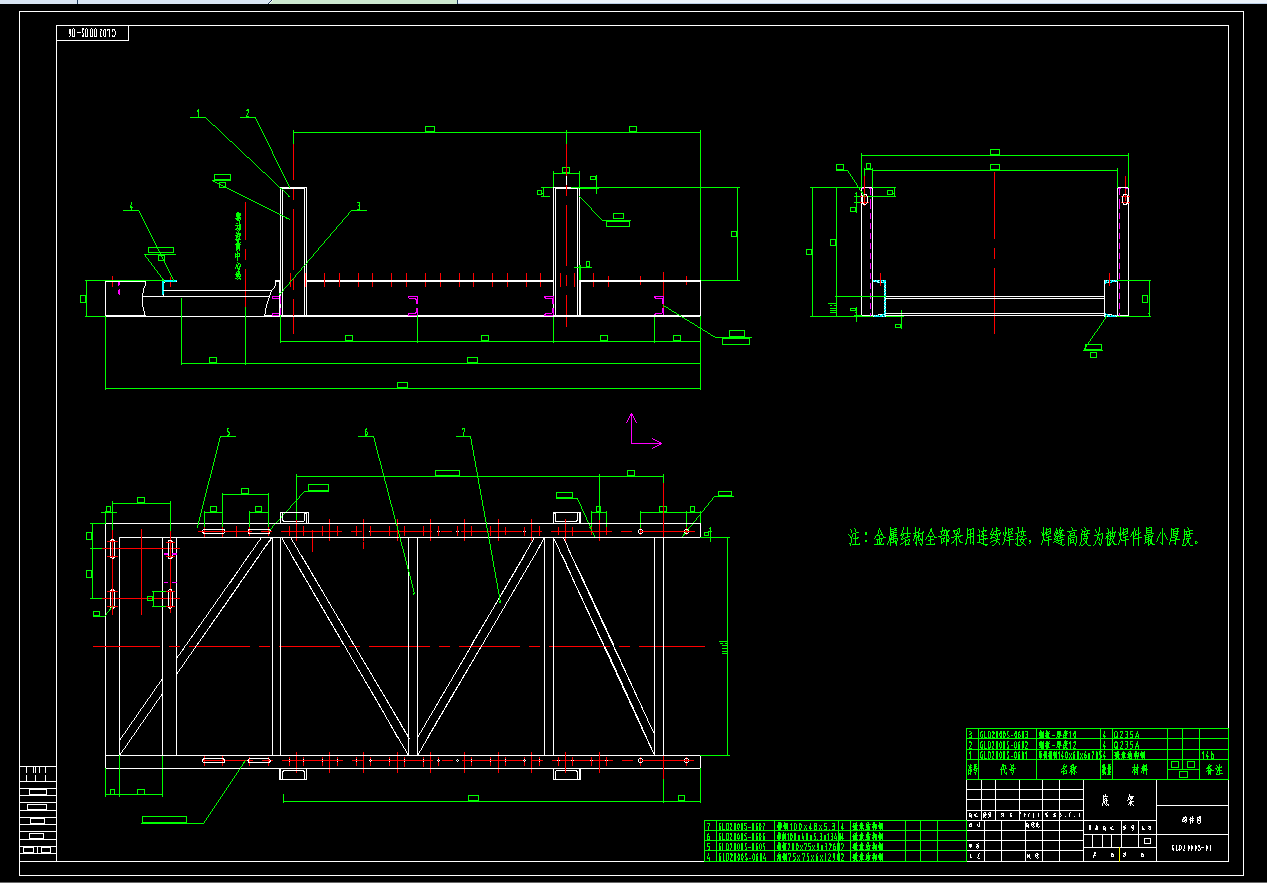

| 119 | 底架.png | 24.47K |

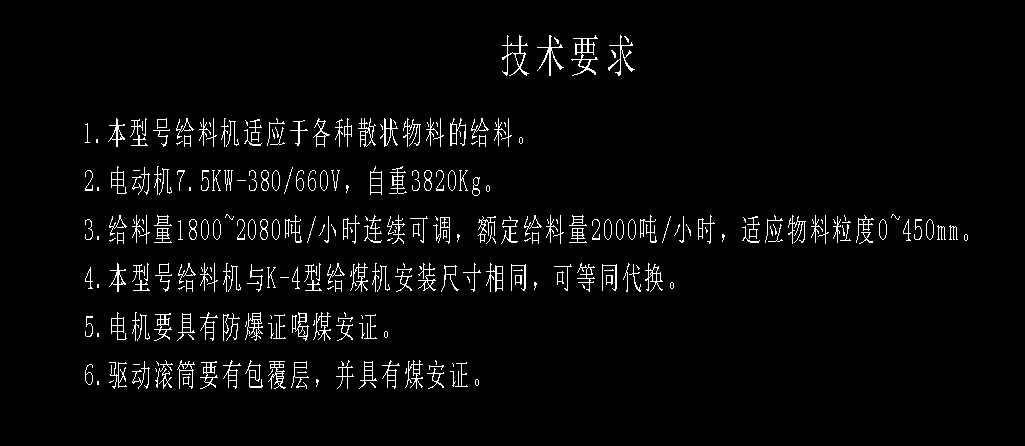

| 120 | 技术参数.png | 14.28K |

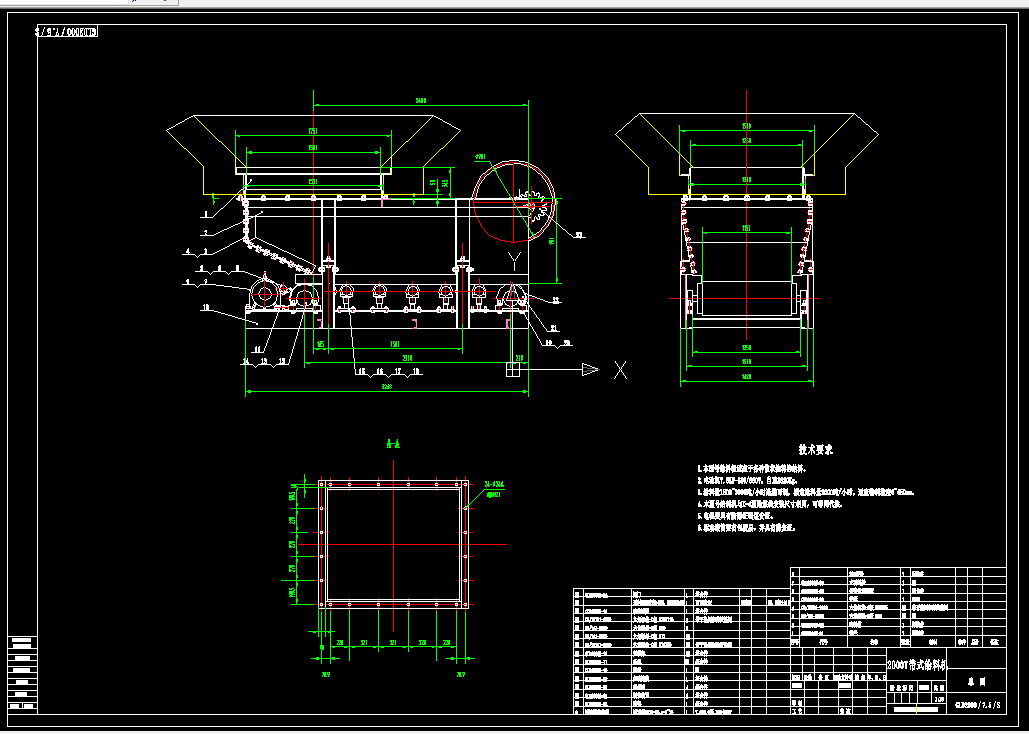

| 121 | 装配图.png | 42.78K |
| 122 | 轴.png | 8.50K |
| 123 | 轴承座.png | 31.44K |

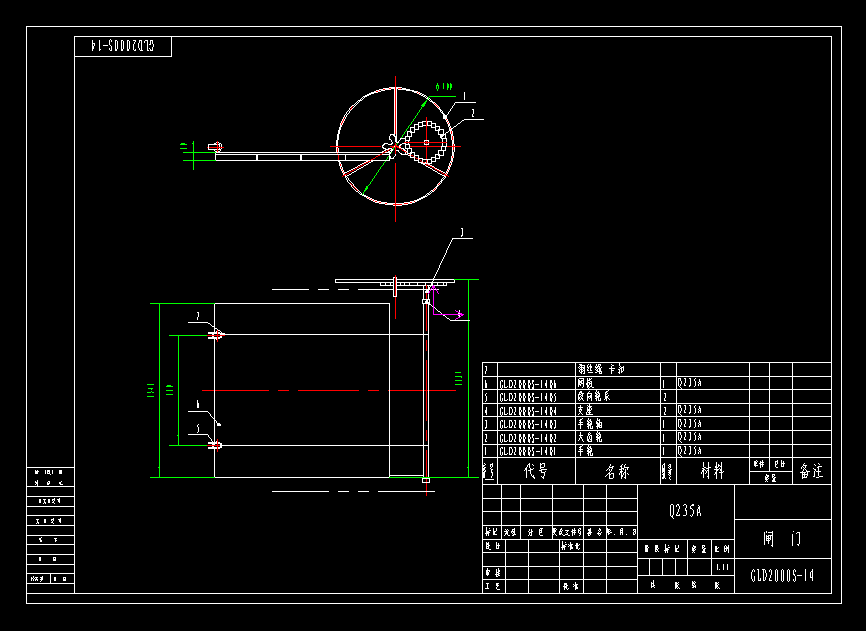

| 124 | 闸门.png | 12.91K |

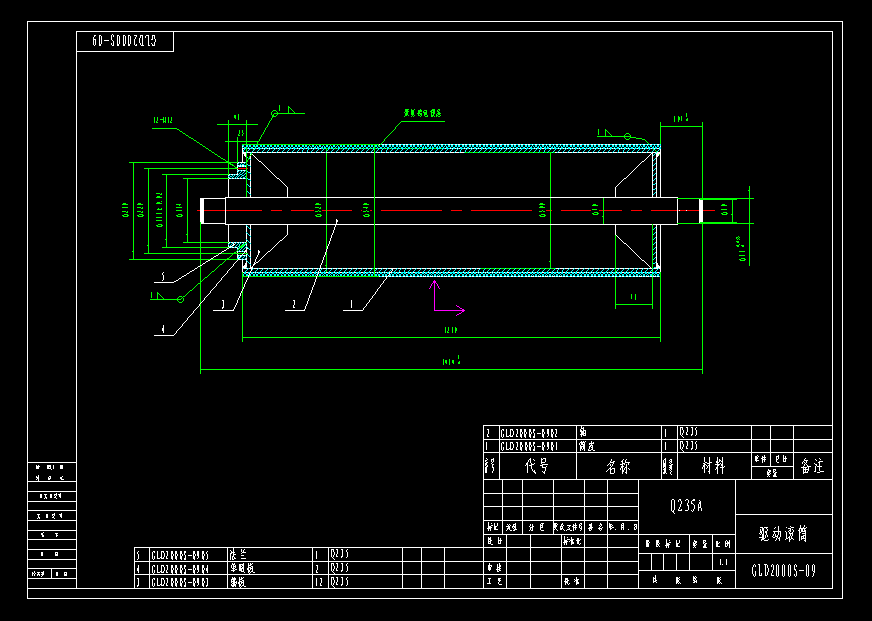

| 125 | 驱动滚筒.png | 14.04K |
此图纸下载需要170金币
