翁特罗尔控制面板

（ID:3138731）

改图/画图

机械设备 / 非标机械 / 翁特罗尔控制面板

©非原创

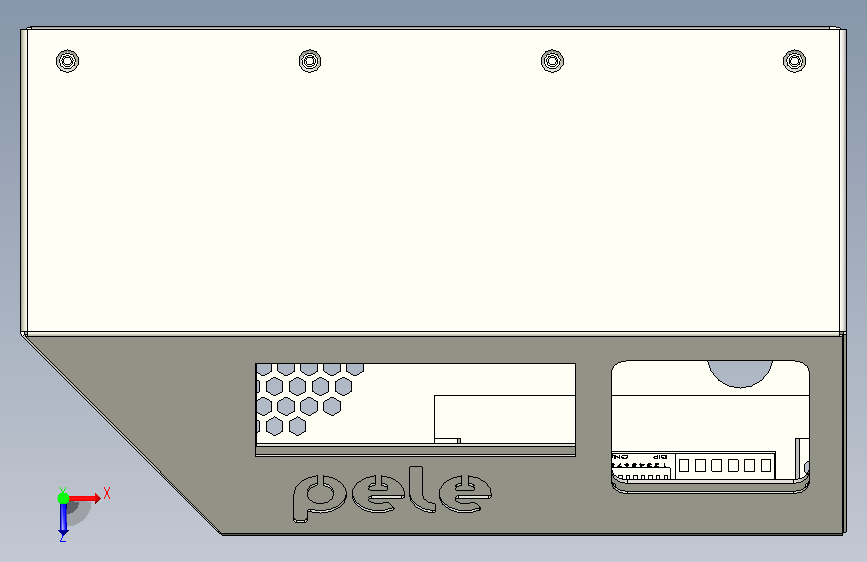

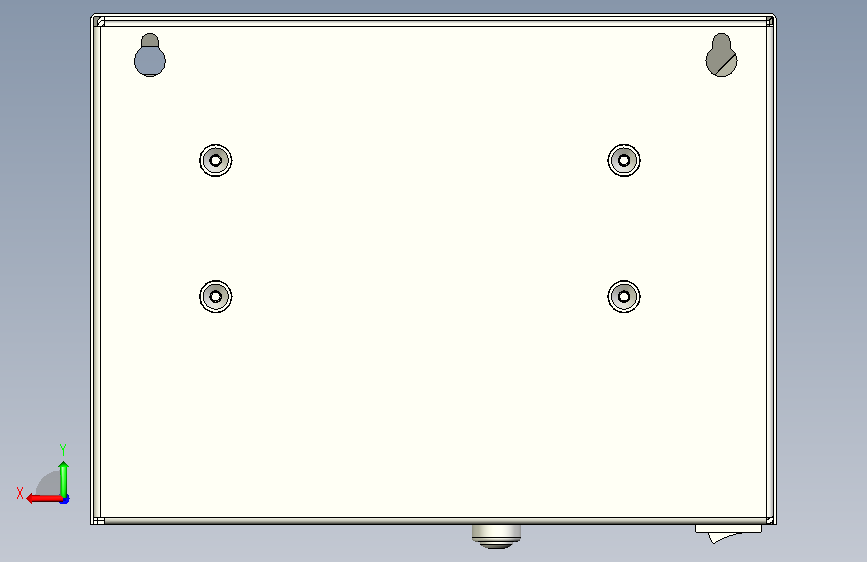

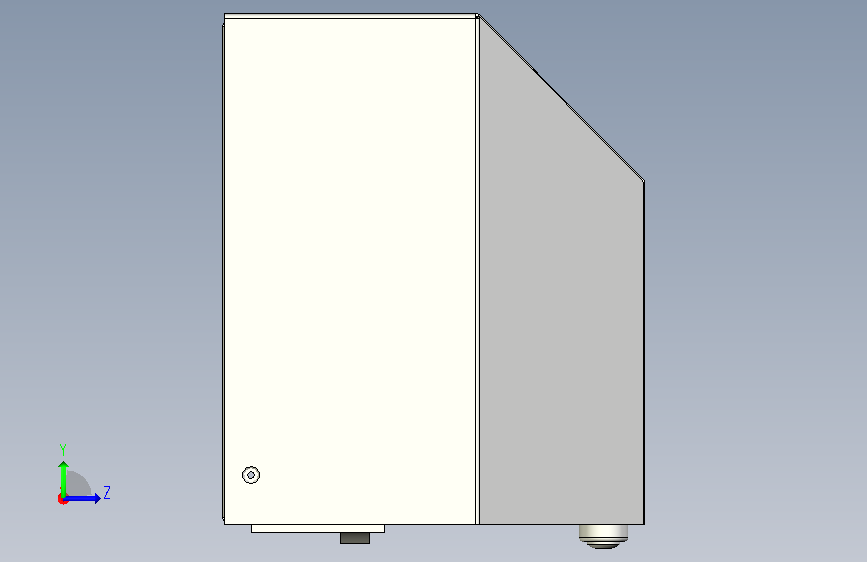

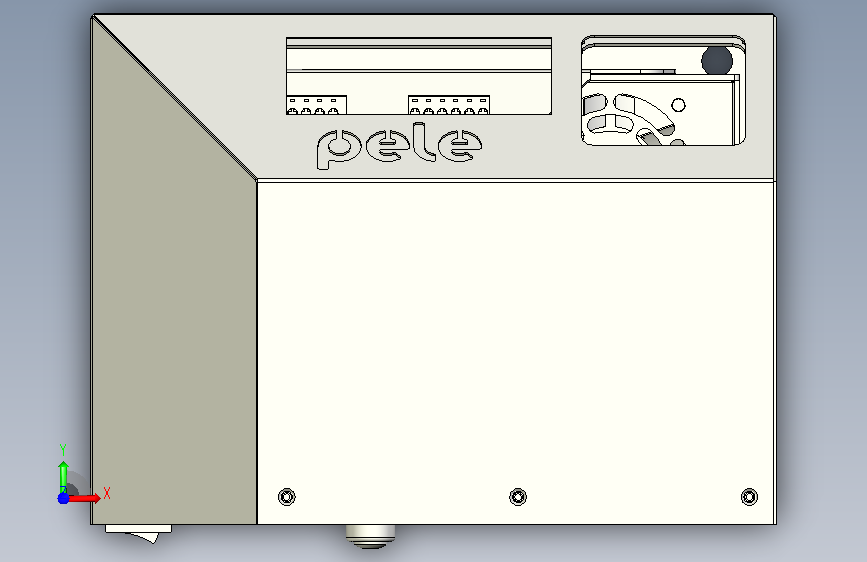

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	80mmRadialFan^control_panel.ipt	1.60M
2	ArduinoLeonardo^control_panel.ipt	648.50K
3	base^control_panel_1.ipt	1.19M
4	bndg^control_panel.ipt	172.50K
5	bush_d4.5^control_panel.ipt	117.00K
6	bush_m3^control_panel.ipt	100.00K
7	button^control_panel.ipt	142.50K
8	DC-DC12A^control_panel_00.ipt	1.22M
9	DM542^control_panel_Standard.ipt	1.01M
10	Fan60x60x25mm^control_panel.iam	343.00K
11	keypad^control_panel.iam	142.50K
12	LCD20x4Display.ipt	495.00K
13	meanwell_lrs-350-24^control_panel.ipt	2.11M
14	Power_Switch^control_panel.ipt	183.50K
15	prevailingtorquenutstyle1insert_din_DINENISO7040-M4-N.ipt	180.00K
16	socketbuttonheadscrew_iso_ISO7380-M3x10-10N.ipt	143.00K
17	socketbuttonheadscrew_iso_ISO7380-M3x12-12N.ipt	140.50K
18	socketbuttonheadscrew_iso_ISO7380-M4x12-12N.ipt	145.50K
19	socketcountersunkheadscrew_din_DIN7991-M4x10---5.6N.ipt	127.50K
20	socketcountersunkheadscrew_iso_ISO10642-M3x8-8N.ipt	126.50K
21	socketcsinkheadcapscrew10642_din_ENISO10642-M4x35-20N.ipt	111.00K
22	SW3dPS-fan60x60x25mm_CarcasaVentilador60x60^Fan60x60x25mm_control_panel.ipt	1.03M
23	SW3dPS-fan60x60x25mm_CarcasaVentilador60x60_2^Fan60x60x25mm_control_panel.ipt	512.50K
24	Êîïèÿkey^keypad_control_panel.ipt	102.00K
25	Êîïèÿpcb^keypad_control_panel.ipt	140.00K
26	Êîïèÿplastic_base^keypad_control_panel.ipt	180.00K
27	翁特罗尔控制面板.stp	16.34M
28	翁特罗尔控制面板.stp.iam	2.04M
