电动滚筒输送线

（ID:3150721）

改图/画图

机械设备 / 输送提升设备 / 电动滚筒输送线

©非原创

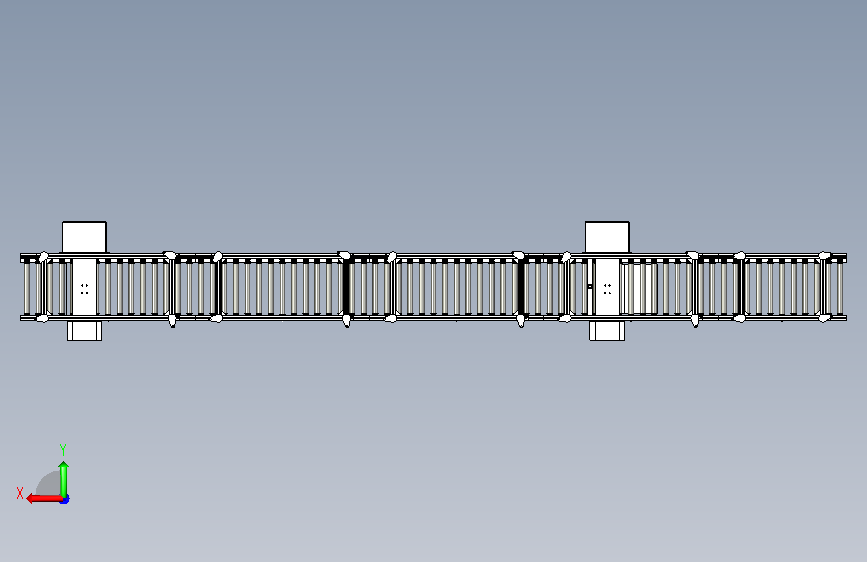

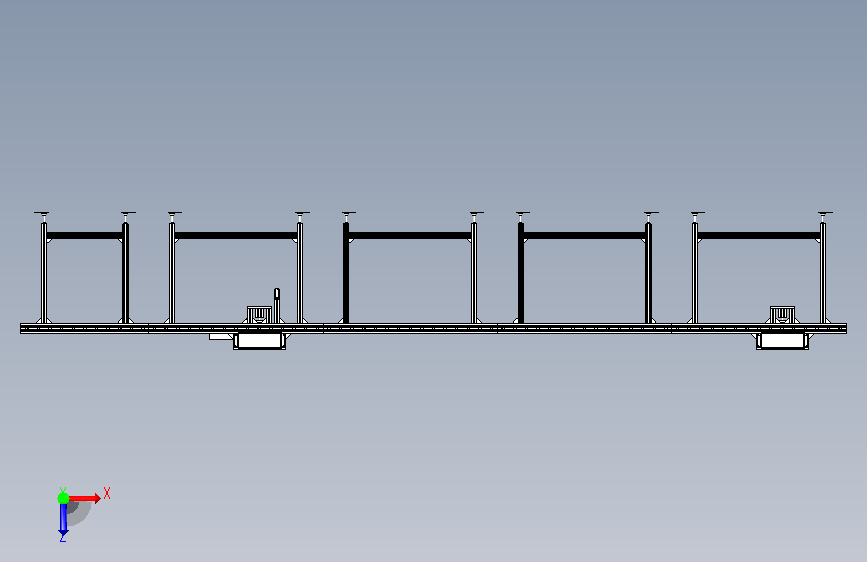

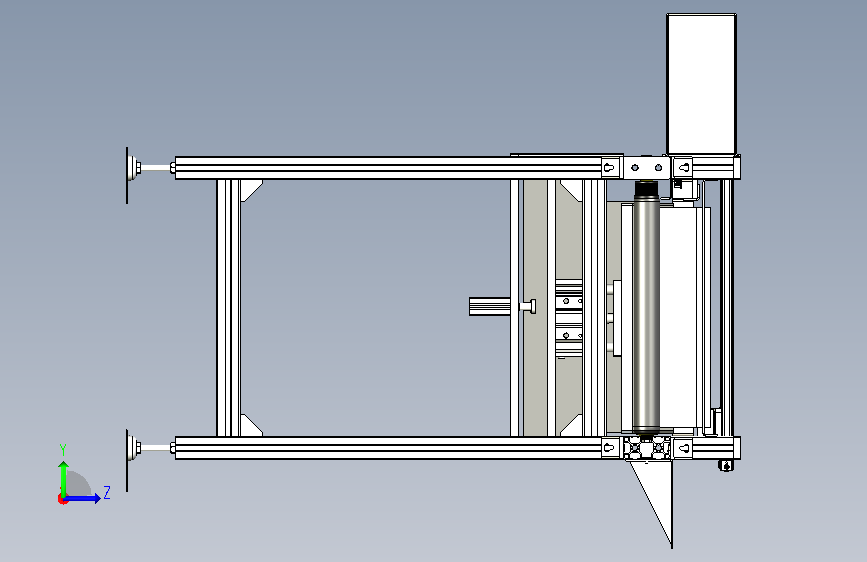

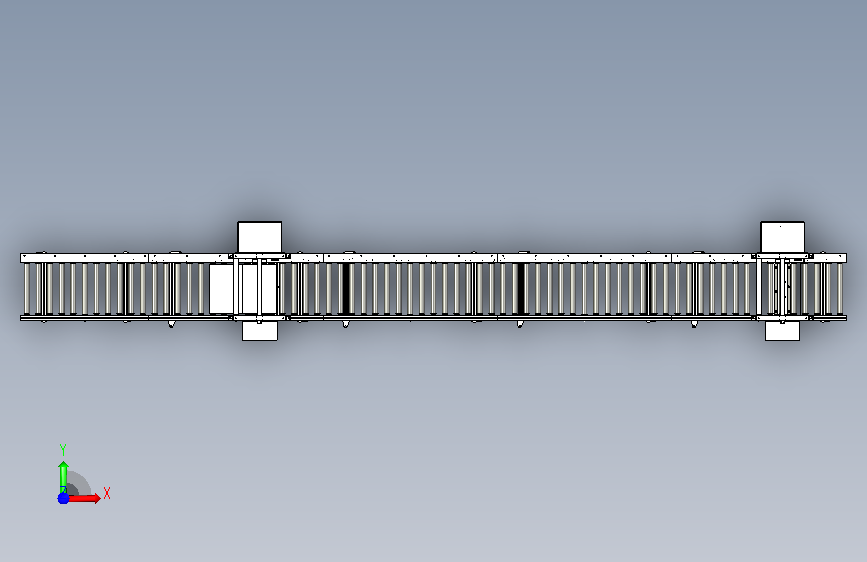

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	111_06米底架.prt	3.68M
2	111_06米料滚筒线装配.prt	188.00K
3	111_06米盖板.prt	140.00K
4	111_5米料滚筒线装配.prt	204.00K
5	114545角o.prt	200.00K
6	11CRxxxx_Housing.prt	128.00K
7	11CRxxxx_Shaft_Left.prt	120.00K
8	11CRxxxx_Shaft_Right.prt	120.00K
9	11CRxxxx_Sprocket_PA_PolyVee_Round_Flat_Timing_T20.prt	180.00K
10	11CRxxxx_Tube.prt	124.00K
11	11CRxxxx_Tube_1.prt	120.00K
12	11EC3100_Motor_IP54.prt	196.00K
13	11FJKNS12-100.prt	116.00K
14	11IC3100_Sprocket_PA_PolyVee_Round_Timing_T20_1.prt	224.00K
15	11Interroll_R83510_DE10_EC3100_Roller_Series.prt	116.00K
16	11Interroll_R83511_DE10_CR3500_Roller_Series.prt	120.00K
17	11i盖.prt	132.00K
18	11SICKGTB6-P1212-Orderno_10524440.prt	112.00K
19	11SRL3-00-16B-700-L1U.prt	116.00K
20	11SRL3-00-16B-700-L1U_SRL3-BodyAssy.prt	680.00K
21	11SRL3-00-16B-700-L1U_SRL3-TableAssy.prt	460.00K
22	11SSD-L-20D-50-N.prt	116.00K
23	11SSD-L-20D-50-N_SSD-BodyAssy.prt	304.00K
24	11SSD-L-20D-50-N_SSD-Nut020.prt	140.00K
25	11SSD-L-20D-50-N_SSD-PRN13020.prt	140.00K
26	11STS-B-50-25.prt	116.00K
27	11STS-B-50-25_STSL-BodyAssy.prt	512.00K
28	11STS-B-50-25_STSL-EPAssy.prt	220.00K
29	11_FJKNS12-100pad.prt	148.00K
30	11_FJKNS12-100screw.prt	132.00K
31	11_SICKGTB6-P1212-Orderno_10524440-1.prt	596.00K
32	11中o_撑.prt	144.00K
33	11产品.prt	120.00K
34	11产品挡板.prt	148.00K
35	11产品挡板2.prt	172.00K
36	11传感器_架.prt	156.00K
37	11侧推_构.prt	132.00K
38	11侧推_架.prt	372.00K
39	11侧推气缸固定板.prt	140.00K
40	11保护罩.prt	228.00K
41	11孔塞.prt	120.00K
42	11底架.prt	3.74M
43	11托板.prt	180.00K
44	11挡板.prt	144.00K
45	11推杆.prt	140.00K
46	11推板.prt	140.00K
47	11气缸头.prt	124.00K
48	11盖板.prt	144.00K
49	11调节板.prt	152.00K
50	11阻挡_构.prt	124.00K
51	11阻挡气缸固定板.prt	132.00K
52	11顶升_构.prt	124.00K
53	11顶升_架.prt	372.00K
54	11顶升_架1.prt	372.00K
55	11顶升块.prt	144.00K
56	11顶升气缸固定板.prt	140.00K
57	11顶块.prt	140.00K
58	电动滚筒输送线.igs	35.34M
59	电动滚筒输送线.prt	448.00K
60	电动滚筒输送线.x_t	18.20M
