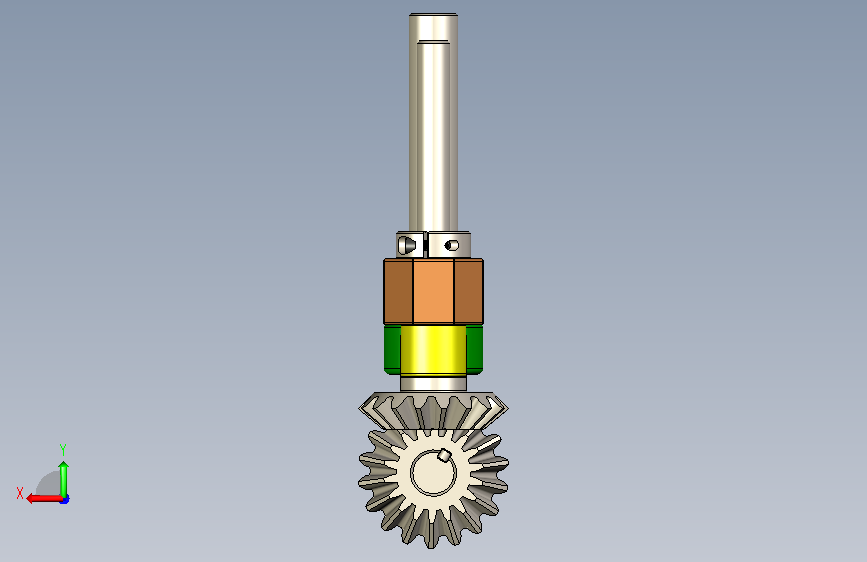

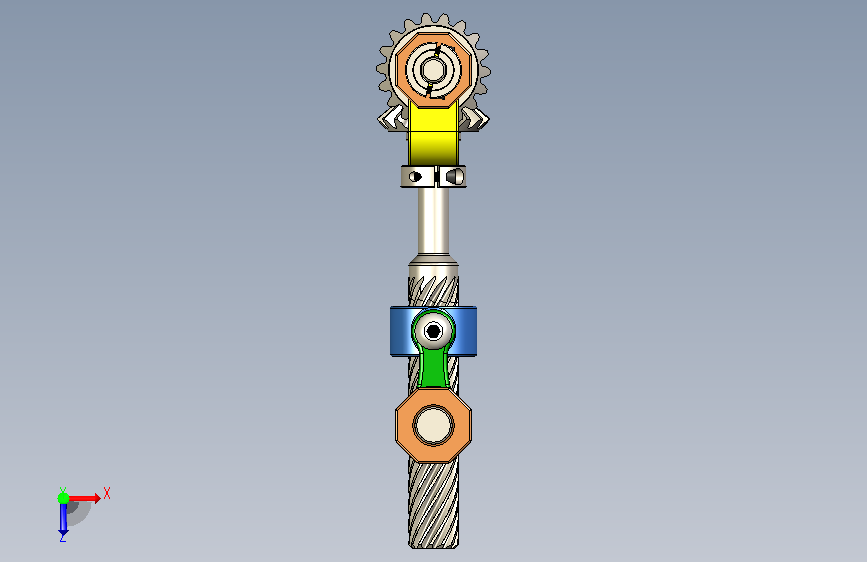

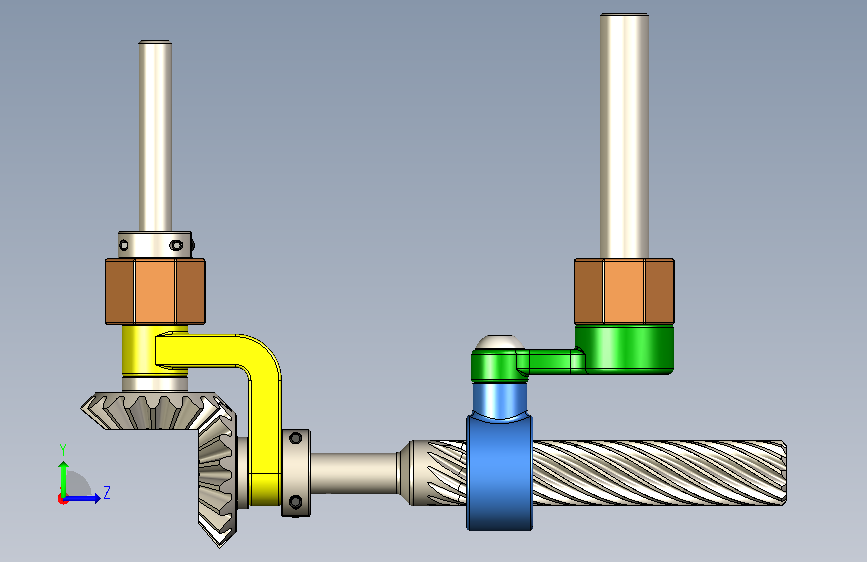

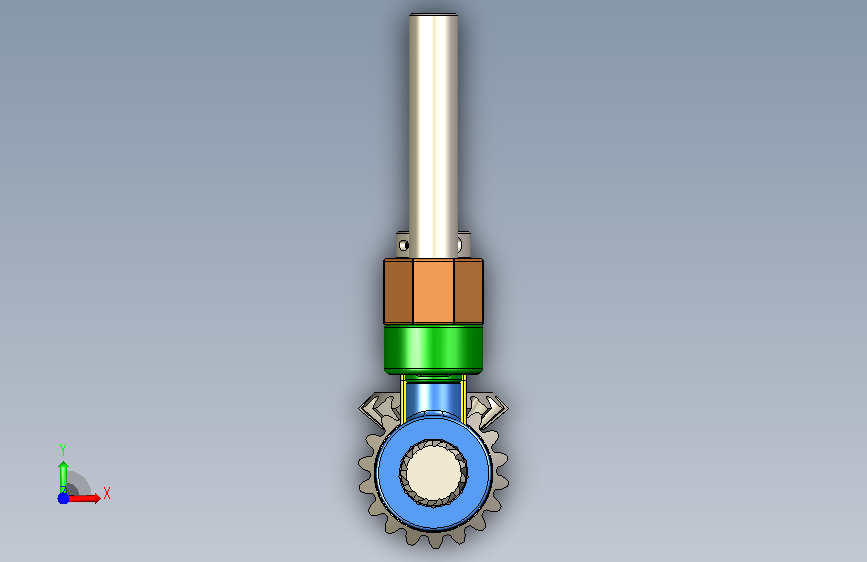

往复花键机构

（ID:3152223）

改图/画图

设备部件 / 传动部件 / 往复花键机构

©非原创

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	Reciprocating_Spline_6436K140_TWO-PIECECLAMP-ONSHAFTCOLLAR_1_2.prt	160.00K
2	Reciprocating_Spline_6436K140_TWO-PIECECLAMP-ONSHAFTCOLLAR_1_2_1.prt	384.00K
3	Reciprocating_Spline_6436K140_TWO-PIECECLAMP-ONSHAFTCOLLAR_1_2_2.prt	384.00K
4	Reciprocating_Spline_6436K140_TWO-PIECECLAMP-ONSHAFTCOLLAR_1_2_3.prt	160.00K
5	Reciprocating_Spline_6436K150_TWO-PIECECLAMP-ONSHAFTCOLLAR_5_8.prt	160.00K
6	Reciprocating_Spline_6436K150_TWO-PIECECLAMP-ONSHAFTCOLLAR_5_8_1.prt	448.00K
7	Reciprocating_Spline_6436K150_TWO-PIECECLAMP-ONSHAFTCOLLAR_5_8_2.prt	448.00K
8	Reciprocating_Spline_6436K150_TWO-PIECECLAMP-ONSHAFTCOLLAR_5_8_3.prt	160.00K
9	Reciprocating_Spline_Allen_SBH_1.prt	148.00K
10	Reciprocating_Spline_assembled_bearings.prt	116.00K
11	Reciprocating_Spline_assembled_nut.prt	116.00K
12	Reciprocating_Spline_assembled_output_axle.prt	124.00K
13	Reciprocating_Spline_assembled_threaded_axle.prt	124.00K
14	Reciprocating_Spline_bearing1.prt	188.00K
15	Reciprocating_Spline_Bevel_Gear_18M3A.prt	692.00K
16	Reciprocating_Spline_Bevel_Gear_18M3B.prt	704.00K
17	Reciprocating_Spline_Input_lever.prt	196.00K
18	Reciprocating_Spline_keyway_1.prt	132.00K
19	Reciprocating_Spline_keyway_2.prt	132.00K
20	Reciprocating_Spline_nutGearTrax.prt	1.02M
21	Reciprocating_Spline_output_axle.prt	160.00K
22	Reciprocating_Spline_swinging_bearing.prt	196.00K
23	Reciprocating_Spline_threaded_axleSW.prt	6.03M
24	往复花键机构.prt	136.00K
25	往复花键机构.stp	28.47M
26	往复花键机构.x_t	24.18M
