4YZS2460振动筛分机CAD

（ID:3267962）

改图/画图

机械设备 / 通用设备 / 4YZS2460振动筛分机CAD

©原创

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

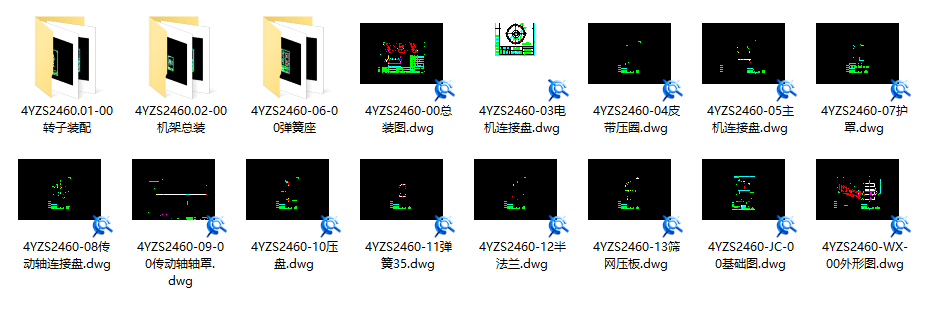

#	文件名称	文件大小

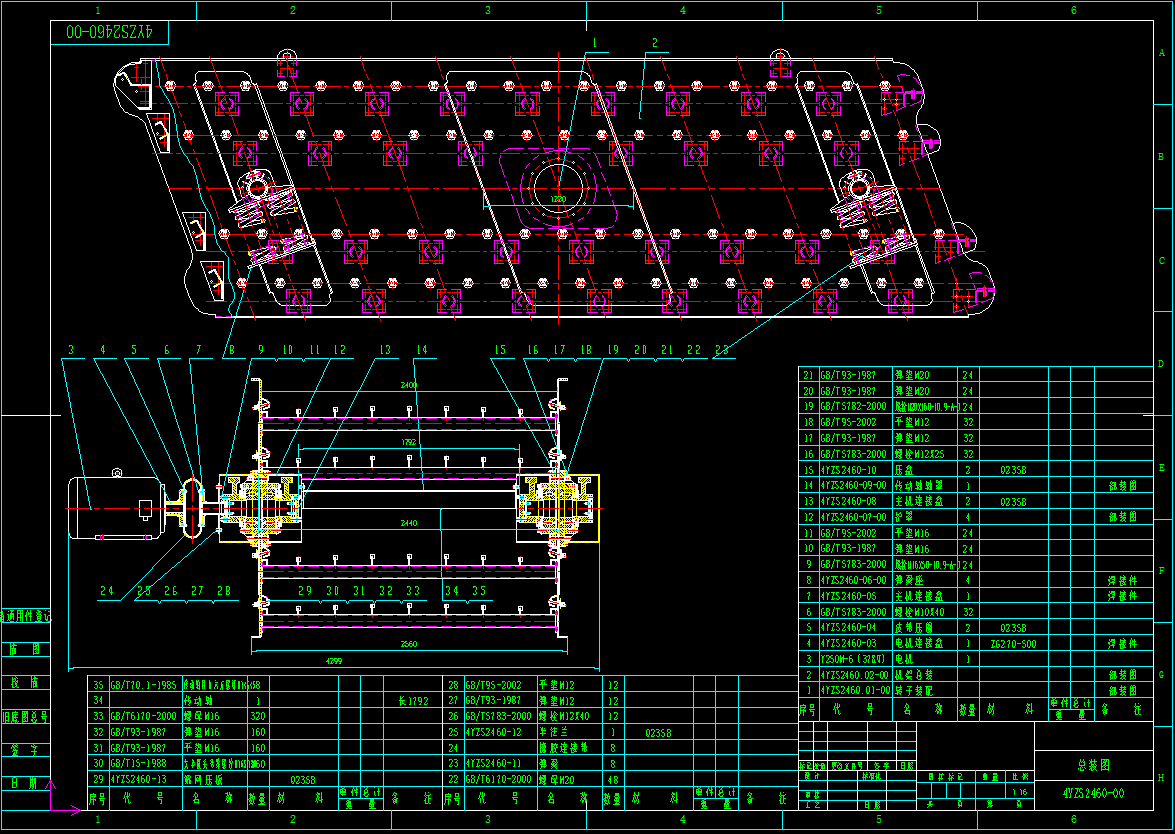

1	4YZS2460-00总装图.dwg	523.73K
2	4YZS2460-03电机连接盘.dwg	79.50K
3	4YZS2460-04皮带压圈.dwg	194.62K
4	4YZS2460-05主机连接盘.dwg	211.28K
5	4YZS2460-07护罩.dwg	210.93K
6	4YZS2460-08传动轴连接盘.dwg	206.10K
7	4YZS2460-09-00传动轴轴罩.dwg	200.74K
8	4YZS2460-10压盘.dwg	200.80K
9	4YZS2460-11弹簧35.dwg	191.42K
10	4YZS2460-12半法兰.dwg	196.18K
11	4YZS2460-13筛网压板.dwg	202.79K
12	4YZS2460-JC-00基础图.dwg	228.67K
13	4YZS2460-WX-00外形图.dwg	300.43K
14	4YZS2460-06-00弹簧座.dwg	212.89K
15	4YZS2460-06-01管子切头.dwg	189.84K
16	4YZS2460-06-02弹簧座底板.dwg	191.75K

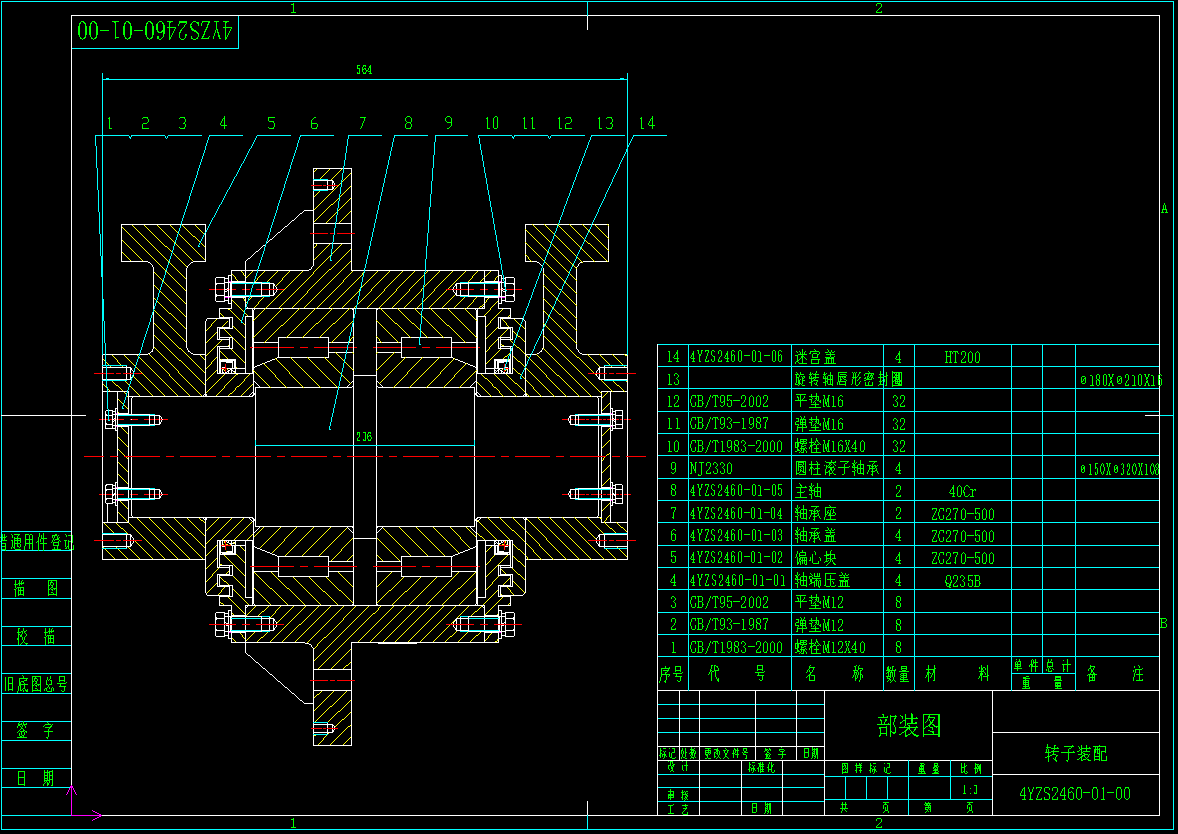

17	4YZS2460.01-00转子装配.dwg	264.29K
18	4YZS2460.01-01轴端压盖.dwg	193.12K
19	4YZS2460.01-02偏心块.dwg	220.97K
20	4YZS2460.01-03轴承盖.dwg	216.99K
21	4YZS2460.01-04轴承座.dwg	248.93K
22	4YZS2460.01-05主轴.dwg	224.46K
23	4YZS2460.01-06迷宫盖.dwg	205.79K

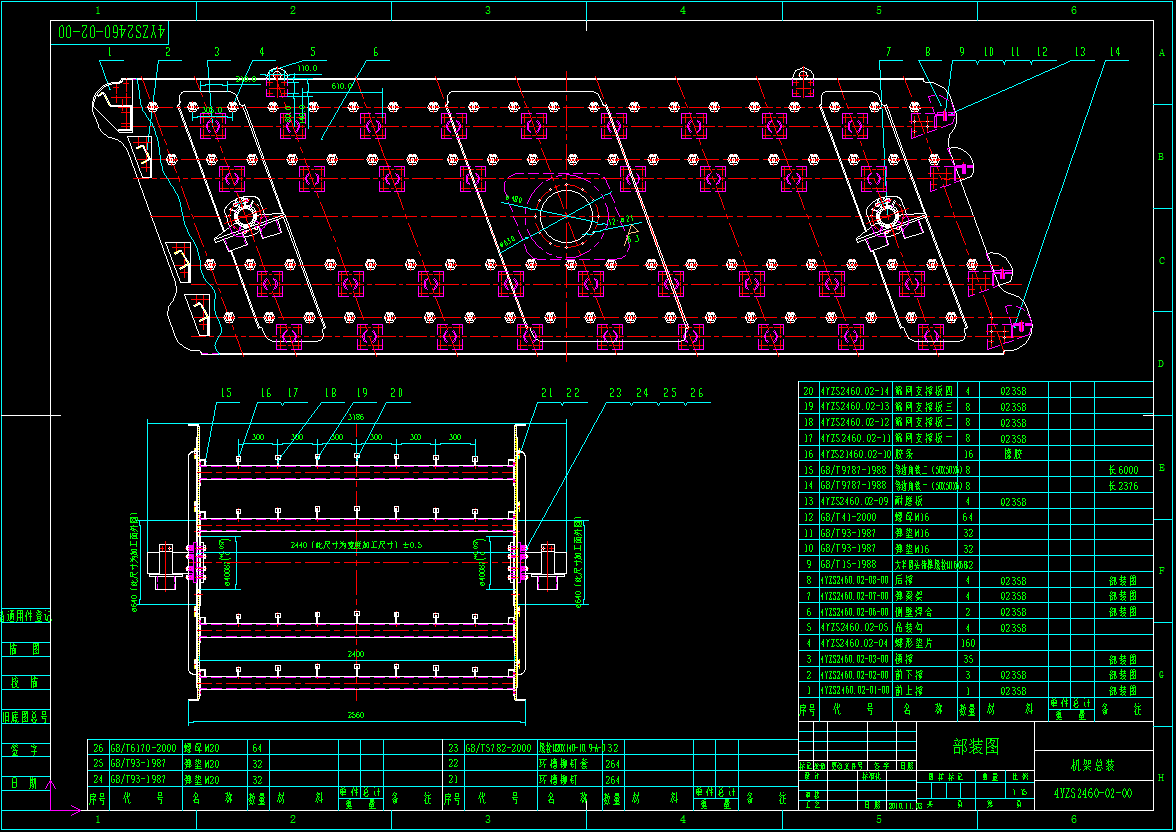

24	4YZS2460.02-00机架总装.dwg	355.03K
25	4YZS2460.02-04垫片.dwg	204.28K
26	4YZS2460.02-05吊装勾.dwg	199.73K
27	4YZS2460.02-01-00前上撑.dwg	223.06K
28	4YZS2460.02-01-01前上撑弯板（改）.dwg	206.65K
29	4YZS2460.02-01-02前上撑端板（改）.dwg	204.32K
30	4YZS2460.02-01-03前上撑筋板.dwg	196.14K
31	4YZS2460.02-02-00前下撑.dwg	210.10K
32	4YZS2460.02-02-01前下撑弯板.dwg	196.55K
33	4YZS2460.02-02-02前下撑端板.dwg	196.67K
34	4YZS2460.02-02-03前下撑筋板.dwg	187.72K
35	4YZS2460.02-03-00小横撑.dwg	207.01K
36	4YZS2460.02-03-01横撑端板.dwg	195.10K
37	4YZS2460.02-06-00侧壁焊合.dwg	290.03K
38	4YZS2460.02-06-01侧板.dwg	214.84K
39	4YZS2460.02-06-02小加强板.dwg	217.49K
40	4YZS2460.02-06-03大加强板.dwg	215.78K
41	4YZS2460.02-06-04内加强板.dwg	196.19K
42	4YZS2460.02-07-00弹簧架.dwg	245.37K
43	4YZS2460.02-07-01支撑板.dwg	196.68K
44	4YZS2460.02-07-02锁紧圈.dwg	195.41K
45	4YZS2460.02-07-03弹簧架三角筋板.dwg	189.67K
46	4YZS2460.02-07-04弹簧架异形筋板.dwg	192.77K
47	4YZS2460.02-07-06支承轴.dwg	192.28K
48	4YZS2460.02-08-00后撑.dwg	202.23K
49	4YZS2460.02-08-01后撑弯板.dwg	195.89K
50	4YZS2460.02-08-02后撑端板（改）.dwg	200.04K
