液压缸翻盖闸阀（ID:331685）

设备部件 / 液压气动元件 / 液压缸翻盖闸阀

©非原创

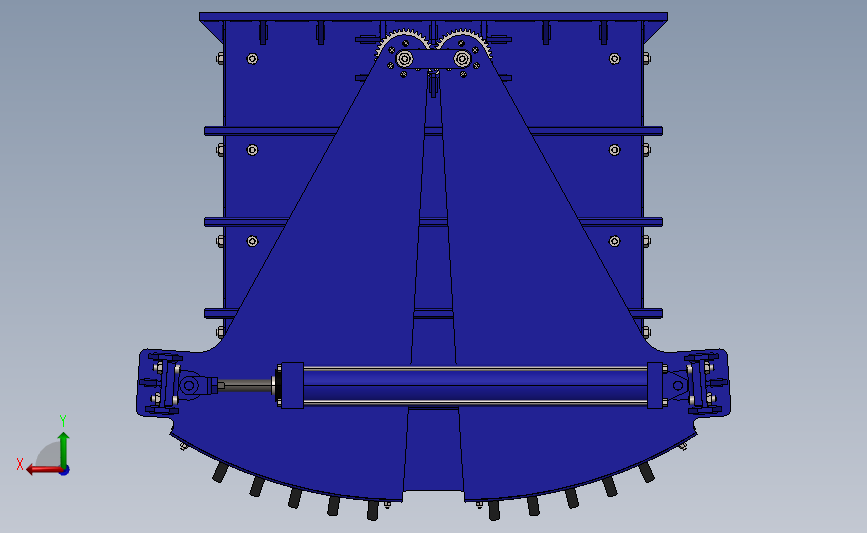

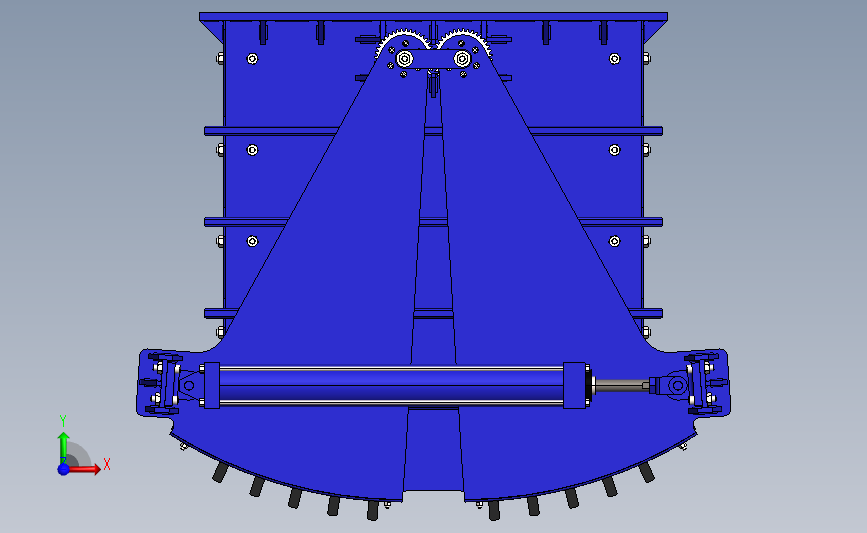

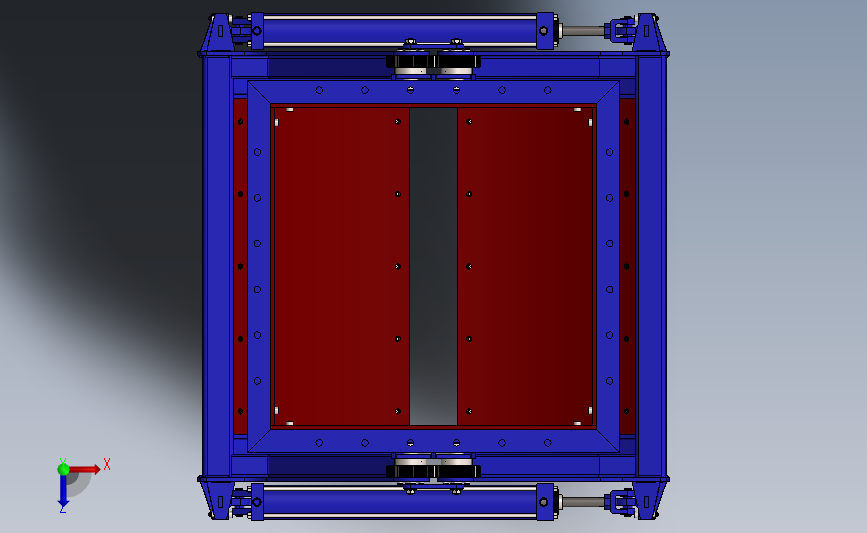

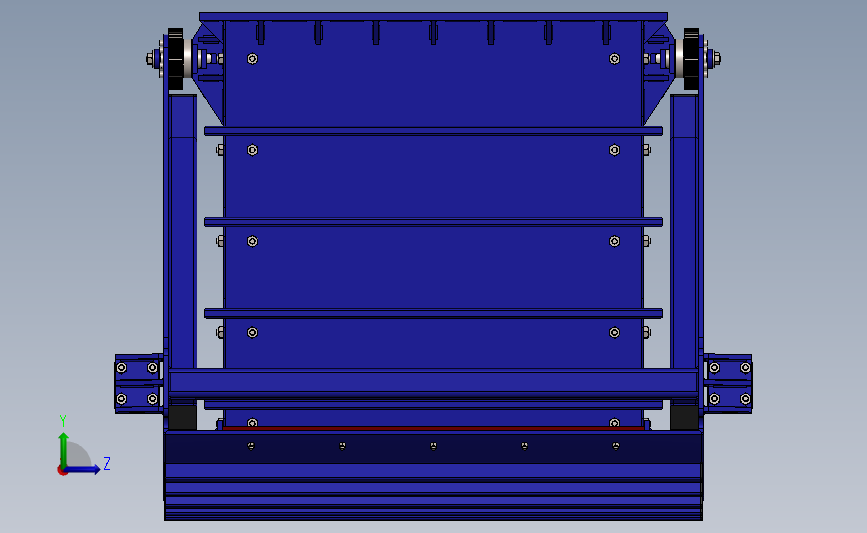

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16629954227762.zip	9.93M
2	CSG Final Assembly.SLDASM	1.44M
3	CSG Shaft Misalign Plate 10mm LASER.SLDPRT	60.99K
4	CSG Fix Assembly.SLDASM	558.77K
5	CSG FixAssembly Weld.sldprt	1.19M
6	CSG Front Plate 10mm LASER.SLDPRT	111.38K
7	CSG Front Wear Resist Plate 10mm LASER.sldprt	64.92K
8	CSG Right Plate 10mm LASER.SLDPRT	68.38K
9	CSG Right Wear Resist Plate 10mm LASER.SLDPRT	63.90K
10	CSG Shaft Support 1 Plate 10mm LASER.SLDPRT	67.86K
11	CSG Shaft Support 2 Plate 10mm LASER.SLDPRT	66.72K
12	CSG Shaft Support 3 Plate 10mm LASER.SLDPRT	64.81K
13	CSG Shaft Support Plate Attach 10mm LASER.SLDPRT	101.19K
14	CSG Shaft.SLDPRT	132.51K
15	CSG Support Profile 40X20.sldprt	102.28K
16	CSG Top Plate 16mm.SLDPRT	54.02K
17	CSG Top Weld Rib Plate 10mm LASER.SLDPRT	42.53K
18	CSG Weld Rib 1 Plate 10mm LASER.SLDPRT	53.46K
19	CSG Weld Rib 2 Plate 10mm LASER.SLDPRT	46.67K
20	RF10GE5N1KA27000_AH2_AH5_AH9_AC2_AC5_ZR00.sldasm	228.51K
21	_C_219_3_2_13.sldprt	143.42K
22	_FRC_0750_17.sldprt	98.57K
23	_HR5C_3_25x0_01_N_1_00_N_1_1_000_R00000_00R0_cap_6.sldprt	99.84K
24	_HR5C_3_25x27_00_N_1_00_N_1_1_000_R00000_00R0_head_2.sldprt	88.09K
25	_R5C_3_251_0_0_c_26.sldprt	151.13K
26	_R5_3_25_00X027_00128_2500_tube_4.sldprt	59.99K
27	_R5_3_25_0_375X0_375_nut_8.sldprt	101.44K
28	_R5_3_25_0_375X32X2_125X0_625_tie_rod_28.sldprt	54.71K
29	_R5_3_25_1_21_31_3750_1_25027000_rod_15.sldprt	66.26K
30	_R5_A_3_25_1_bearing_20.sldprt	96.65K
31	CSG Connector Tube 100X60X5X1106.SLDPRT	68.36K
32	CSG Gear_m3.0_z40_.SLDPRT	841.77K
33	CSG Left Moving Assembly.SLDASM	878.53K
34	CSG Lip_Seal_30_42_8.sldprt	112.36K
35	CSG Lip_Seal_38_62_8.sldprt	143.87K
36	CSG Moving Assemble Weld.sldprt	442.34K
37	CSG Moving Structure 60X60 Cover.sldprt	60.40K
38	CSG Moving Structure.SLDPRT	410.83K
39	CSG Right Moving Assembly.SLDASM	806.30K
40	CSG Roll Profile Support 40X20X1115.SLDPRT	62.83K
41	CSG Roll Profile Support End Tube.sldprt	58.33K
42	CSG Hydraulic Attach Plate 10mm LASER.SLDPRT	72.79K
43	CSG Hydraulic Attach Rib Plate 10mm LASER.SLDPRT	44.63K
44	CSG Hydraulic Cylinder Support Plate 10mm LASER.SLDPRT	57.21K
45	CSG Roll Back Attach Plate 10mm LASER.SLDPRT	104.51K
46	CSG Roll Front Attach Plate 10mm LASER.SLDPRT	105.20K
47	CSG Roll Plate 10mm LASER.SLDPRT	104.52K
48	CSG Roll Wear Resist Plate 10mm LASER.SLDPRT	121.04K
49	CSG Roll Wear Resist Rear Plate 10mm LASER.SLDPRT	56.11K
50	MirrorCSG Roll Plate 10mm LASER.SLDPRT	54.31K
