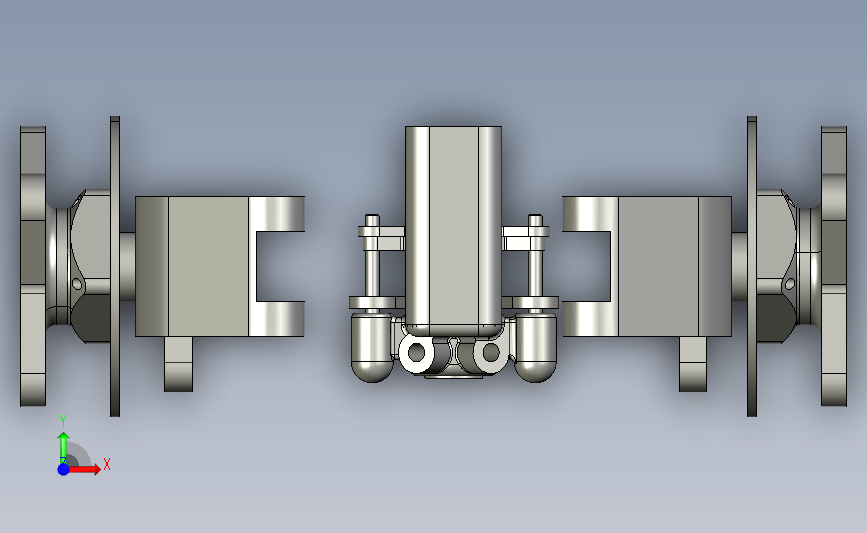

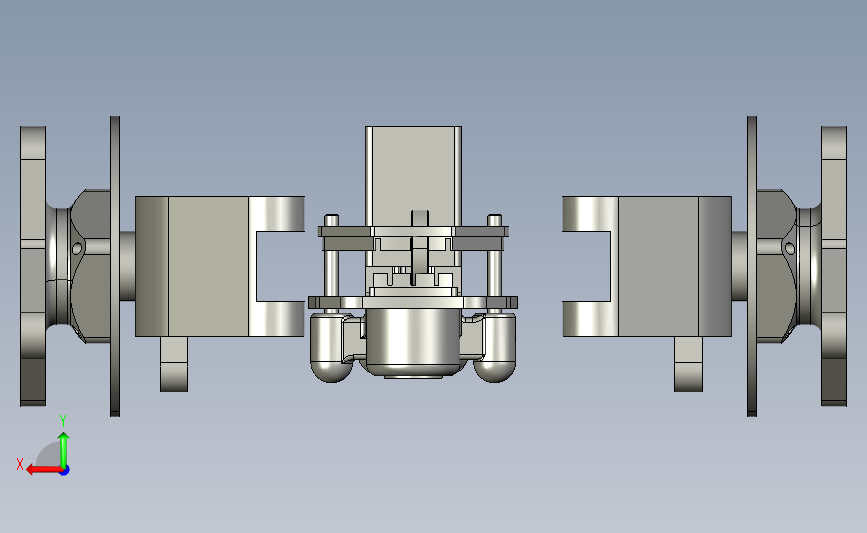

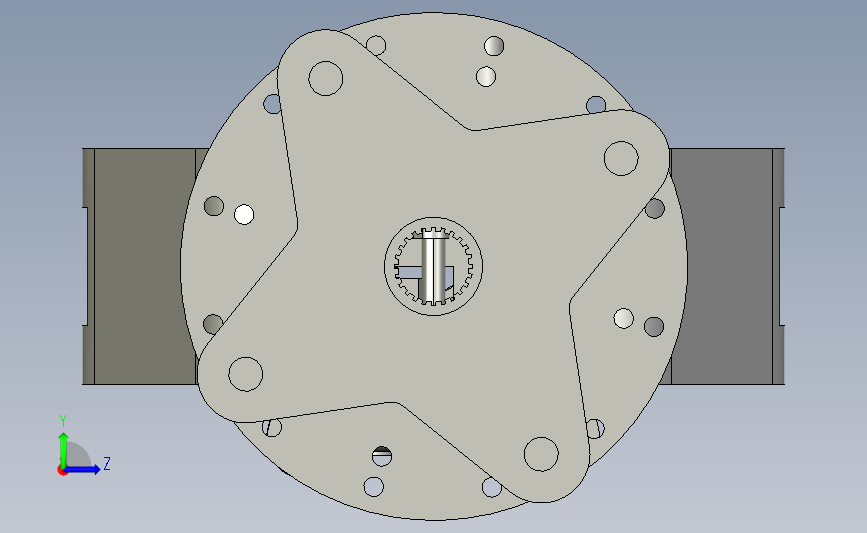

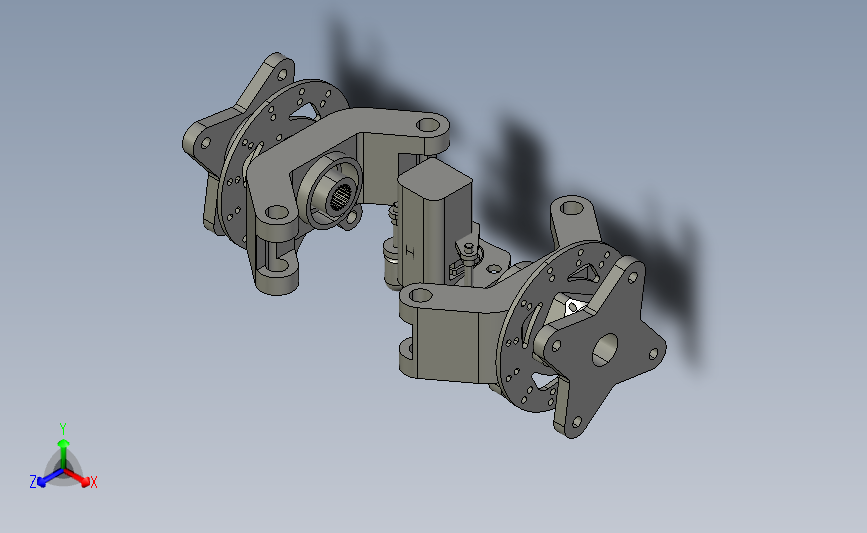

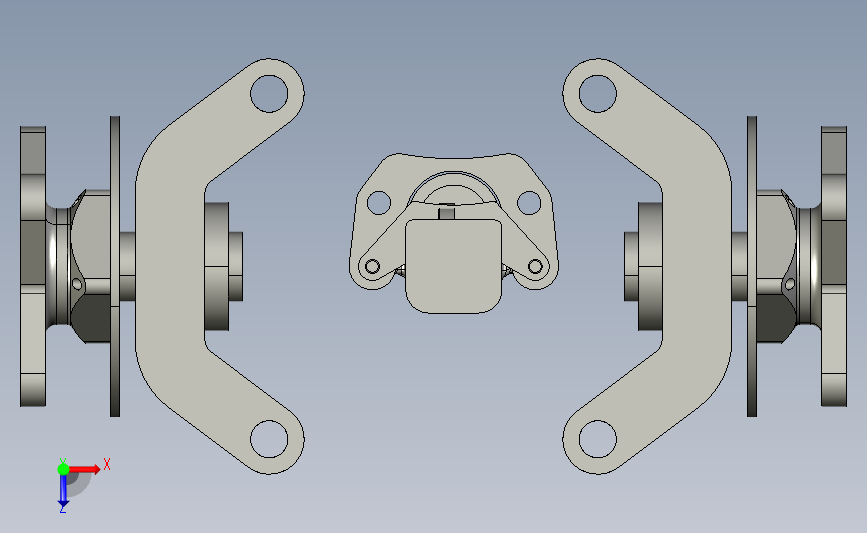

BAJA 后轮总成catia（ID:333269）

机械设备 / 非标机械 / BAJA 后轮总成catia

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	166333891026.zip	26.91M
2	axel-simulated-assembly-tabish.CATProduct	84.53K
3	baja rear wheel hub .CATPart	551.31K
4	BAJA_WHEEL.CATPart	11.81M
5	bearing rear.CATPart	92.34K
6	bearing rear.STEP	66.47K
7	bearing.STEP	66.49K
8	bearings cad.stp	41.37K
9	black-last-part.CATPart	237.67K
10	both rear hub nad knuckle.stp	1.76M
11	brake pad 2.stp	55.10K
12	brake.stp	151.96K
13	CALIPER_VESPA_2018.CATPart	632.05K
14	calliper casing.stp	545.87K
15	combined wheel assembly.CATProduct	31.92K
16	green-part.CATPart	972.90K
17	inner-cv-s-for-torsen-differential-1.snapshot.1.zip	22B
18	left wheel assembly rear 2021.CATProduct	71.92K
19	middle-shaft.CATPart	163.49K
20	mounting.stp	39.45K
21	nut.CATPart	970.29K
22	Outer CV Bearing Ring.CATPart	292.14K
23	Outer CV Bearing Star.CATPart	1.02M
24	Outer CV Bearing.CATPart	40.27K
25	Outer CV Complete.CATProduct	18.26K
26	Outer CV.CATPart	674.76K
27	outer-cv-s-for-torsen-differential-1.snapshot.1.zip	4.62M
28	pin.stp	377.58K
29	radial ball bearing_68_am_AFBMA 20.stp	52.22K
30	rar upright .CATPart	400.27K
31	rear hub.stp	276.10K
32	rear left upright .CATPart	364.51K
33	rubber-part.CATPart	285.29K
34	sample rear assembly.CATProduct	82.67K
35	sample rotar .CATPart	243.08K
