低成本3d打印机使用CoreXY 龙门设计（ID:334599）

数码电器 / 其它电器 / 低成本3d打印机使用CoreXY 龙门设计

©非原创

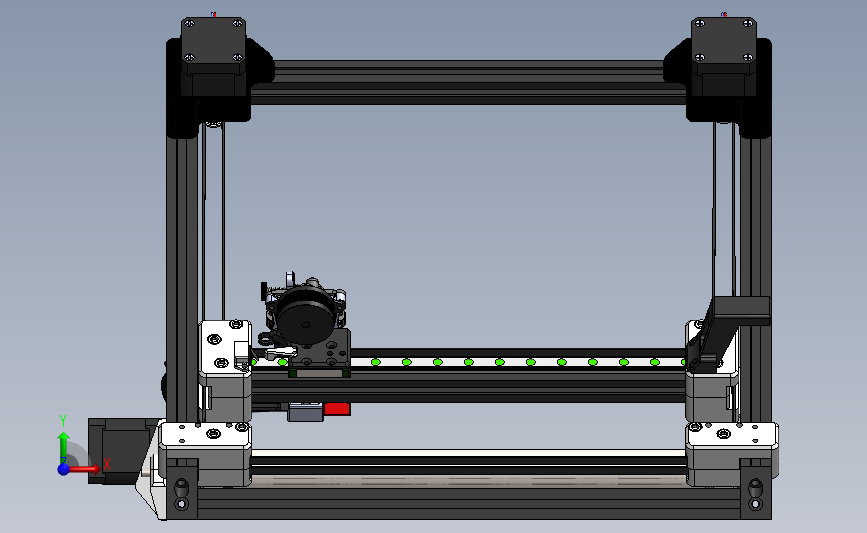

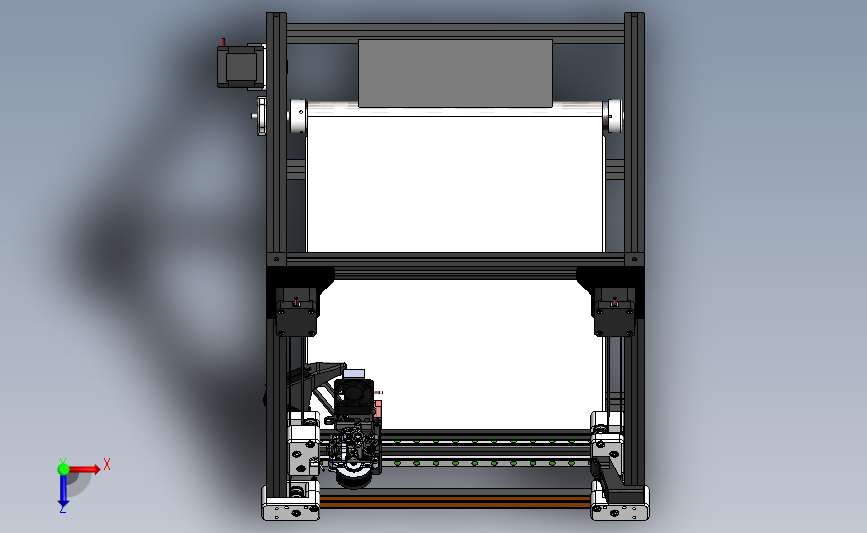

平面图

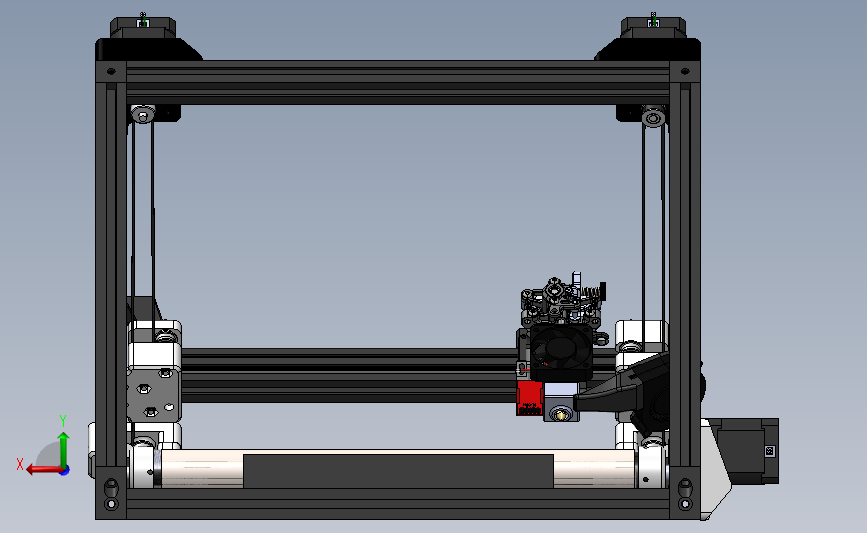

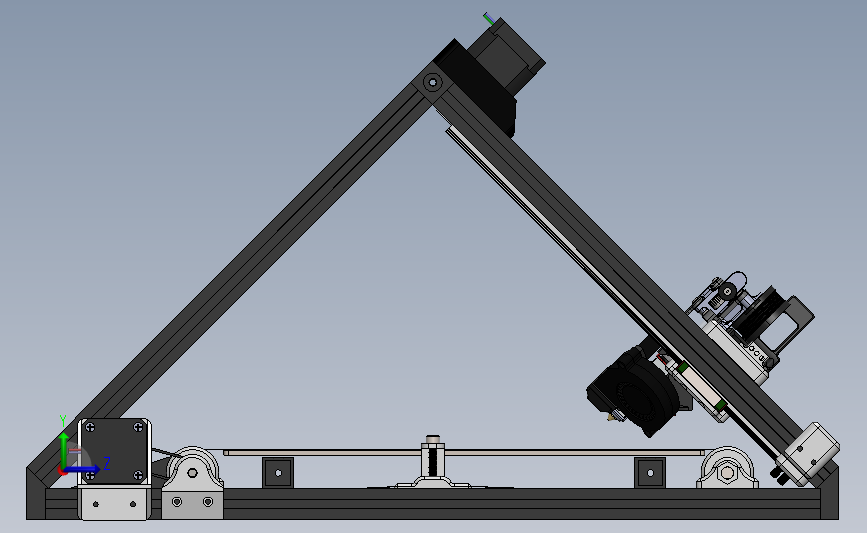

3D视图

文件列表

#	文件名称	文件大小
1	16634737814224.zip	545.52M
2	250mm_extrusion.SLDPRT	113.70K
3	300mm_extrusion.SLDPRT	111.79K
4	310mm_extrusion.SLDPRT	111.63K
5	330mm_cf_tube.SLDPRT	112.80K
6	330mm_cf_tube_thin.SLDPRT	61.76K
7	350mm_extrusion.SLDPRT	111.26K
8	450mm_extrusion.SLDPRT	111.53K
9	500mm_extrusion.SLDPRT	124.77K
10	Frame.SLDASM	186.54K
11	printer_larger.SLDASM	70.34M
12	printer_larger.SLDPRT	80.98M
13	printer_larger.STEP	116.82M
14	bed.SLDPRT	82.33K
15	bed_countersunk_screw.sldprt	484.33K
16	bed_countersunk_screw_1.SLDPRT	252.31K
17	bed_mount_300mm.SLDPRT	136.21K
18	bed_mount_bracket.SLDPRT	67.57K
19	bed_spring.SLDPRT	620.76K
20	5mm_roller_shaft.SLDPRT	44.04K
21	605_bearing.SLDPRT	143.52K
22	bearing_roller.SLDPRT	43.59K
23	belt_motor_mount.SLDPRT	170.80K
24	flange_coupling.SLDPRT	90.70K
25	M5x30.SLDPRT	1.30M
26	ramp_mount.SLDPRT	94.59K
27	roller_rod.SLDPRT	43.59K
28	scraper_ramp.SLDPRT	63.32K
29	spring.SLDPRT	621.18K
30	tensioner_mount.SLDPRT	106.80K
31	tensioner_mount_mount.SLDPRT	160.42K
32	tensioner_screw.SLDPRT	1.45M
33	tube_holder.SLDPRT	116.16K
34	tube_holder_motor_side.SLDPRT	142.87K
35	tube_holder_tensioner.SLDPRT	106.80K
36	tube_mount.SLDPRT	180.94K
37	tube_mount_motor_side.SLDPRT	143.71K
38	tube_mount_with_tension.SLDPRT	180.94K
39	~$tube_mount_with_tension.SLDPRT	13B
40	belt_motor_mount.STL	98.13K
41	ramp_mount.STL	20.39K
42	scraper_ramp.STL	16.29K
43	tensioner_mount.STL	35.73K
44	tensioner_mount_mount.STL	50.08K
45	tube_holder.STL	95.10K
46	tube_holder_motor_side.STL	139.54K
47	tube_mount.STL	88.56K
48	tube_mount_motor_side.STL	73.42K
49	12864mini.step	14.11M
50	meanwell_lrs-350-24.SLDPRT	2.03M
51	meanwell_lrs-350-24_UPDATED.stp	2.89M
52	PP4003 - IEC Fuse Chassis Male Power Plug with Switch.step	259.94K
53	Spider V1.0C.DWG	124.31K
54	Spider V1.0C.step	92.23M
55	12864mini.step.SLDASM	57.69K
56	40x40x10 DC Fan.SLDPRT	771.26K
57	hole_cable_adapter.SLDPRT	101.83K
58	knurled_rotary_knob.SLDPRT	3.11M
59	knurled_rotary_knob.STEP	32.16M
60	m3_standoff.SLDPRT	926.88K
61	power_inlet_15A.SLDPRT	1020.63K
62	power_supply.SLDASM	12.49M
63	side_plate.SLDPRT	309.02K
64	side_plate.STL	264.14K
65	side_plate_mirrored.SLDPRT	365.71K
66	side_plate_mirrored.STL	272.45K
67	spider_board_small.SLDPRT	365.66K
68	50mmfan.SLDASM	188.95K
69	fan_housing.SLDPRT	256.67K
70	fan_hub.SLDPRT	168.88K
71	40x40x10 DC Fan.SLDPRT	771.26K
72	bearing_spacer.SLDPRT	69.32K
73	belt_clip.SLDPRT	152.28K
74	e3d_v6.STEP	1.20M
75	Extruder.SLDASM	19.63M
76	extruder_back_bracket.SLDPRT	86.99K
77	extruder_top_bracket.SLDPRT	500.32K
78	fan_mount.SLDPRT	505.14K
79	fan_mount_v2.SLDPRT	83.47K
80	fan_shroud.SLDPRT	125.04K
81	heatsink_fan_mount.SLDPRT	427.39K
82	M3_Countersunk_10.SLDPRT	942.77K
83	makeProjectedPlanarWire.x_t	2.85K
84	ptfe_tube.SLDPRT	53.65K
85	sherpa_mini_release1.STEP	37.03M
86	switch_hitter_x.SLDPRT	130.19K
87	t-v6_nozzle.SLDPRT	418.40K
88	y_switch_mount.SLDPRT	124.78K
89	[Assembly] Sherpa Mini.step	21.32M
90	50mmfan.SLDASM	188.95K
91	fan_housing.SLDPRT	256.67K
92	fan_hub.SLDPRT	168.88K
93	bottom.SLDPRT	290.89K
94	fan.SLDASM	204.79K
95	top.SLDPRT	139.19K
96	turbine.SLDPRT	290.92K
97	Clip blocker.SLDPRT	123.32K
98	Heat brake.SLDPRT	351.19K
99	Heat dissipator.SLDPRT	316.62K
100	Heater block.SLDPRT	1.12M
101	Microswiss all-metal hotend.SLDASM	1.33M
102	PTFE tube clip.SLDPRT	172.21K
103	Silicon sock.SLDPRT	194.93K
104	bearing_spacer.STL	22.35K
105	belt_clip.STL	52.23K
106	extruder_top_bracket.STL	331.04K
107	fan_mount.STL	277.62K
108	heatsink_fan_mount.STL	242.37K
109	switch_hitter_x.STL	44.91K
110	y_switch_mount.STL	46.76K
111	creality_nozzle_0.4.SLDPRT	334.15K
112	creality_nozzle_0.4.STEP	356.19K
113	ender_nozzle_0.4.SLDPRT	328.51K
114	Fotek_body.SLDPRT	299.70K
115	Fotek_top.SLDPRT	135.81K
116	LED 3mm RED.SLDPRT	103.63K
117	mk8_nozzle_0.4_amazon.SLDPRT	361.98K
118	mk8_nozzle_0.4_amazon.STEP	354.42K
119	PL08N2.SLDASM	167.57K
120	F695 Bearing.step	24.69K
121	gantry_idler_left.SLDPRT	200.46K
122	gantry_idler_left_top.SLDPRT	242.09K
123	gantry_idler_right.SLDPRT	167.48K
124	gantry_idler_right_top.SLDPRT	203.91K
125	gantry_mount_left_bottom_v2.SLDPRT	302.50K
126	gantry_mount_left_top_v2.SLDPRT	219.18K
127	gantry_mount_right_bottom_v2.SLDPRT	263.66K
128	gantry_mount_right_top_v2.SLDPRT	202.86K
129	Gates_2GT_20T_Toothed_Idler.SLDPRT	1.45M
130	GT2_20T.SLDPRT	377.20K
131	left_motor_mount.SLDPRT	204.07K
132	limit_switch_cover.SLDPRT	145.81K
133	limit_switch_cover.STL	83.77K
134	limit_switch_cover_y.SLDPRT	147.18K
135	M5x40.SLDPRT	1.57M
136	Microswitch2.step	340.10K
137	NEMA17_17HS19-2004S1_Stepperonline.SLDPRT	340.96K
138	right_motor_mount.SLDPRT	164.94K
139	x_zipchain_mount.SLDPRT	102.45K
140	y_zipchain_mount.SLDPRT	293.91K
141	gantry_idler_left.STL	111.51K
142	gantry_idler_left_top.STL	181.72K
143	gantry_idler_right.STL	113.46K
144	gantry_idler_right_top.STL	178.99K
145	gantry_mount_left_bottom_v2.STL	155.65K
146	gantry_mount_left_top_v2.STL	83.87K
147	gantry_mount_right_bottom_v2.STL	126.94K
148	gantry_mount_right_top_v2.STL	130.36K
149	left_motor_mount.STL	130.75K
150	limit_switch_cover.STL	105.55K
151	limit_switch_cover_y.STL	107.11K
152	right_motor_mount.STL	131.53K
153	y_zipchain_mount.STL	113.66K
154	angle_corner_connector.SLDPRT	80.24K
