西门子双横臂悬挂系统（ID:339064）

机械设备 / 非标机械 / 西门子双横臂悬挂系统

©非原创

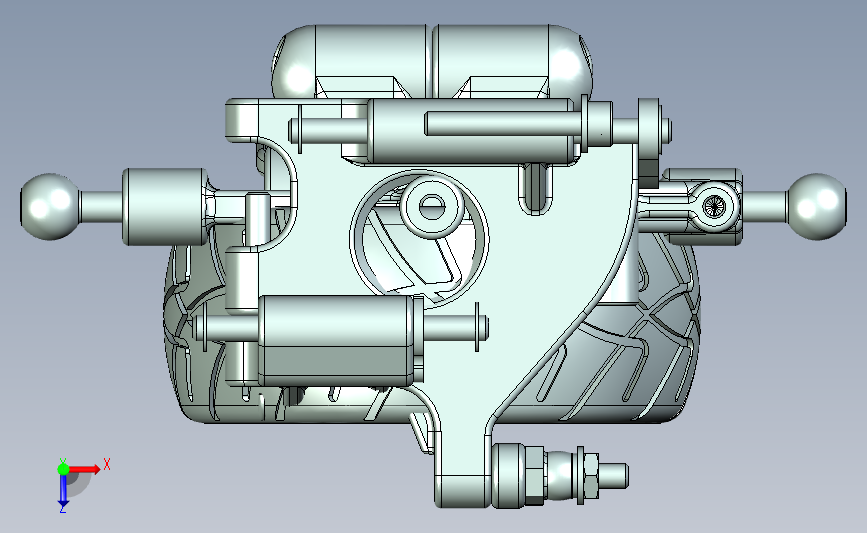

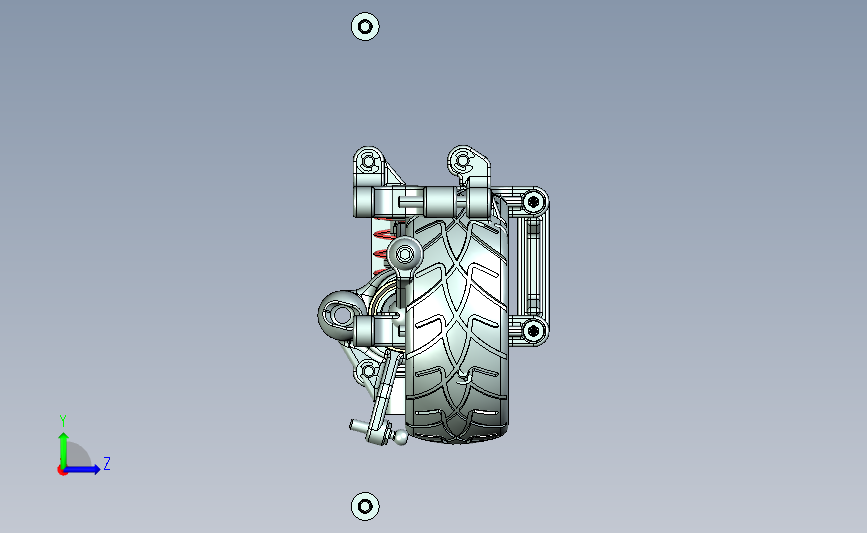

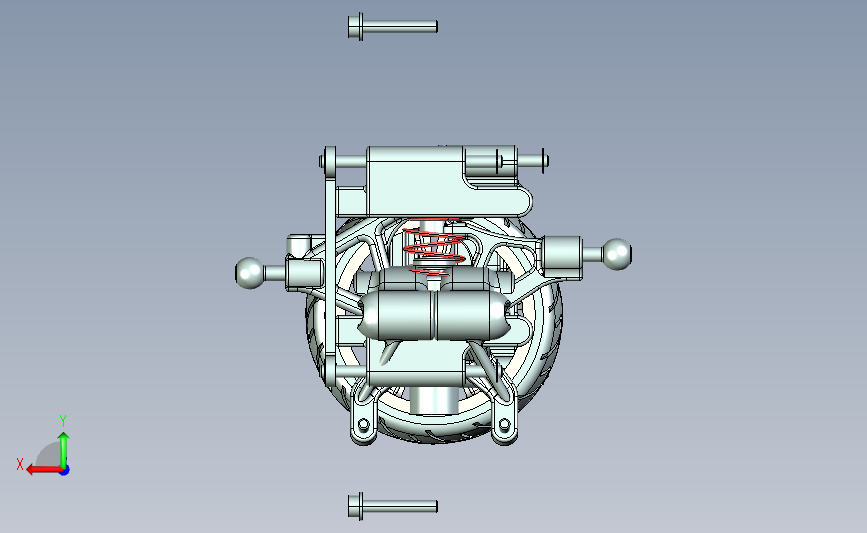

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	16636827108298.zip	35.95M
2	0.1875 Ball Stud 0.375.prt	251.00K
3	0.25 Ball.prt	171.50K
4	ANSI B18.2.4.4M - M5 x 0.prt	145.00K
5	ANSI B18.22.1 - No. 5 - narrow - Type B.prt	81.50K
6	Ball End.prt	422.50K
7	Ball End_1.prt	90.50K
8	E-Clip.prt	208.00K
9	Front Axel.prt	712.00K
10	Front Hub Bearing.prt	216.50K
11	Front Hub Carrier L.prt	1.86M
12	Front Hub Carrier L_1.prt	151.00K
13	Front Hub Carrier R.prt	1.17M
14	Front Hub Carrier R_1.prt	144.00K
15	Front Lower Arm Brace.prt	156.50K
16	Front Lower Arm.prt	1.72M
17	Front Lower Arm_1.prt	94.50K
18	Front Lower Hinge Pin.prt	159.00K
19	Front Shock Brace.prt	353.00K
20	Front Side Plate L.prt	1.09M
21	Front Side Plate R.prt	1.79M
22	Front Suspension Adjustment Clip.prt	152.00K
23	Front Upper Arm.prt	1.14M
24	Front Upper Arm_1.prt	98.50K
25	Front Upper Hinge Pin.prt	157.00K
26	Hex Axel Pin.prt	110.50K
27	Hex Drive.prt	246.00K
28	Hex Retaining O-Ring.prt	165.00K
29	hex thin nut chamfered gradeab_iso_ISO - 4035 - M3 - C.prt	113.50K
30	O-Ring.prt	189.00K
31	Pillow Ball Bushing.prt	195.00K
32	Pillow Ball Retainer.prt	168.00K
33	Pillow Ball.prt	216.00K
34	Piston.prt	212.50K
35	Rear Hex Hub.prt	91.50K
36	Rear Hub Bearing.prt	198.00K
37	Shock Absorber.prt	162.50K
38	Shock Body 1.3 Length.prt	199.00K
39	Shock Body.prt	95.00K
40	Shock Bushing.prt	268.00K
41	Shock Cartridge Cover.prt	217.00K
42	Shock Cartridge Spacer.prt	170.00K
43	Shock Cartridge.prt	472.00K
44	Shock Cartridge_1.prt	98.00K
45	Shock Shaft.prt	154.50K
46	Shock Spring Adjustment Nut.prt	253.00K
47	Shock Strut.prt	106.00K
48	socket head cap screw_iso_ISO 4762 M3 x 20 - 20C.prt	113.00K
49	Spring Cup.prt	536.00K
50	Spring.prt	892.00K
51	Suspension asm.step	10.73M
52	Suspension Spring.prt	552.00K
53	Suspension.prt	488.00K
54	Tyre-2.prt	2.20M
55	Upper Arm Mount.prt	1.36M
56	Wheel.prt	2.41M
57	Wheel_1.prt	104.00K
58	Front Hub Carrier L (Base Assembly).prt	88.00K
59	Front Side Plate R (Base Assembly).prt	82.50K
