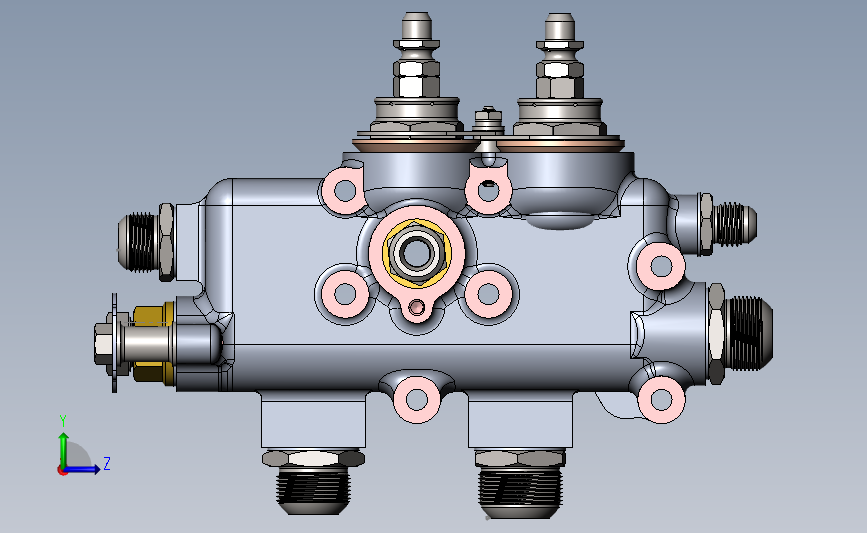

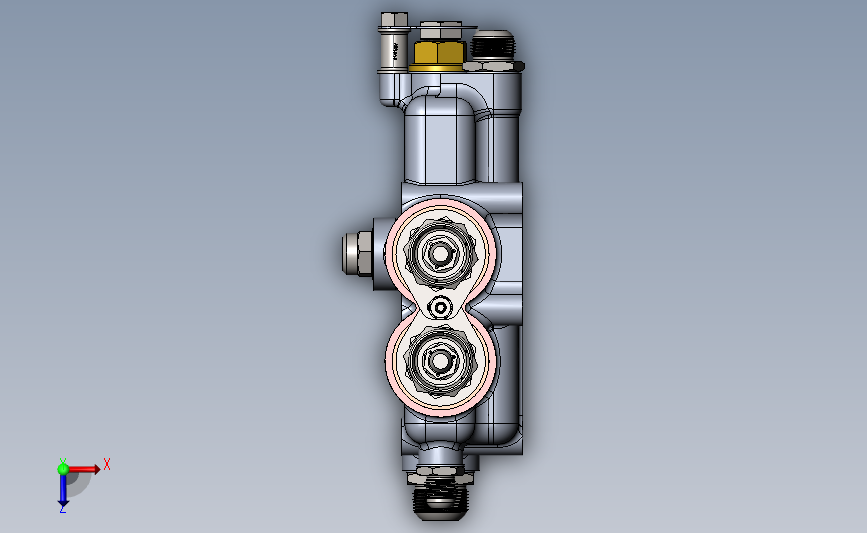

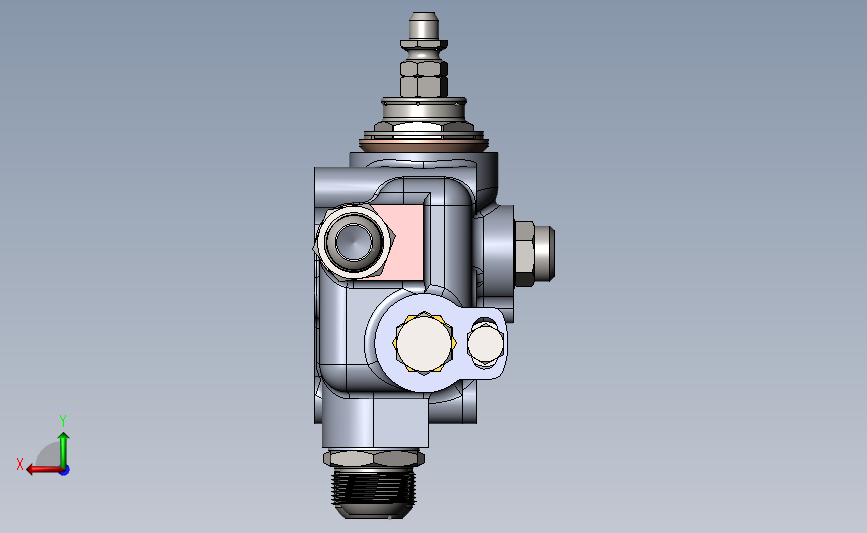

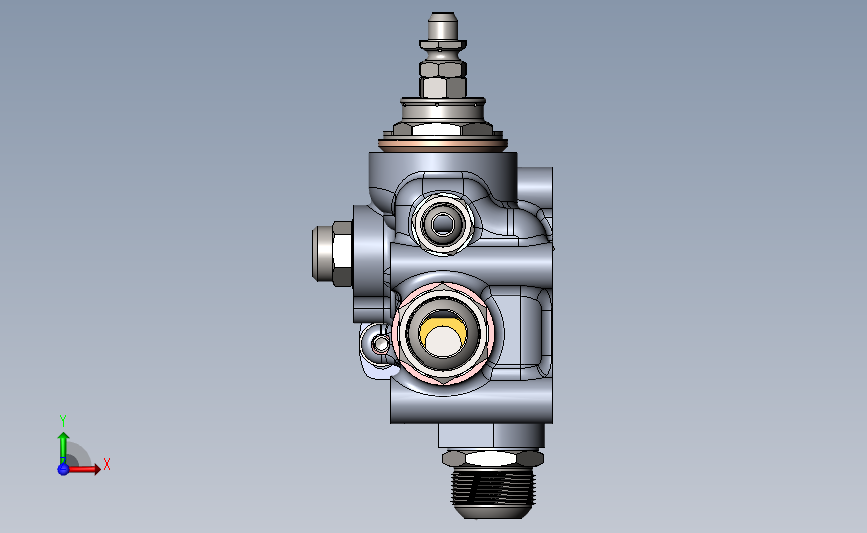

油压安全阀拆装爆炸图（ID:339196）

设备部件 / 管道附件 / 油压安全阀拆装爆炸图

©非原创

144

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16636840124637.zip	62.58M
2	620846 OIL RELIEF VALVE ASSEMBLY.IGS	26.70M
3	601461 NUT 2 BA.SLDPRT	282.66K
4	601624 NIPPLE - crankcase lower pressure pump outlet union.SLDPRT	801.85K
5	603601 LOCK PLATE - OIL RELIEF VALVE THERMOMETER RETAINING SCREW ADAPTOR.SLDPRT	98.01K
6	603602 GASKET.SLDPRT	94.59K
7	603603 PLUG - OIL RELIEF VALVE THERMOMETER RETAING SCREW ADAPTOR.SLDPRT	373.72K
8	603608 ADAPTOR - OIL PRESSURE RELIEF VALVE HOUSING HIGH PRESSURE.SLDPRT	796.51K
9	603609 ADAPTOR - OIL PRESSURE RELIF VALVE HOUSING LOW PRESSURE.SLDPRT	716.81K
10	603612 SCREW BUSHING - OIL RELIEF VALVE HOUSING PRESSURE GAUGE CONNECTION.SLDPRT	709.83K
11	603624 WASHER PLAIN .203 x.400 OD.SLDPRT	135.08K
12	603627 adaptor - oil relief valve pressure gauge connection.SLDPRT	688.20K
13	603629 CAP - OLI PELIEF VALVE HIGH PRESSURE.SLDPRT	1.57M
14	603632 spacer - oil relief valve cap stud.SLDPRT	105.16K
15	603633 cap nut - oil relief valve cap stud lock.SLDPRT	545.65K
16	603635 LOCK PLATE - OIL RELIEF VALVE HIGH AND LOW PRESSURE CAP.SLDPRT	99.23K
17	603636 ADAPTOR - OIL RELIEF VALVE THERMOMETER RETAINING SCREW.SLDPRT	757.67K
18	603638 NIPPLE - OIL RELIEF VALVE HIGH PRESSURE UNION.SLDPRT	990.34K
19	603640 GASKET - OIL PRESSURE RELIEF VALVE.SLDPRT	72.27K
20	603643 VALVE - OIL PRESSURE RELIEF VALVE HP.SLDPRT	126.76K
21	603644 SPRING - OIL RELIEF VALVE HIGH PRESSURE VALVE.SLDPRT	924.42K
22	603650 SPRING - OIL RELIEF VALVE LOW PRESSURE VALVE.SLDPRT	913.52K
23	603655 NIPPLE - OIL RELISF VALVAE LOW PRESSURE DELIVERY UNION (TO REDUCTION GEARS).SLDPRT	893.34K
24	603656 GASKET.SLDPRT	66.31K
25	603657 GASKET - OIL RELIEF VALVE LOW PRESSURE.SLDPRT	74.50K
26	603658 VALVE - OIL PRESSURE RELIEF VALVE.SLDPRT	170.00K
27	603664 SLEEVE - OIL RELIEF VALVE TO THERMOMETER UNION NIPPLE.SLDPRT	285.91K
28	603667 NUT - OIL RELIEF VALVE THERMOMETER UNION NIPPLE LOCK PLATE RETAINING.SLDPRT	355.62K
29	60603654 NIPPLE - OIL RELISF VALVAE LOW PRESSURE DELIVERY UNION (TO REAR OF ENGINE)).SLDPRT	615.13K
30	606343 LOCK WASHER.SLDPRT	77.38K
31	608509 STUD - OIL RELIEF VALVE LOCKADAPTOR.SLDPRT	1.11M
32	608592 stud - oil relisf valve pressure cap.SLDPRT	982.18K
33	620319 HOUSING OIL RELIEF VALVE.SLDPRT	7.34M
34	620846 OIL RELIEF VALVE ASSEMBLY.SLDASM	13.38M
