3 路高保真扬声器系统

（ID:3595274）

改图/画图

电力仪表 / 电气附件 / 3 路高保真扬声器系统

©非原创

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	3WAYHIFISPEAKERASSEMBLYDRAWING.pdf	8.77M
2	MAINASSEMBLY1X.step	26.96M
3	crossoverplate.stl	459.16K
4	MAINSUBENCLOSUREFILLETV45-COVERALLIGNMENTPIN.stl	684B
5	MAINSUBENCLOSUREFILLETV45-subwoofercover1.stl	347.54K
6	MAINSUBENCLOSUREFILLETV45-subwoofercover2.stl	346.66K
7	MAINSUBENCLOSUREFILLETV45-subwoofercover3.stl	346.66K
8	MAINSUBENCLOSUREFILLETV45-subwoofercover4.stl	347.15K
9	MAINWAVEGUIDE12X4-±5DB1200-18KFULLFILLET-MAINWAVEGUIDEBODY.stl	2.13M
10	MAINWAVEGUIDE12X4-±5DB1200-18KFULLFILLET-MAINWAVEGUIDECAPL.stl	37.09K
11	MAINWAVEGUIDE12X4-±5DB1200-18KFULLFILLET-MAINWAVEGUIDECAPR.stl	36.80K
12	BOMofMAINASSEMBLY2X.pdf	71.53K
13	V5FLATPATTERN.step	310.10K
14	MAINASSEMBLY1X-3INCH2WAYSPEAKERBOXTERMINALCUPBINDINGPOST.step	21.58K
15	MAINASSEMBLY1X-BOTTOMPANEL.step	22.18K
16	MAINASSEMBLY1X-COVERALLIGNMENTPIN.step	9.27K
17	MAINASSEMBLY1X-COVERALLIGNMENTPIN1.step	9.27K
18	MAINASSEMBLY1X-COVERALLIGNMENTPIN2.step	9.27K
19	MAINASSEMBLY1X-COVERALLIGNMENTPIN3.step	9.27K
20	MAINASSEMBLY1X-COVERALLIGNMENTPIN4.step	9.27K
21	MAINASSEMBLY1X-COVERALLIGNMENTPIN5.step	9.27K
22	MAINASSEMBLY1X-COVERALLIGNMENTPIN6.step	9.27K
23	MAINASSEMBLY1X-COVERALLIGNMENTPIN7.step	9.27K
24	MAINASSEMBLY1X-COVERALLIGNMENTPIN8.step	9.27K
25	MAINASSEMBLY1X-CROSSOVERPLATE.step	219.38K
26	MAINASSEMBLY1X-DA0.22UFPPC.step	4.32K
27	MAINASSEMBLY1X-DA12UFPPC.step	4.30K
28	MAINASSEMBLY1X-DA20OHM.step	8.27K
29	MAINASSEMBLY1X-DA27UFPPC.step	4.31K
30	MAINASSEMBLY1X-DA27UFPPC1.step	4.31K
31	MAINASSEMBLY1X-DA2OHM.step	8.02K
32	MAINASSEMBLY1X-DA40OHM.step	8.07K
33	MAINASSEMBLY1X-DA40OHM1.step	8.08K
34	MAINASSEMBLY1X-DA40OHM2.step	8.08K
35	MAINASSEMBLY1X-DA40OHM3.step	8.08K
36	MAINASSEMBLY1X-DA8.0MH.step	7.85K
37	MAINASSEMBLY1X-DA8.0MH1.step	7.85K
38	MAINASSEMBLY1X-DA8.0MH2.step	7.85K
39	MAINASSEMBLY1X-DaytonAudioGF180-4.step	101.13K
40	MAINASSEMBLY1X-FRONTBAFFLEBOTTOM.step	14.93K
41	MAINASSEMBLY1X-FRONTBAFFLETOP.step	26.76K
42	MAINASSEMBLY1X-GRS12-SUBWOOFER.step	12.00K
43	MAINASSEMBLY1X-INSIDECHAMBERL.step	10.40K
44	MAINASSEMBLY1X-INSIDECHAMBERR.step	10.30K
45	MAINASSEMBLY1X-INSIDECHAMBERREAR.step	15.52K
46	MAINASSEMBLY1X-INSIDECHAMBERTOP.step	7.99K
47	MAINASSEMBLY1X-JA0.70MH.step	4.31K
48	MAINASSEMBLY1X-JA1.7MH.step	7.01K
49	MAINASSEMBLY1X-JA3.9UFMPC.step	8.25K
50	MAINASSEMBLY1X-LOWERBRACE.step	25.68K
51	MAINASSEMBLY1X-MAINWAVEGUIDEBODY.step	24.76M
52	MAINASSEMBLY1X-MAINWAVEGUIDECAPL.step	136.60K
53	MAINASSEMBLY1X-MAINWAVEGUIDECAPR.step	136.60K
54	MAINASSEMBLY1X-MECCANIXITY2.7UFMFP.step	4.36K
55	MAINASSEMBLY1X-PE150UFNPC.step	4.31K
56	MAINASSEMBLY1X-PEERLESSDNM-2035R01-08.step	12.57K
57	MAINASSEMBLY1X-PG7CABLEGLAND.step	816.50K
58	MAINASSEMBLY1X-REARPANEL.step	39.21K
59	MAINASSEMBLY1X-SIDEPANELL.step	20.16K
60	MAINASSEMBLY1X-SIDEPANELR.step	20.09K
61	MAINASSEMBLY1X-subwoofercover1.step	56.12K
62	MAINASSEMBLY1X-subwoofercover2.step	52.84K
63	MAINASSEMBLY1X-subwoofercover3.step	52.72K
64	MAINASSEMBLY1X-subwoofercover4.step	56.14K
65	MAINASSEMBLY1X-TOPPANELINSIDE.step	18.15K
66	MAINASSEMBLY1X-TOPPANELOUTSIDE.step	12.29K
67	MAINASSEMBLY1X-UPPERBRACE.step	61.61K
68	CROSSOVERSPECIFICATIONS.pdf	122.42K

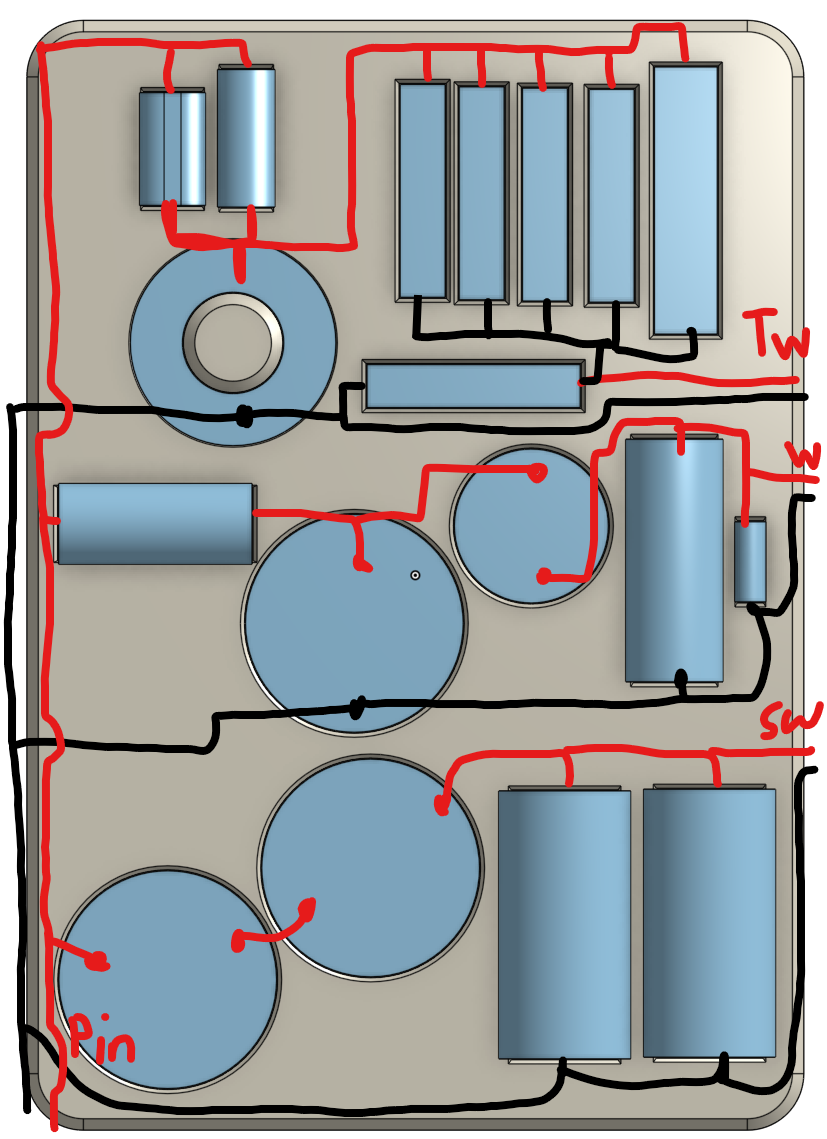

69	CROSSOVERWIRINGGUIDE.png	312.33K

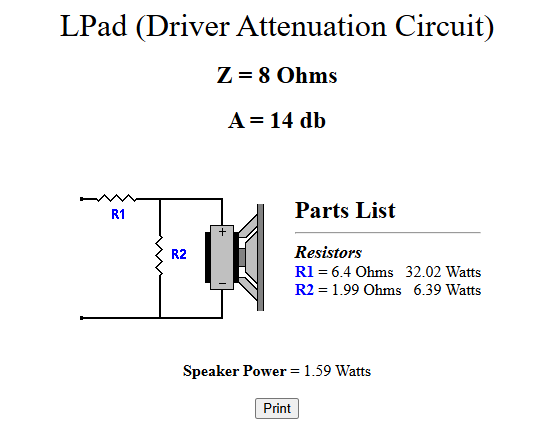

70	LPADCALCULATION.png	19.70K

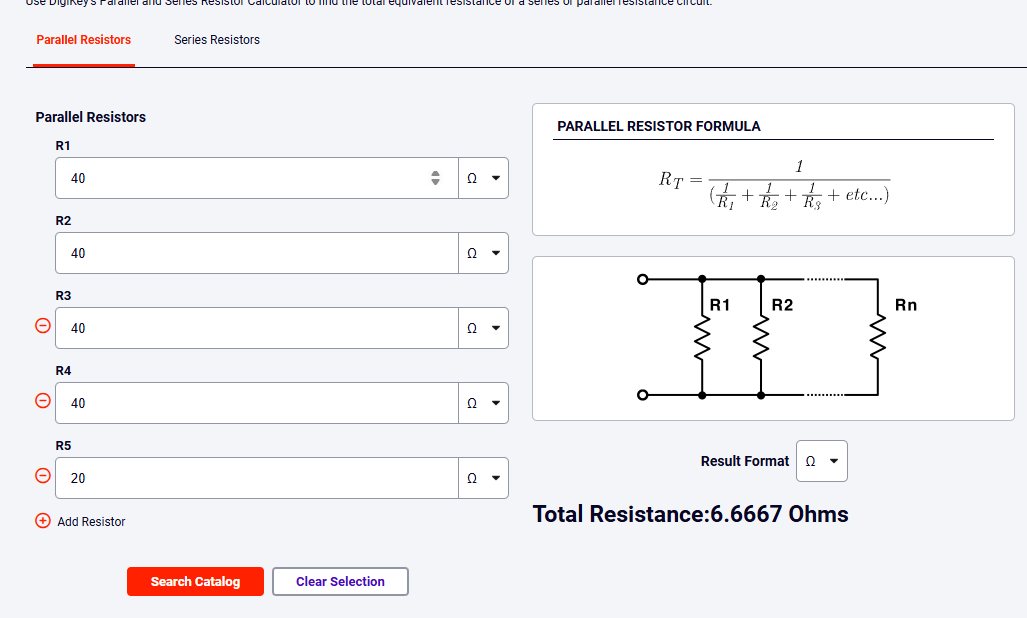

71	LPADCALCULATIONRESISTORSPARALLEL.png	49.75K

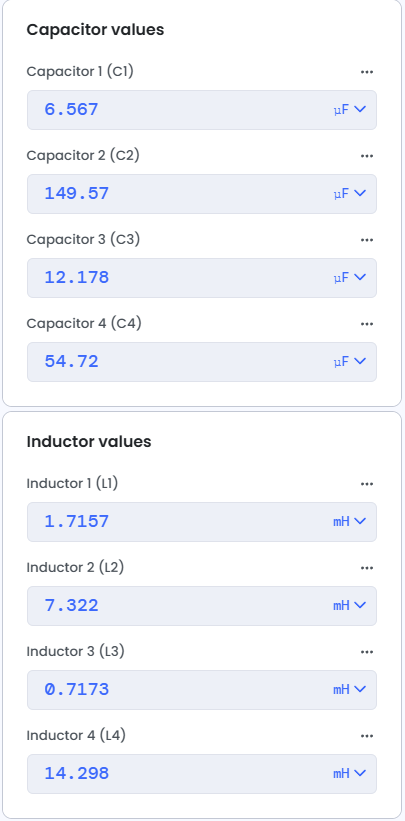

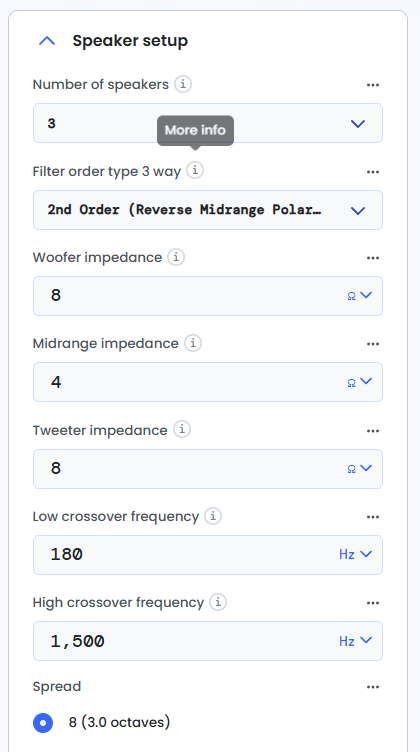

72	Screenshot2026-05-26165214.png	47.54K
73	Screenshot2026-05-26165329.png	41.24K

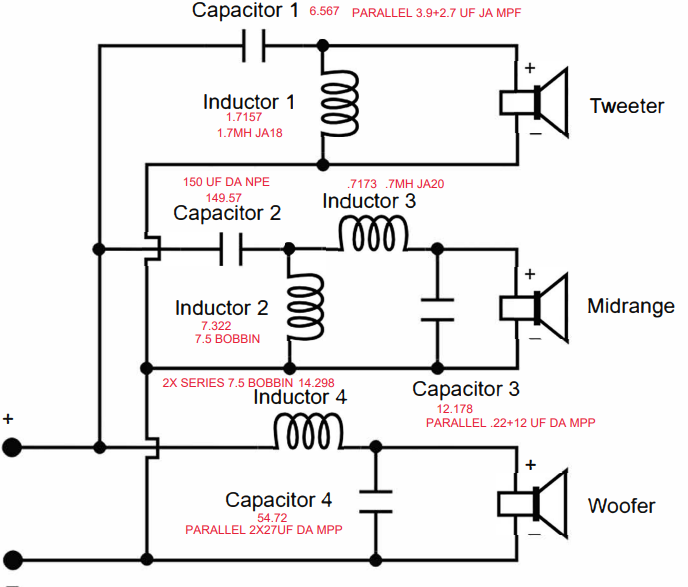

74	Screenshot2026-07-29162307.png	107.83K

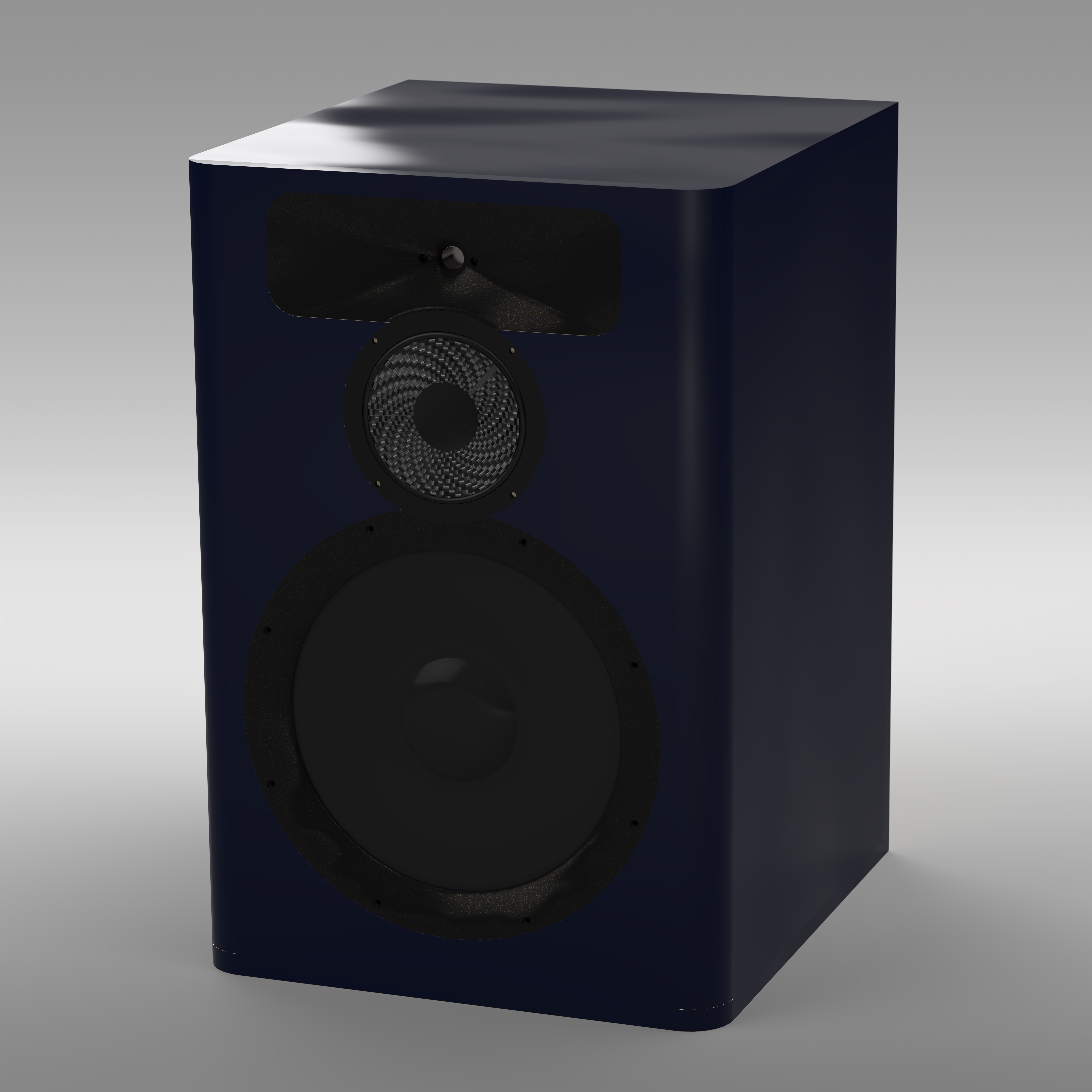

75	MAINRENDERING5.jpg	4.05M
76	292-876--grs-12smp-8-spec-sheet.pdf	630.11K
77	295-371--rs125p-4-spec-sheet.pdf	273.50K
78	PEERLESSDNM-2035R01-08SPECSHEET.pdf	929.58K
