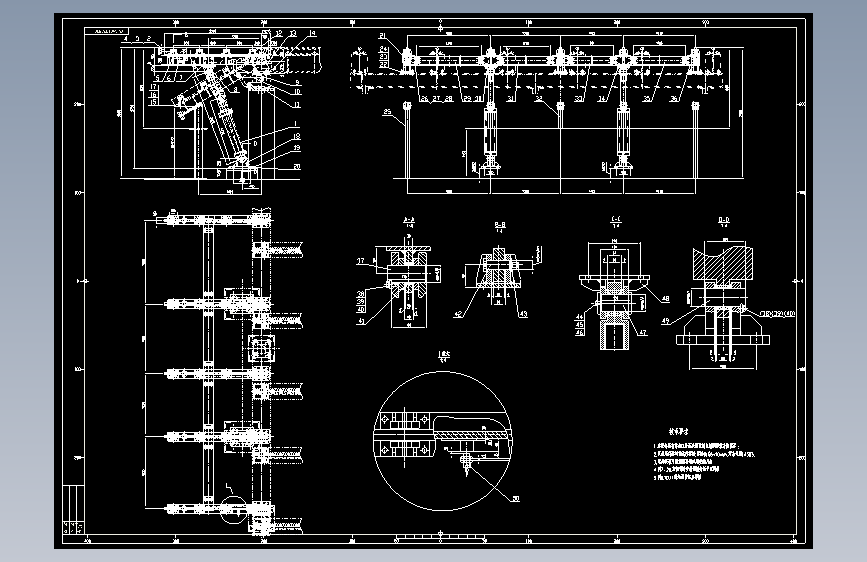

连铸机出坯系统升降滑轨=1134636=250

（ID:3636763）

改图/画图

机械设备 / 非标机械 / 连铸机出坯系统升降滑轨=1134636=250

©非原创

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	036r10m506p00-0_0_1_1_升降滑轨图纸目录_4.dwg	876.81K
2	036r10m506p00-0_0_1_1_升降滑轨图纸目录_4.dxf	1.80M
3	036r10m506p00-11_0_1_1_垫片组（二）_4.dwg	590.65K
4	036r10m506p00-11_0_1_1_垫片组（二）_4.dxf	960.83K
5	036r10m506p00-12_0_1_1_垫板_4.dwg	501.64K
6	036r10m506p00-12_0_1_1_垫板_4.dxf	688.32K
7	036r10m506p00-13_0_1_1_垫片组（三）_4.dwg	592.46K
8	036r10m506p00-13_0_1_1_垫片组（三）_4.dxf	968.16K
9	036r10m506p00-15_0_1_1_垫片组（四）_4.dwg	604.54K
10	036r10m506p00-15_0_1_1_垫片组（四）_4.dxf	1003.97K
11	036r10m506p00-1_0_1_1_升降滑轨_1.dxf	17.19M
12	036r10m506p00-25_0_1.1_销轴（一）_4.dwg	439.28K
13	036r10m506p00-25_0_1.1_销轴（一）_4.dxf	502.89K
14	036r10m506p00-26_0_1_1_轴套_4.dwg	450.24K
15	036r10m506p00-26_0_1_1_轴套_4.dxf	532.70K
16	036r10m506p00-27_0_1.1_销钉_4.dwg	463.27K
17	036r10m506p00-27_0_1.1_销钉_4.dxf	582.48K
18	036r10m506p00-28_0_1_1_垫圈_4.dwg	424.23K
19	036r10m506p00-28_0_1_1_垫圈_4.dxf	454.11K
20	036r10m506p00-29_0_1.1_挡板_4.dwg	431.12K
21	036r10m506p00-29_0_1.1_挡板_4.dxf	478.57K
22	036r10m506p00-2_0_1_1_油缸订货图_2.dwg	1.77M
23	036r10m506p00-2_0_1_1_油缸订货图_2.dxf	4.91M
24	036r10m506p00-30_0_1.1_销轴（二）_4.dwg	460.12K
25	036r10m506p00-30_0_1.1_销轴（二）_4.dxf	571.92K
26	036r10m506p00-32_0_1_1_销轴（三）_4.dwg	439.56K
27	036r10m506p00-32_0_1_1_销轴（三）_4.dxf	503.74K
28	036r10m506p00-4_0_1_1_导轨_3.dwg	589.47K
29	036r10m506p00-4_0_1_1_导轨_3.dxf	948.78K
30	036r10m506p00-5_0_1_1_垫片组（一）_4.dwg	592.21K
31	036r10m506p00-5_0_1_1_垫片组（一）_4.dxf	965.66K

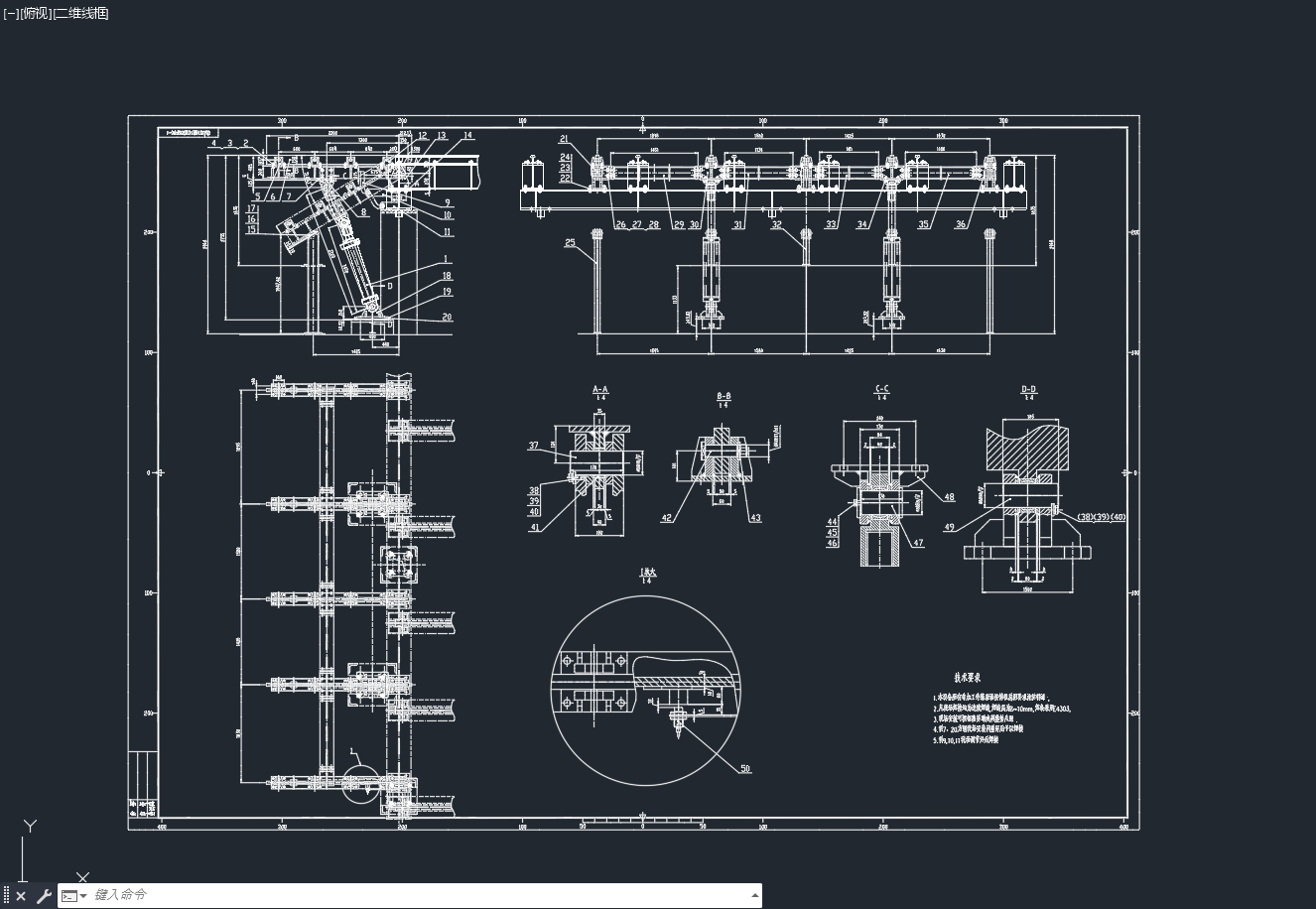

32	modelcover.png	263.69K
33	zongzhuangtu036r10m506p00-1_0_1_1_升降滑轨_1.dwg	1.68M

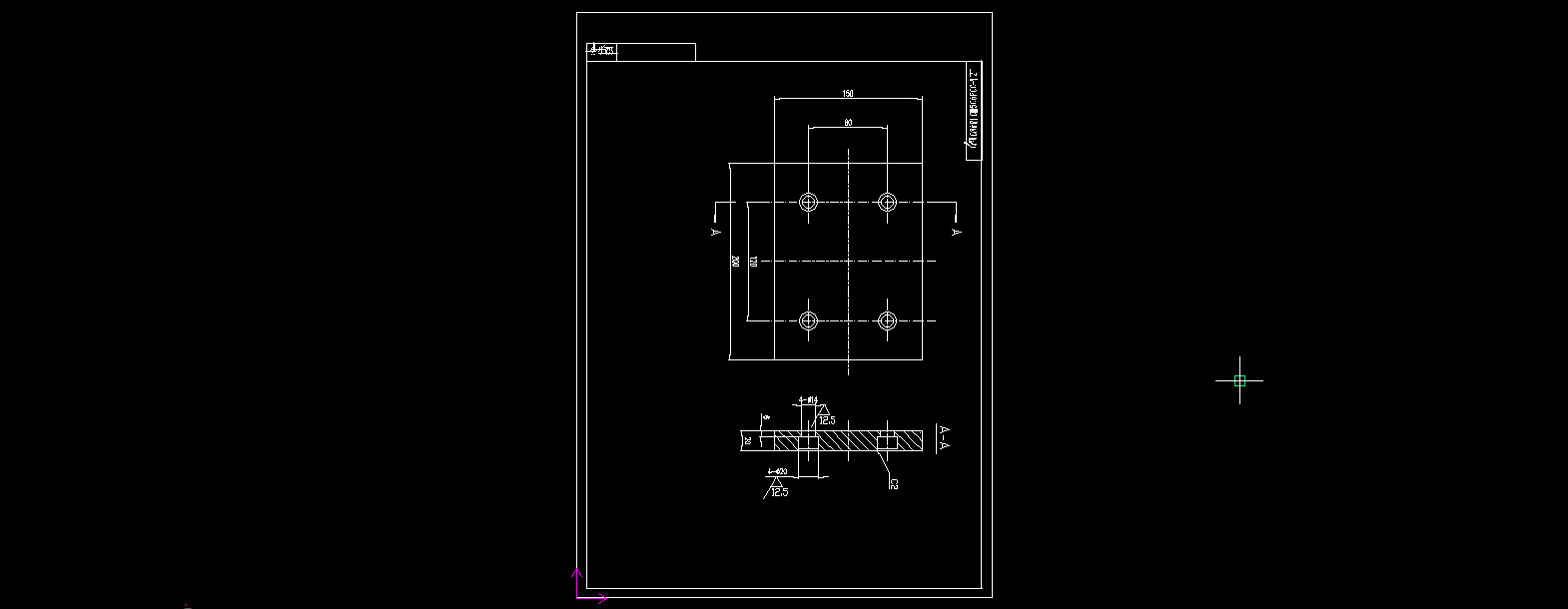

34	垫板.jpg	38.96K

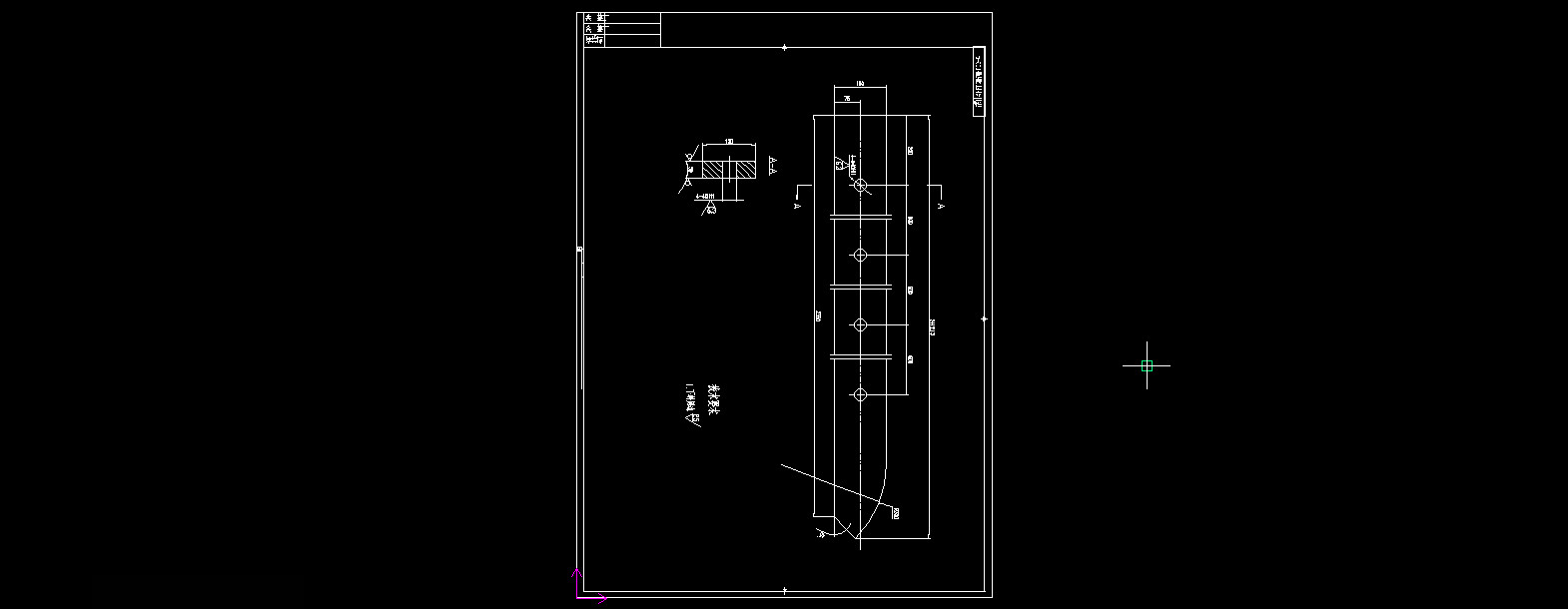

35	导轨.jpg	38.26K

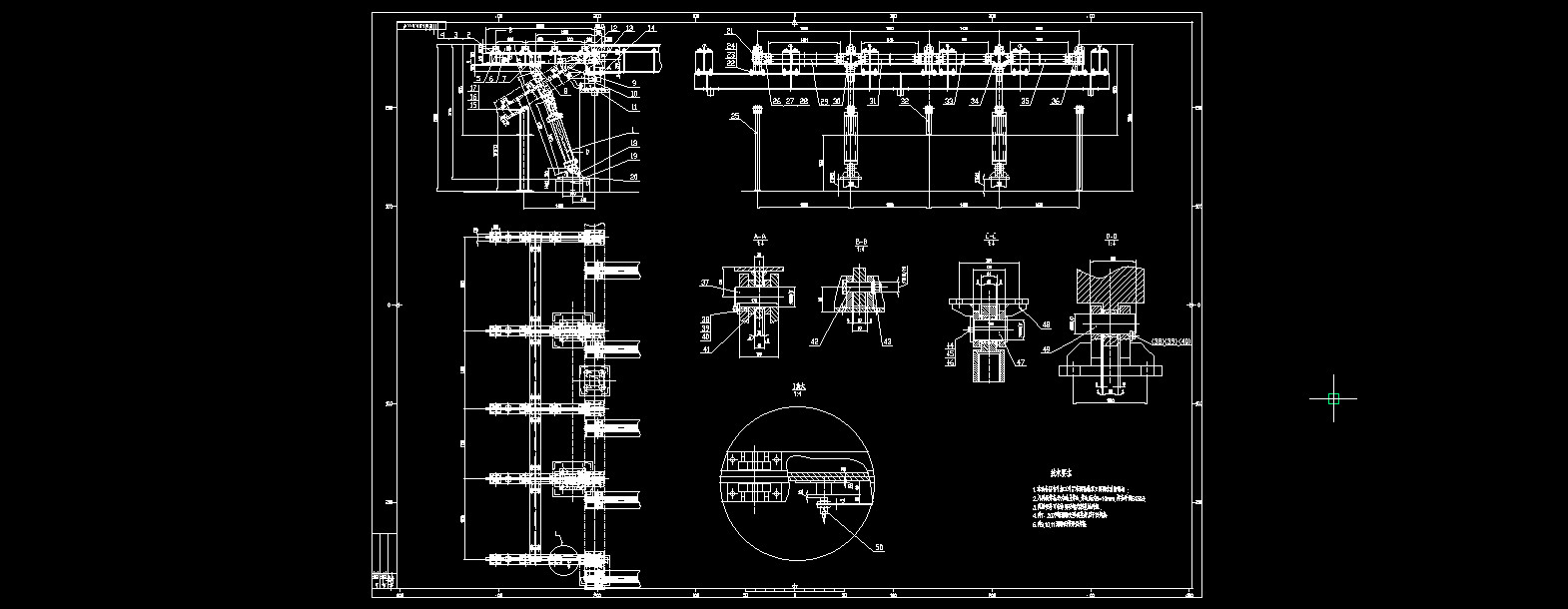

36	总装.jpg	128.70K

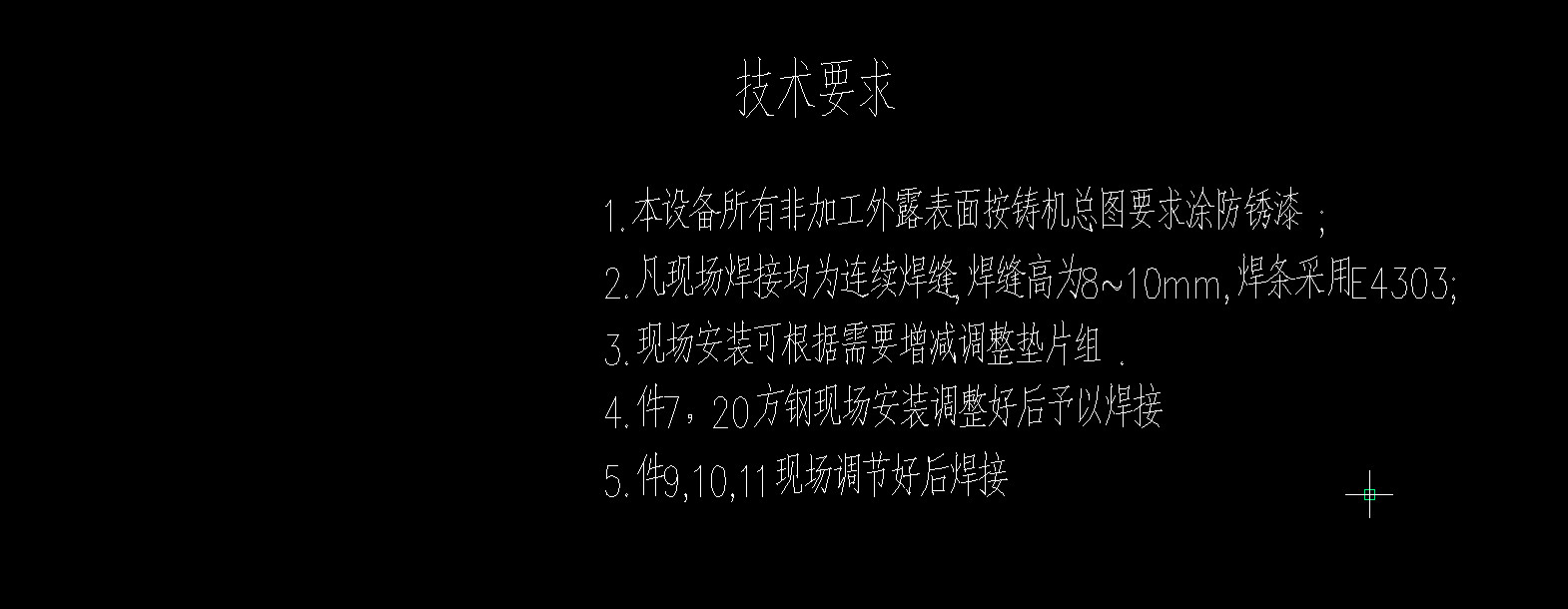

37	技术要求.jpg	96.42K
38	新建文本文档.txt	263B

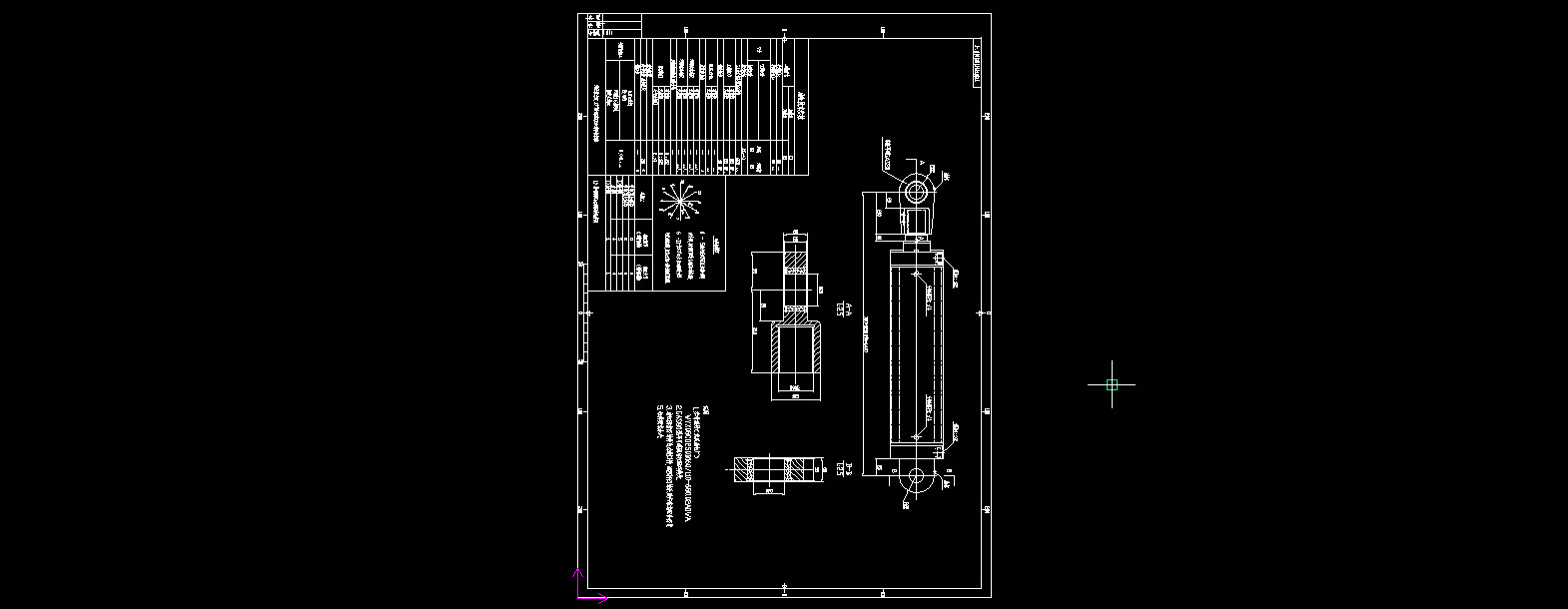

39	油缸.jpg	69.93K

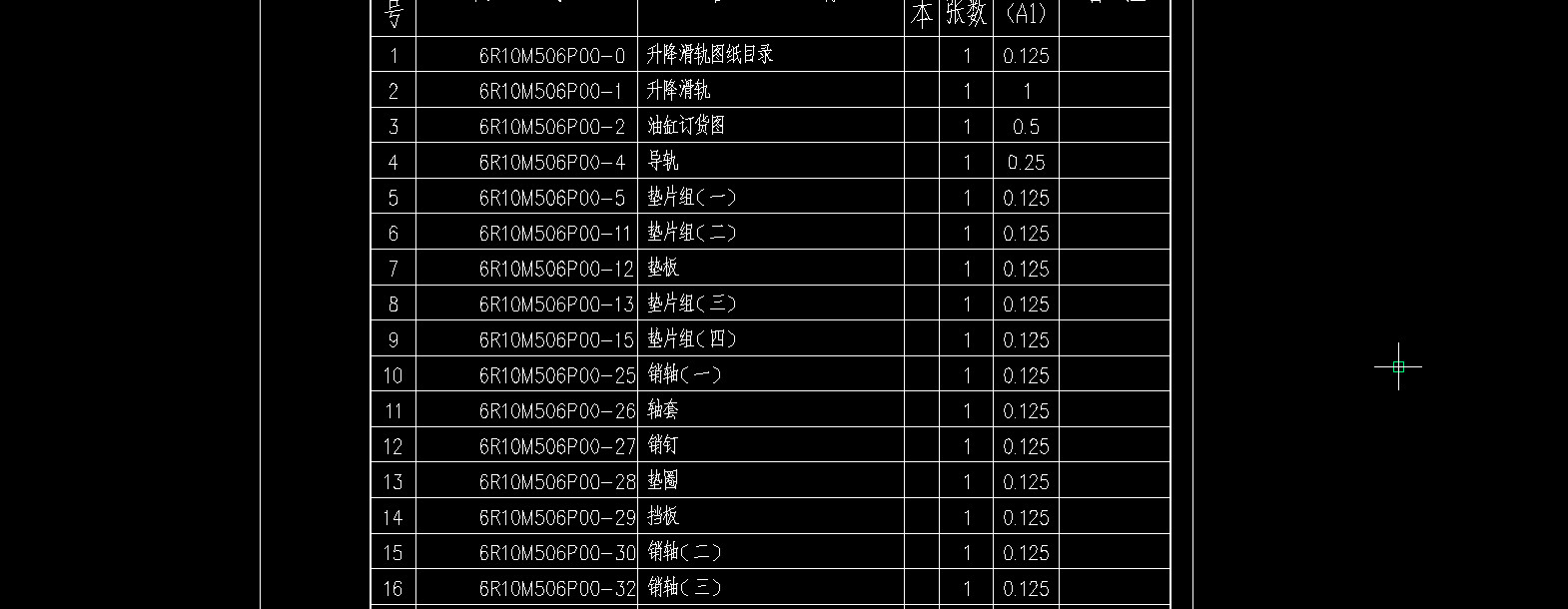

40	目录.jpg	124.28K

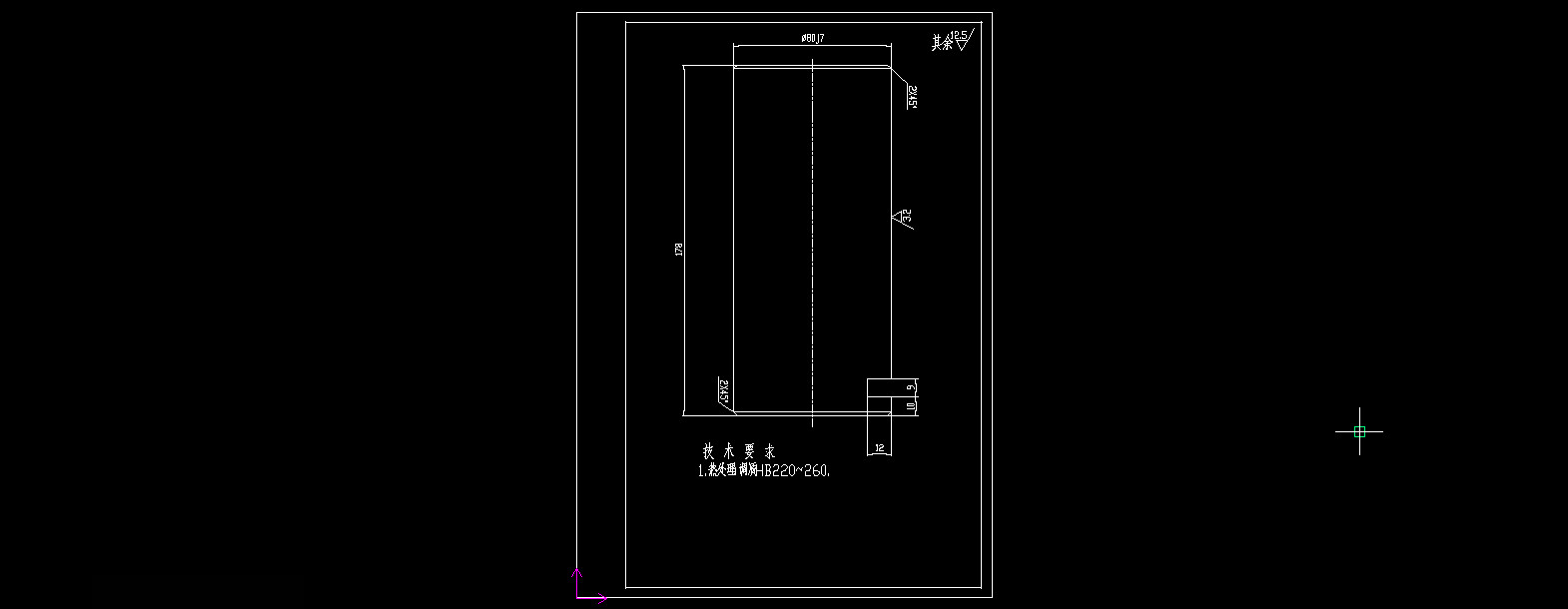

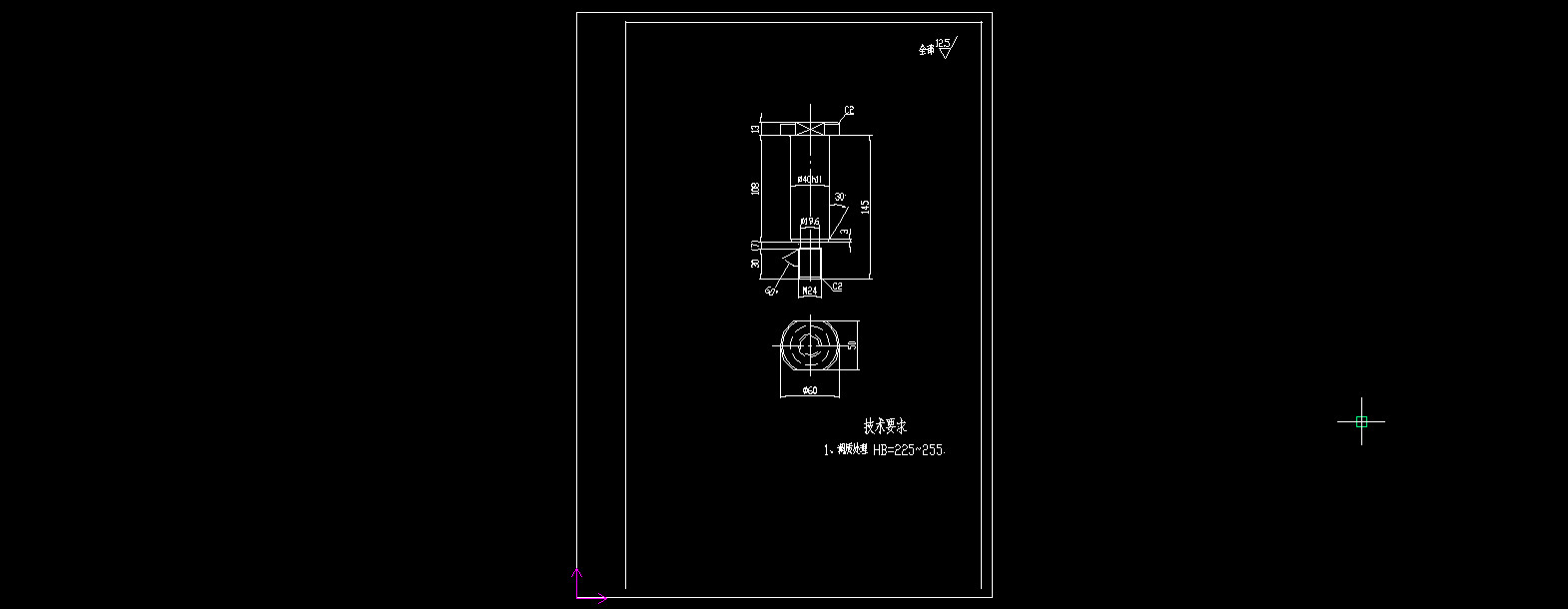

41	轴.jpg	31.79K
42	销钉.jpg	33.39K

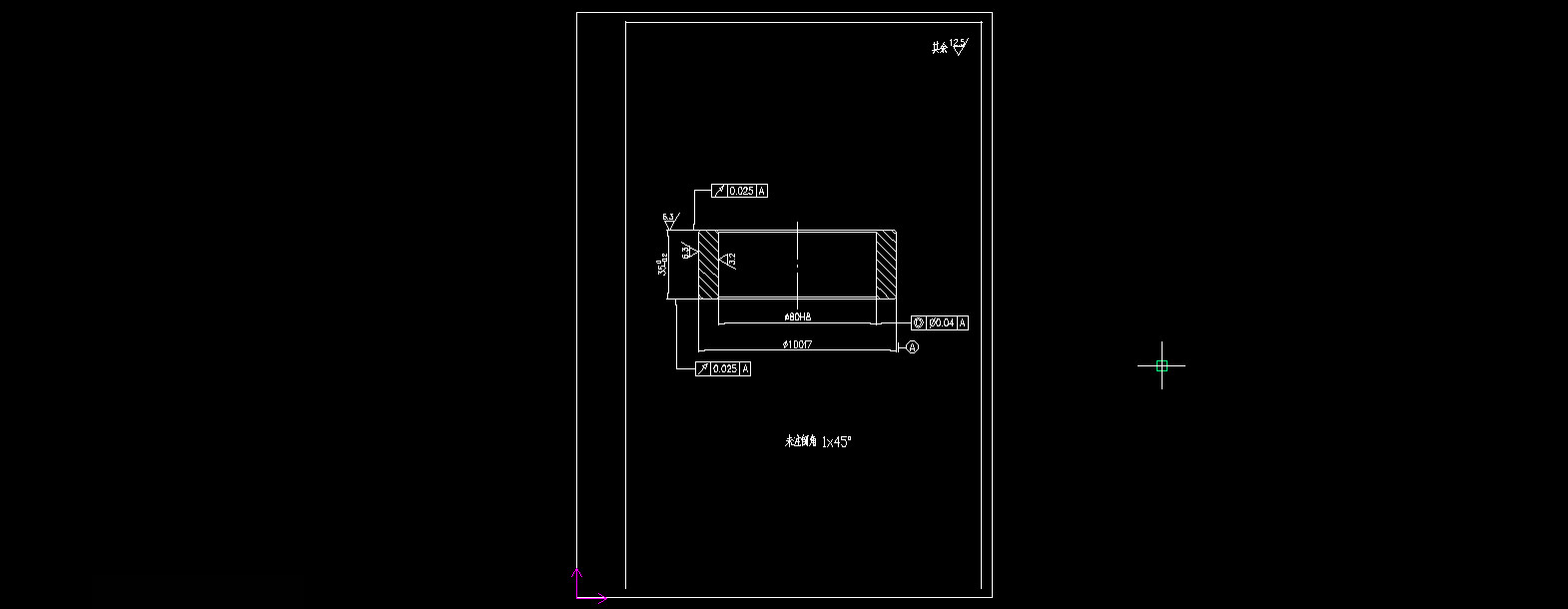

43	隔套.jpg	32.34K
