托盘定心机构

（ID:3659327）

改图/画图

机械设备 / 包装设备 / 托盘定心机构

©非原创

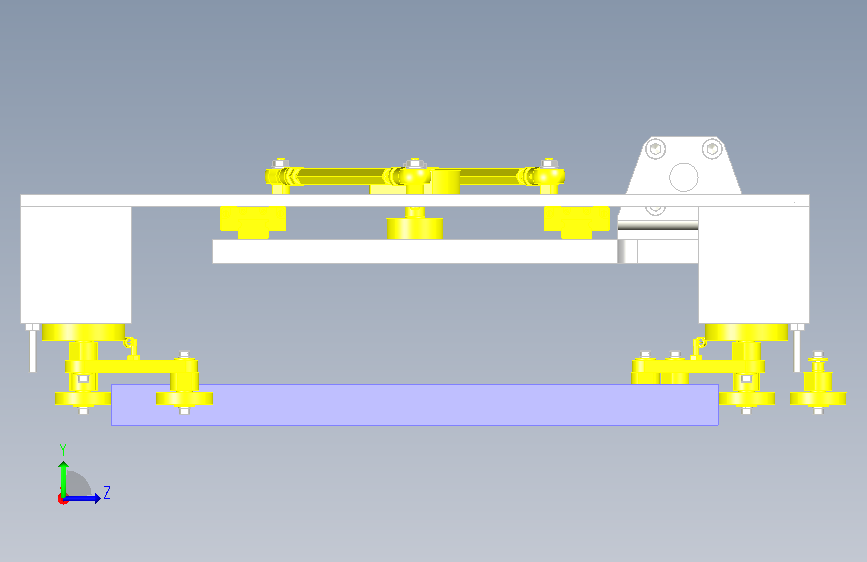

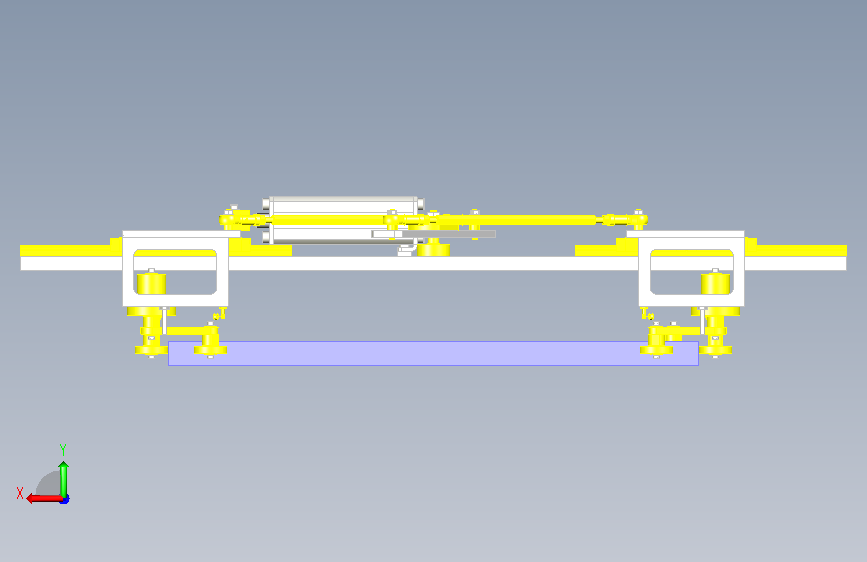

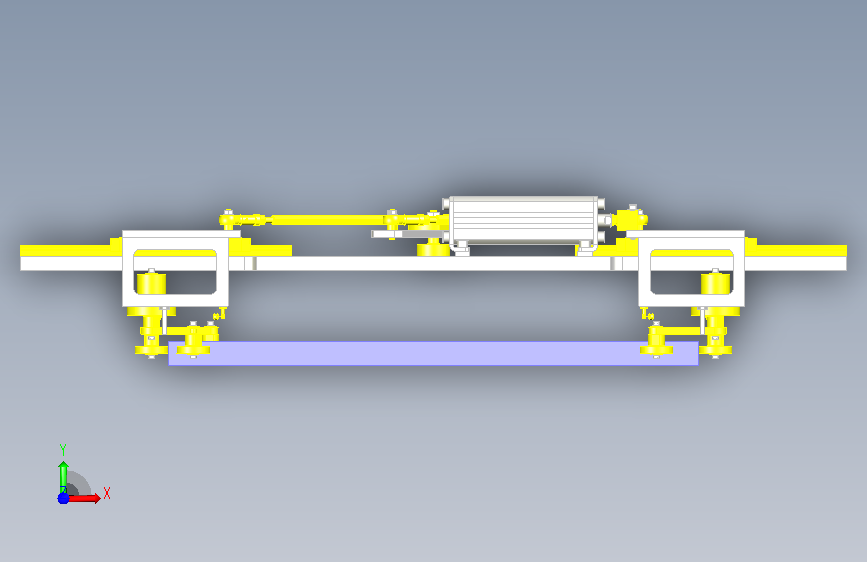

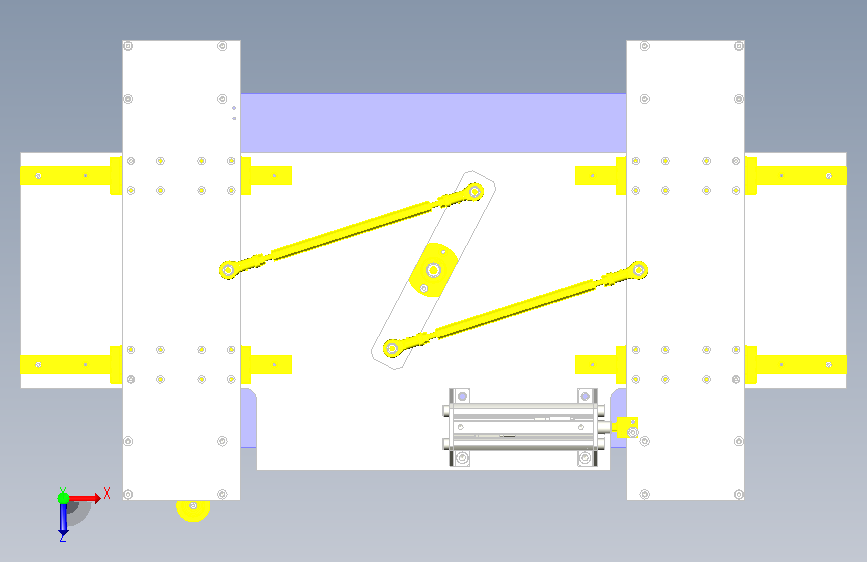

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	0076_001_SSELB16-230.x_t	441.78K
2	0076_002_PFXFC8-24-F6-M6.x_t	57.73K
3	0076_003_BGCA608ZZ.x_t	92.71K
4	0076_004_PHSCM5.x_t	78.03K
5	0076_005_PHSCLM5.x_t	78.03K
6	0076_006_LBRFN5-190.x_t	150.67K
7	0076_007_PFXAC5-5-F7-MA4.x_t	39.22K
8	0076_008_BARC626ZZ-35.x_t	113.78K
9	0076_009_PFXMB6-10-F35-T1-MA3.x_t	26.28K
10	0076_010_NCLM6-10-23.x_t	8.99K
11	0076_011_WSSM10-3-1.x_t	9.17K
12	0076_012_LKBM6-L50-S50-Q90-H6-HA6-T6.x_t	23.57K
13	0076_013_PFXMB6-10-F5-T1-MA3.x_t	23.33K
14	0076_014_UMBB6-28.x_t	65.16K
15	0076_015_FJMXL6-1.0.x_t	68.25K
16	0076_016_AWS5-40.x_t	15.47K
17	0076_017_AIPO3-15.x_t	59.02K
18	0076_101_Cylinder_SSD2-L-25-75.x_t	349.21K
19	0076_201_Base_Plate.x_t	69.19K
20	0076_202_Slide_Base.x_t	99.74K
21	0076_203_Link.x_t	23.94K
22	0076_204_Spacer.x_t	12.32K
23	0076_205_Braket.x_t	51.21K
24	0076_206_Braket.x_t	51.01K
25	0076_207_Stopper.x_t	4.66K
26	0076_301_M3x6.x_t	26.26K
27	0076_302_M3x10.x_t	25.99K
28	0076_303_M3x12.x_t	25.99K
29	0076_304_M4x10.x_t	26.15K
30	0076_305_M4x12.x_t	25.99K
31	0076_306_M4x25.x_t	25.99K
32	0076_307_M6x16.x_t	25.82K
33	0076_308_PWF4.x_t	4.98K
34	0076_309_SLW3.x_t	10.44K
35	0076_310_LBNR4.x_t	32.37K
36	0076_311_LBNR6.x_t	42.37K
37	0076_312_SLW6.x_t	10.38K
38	0076_Work-A.x_t	9.60K
39	0076_Z_101_Cylinder_SSD2-L-25-75_1.x_t	199.34K
40	0076_Z_101_Cylinder_SSD2-L-25-75_2.x_t	20.64K
41	0076_Z_101_Cylinder_SSD2-L-25-75_3.x_t	38.82K
42	0076_Z_101_Cylinder_SSD2-L-25-75_4.x_t	22.66K
43	0076_Z_101_Cylinder_SSD2-L-25-75_5.x_t	20.91K
44	0076_Z_101_Cylinder_SSD2-L-25-75_6.x_t	25.79K
45	0076_Z_AIPO3-15_1.x_t	15.45K
46	0076_Z_AIPO3-15_2.x_t	42.33K
47	0076_Z_BARC626ZZ-35_1.x_t	24.52K
48	0076_Z_BARC626ZZ-35_2.x_t	42.39K
49	0076_Z_BARC626ZZ-35_3.x_t	42.98K
50	0076_Z_BGCA608ZZ_1.x_t	28.08K
51	0076_Z_BGCA608ZZ_2.x_t	44.82K
52	0076_Z_BGCA608ZZ_3.x_t	16.74K
53	0076_Z_FJMXL6-1.0_1.x_t	18.17K
54	0076_Z_FJMXL6-1.0_2.x_t	29.14K
55	0076_Z_FJMXL6-1.0_3.x_t	15.52K
56	0076_Z_FJMXL6-1.0_4.x_t	3.66K
57	0076_Z_LBRFN5-190_1.x_t	57.94K
58	0076_Z_LBRFN5-190_2.x_t	42.49K
59	0076_Z_LBRFN5-190_3.x_t	42.29K
60	0076_Z_PHSCLM5_1.x_t	54.61K
61	0076_Z_PHSCLM5_2.x_t	21.76K
62	0076_Z_PHSCM5_1.x_t	54.61K
63	0076_Z_PHSCM5_2.x_t	21.76K
64	0076_Z_SSELB16-230_1.x_t	46.41K
65	0076_Z_SSELB16-230_2.x_t	388.91K
66	0076_Z_UMBB6-28_1.x_t	21.67K
67	0076_Z_UMBB6-28_2.x_t	42.40K
68	_0076_SA01.x_t	1.07M
69	_0076_SA02-1.x_t	361.97K
70	_0076_SA02-2.x_t	361.97K
71	_0076_SA03.x_t	710.60K
72	_0076_SA04_1.x_t	442.55K
73	_0076_SA04_2.x_t	442.54K
74	_0076_SSA01.x_t	142.94K
75	总装配体公众号：SX-HaiQi械.x_t	2.69M
