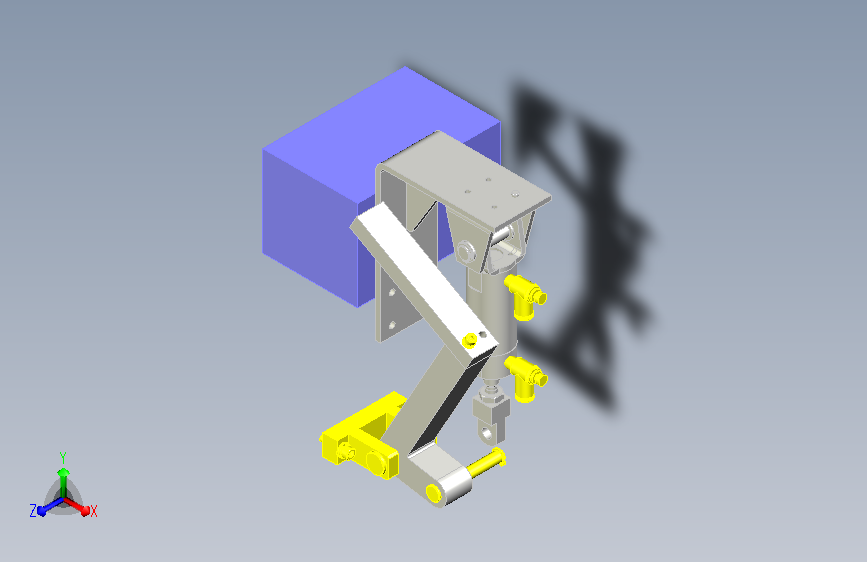

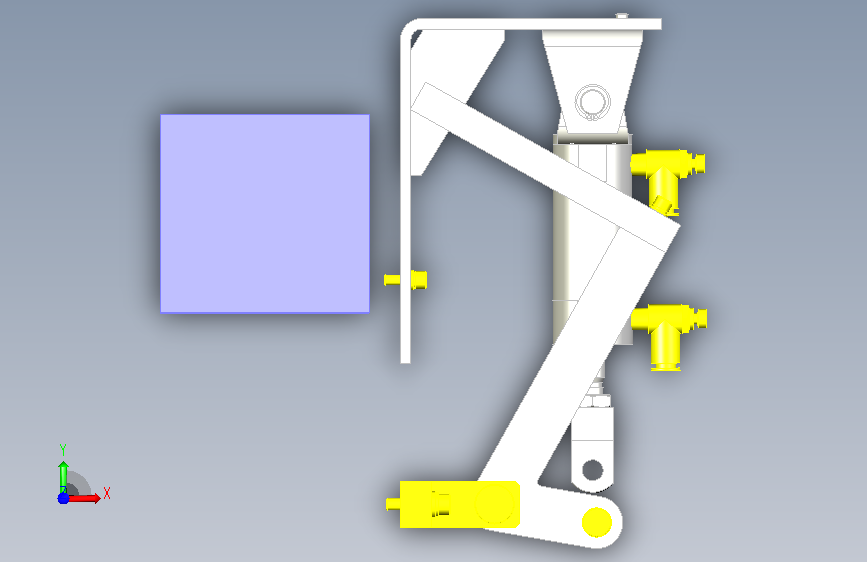

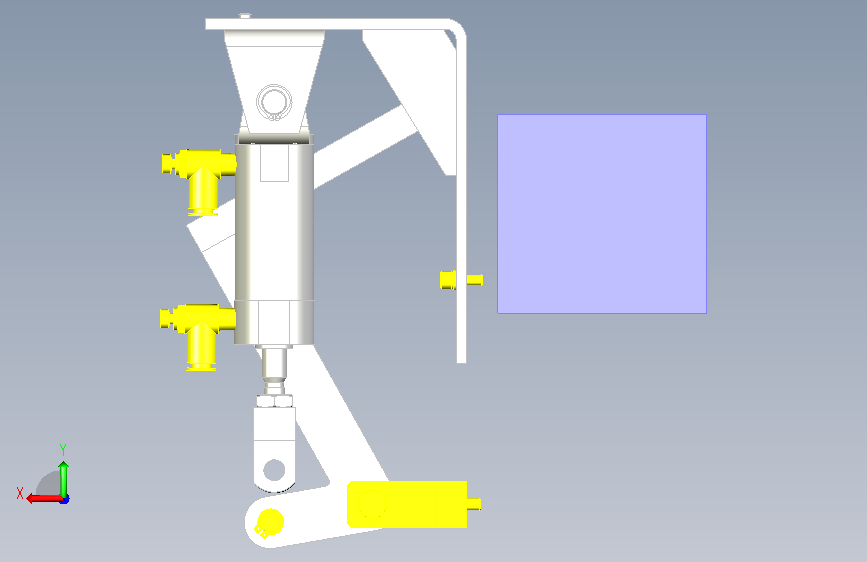

旋转型挡块机构
（ID:3659372）
改图/画图
截图
AI截图渲染
✨AI图片渲染
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 0189_001_HGBPS15-W30-H45.x_t | 37.31K |
| 2 | 0189_002_SHCCG14-50.0.x_t | 45.00K |
| 3 | 0189_003_SHCCG10-67.0.x_t | 45.01K |
| 4 | 0189_004_SCBS5-25.x_t | 50.09K |
| 5 | 0189_005_SCBS5-15.x_t | 50.09K |
| 6 | 0189_006_SCBS6-25.x_t | 50.12K |
| 7 | 0189_007_ASPSL6-1.x_t | 62.61K |
| 8 | 0189_101_CDG1DN32-25Z-NV-A93.x_t | 330.17K |
| 9 | 0189_102_CG-032-24A.x_t | 48.26K |
| 10 | 0189_201_Stopper.x_t | 24.85K |
| 11 | 0189_202_Blacket.x_t | 40.07K |
| 12 | 0189_203_Plate.x_t | 12.35K |
| 13 | 0189_301_SCB6-12.x_t | 32.32K |
| 14 | 0189_501_Conveyor.x_t | 48.61K |
| 15 | 0189_Work-A.x_t | 9.42K |
| 16 | 0189_Z_002_SHCCG14-50.0_1.x_t | 13.25K |
| 17 | 0189_Z_002_SHCCG14-50.0_2.x_t | 30.58K |
| 18 | 0189_Z_003_SHCCG10-67.0_1.x_t | 13.25K |
| 19 | 0189_Z_003_SHCCG10-67.0_2.x_t | 30.59K |
| 20 | 0189_Z_004_SCBS5-25_1.x_t | 34.28K |
| 21 | 0189_Z_004_SCBS5-25_2.x_t | 9.79K |
| 22 | 0189_Z_004_SCBS5-25_3.x_t | 4.97K |
| 23 | 0189_Z_005_SCBS5-15_1.x_t | 34.28K |
| 24 | 0189_Z_005_SCBS5-15_2.x_t | 9.79K |
| 25 | 0189_Z_005_SCBS5-15_3.x_t | 4.97K |
| 26 | 0189_Z_006_SCBS6-25_1.x_t | 34.30K |
| 27 | 0189_Z_006_SCBS6-25_2.x_t | 9.80K |
| 28 | 0189_Z_006_SCBS6-25_3.x_t | 4.97K |
| 29 | 0189_Z_101_CDG1DN32-25Z-NV-A93_1.x_t | 85.75K |
| 30 | 0189_Z_101_CDG1DN32-25Z-NV-A93_2.x_t | 77.42K |
| 31 | 0189_Z_101_CDG1DN32-25Z-NV-A93_3.x_t | 10.44K |
| 32 | 0189_Z_101_CDG1DN32-25Z-NV-A93_4.x_t | 23.60K |
| 33 | 0189_Z_101_CDG1DN32-25Z-NV-A93_5.x_t | 27.32K |
| 34 | 0189_Z_101_CDG1DN32-25Z-NV-A93_6.x_t | 86.62K |
| 35 | _0189_SA01.x_t | 93.93K |
| 36 | _0189_SA02.x_t | 487.78K |
| 37 | _0189_SA03.x_t | 285.03K |
| 38 | 总装配体公众号：SX-HaiQi械.x_t | 908.46K |
此图纸下载需要1金币
立即下载
发布者
模型信息
图纸ID：3659372
图纸格式：x_t
文件大小：851.86KB
所需金币：1
上传时间：2026-09-02 20:47:00
是否可编辑：
软件版本：Parasolid
