玻璃板粘结夹具

（ID:3659524）

改图/画图

设备部件 / 工器具 / 玻璃板粘结夹具

©非原创

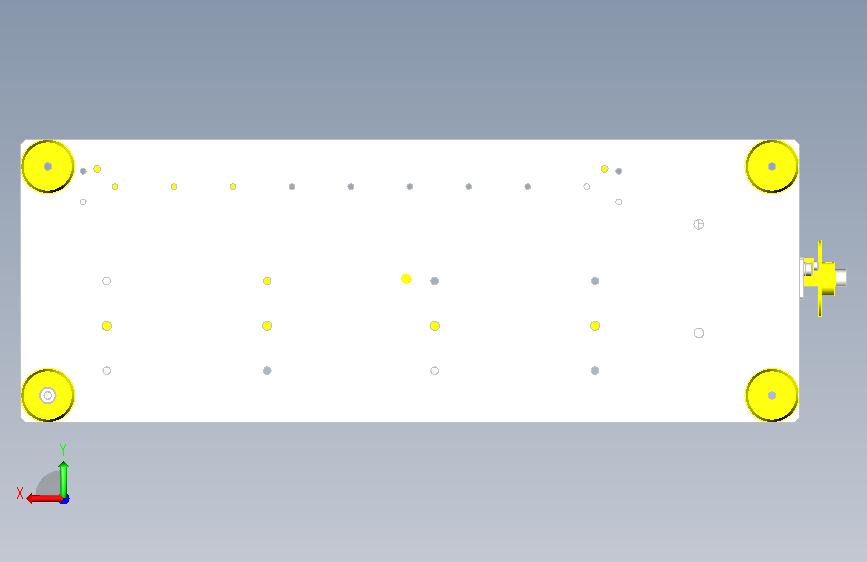

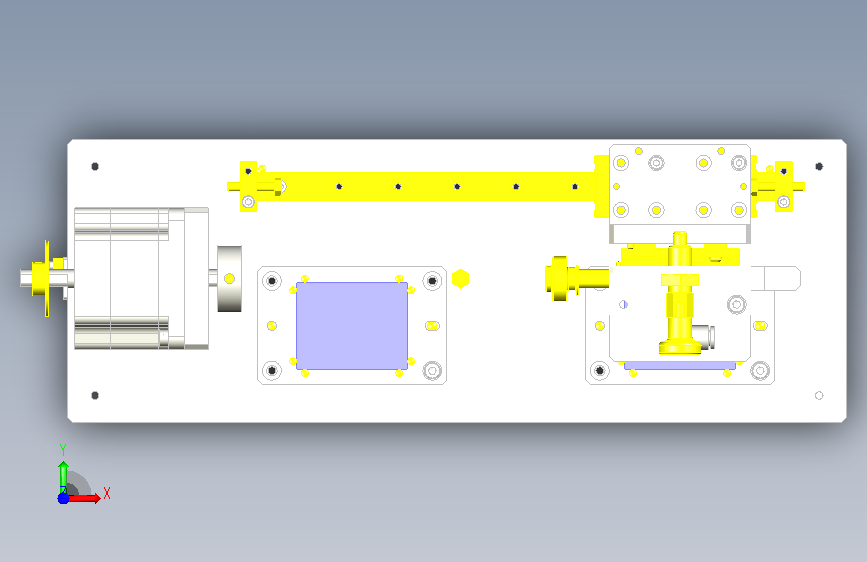

平面图

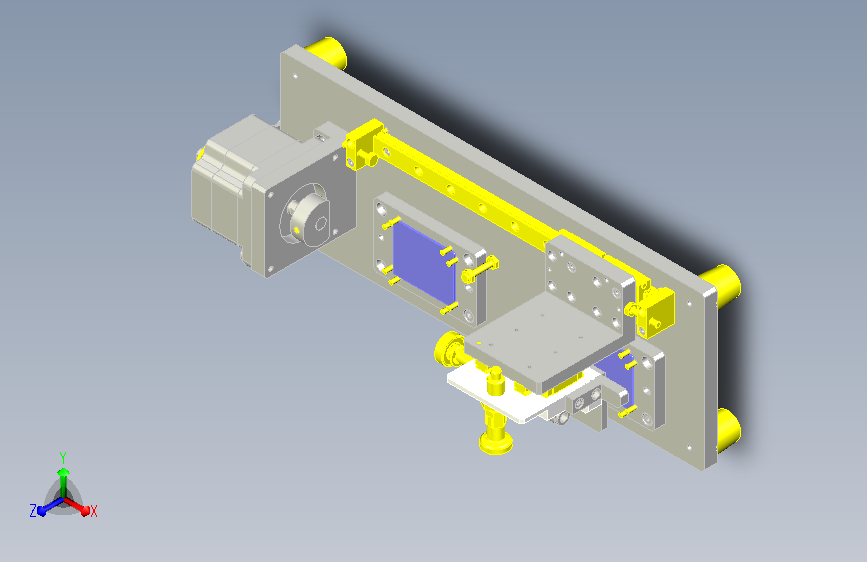

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	0541_001_SEB10-75.x_t	537.43K
2	0541_002_SE2B13-220.x_t	556.00K
3	0541_003_BGSPW8-11-L24-S10.x_t	67.41K
4	0541_004_B698ZZ.x_t	44.18K
5	0541_005_TSBSB4-18.x_t	23.51K
6	0541_006_HXN5-5.x_t	5.55K
7	0541_007_STRB4-20.x_t	35.53K
8	0541_008_UST4-35.x_t	75.58K
9	0541_009_PMXYK10M.x_t	152.94K
10	0541_010_MS3-15.x_t	5.04K
11	0541_011_HPSC32-8.x_t	51.09K
12	0541_012_FPMF24.x_t	142.77K
13	0541_013_CLBPB8-10-4.x_t	6.95K
14	0541_014_C-30-RK-2320.x_t	6.90K
15	0541_015_SBLT3-8-6.x_t	29.01K
16	0541_016_MS3-10.x_t	5.21K
17	0541_017_MS2-8.x_t	4.70K
18	0541_018_MS4-10.x_t	5.24K
19	0541_019_MSSFS5-10.x_t	26.23K
20	0541_101_Motor_CRK564BP.x_t	298.12K
21	0541_102_Fitting_KQ2L06-M5A.x_t	75.91K
22	0541_201_Base.x_t	72.11K
23	0541_202_Bracket.x_t	76.59K
24	0541_203_Bracket.x_t	66.74K
25	0541_204_Bracket.x_t	23.67K
26	0541_205_Plate.x_t	51.39K
27	0541_206_Block.x_t	44.90K
28	0541_207_Bracket.x_t	34.67K
29	0541_208_Cam.x_t	16.00K
30	0541_209_Plate.x_t	22.56K
31	0541_301_SCB4-10.x_t	28.48K
32	0541_302_SCB3-6.x_t	37.60K
33	0541_303_SCB3-10.x_t	28.17K
34	0541_304_SCB3-25.x_t	28.17K
35	0541_305_SCB4-15.x_t	28.30K
36	0541_306_PWF4.x_t	4.97K
37	0541_307_SCB5-12.x_t	28.50K
38	0541_308_PWF3.x_t	4.97K
39	0541_309_SCB2-6.x_t	32.91K
40	0541_Work-A.x_t	16.81K
41	0541_Work-B.x_t	16.81K
42	0541_Z_BGSPW8-11-L24-S10-1.x_t	40.09K
43	0541_Z_BGSPW8-11-L24-S10-2.x_t	25.31K
44	0541_Z_HPSC32-8-1.x_t	23.84K
45	0541_Z_HPSC32-8-2.x_t	26.10K
46	0541_Z_PMXYK10M-1.x_t	27.87K
47	0541_Z_PMXYK10M-2.x_t	75.80K
48	0541_Z_PMXYK10M-3.x_t	42.24K
49	0541_Z_SE2B13-220-1.x_t	80.25K
50	0541_Z_SE2B13-220-2.x_t	465.32K
51	0541_Z_SEB10-75-1.x_t	61.78K
52	0541_Z_SEB10-75-2.x_t	465.89K
53	0541_Z_UST4-35-1.x_t	30.90K
54	0541_Z_UST4-35-2.x_t	42.22K
55	_0541_SA01.x_t	3.06M
56	总装配体公众号：SX-HaiQi械.x_t	3.10M
