铣削虎钳（ID:373076）

机械设备 / 非标机械 / 铣削虎钳

©非原创

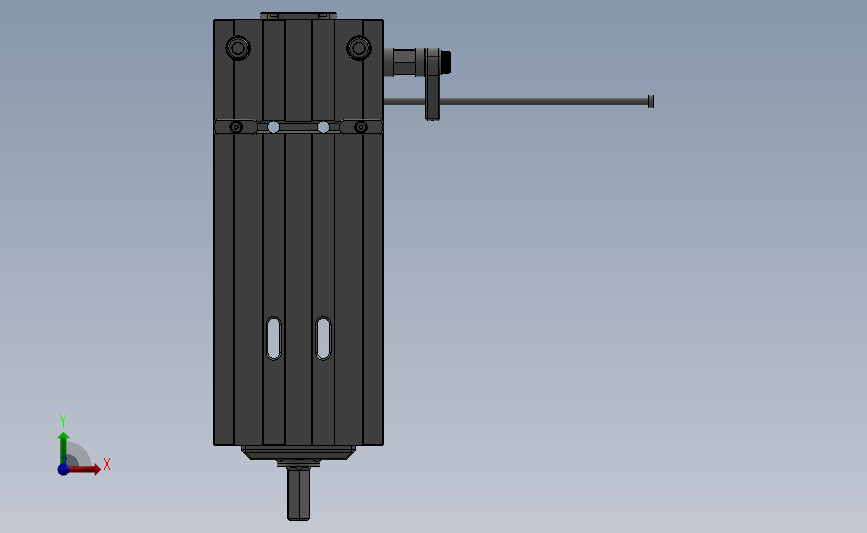

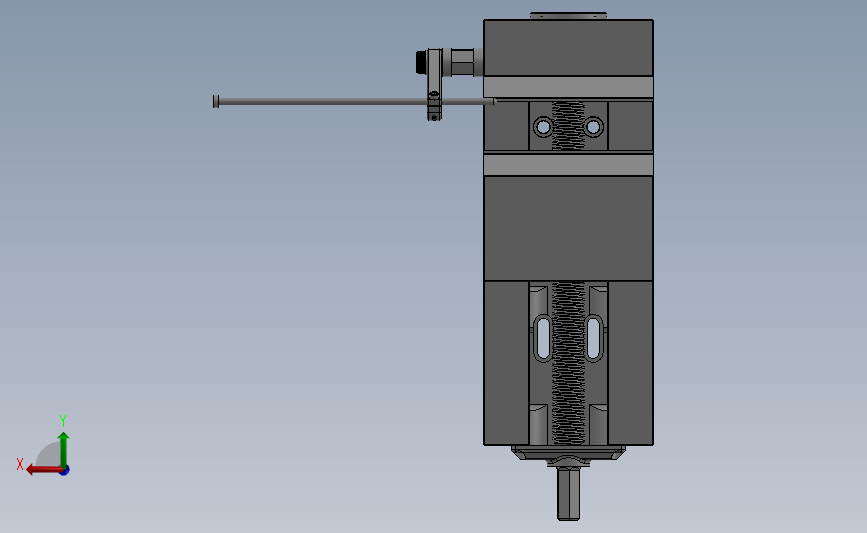

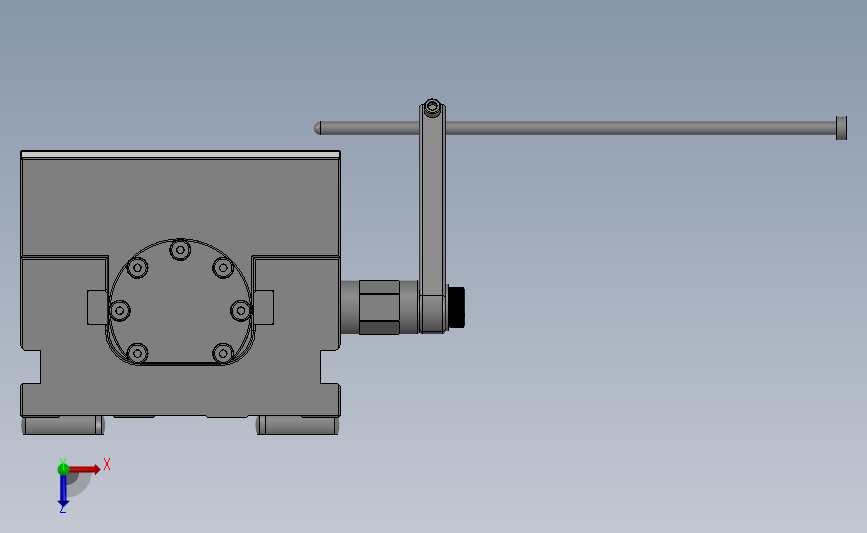

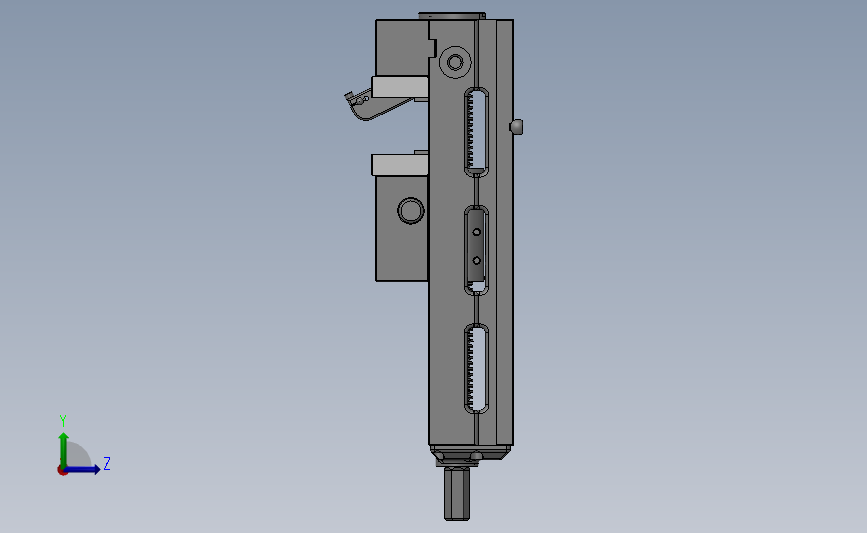

平面图

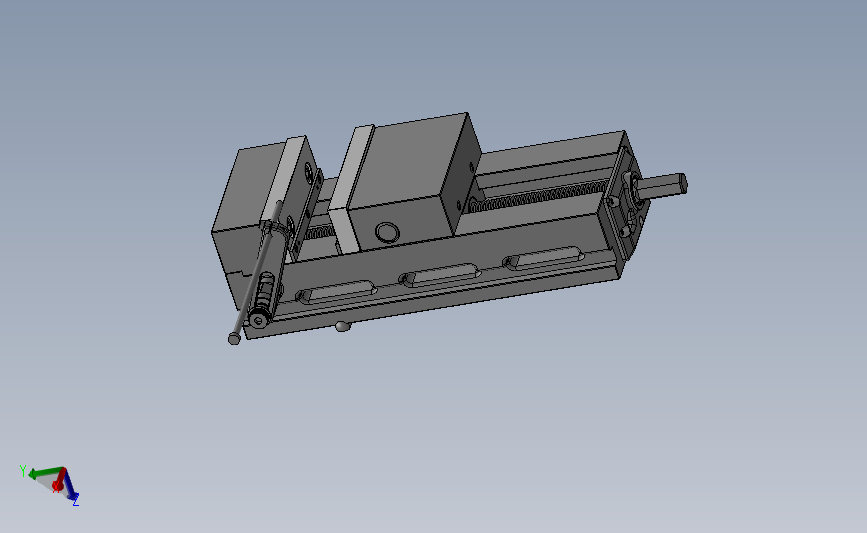

3D视图

文件列表

#	文件名称	文件大小
1	1199N180_DOUBLE-LIP OIL-RESISTANT SHAFT SEAL.SLDPRT	242.43K
2	16676962316402.zip	24.37M
3	51106.SLDASM	247.15K
4	5905K336_NEEDLE-ROLLER BEARING.SLDPRT	236.09K
5	5909K370_THRUST NEEDLE-ROLLER BEARING.SLDPRT	420.31K
6	5909K510_THRUST NEEDLE-ROLLER BEARING.SLDPRT	58.81K
7	5909K640_THRUST NEEDLE-ROLLER BEARING.SLDPRT	59.73K
8	90357A003_ALLOY STEEL ULTRA-LOW-PROFILE SCKT HEAD SCREW.SLDPRT	482.22K
9	90807A143_SAME-SIZE THREAD ALLOY STEEL SHOULDER SCREW.SLDPRT	793.05K
10	91251A245_BLACK-OXIDE ALLOY STEEL SOCKET HEAD CAP SCREW (1).SLDPRT	622.22K
11	91251A711_BLACK-OXIDE ALLOY STEEL SOCKET HEAD CAP SCREW.SLDPRT	531.72K
12	91251A724_BLACK-OXIDE ALLOY STEEL SOCKET HEAD SCREW.SLDPRT	546.12K
13	91255A537_BUTTON HEAD HEX DRIVE SCREW.SLDPRT	633.29K
14	91595A905_METRIC ALLOY STEEL DOWEL PIN.SLDPRT	177.83K
15	91985A171_STEEL SPIRAL INTERNAL RETAINING RING.SLDPRT	202.88K
16	92220A184_LOW-PROFILE ALLOY STEEL SOCKET HEAD CAP SCREW.SLDPRT	537.06K
17	92695A152_HIGH HOLD CONE POINT SET SCREW.SLDPRT	462.78K
18	92695A505_HIGH HOLD CONE POINT SET SCREW.SLDPRT	619.01K
19	93026A656_STEEL GENERAL PURPOSE ACME COUPLING NUT (1).SLDPRT	762.61K
20	93772A247_STEEL STRAIGHT STYLE PRECISION EJECTOR PIN.SLDPRT	74.06K
21	9657K292_COMPRESSION SPRING.SLDPRT	1.88M
22	96853A100_18-8 STAINLESS STEEL OVERSIZED OD ROUND SHIM.SLDPRT	53.61K
23	98381A540_ALLOY STEEL DOWEL PIN.SLDPRT	84.17K
24	98381A550_ALLOY STEEL DOWEL PIN.SLDPRT	74.72K
25	98381A890_ALLOY STEEL DOWEL PIN.SLDPRT	107.00K
26	ACME 1.125-5 SCRAPER.SLDPRT	413.34K
27	BACK SCREW SUPPORT.SLDPRT	529.52K

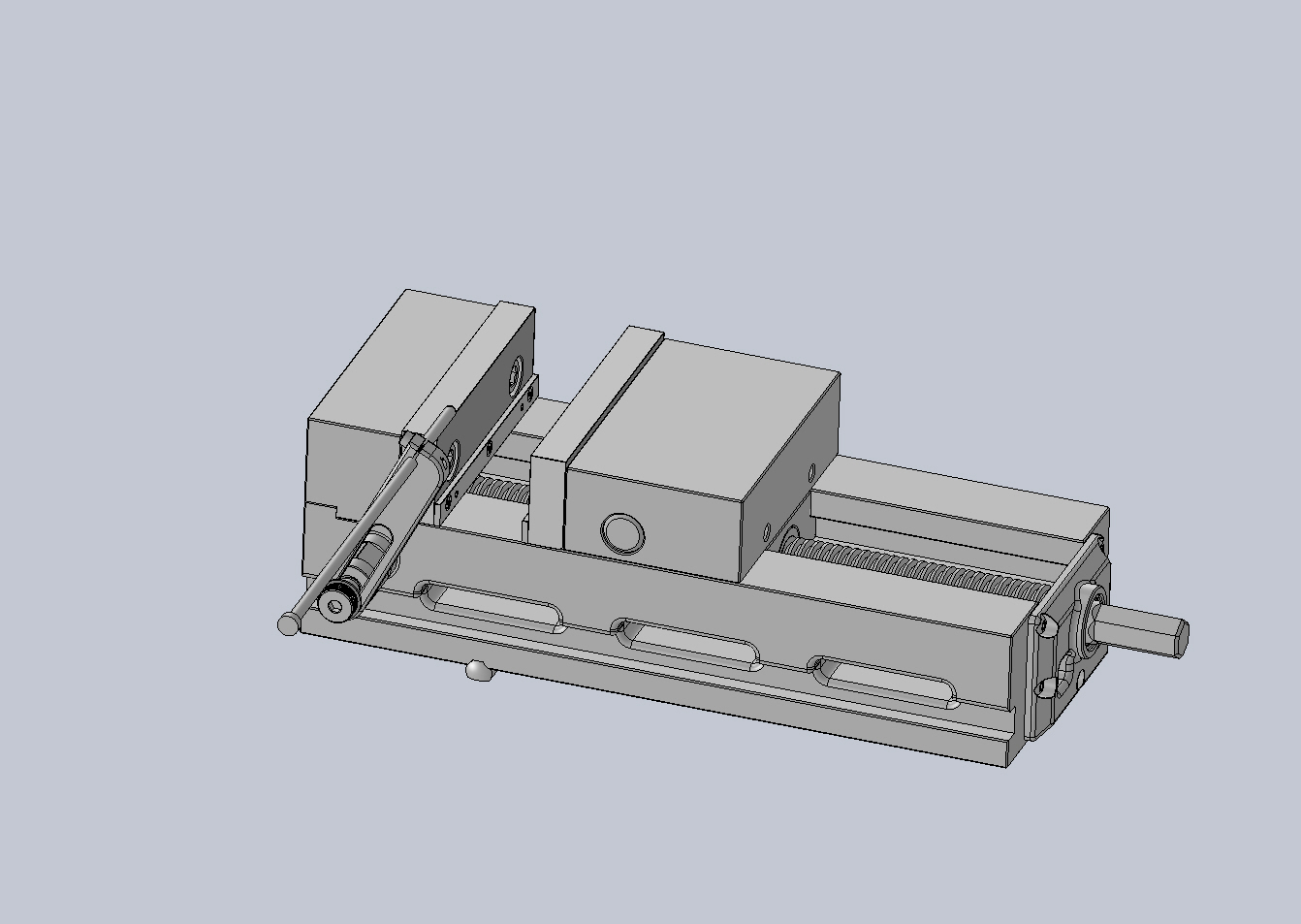

28	base version.JPG	175.51K
29	base version.SLDASM	8.01M
30	BEARING RETAINER.SLDPRT	128.73K
31	jaw.SLDPRT	101.52K
32	magnet.SLDPRT	87.31K
33	MOVABLE JAW SUPPORT.SLDPRT	412.94K
34	MOVABLE JAW.SLDPRT	255.62K
35	parallel set .0625 pitch.SLDPRT	226.08K
36	parallel with magnets.SLDASM	392.03K
37	rubber seal from shvarf.SLDPRT	55.93K
38	SCREW.SLDPRT	1.27M
39	stationary jaw.SLDPRT	267.96K
40	STOP BASE.SLDPRT	146.88K
41	STOP KNOB.SLDPRT	294.88K
42	trust roller bearing.SLDASM	258.02K
43	vice base.SLDPRT	622.22K
44	vice jaw.SLDASM	710.25K
45	_51106_PART1.sldprt	121.60K
46	_51106_PART2.sldprt	102.98K
47	_51106_PART3.sldprt	89.42K
48	_51106_PART4.sldprt	95.94K
