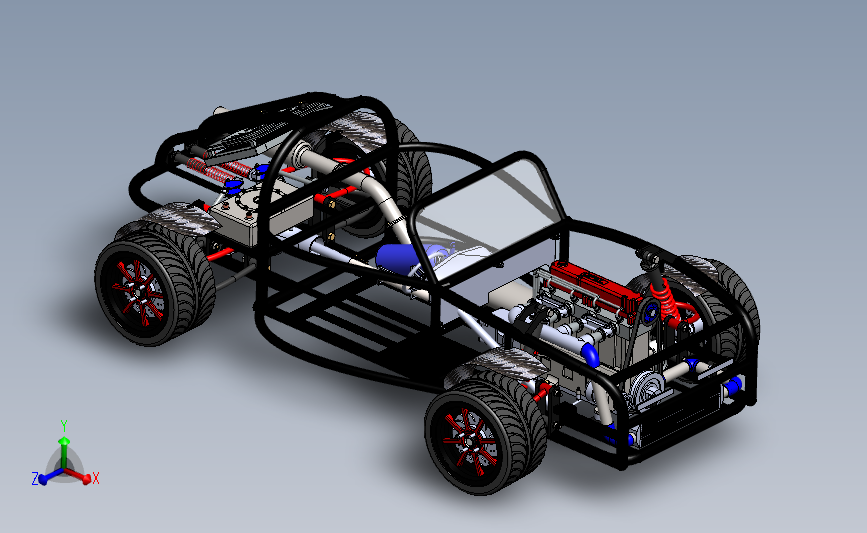

超级跑车整车设计（除外壳）（发动机完整）3D图纸 SOLIDWORKS（ID:384484）

交通运输 / 车辆相关 / 超级跑车整车设计（除外壳）（发动机完整）3D图纸 SOLIDWORKS

©非原创

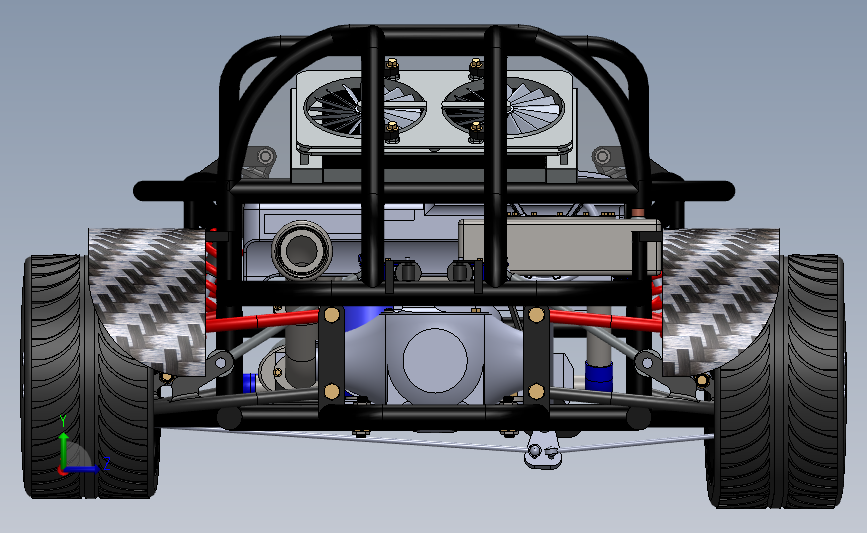

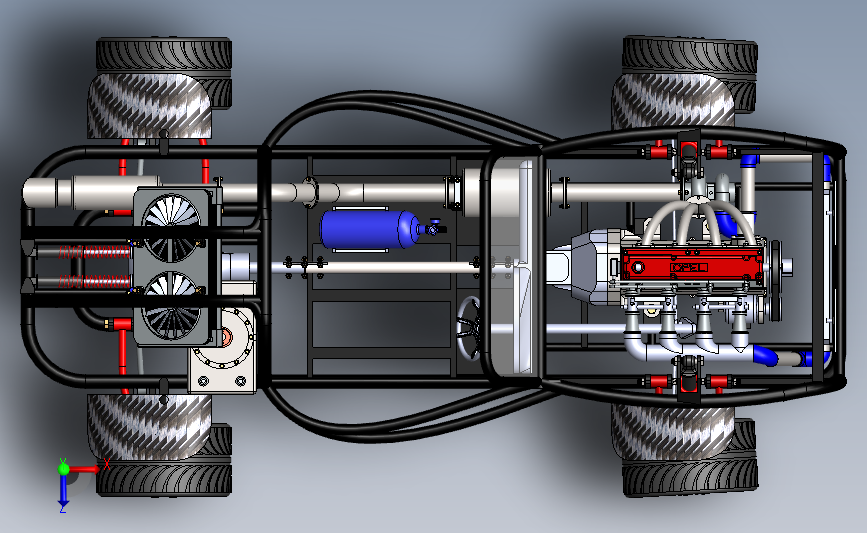

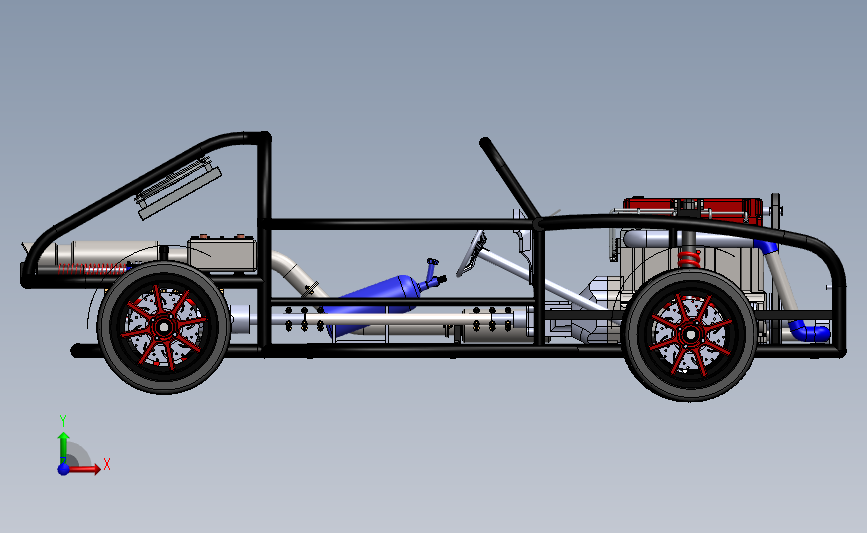

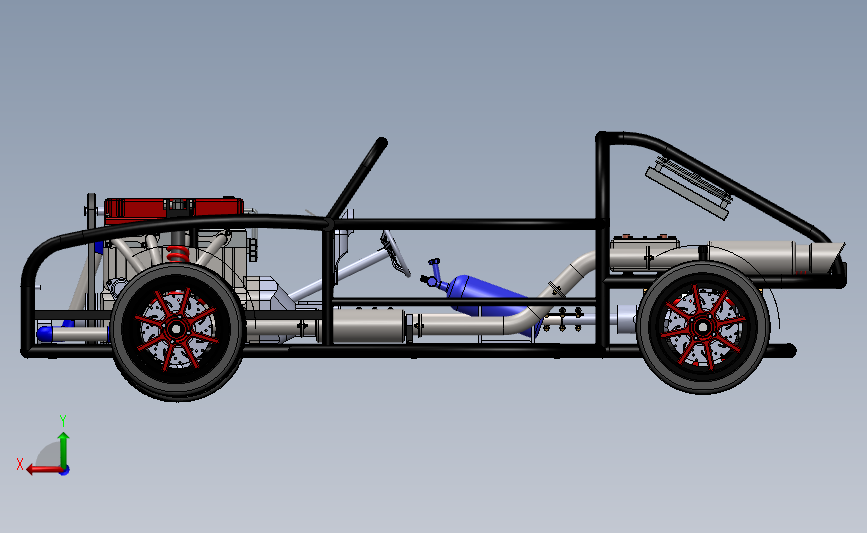

平面图

3D视图

文件列表

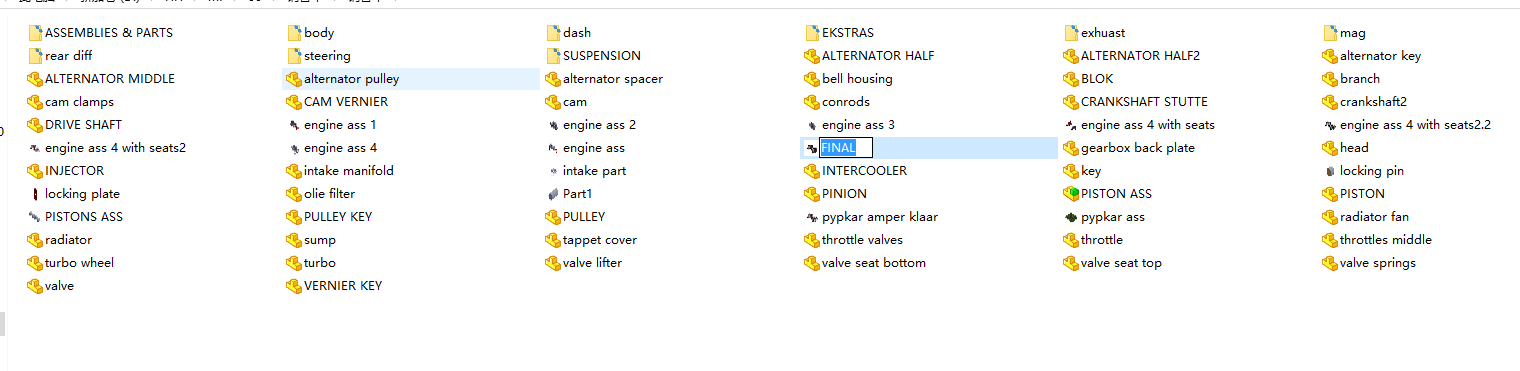

#	文件名称	文件大小
1	16684167948432.zip	112.99M

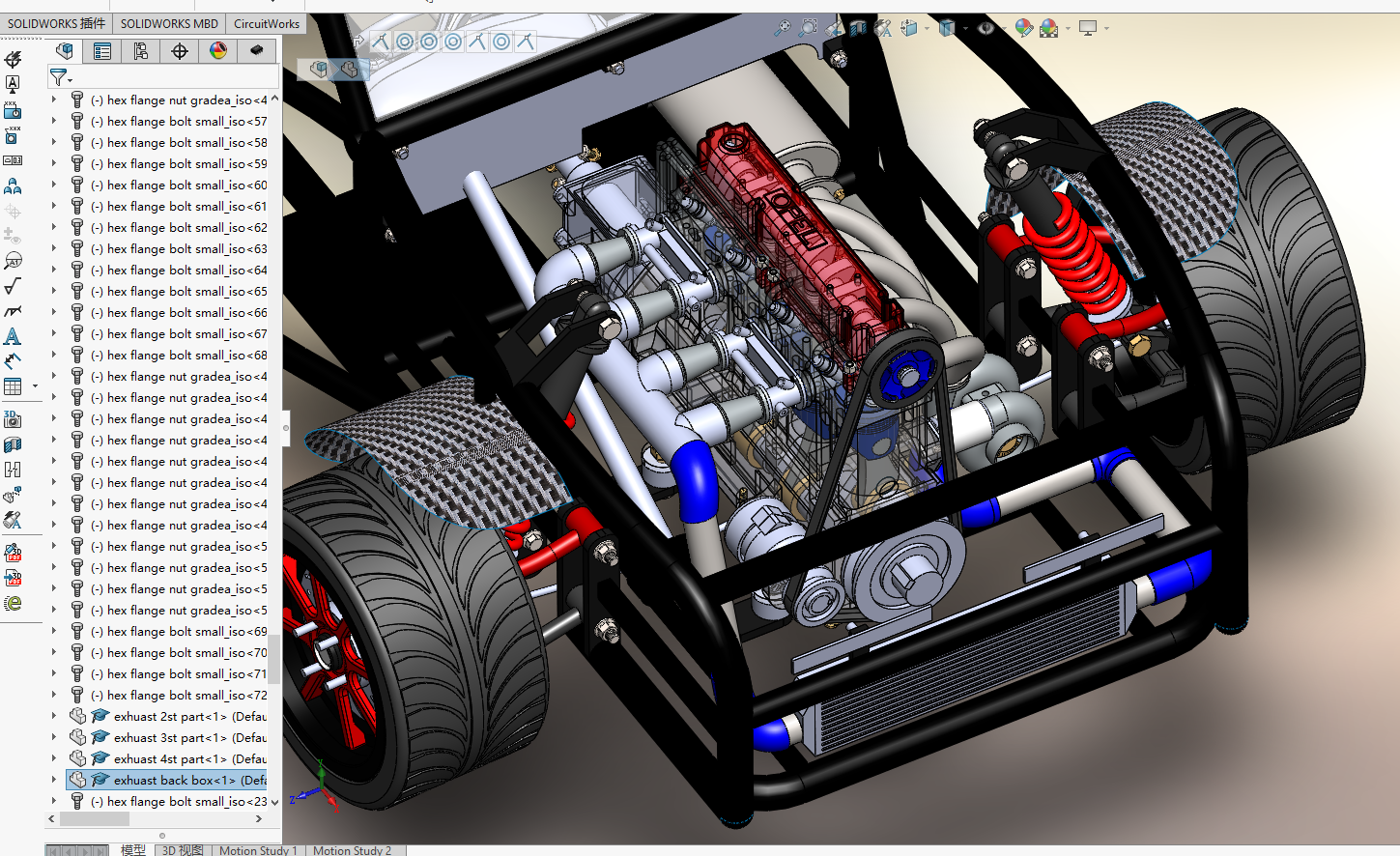

2	前桥.png	1.05M

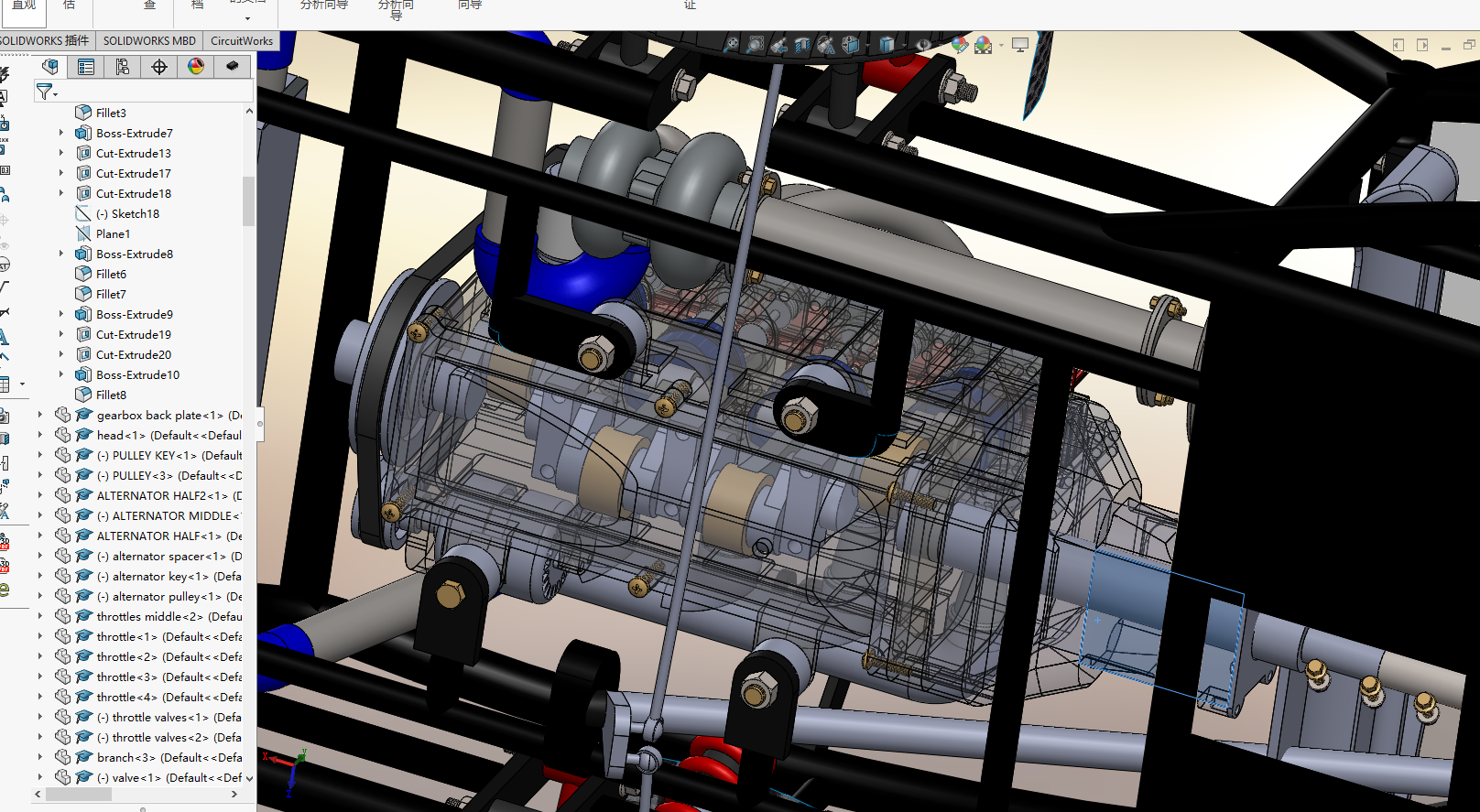

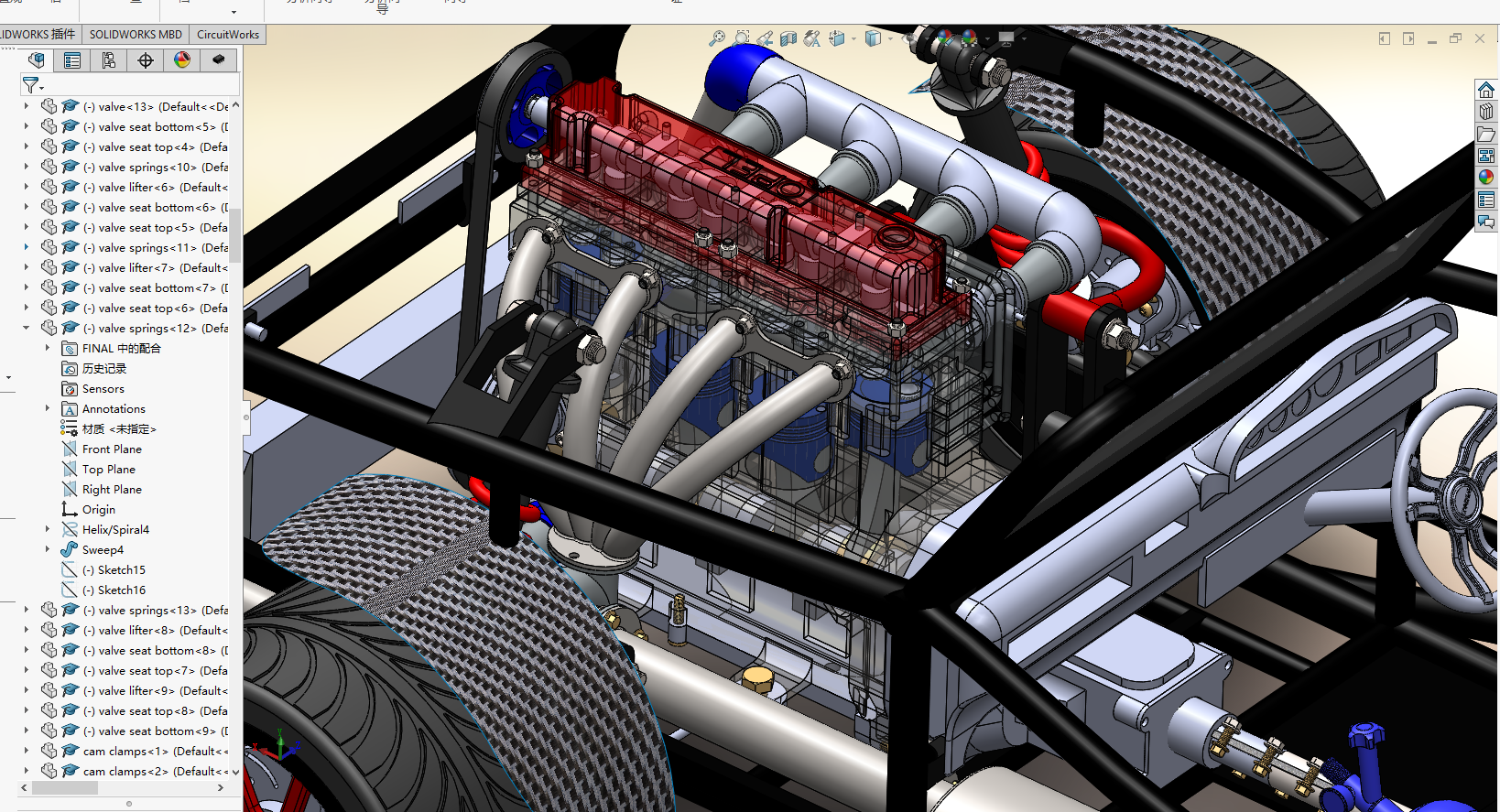

3	发动机内部结构.png	1.42M

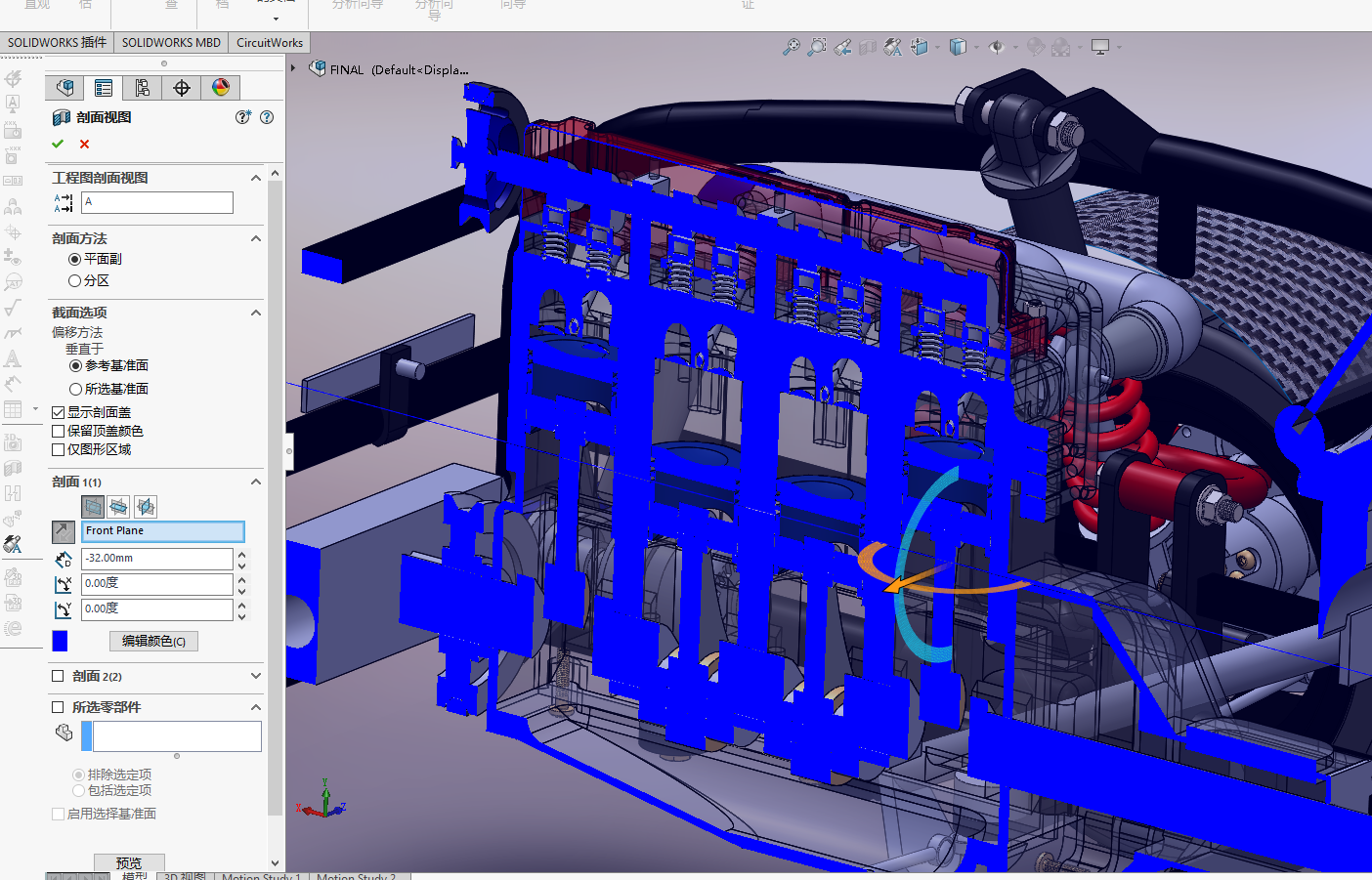

4	发动机剖视图.png	738.89K
5	发动机活塞.png	991.01K

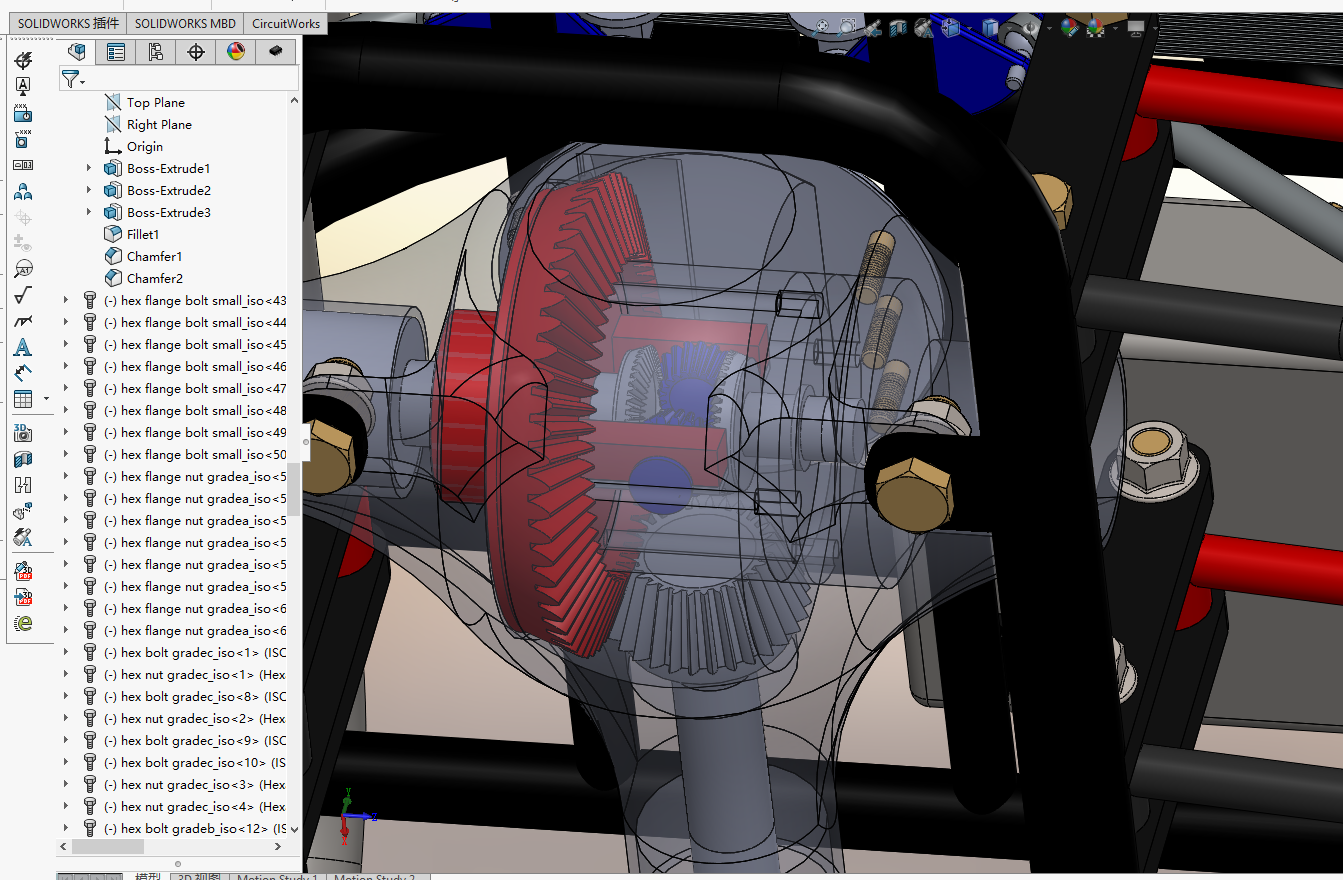

6	后桥差速器.png	637.35K

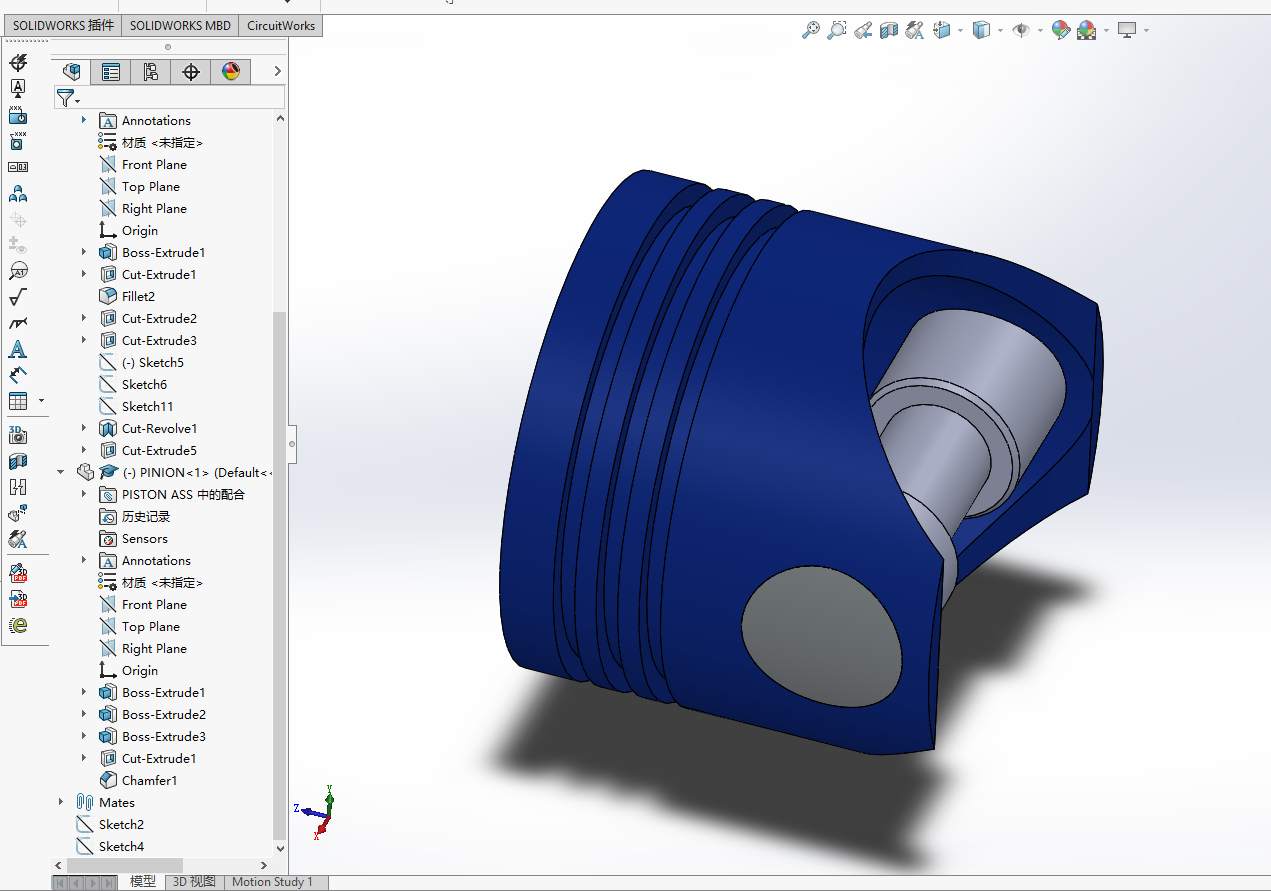

7	活塞.png	325.24K

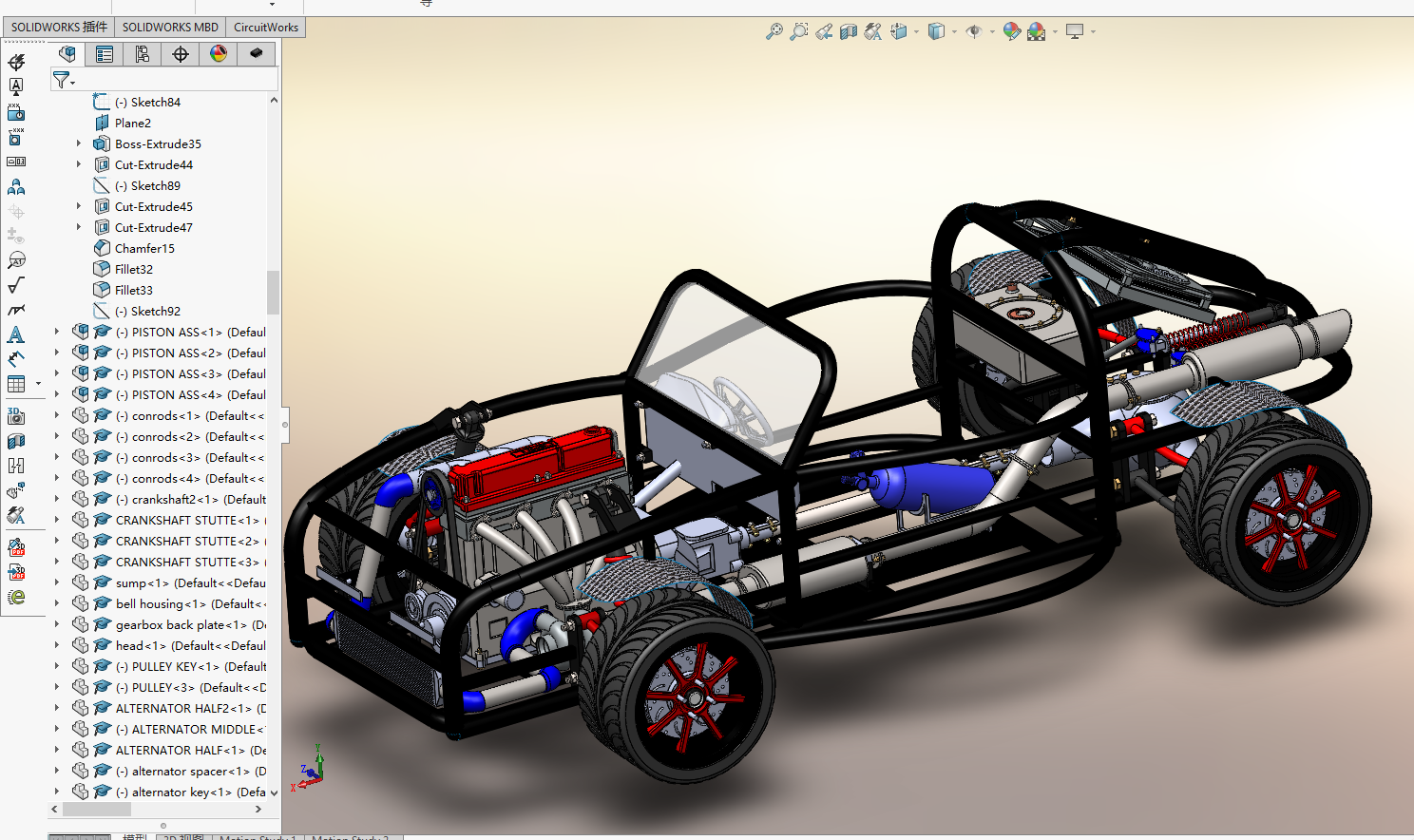

8	超级跑车整车（除外壳）设计.png	810.20K

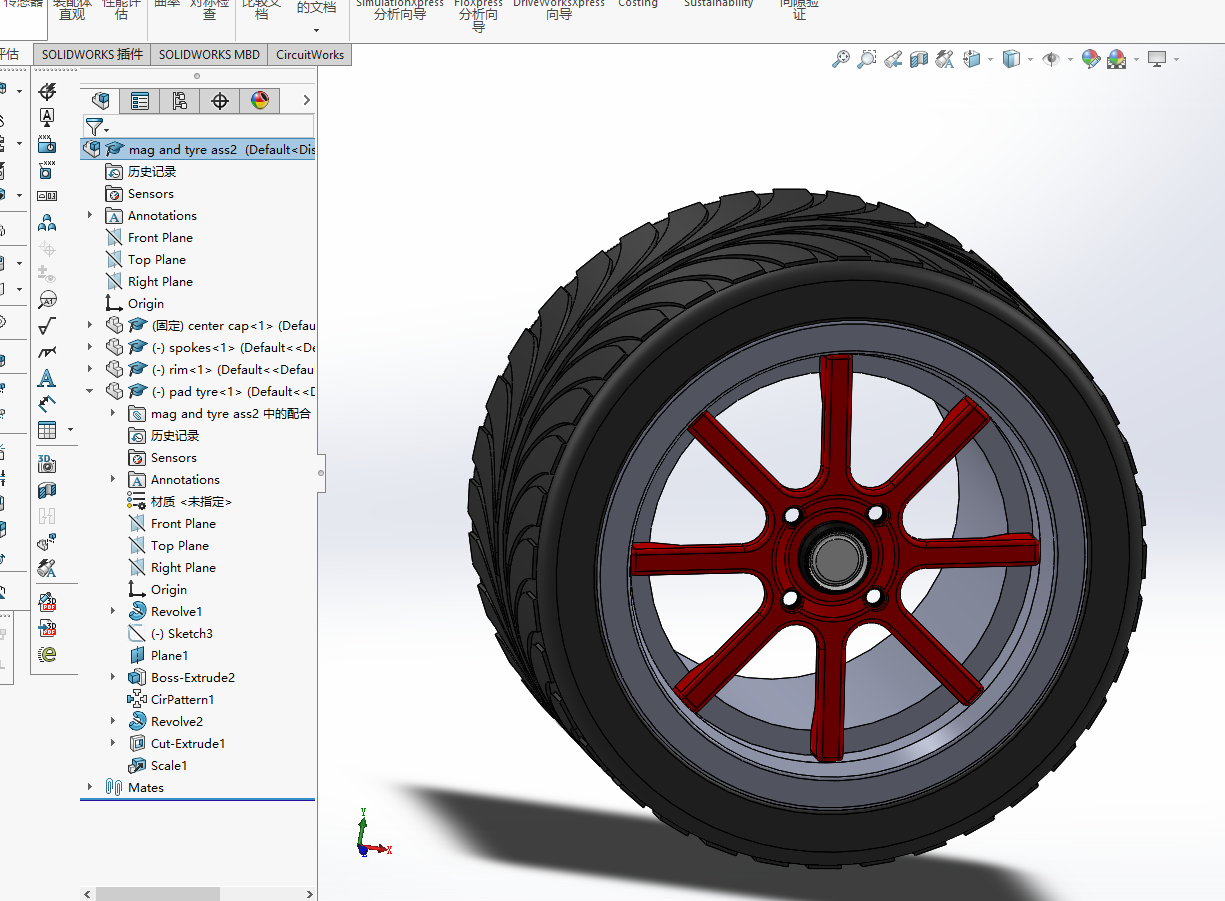

9	链条.png	378.50K
10	零件体.png	46.49K
11	ALTERNATORHALF.SLDPRT	716.50K
12	ALTERNATORHALF2.SLDPRT	709.50K
13	alternatorkey.SLDPRT	92.50K
14	ALTERNATORMIDDLE.SLDPRT	257.00K
15	alternatorpulley.SLDPRT	204.50K
16	alternatorspacer.SLDPRT	131.00K
17	bellhousing.SLDPRT	807.00K
18	BLOK.SLDPRT	2.89M
19	branch.SLDPRT	865.00K
20	cam.SLDPRT	605.00K
21	camclamps.SLDPRT	254.50K
22	CAMVERNIER.SLDPRT	510.00K
23	conrods.SLDPRT	211.50K
24	crankshaft2.SLDPRT	840.50K
25	CRANKSHAFTSTUTTE.SLDPRT	170.00K
26	DRIVESHAFT.SLDPRT	214.50K
27	engineass.SLDASM	323.50K
28	engineass1.SLDASM	312.00K
29	engineass2.SLDASM	1.23M
30	engineass3.SLDASM	2.68M
31	engineass4.SLDASM	3.07M
32	engineass4withseats.SLDASM	4.08M
33	engineass4withseats2.2.SLDASM	13.66M
34	engineass4withseats2.SLDASM	11.01M
35	FINAL.SLDASM	13.64M
36	gearboxbackplate.SLDPRT	164.00K
37	head.SLDPRT	4.08M
38	INJECTOR.SLDPRT	298.50K
39	intakemanifold.SLDPRT	722.50K
40	intakepart.SLDPRT	617.00K
41	INTERCOOLER.SLDPRT	1.14M
42	key.SLDPRT	185.00K
43	lockingpin.SLDPRT	108.50K
44	lockingplate.SLDPRT	214.50K
45	oliefilter.SLDPRT	365.50K
46	Part1.SLDPRT	108.50K
47	PINION.SLDPRT	191.00K
48	PISTON.SLDPRT	277.50K
49	PISTONASS.SLDASM	173.00K
50	PISTONSASS.SLDASM	189.00K
51	PULLEY.SLDPRT	225.50K
52	PULLEYKEY.SLDPRT	94.50K
53	pypkaramperklaar.SLDASM	12.37M
54	pypkarass.SLDASM	10.97M
55	radiator.SLDPRT	1.40M
56	radiatorfan.SLDPRT	750.50K
57	sump.SLDPRT	1.08M
58	tappetcover.SLDPRT	2.19M
59	throttle.SLDPRT	275.50K
60	throttlesmiddle.SLDPRT	637.50K
61	throttlevalves.SLDPRT	143.00K
62	turbo.SLDPRT	873.00K
63	turbowheel.SLDPRT	1.27M
64	valve.SLDPRT	166.00K
65	valvelifter.SLDPRT	143.50K
66	valveseatbottom.SLDPRT	99.50K
67	valveseattop.SLDPRT	133.50K
68	valvesprings.SLDPRT	455.50K
69	VERNIERKEY.SLDPRT	92.00K
70	ALTERNATORHALF.SLDPRT	716.50K
71	ALTERNATORHALF2.SLDPRT	709.50K
72	alternatorkey.SLDPRT	92.50K
73	ALTERNATORMIDDLE.SLDPRT	257.00K
74	alternatorpulley.SLDPRT	204.50K
75	alternatorspacer.SLDPRT	131.00K
76	baseplate.SLDPRT	82.00K
77	bellhousing.SLDPRT	807.00K
78	BLOK.SLDPRT	2.89M
79	branch.SLDPRT	865.00K
80	BRANCH2.SLDPRT	244.00K
81	cam.SLDPRT	605.00K
82	camclamps.SLDPRT	254.50K
83	CAMVERNIER.SLDPRT	510.00K
84	conrods.SLDPRT	211.50K
85	crankshaft.SLDPRT	628.00K
86	CRANKSHAFTSTUTTE.SLDPRT	170.00K
87	Assem1.SLDASM	781.50K
88	Assem1TEST.SLDASM	3.54M
89	BLAD.SLDPRT	316.00K
90	ENGINERUBBERMOUNTINGS.SLDPRT	103.50K
91	petroltenk.SLDPRT	607.50K
92	petroltenkrubbermountings.SLDPRT	213.50K
93	test.SLDPRT	5.22M
94	dashplate.SLDPRT	1.05M
95	LIGTE.SLDPRT	111.50K
96	NOSTENK.SLDPRT	743.00K
97	tenkhouer.SLDPRT	339.00K
98	exhuast1stpart.SLDPRT	198.00K
99	exhuast2stpart.SLDPRT	345.50K
100	exhuast3stpart.SLDPRT	196.00K
101	exhuast4stpart.SLDPRT	329.00K
102	exhuastbackbox.SLDPRT	408.50K
103	exhuastmounts.SLDPRT	204.00K
104	centercap.SLDPRT	269.50K
105	diffhubs.SLDPRT	192.50K
106	disc.SLDPRT	685.00K
107	HUBS.SLDPRT	361.00K
108	HUBS2.2.SLDPRT	367.50K
109	HUBS2.SLDPRT	469.00K
110	magandtyreass2.SLDASM	1.01M
111	magandtyreassleft.SLDASM	1008.00K
112	padtyre.SLDPRT	2.16M
113	rim.SLDPRT	351.00K
114	SHAFTHUBS.SLDPRT	224.00K
115	spokes.SLDPRT	884.00K
116	wheelhub.SLDPRT	208.50K
117	diffass.SLDASM	602.50K
118	diffhousing.SLDPRT	994.50K
119	driveshafthelicalgear.SLDPRT	520.50K
120	driveshafthelicalgears.SLDPRT	1.01M
121	driveshafthelicalgears2.SLDPRT	1.12M
122	driveshaftkey.SLDPRT	91.50K
123	mainhelicalgear.SLDPRT	1.15M
124	mainhelicalgearcasing.SLDPRT	208.00K
125	sidehousing.SLDPRT	117.50K
126	smallgearslockjoint.SLDPRT	171.00K
127	smallhelicalgears.SLDPRT	1.05M
128	tophousing.SLDPRT	450.00K
129	MIDCAP.SLDPRT	452.00K
130	steeringarm.SLDPRT	234.00K
131	steeringarmlong.SLDPRT	139.50K
132	steeringpost.SLDPRT	218.50K
133	steringwheel.SLDPRT	3.61M
134	BACKLOWERCONTROLARM.SLDPRT	869.50K
135	BACKLOWERCONTROLARMSIDE2.SLDPRT	1.06M
136	BACKUPPERCONTROLARM.SLDPRT	385.00K
137	driveshaft.SLDPRT	253.50K
138	driveshaft2.SLDPRT	163.00K
139	LOWERCONTROLARM.SLDPRT	659.50K
140	LOWERSHOCKMOUNT.SLDPRT	195.00K
141	SHOCKSPRING.SLDPRT	426.00K
