洗墙灯点胶机（ID:395440）

机械设备 / 非标机械 / 洗墙灯点胶机

©非原创

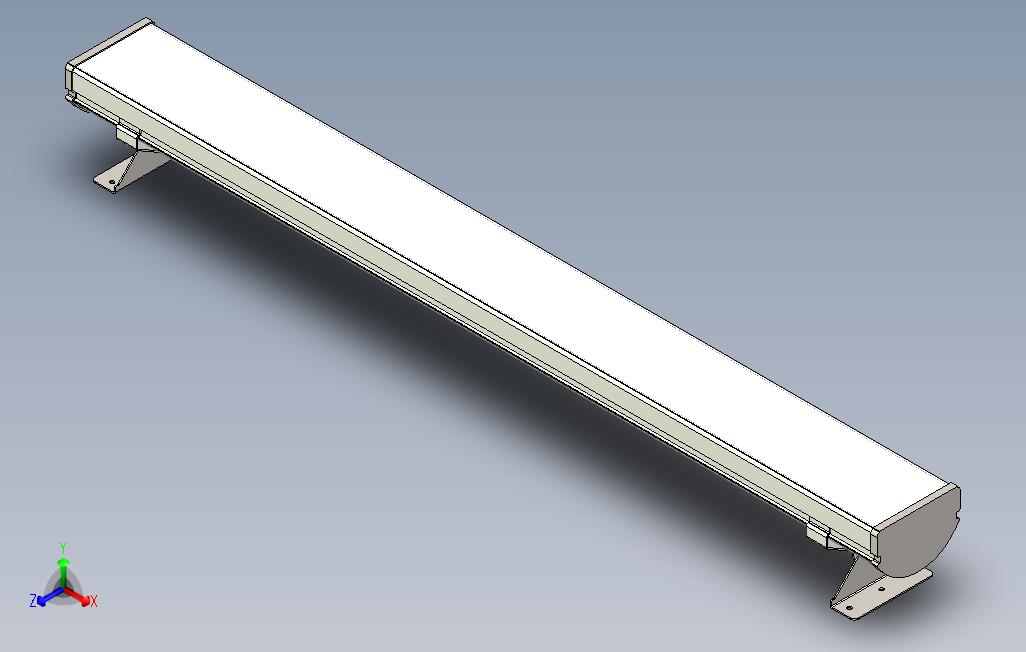

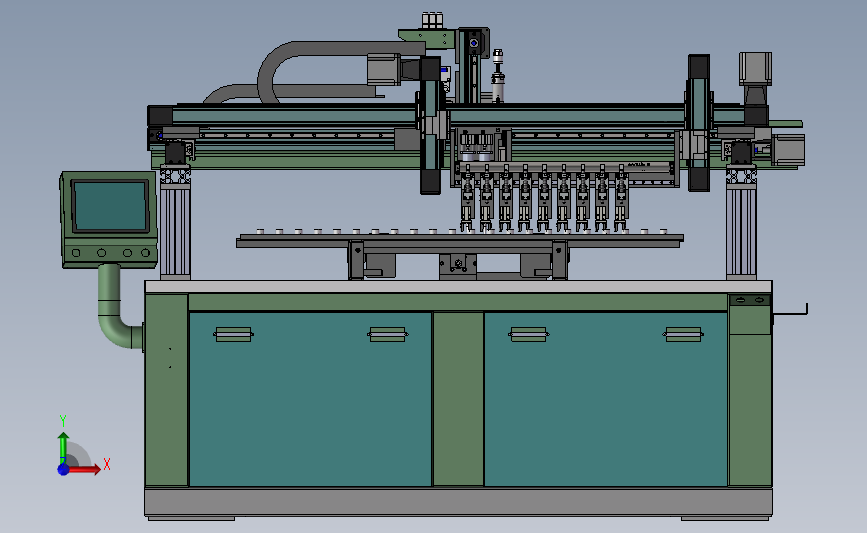

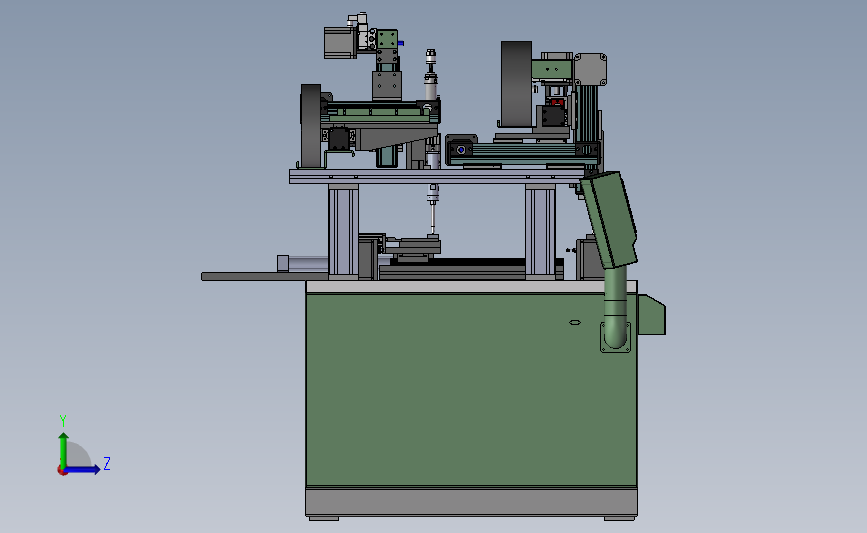

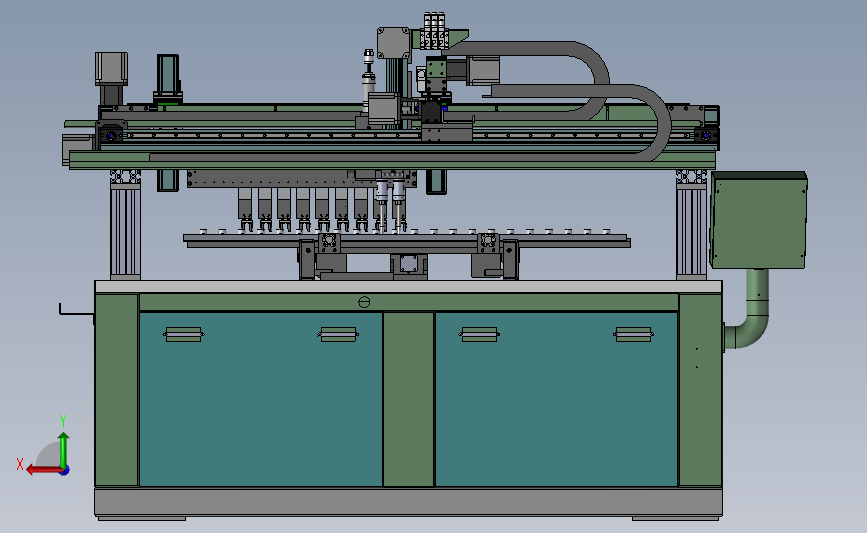

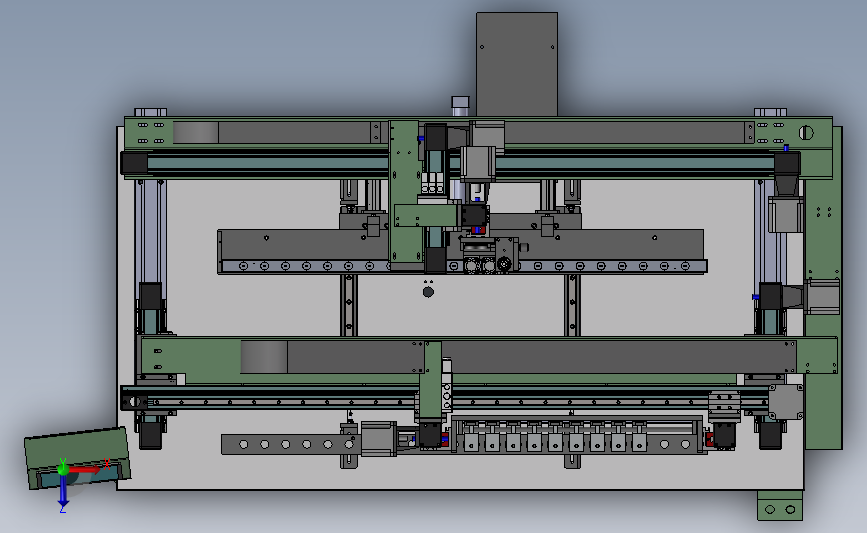

平面图

3D视图

文件列表

#	文件名称	文件大小
1	100M3F.sldprt	228.00K
2	12-16联轴器.SLDPRT	450.00K
3	12光轴.SLDPRT	165.00K
4	12厘x线径1.2X长55弹簧.SLDPRT	840.42K
5	12联轴器.SLDPRT	313.00K
6	16692042668246.zip	54.80M
7	16光轴.SLDPRT	177.50K
8	25X38拖链.SLDPRT	96.11K
9	25X57拖链.SLDPRT	93.97K
10	2600ML供胶桶.SLDASM	276.22K
11	2600ml压胶桶接头.SLDPRT	97.28K
12	2600ML压胶桶焊接.SLDASM	94.43K
13	2600压桶密封盖装配.SLDASM	138.79K
14	4V110-06-ValveBody.sldprt	222.55K
15	4V110-06B3连阀.SLDASM	223.79K
16	4V11006B.sldasm	107.24K
17	4V310-10-ValveBody.sldprt	206.14K
18	4V31010B.sldasm	105.34K
19	60CM钢尺.SLDPRT	545.50K
20	60x500模组滑轨-Z.SLDASM	127.63K
21	60型材.SLDPRT	739.62K
22	60模组型材.SLDPRT	713.96K
23	ACA-1210-1_Body.sldprt	96.54K
24	ACA-1210-1_NT.sldprt	103.40K
25	ACA1210-1.sldasm	106.88K
26	CS1-ASC32.sldprt	95.51K
27	deepgrooveballbearingsgb.sldprt	413.17K
28	EGH15CA 滑块.SLDPRT	179.20K
29	EGH15CA滑块.SLDPRT	224.68K
30	EGH25CA滑块.SLDPRT	196.89K
31	hexagonnutsgradecgb.sldprt	336.62K
32	hexagonsocketheadcapscrewsgb.sldprt	324.24K
33	hexnutsstyle1-gradesabgb.sldprt	136.08K
34	HFZ10OP-GN-1.sldprt	25.64K
35	HFZ10OPDS1-GN-1.sldasm	147.65K
36	HFZ10OP_body.sldprt	228.33K
37	HFZ10OP_fl.sldprt	81.47K
38	HFZ10OP_fr.sldprt	81.63K
39	MGN12C.SLDPRT	112.74K
40	MGN12H滑块.SLDPRT	112.38K
41	MGN9C滑块.SLDPRT	115.85K
42	MOD60-500模组装配.SLDASM	1018.50K
43	MOD60-A1-02防护盖.SLDPRT	76.23K
44	MOD60-A1-03端盖.SLDPRT	82.28K
45	MOD60-A1-04滑块.SLDPRT	306.38K
46	MOD60-A1-05电机座.SLDPRT	157.78K
47	MOD60-A1-06皮带座.SLDPRT	90.77K
48	MOD60-A1-07皮带夹.SLDPRT	99.11K
49	MOD60-A1-08调节垫块.SLDPRT	64.88K
50	MOD60-A1-10A型材支撑固定脚座.SLDPRT	209.92K
51	MOD60-A1-11连接传动轴A.SLDPRT	85.67K
52	MOD60-A1-13从动轮轴.SLDPRT	41.21K
53	MOD60-A1-GP2皮带固定夹.SLDASM	144.17K
54	O型橡胶密封圈145×7.SLDPRT	71.35K
55	SC-32-M10x1_25-Nut.sldprt	96.19K
56	SC-32x300-S0_c.sldprt	194.51K
57	SC-32x300-S0_r.sldprt	78.04K
58	SC32x300S000CS1-A-1.sldasm	175.86K
59	SDA-20-M6x1.sldprt	94.16K
60	SDA-20x60-B60_r.sldprt	74.61K
61	SDA-20x6060_b.sldprt	268.81K
62	SDA20x60B0.sldasm	172.37K
63	TD1208-S1-01触屏盒.SLDPRT	178.04K
64	TD1560-SGP-03钣金装配图.SLDASM	660.00K
65	TP1200-00-00-洗墙灯点胶.SLDASM	5.40M
66	TP1200-00-01透镜Z轴主动模组.SLDASM	605.62K
67	TP1200-00-02透镜Z轴模组.SLDASM	616.27K
68	TP1200-00-03透镜Y轴模组.SLDASM	552.04K
69	TP1200-00-04-立柱.SLDPRT	201.44K
70	TP1200-00-05转接板.SLDPRT	104.53K
71	TP1200-00-06铝横梁.SLDPRT	525.36K
72	TP1200-00-07胶桶安装板.SLDPRT	93.74K
73	TP1200-00-08接近开关板.SLDPRT	99.24K
74	TP1200-00-09透镜Y轴接近板.SLDPRT	95.57K
75	TP1200-B00-00钣金装配.SLDASM	691.15K
76	TP1200-B00-01电器安装板.SLDPRT	305.91K
77	TP1200-B00-01电器安装板A.SLDPRT	317.19K
78	TP1200-B00-02面板.SLDPRT	556.67K
79	TP1200-B00-03机架门.SLDPRT	480.32K
80	TP1200-B00-04-拖链板.SLDPRT	201.27K
81	TP1200-B00-05机架拖链板.SLDPRT	126.66K
82	TP1200-B00-06透镜拖链接板.SLDPRT	117.99K
83	TP1200-B00-07钣金支架.SLDPRT	141.33K
84	TP1200-B00-08钣金支架A.SLDPRT	141.96K
85	TP1200-B00-09-按钮盒.SLDPRT	259.31K
86	TP1200-B00-10点胶X轴托板.SLDPRT	209.53K
87	TP1200-B00-11点胶Y轴托板.SLDPRT	196.67K
88	TP1200-B00-12点胶Y轴接板.SLDPRT	115.21K
89	TP1200-B00-13606压环.SLDPRT	186.00K
90	TP1200-B00-14角板.SLDPRT	107.59K
91	TP1200-B01-00框架焊接.SLDASM	537.87K
92	TP1200-B01-01底架焊接.SLDPRT	391.71K
93	TP1200-B01-02机架左侧板.SLDPRT	345.21K
94	TP1200-B01-03机架右侧板.SLDPRT	449.74K
95	TP1200-B01-04前上横梁.SLDPRT	137.92K
96	TP1200-B01-05-后上横梁.SLDPRT	142.58K
97	TP1200-B01-06-机架中支撑.SLDPRT	107.25K
98	TP1200-B01-07矩管支撑.SLDPRT	109.57K
99	TP1200-B01-08-电箱底板.SLDPRT	134.77K
100	TP1200-B01-09-电箱撑板.SLDPRT	153.90K
101	TP1200-B01-10-电箱上支撑板.SLDPRT	108.13K
102	TP1200-B01-11-电箱中支撑板.SLDPRT	149.14K
103	TP1200-B02-00控制箱.SLDASM	207.43K
104	TP1200-B02-01电箱柱子.SLDPRT	197.50K
105	TP1200-B02-02后板.SLDPRT	53.27K
106	TP1200-B02-03触摸屏盒.SLDASM	109.05K
107	TP1200-D00-00点胶模组总装.SLDASM	2.29M
108	TP1200-D00-01EGH15滑块板.SLDPRT	126.13K
109	TP1200-D00-02EGH15滑块板A.SLDPRT	107.14K
110	TP1200-D00-03点胶Y轴底板.SLDPRT	172.52K
111	TP1200-D00-04Y轴加强板.SLDPRT	88.79K
112	TP1200-D00-05拖链板.SLDPRT	93.00K
113	TP1200-D00-06点胶Z轴连接板.SLDPRT	86.65K
114	TP1200-D00-0780滑块板.SLDPRT	113.52K
115	TP1200-D00-08110滑块连接板.SLDPRT	120.69K
116	TP1200-D00-10点胶X轴接近板.SLDPRT	91.38K
117	TP1200-D01-00点胶X轴模组.SLDASM	487.62K
118	TP1200-D01-01EGH15CA点胶导轨.SLDPRT	180.48K
119	TP1200-D02-00点胶Y轴模组.SLDASM	491.34K
120	TP1200-D02-01EGH15导轨-230.SLDPRT	145.68K
121	TP1200-D03-00点胶Z轴模组.SLDASM	649.84K
122	TP1200-D04-00双头点胶阀.SLDASM	1.01M
123	TP1200-D04-01点胶侧板.SLDPRT	147.65K
124	TP1200-D04-02MGN15C面板.SLDPRT	117.71K
125	TP1200-D04-03点胶调节板.SLDPRT	104.31K
126	TP1200-D04-04气缸板.SLDPRT	116.91K
127	TP1200-D04-05气缸加强板.SLDPRT	79.51K
128	TP1200-D04-06阀调节底板.SLDPRT	163.07K
129	TP1200-D04-07活动板.SLDPRT	131.76K
130	TP1200-D04-08螺杆侧板.SLDPRT	75.03K
131	TP1200-D04-09加强块.SLDPRT	68.98K
132	TP1200-D04-10M8螺杆.SLDPRT	108.09K
133	TP1200-D04-11手柄.SLDPRT	108.31K
134	TP1200-D04-12点胶阀座.SLDPRT	134.27K
135	TP1200-D04-13EGH15X130导轨.SLDPRT	146.98K
136	TP1200-D04-14MGN12X110导轨.SLDPRT	127.32K
137	TP1200-D04-15M10螺杆.SLDPRT	130.70K
138	TP1200-G00-00工件座组装.SLDASM	664.03K
139	TP1200-G00-01滑轨面板.SLDPRT	208.38K
140	TP1200-G00-02灯架夹具.SLDPRT	347.50K
141	TP1200-G00-02灯架夹具1.SLDPRT	349.50K
142	TP1200-G00-03定位块.SLDPRT	74.21K
143	TP1200-G00-04导轨安装铝形材.SLDPRT	225.37K
144	TP1200-G00-05SC32气缸板.SLDPRT	120.66K
145	TP1200-G00-0632气缸板A.SLDPRT	116.29K
146	TP1200-G00-07气缸顶块.SLDPRT	97.85K
147	TP1200-G00-08SDA20气缸板.SLDPRT	111.45K
148	TP1200-G00-09工件顶块.SLDPRT	85.49K
149	TP1200-G00-10缓冲板.SLDPRT	74.73K
150	TP1200-G00-11挡板.SLDPRT	79.30K
151	TP1200-G00-12EGH25导轨.SLDPRT	171.69K
152	TP1200-G00-13-灯片定位板.SLDPRT	147.54K
153	TP1200-G00-14-4080型材.SLDPRT	249.21K
154	TP1200-G10-00-缓冲座组装.SLDASM	172.83K
155	TP1200-G10-01-缓冲上板.SLDPRT	104.24K
156	TP1200-G10-02-缓冲器安装板.SLDPRT	84.52K
157	TP1200-G10-03-工件座板.SLDPRT	99.50K
158	TP1200-G10-04-缓冲侧板.SLDPRT	76.52K
159	TP1200-T00-00透镜X轴装配.SLDASM	708.54K
160	TP1200-T00-01模组滑轨.sldasm	128.00K
161	TP1200-T00-02竖向安装板.SLDPRT	134.97K
162	TP1200-T00-0380连接板.SLDPRT	96.75K
163	TP1200-T00-04X轴调节板.SLDPRT	112.07K
164	TP1200-Z00-00气抓组装.SLDASM	1.03M
165	TP1200-Z00-01Z轴横板.SLDPRT	171.95K
166	TP1200-Z00-02MGN12C面板.SLDPRT	150.29K
167	TP1200-Z00-03弹簧座.SLDPRT	106.50K
168	TP1200-Z00-04弹簧压板.SLDPRT	112.55K
169	TP1200-Z00-05M8X90螺杆.SLDPRT	70.84K
170	TP1200-Z00-06抓取连接板.SLDPRT	106.47K
171	TP1200-Z00-07抓取气缸安装板.SLDPRT	127.70K
172	TP1200-Z00-08导杆板.SLDPRT	94.49K
173	TP1200-Z00-09定位杆.SLDPRT	62.27K
174	TP1200-Z00-10夹抓.SLDPRT	96.18K
175	TP1200-Z00-11MGN12X590导轨.SLDPRT	197.10K
176	TP1200-Z00-12MGN9C导轨.SLDPRT	122.37K
177	TP1200-Z10-00-透镜定位组装.SLDASM	215.84K
178	TP1200-Z10-01-透镜定位夹具.SLDPRT	123.65K
179	TP1200-Z10-02-透镜定位板.SLDPRT	165.22K
180	TP1200-Z10-03-定位钉.SLDPRT	64.66K
181	TP1200双头点胶阀.SLDASM	1.15M
182	TP1200洗墙灯点胶.SLDASM	6.01M
183	X轴模组装配.SLDASM	2.82M
184	出料接头1.SLDPRT	93.22K
185	吊环螺母M10.SLDPRT	222.19K
186	工件座组装.SLDASM	1.03M
187	接近开关PF-08ND.SLDPRT	117.96K
188	桶底.SLDPRT	49.96K
189	桶底固定耳.SLDPRT	92.95K
190	桶盖固定耳.SLDPRT	74.31K
191	桶盖固定轴.SLDPRT	70.06K
192	桶盖拉紧耳.SLDPRT	95.82K
193	桶盖支撑板.SLDPRT	51.50K
194	桶身.SLDPRT	71.08K
195	步进电机86HS4586x80x12.7.SLDPRT	90.37K
196	气抓组装.SLDASM	1.77M
197	灯条.SLDPRT	127.11K
198	灯架.SLDPRT	676.00K
199	点胶Y轴型材-Z.SLDPRT	742.73K
