双色3d打印机（ID:454140）

数码电器 / 其它电器 / 双色3d打印机

©非原创

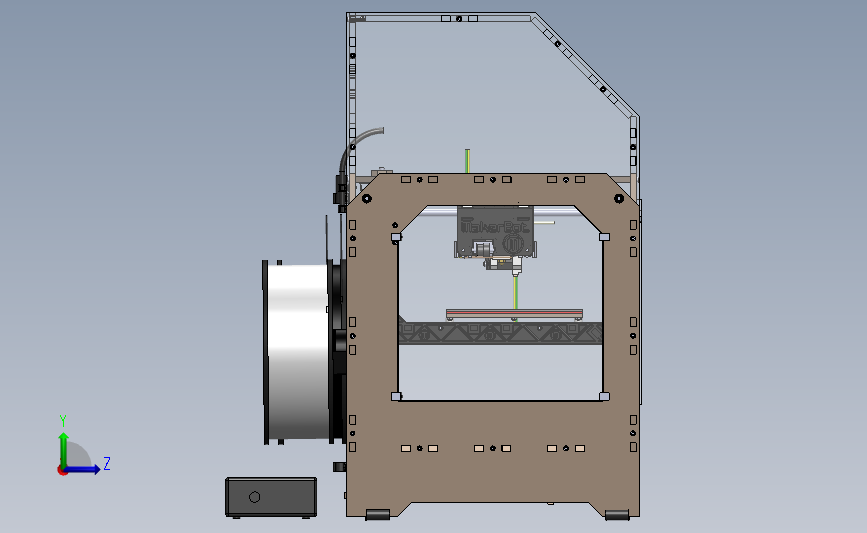

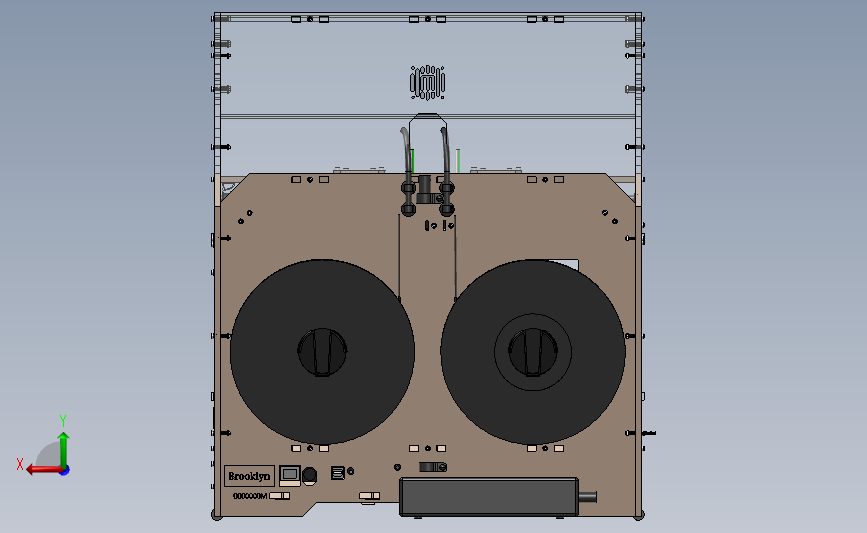

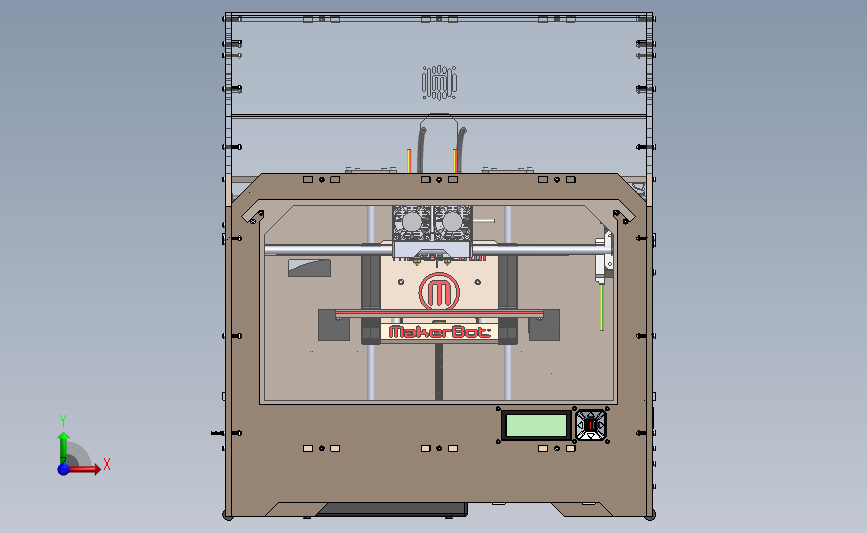

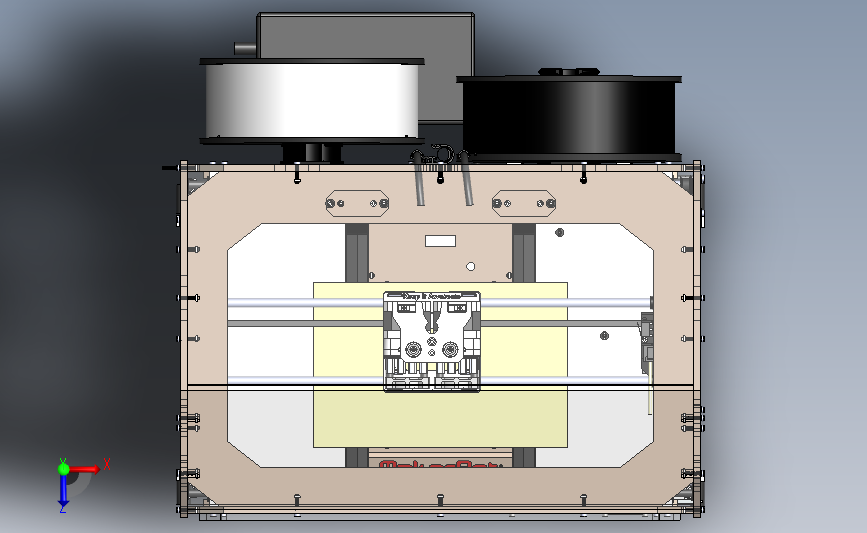

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16726383426756.rar	88.62M
2	AcrylicSideCover.SLDPRT	111.50K
3	coverangledfront.SLDPRT	179.00K
4	coverback.SLDPRT	320.00K
5	coverfront.SLDPRT	161.50K
6	coverside.SLDPRT	201.50K
7	covertop.SLDPRT	259.00K
8	frontwindowpanel.SLDPRT	125.00K
9	MP0190_M3_Washer.SLDPRT	103.50K
10	MP02690-.355-46-thick-3.175-mm-ID-7.95-mm-OD_Washer.SLDPRT	93.00K
11	MP02728_Support_Blind_Hole_Mount.SLDPRT	1.00M
12	MP02827_Nylon_4-40_screw.SLDPRT	639.50K
13	MP02828_Nylon_hex_nut.SLDPRT	408.50K
14	MP138-Type_K_Thermocouple.SLDPRT	174.00K
15	MP1531-ABS_black-1kg_spool-1.75mm.SLDPRT	265.50K
16	MP1532-ABS_natural-1kg_spool-1.75mm.SLDPRT	271.00K
17	MP1606-Motor_Wiring_Harness_42inch.SLDPRT	185.50K
18	MP1701-MK7-Thermal_Barrier.SLDPRT	169.50K
19	MP1703-MK7-Filament_Drive_Block_Back.sldprt	578.00K
20	MP1705-MK7-Thermal_Core.sldprt	240.50K
21	MP1707-MK7_Plunger.SLDPRT	137.50K
22	MP1708-MK7_heatsink.SLDPRT	832.00K
23	MP1709-M3x3mm_set_screw.SLDPRT	440.50K
24	MP1710-M3x5mm_socket_cap_bolt.SLDPRT	464.50K
25	MP1782-Kapton_Tape_120mm.SLDPRT	93.00K
26	MP1794-MK7_filament-drive-block-front.sldprt	420.50K
27	MP1868-Pulley_5mm_shaft.SLDPRT	542.50K
28	MP1872-Stepper_Motor_NEMA17.SLDPRT	492.00K
29	MP191-M3x10mm_socket_cap_bolt.SLDPRT	660.50K
30	MP1913-M3x18-Flat_Head_Socket_Bolt.SLDPRT	144.00K
31	MP1914-Washer-.16in_ID-.25in_OD-.015in_thickness.SLDPRT	115.50K
32	MP1915-O_ring-.14in_ID-.246in_OD.SLDPRT	102.50K
33	MP193-M3x20mm_socket_cap_bolt.SLDPRT	1.06M
34	MP1947-M3x45-Socket_Cap_Bolt.SLDPRT	128.50K
35	MP1994-MK7-Drive_Gear.SLDPRT	194.50K
36	MP2193-Thing-O-Matic_2_Top_Panel.SLDPRT	1.10M
37	MP2194-Thing-O-Matic_2_Front_Panel.SLDPRT	581.50K
38	MP2195-Thing-O-Matic_2_Bottom_Panel.SLDPRT	488.50K
39	MP2196-Thing-O-Matic_2_Back_Panel.SLDPRT	1.20M
40	MP2198-Thing-O-Matic_2_Left_Panel.SLDPRT	483.00K
41	MP2199-Thing-O-Matic_2_Right_Panel.SLDPRT	620.00K
42	MP2256-Silicone_keypad.SLDPRT	3.95M
43	MP2295-M3-Square_nut.SLDPRT	163.50K
44	MP2313-Stepper_motor_acme_threaded_285mm.SLDPRT	2.35M
45	MP2322-RGB_LED-Strip_Common_Anode.SLDPRT	276.00K
46	MP2336-Thing-O-Matic-2-Z-Arm-Lasercut-Plate.SLDPRT	511.00K
47	MP2337-Thing-O-Matic-2-Bottom-Wooden-Build-Platform.SLDPRT	202.50K
48	MP2338-Thing-O-Matic-Heater_Board.SLDPRT	144.00K
49	MP2339-Thing-O-Matic-2-Aluminum-Heat-Spreader.SLDPRT	245.50K
50	MP2340-Dowel_Pin_5-32_inch_OD_1_inch_length.SLDPRT	153.50K
51	MP2343-Botstep_17_Rev_E.SLDPRT	527.50K
52	MP2344-MK7_Filament_Drive_Block.SLDPRT	1.94M
53	MP2347-Fan_24V_40x40x10-1m_leads.SLDPRT	1.02M
54	MP2367-Thing-O-Matic_2_Extended_Rod_Cover.SLDPRT	168.00K
55	MP2375-Thing-O-Matic_2_Cut_Rod_Guide_Ring.SLDPRT	148.50K
56	MP2378-Thing-O-Matic_2_Inner_Back_Panel.SLDPRT	763.50K
57	MP2381-Shaft_8mm_x_300mm.SLDPRT	90.00K
58	MP2383-Z_Axis_Acme_Nut_Tr8x8P2.SLDPRT	154.50K
59	MP2384-Thing-O-Matic-2_Build_Platform_Outer_Back_Panel.SLDPRT	340.00K
60	MP2403-293_Tooth_GT2_Timing_Belt.SLDPRT	2.41M
61	MP2405-83_Tooth_GT2_Timing_Belt.SLDPRT	1.33M
62	MP2407-Thing-O-Matic_2_Extended_Rod_Guide_Ring.SLDPRT	186.00K
63	MP2414-Thing-O-Matic_2_Extruder_Carriage-nobeltclip_2.SLDPRT	32.07M
64	MP2415-Thing-O-Matic_2_Y_Carriage_Secondary.SLDPRT	5.36M
65	MP2416-Thing-O-Matic_2_Y_Carriage_Primary.SLDPRT	7.95M
66	MP2417-Thing-O-Matic_2_Z_Arm.SLDPRT	6.52M
67	MP2441-Linear_Bearing-8mm_ID-15mm_OD-17mm_length.SLDPRT	282.00K
68	MP2453-Thing-O-Matic_2_Radial_Ball_Bearings.SLDPRT	1.35M
69	MP2458-Belt_Tensioning_Torsion_Spring.SLDPRT	442.00K
70	MP2459-M3_Thumb_Nuts.SLDPRT	125.00K
71	MP2467_1-2_inch_wire_wrap.SLDPRT	111.50K
72	MP2468-Thing-O-Matic_2-Build_Platform_Front_Cover-replicator.SLDPRT	509.50K
73	MP2488-Thing-O-Matic_2-Build_Platform_Leveling_Springs_Stainless_Steel.SLDPRT	116.00K
74	MP2506-MK8_nozzle_0.4mm.SLDPRT	358.00K
75	MP2580-Cable_holder-Adhesive_backed-Self_closing.SLDPRT	179.50K
76	MP2583-Foot_edge_neoprene.SLDPRT	106.00K
77	MP2584-PTFE_tubing-1-4in_OD-1-8in_ID.SLDPRT	124.00K
78	MP2590-MK8-Bar_Mount.SLDPRT	249.00K
79	MP2603-Endstop_Cable_1m.SLDPRT	102.50K
80	MP2604-Motor_Wiring_Harness_12in_Moons.SLDPRT	179.50K
81	MP2607-Cartridge_Heater_40W_24V_right_angle_exit.SLDPRT	292.00K
82	MP2660-Spacer_Black-1-2in_length-.14in_ID-.25in_OD.SLDPRT	99.50K
83	MP2662-Spacer_Black-3-4in_length-.14in_ID-.25in_OD.SLDPRT	102.00K
84	MP2664-Spacer_Black-22mm_length-.14in_ID-5-16in_OD.SLDPRT	102.00K
85	MP2665-Spacer_Black-1-16in_length-5mm_ID-7mm_OD.SLDPRT	107.00K
86	MP2666-Spacer_Black-11-16in_length-5mm_ID-7mm_OD.SLDPRT	162.50K
87	MP2667-Spacer_Black-5-16in_length-.14in_ID-.25in_OD.SLDPRT	161.00K
88	MP2669-26_pin_ribbon_cable.SLDPRT	356.50K
89	MP2670-26_pin_female_header.SLDPRT	237.50K
90	MP2671-O_Ring_Spacer-1.5mm_thickness-3.5mm_ID-6.5mm_OD.SLDPRT	163.00K
91	MP2675-Tube_fitting-push_to_connect-drill_in_stall-.45in_tube.SLDPRT	181.50K
92	MP2680-4_Washer-Black_Oxide_Finish.SLDPRT	123.00K
93	MP2683-Clamp-Hinged-Blind_hole_mount-Black.SLDPRT	957.50K
94	MP2684-Cable_clamp-Blind_hole_mnt.SLDPRT	185.50K
95	MP2685-Spacer_Black-16.5mm_length-3.2mm_ID-7mm_OD.SLDPRT	101.50K
96	MP2690-Washer-.355-.46mm_thickness-3.175mm_ID-7.95mm_OD.SLDPRT	197.00K
97	MP2692-M3x31mm_socket_cap_bolt.SLDPRT	1.29M
98	MP2693-M3x12-Flat_Head_Socket_Bolt.SLDPRT	234.00K
99	MP2717-M3x35-Flat_Head_Socket_Bolt.SLDPRT	222.50K
100	MP2720-Mean_Well-GS220A24_R7B-Power_Supply.SLDPRT	270.00K
101	MP2729-Makerbot_MightyBoard-Rev_E.SLDPRT	693.00K
102	MP2738-Replicator_Interfaceboard-RevB-PCBA.SLDPRT	1.45M
103	MP2751-M3-nylon_inserted-hex_nut.SLDPRT	237.00K
104	MP2752-424_Tooth_GT2_Timing_Belt.SLDPRT	125.50K
105	MP2753-Shaft_8mm_x_424mm.SLDPRT	85.00K
106	MP2754-Shaft_4.99mm_x_464mm-Carbon_Steel.SLDPRT	168.00K
107	MP2768-M3x30-Flat_Head_Socket_Bolt.SLDPRT	147.00K
108	MP2774-M3x35mm_socket_cap_bolt.SLDPRT	1.40M
109	MP2935-Filament_Spool_Holder.SLDPRT	749.50K
110	MP370-M3x16mm_socket_cap_bolt.SLDPRT	966.50K
111	MP429-Ceramic_Tape.SLDPRT	179.50K
112	MP546-M6_nut_thin.SLDPRT	608.50K
113	MP856-M3x25mm_socket_cap_bolt.SLDPRT	1.20M
114	MP919-M3x6mm_socket_cap_bolt.SLDPRT	580.50K
115	MP977-Thingomatic_Idler_Pulley.SLDPRT	261.00K
116	MP979-Mechanical-Endstop.SLDPRT	441.50K
117	Nylon_Spacer_with_Flange.SLDPRT	101.00K
118	SDcard.SLDPRT	90.00K
119	Side_Clip_Short.SLDPRT	144.00K
120	testelectronicscover.SLDPRT	191.00K
121	testelectronicsside.SLDPRT	200.50K
122	Wire-FilamentExtruderGuide.SLDPRT	208.00K
123	zongzhuangtu.SLDASM	28.38M
