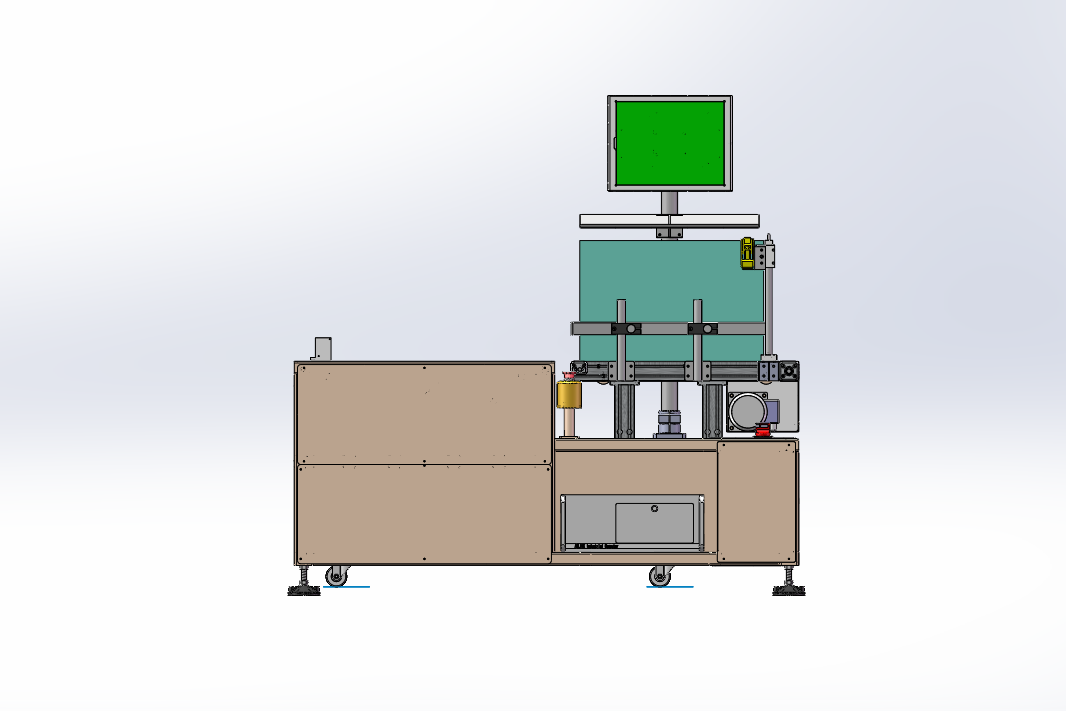

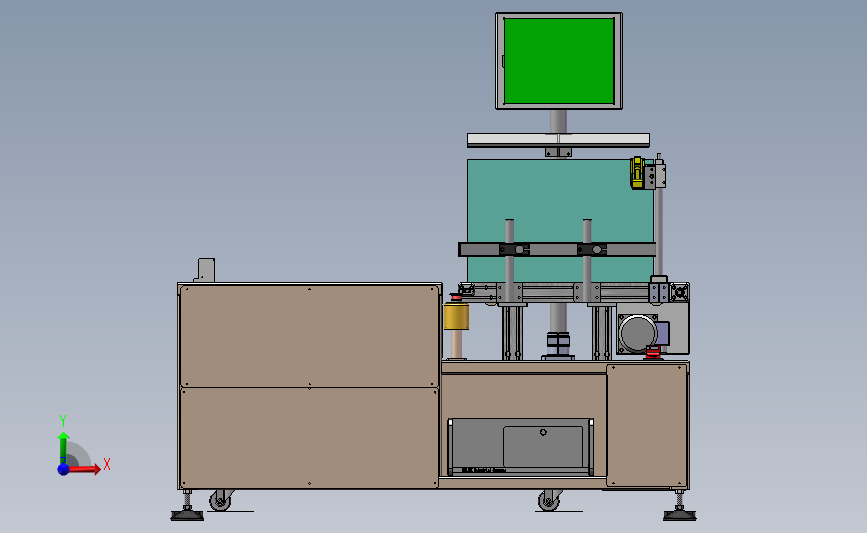

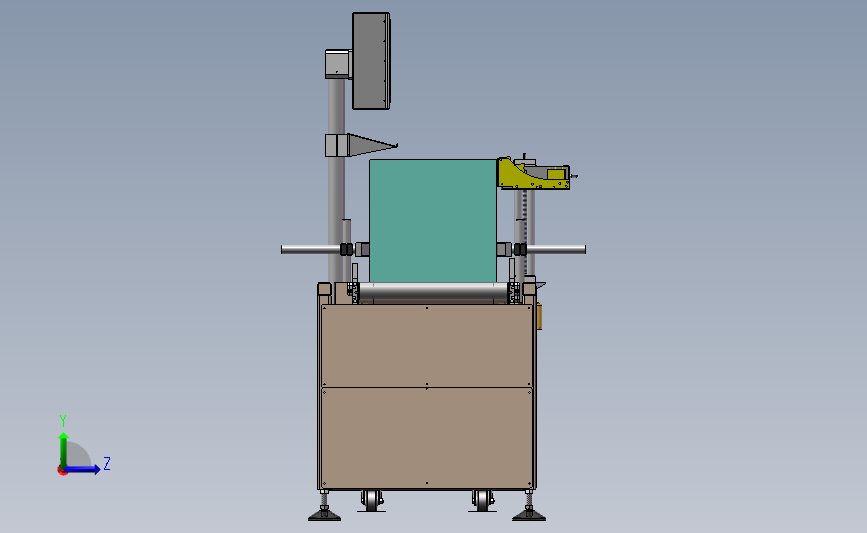

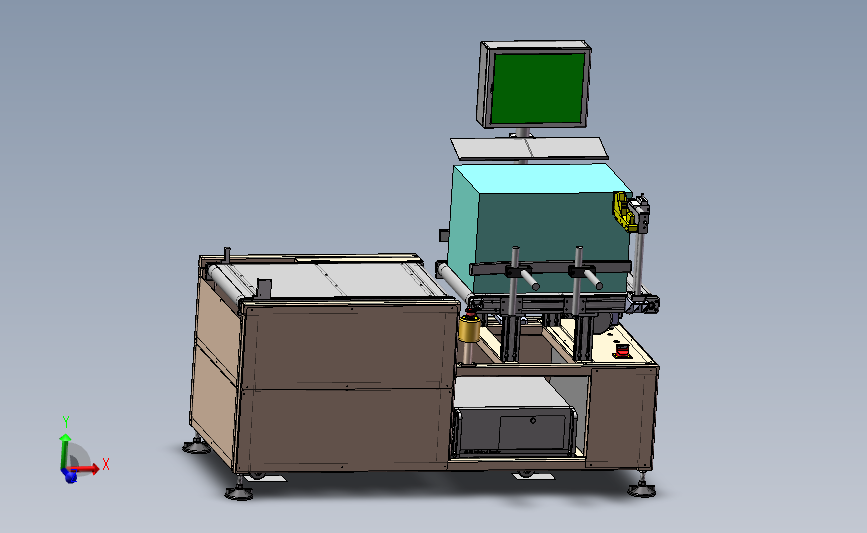

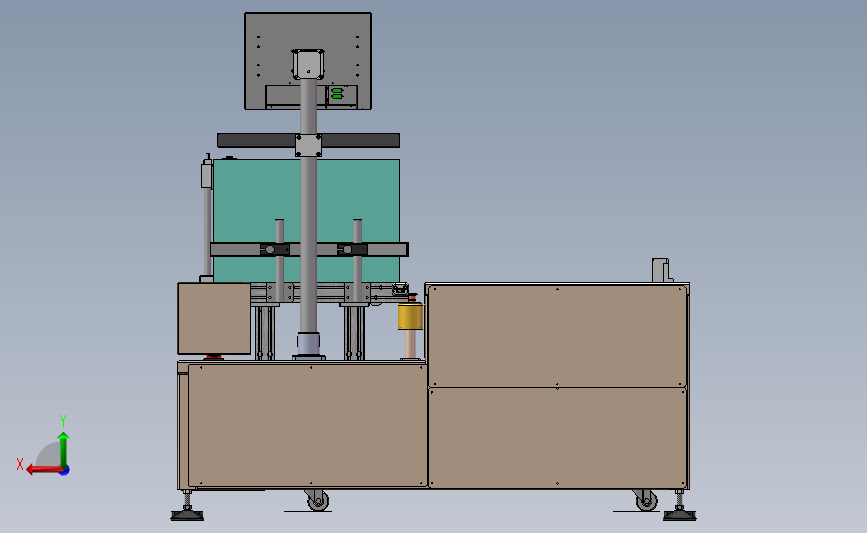

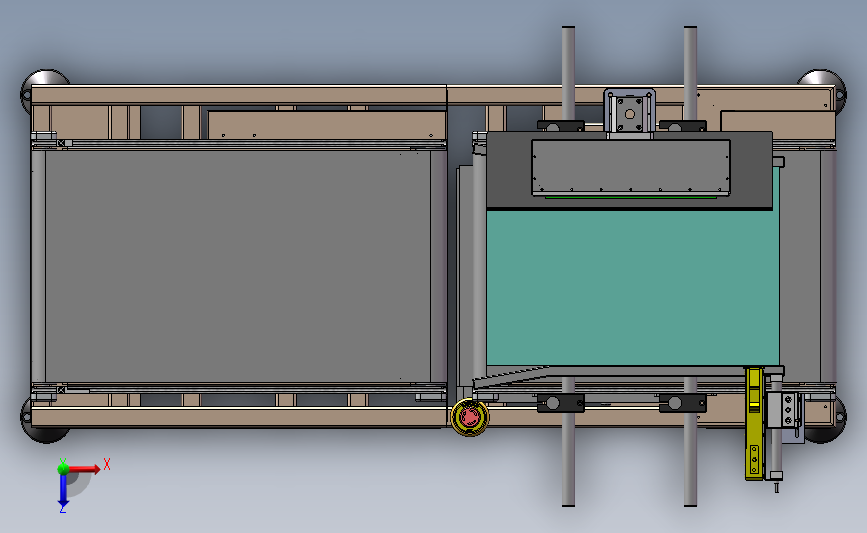

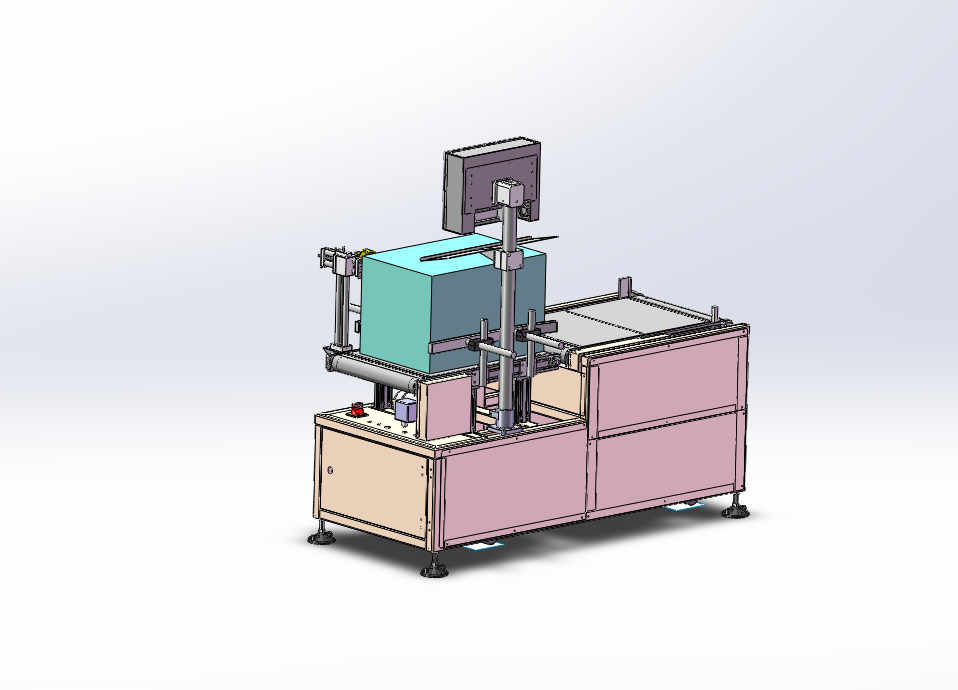

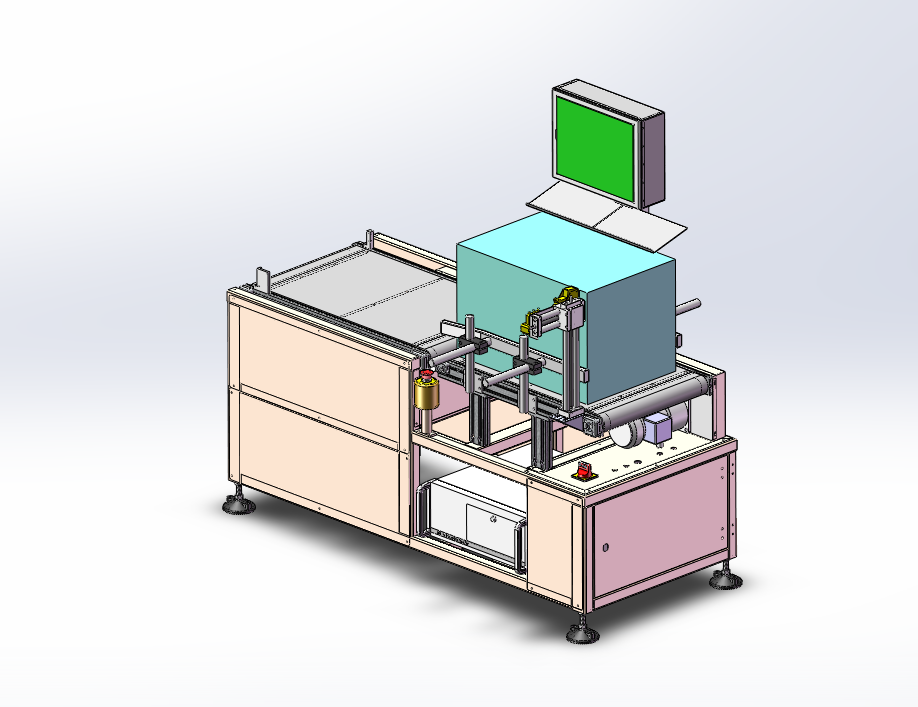

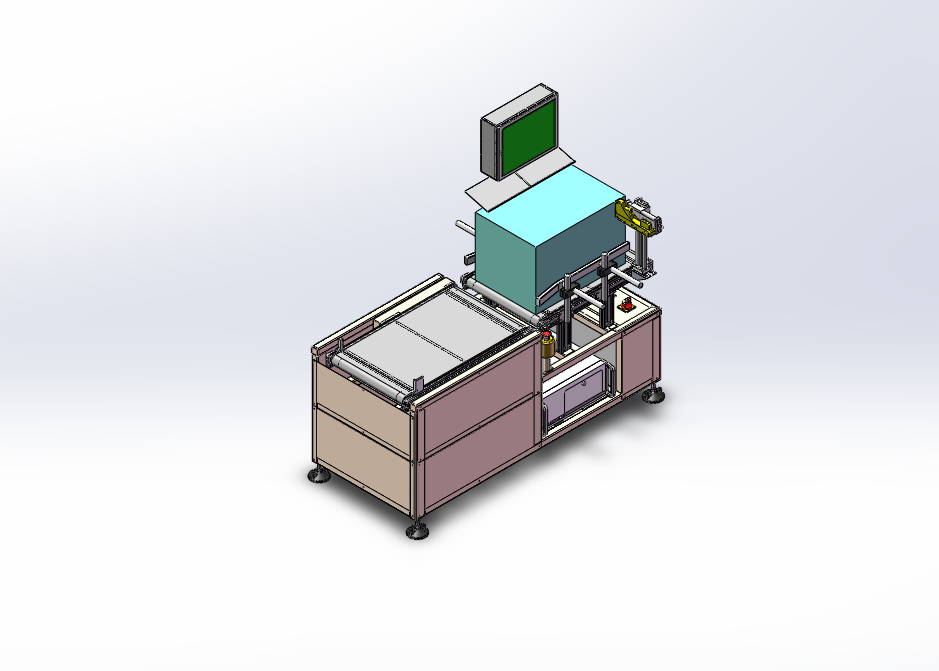

产品称重记录流水线设备（sw18可编辑+工程图+bom）（ID:468492）
查找相似图纸
查找相似图纸
截图
AI截图渲染
✨AI图片渲染
0.png)
1.png)
2.png)
3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 微信图片_20220613132433.png | 135.56K |
| 2 | 微信图片_202206131324331.png | 172.56K |
| 3 | 微信图片_202206131324332.png | 148.13K |
| 4 | 微信图片_202206131324333.png | 101.50K |
| 5 | 14016-0027.SLDDRW | 696.00K |
| 6 | 14016-0027.SLDPRT | 141.96K |
| 7 | 14016-0029.SLDDRW | 741.50K |
| 8 | 14016-0029.SLDPRT | 137.71K |
| 9 | 14026-0000.SLDASM | 698.51K |
| 10 | 14026-0001.SLDPRT | 323.66K |
| 11 | 14026-0002.SLDPRT | 1.25M |
| 12 | 14026-0003.SLDPRT | 409.39K |
| 13 | 14026-0004.SLDPRT | 148.90K |
| 14 | 14026-0005.SLDPRT | 397.93K |
| 15 | 14026-0006.SLDPRT | 118.36K |
| 16 | 14026-0007.SLDPRT | 328.65K |
| 17 | 14026-0008.SLDPRT | 341.50K |
| 18 | 14026-0009.SLDPRT | 216.00K |
| 19 | 14026-0010.SLDPRT | 195.00K |
| 20 | 14026-0011.SLDPRT | 218.50K |
| 21 | 14026-0012.SLDPRT | 221.50K |
| 22 | 14026-0013.SLDPRT | 220.00K |
| 23 | 14026-0014.SLDPRT | 220.50K |
| 24 | 14029-0027.SLDDRW | 715.00K |
| 25 | 14029-0027.SLDPRT | 151.90K |
| 26 | 15001-0035.SLDDRW | 648.50K |
| 27 | 15001-0035.SLDPRT | 145.32K |
| 28 | 15008-0213.SLDDRW | 1.09M |
| 29 | 15008-0213.SLDPRT | 294.18K |
| 30 | 15017-0500-0.SLDASM | 799.60K |
| 31 | 15017-0501.SLDDRW | 811.00K |
| 32 | 15017-0501.SLDPRT | 360.50K |
| 33 | 15017-0503.SLDDRW | 635.50K |
| 34 | 15017-0503.SLDPRT | 89.90K |
| 35 | 15017-0504.SLDDRW | 625.00K |
| 36 | 15017-0504.SLDPRT | 80.72K |
| 37 | 15017-0505.DWG | 53.88K |
| 38 | 15017-0505.SLDDRW | 624.50K |
| 39 | 15017-0505.SLDPRT | 120.92K |
| 40 | 15023-0215.SLDDRW | 606.50K |
| 41 | 15023-0215.SLDPRT | 202.00K |
| 42 | 15024-0101.SLDDRW | 611.50K |
| 43 | 15024-0101.SLDPRT | 119.67K |
| 44 | 15024-0102.SLDDRW | 531.50K |
| 45 | 15024-0102.SLDPRT | 420.50K |
| 46 | 15024-0103.SLDDRW | 610.50K |
| 47 | 15024-0103.SLDPRT | 101.61K |
| 48 | 15024-0104.SLDDRW | 1.20M |
| 49 | 15024-0104.SLDPRT | 1.13M |
| 50 | 15024-0105.SLDDRW | 1.19M |
| 51 | 15024-0105.SLDPRT | 1.09M |
| 52 | 15024-0106.SLDDRW | 643.00K |
| 53 | 15024-0106.SLDPRT | 257.50K |
| 54 | 15024-0107.SLDDRW | 1000.00K |
| 55 | 15024-0107.SLDPRT | 513.00K |
| 56 | 15024-0108.SLDDRW | 1.05M |
| 57 | 15024-0108.SLDPRT | 137.23K |
| 58 | 15024-0109.SLDDRW | 763.50K |
| 59 | 15024-0109.SLDPRT | 69.86K |
| 60 | 15024-0110.SLDDRW | 839.00K |
| 61 | 15024-0110.SLDPRT | 107.51K |
| 62 | 15024-0111.SLDDRW | 775.50K |
| 63 | 15024-0111.SLDPRT | 462.50K |
| 64 | 15024-0112.SLDDRW | 873.50K |
| 65 | 15024-0112.SLDPRT | 118.64K |
| 66 | 15024-0113.SLDDRW | 1.04M |
| 67 | 15024-0113.SLDPRT | 163.44K |
| 68 | 15024-0114.SLDDRW | 665.50K |
| 69 | 15024-0114.SLDPRT | 107.21K |
| 70 | 15024-0115.SLDDRW | 651.50K |
| 71 | 15024-0115.SLDPRT | 790.50K |
| 72 | 15024-0116.SLDDRW | 2.66M |
| 73 | 15024-0116.SLDPRT | 3.44M |
| 74 | 15024-0117.SLDDRW | 806.00K |
| 75 | 15024-0117.SLDPRT | 436.50K |
| 76 | 15024-0118.SLDDRW | 681.00K |
| 77 | 15024-0118.SLDPRT | 637.00K |
| 78 | 15024-0119.SLDDRW | 815.50K |
| 79 | 15024-0119.SLDPRT | 278.50K |
| 80 | 15024-0120.SLDDRW | 691.00K |
| 81 | 15024-0120.SLDPRT | 372.00K |
| 82 | 15024-0121.DWG | 39.77K |
| 83 | 15024-0121.SLDDRW | 573.00K |
| 84 | 15024-0121.SLDPRT | 98.16K |
| 85 | 15024-0122.DWG | 39.74K |
| 86 | 15024-0122.SLDDRW | 572.50K |
| 87 | 15024-0122.SLDPRT | 91.55K |
| 88 | 15024-0123.SLDDRW | 1.21M |
| 89 | 15024-0123.SLDPRT | 1.07M |
| 90 | 15024-0124.SLDDRW | 1.19M |
| 91 | 15024-0124.SLDPRT | 1.11M |
| 92 | 15024-0125.SLDDRW | 1000.00K |
| 93 | 15024-0125.SLDPRT | 515.00K |
| 94 | 15024-0126.SLDDRW | 1.08M |
| 95 | 15024-0126.SLDPRT | 187.52K |
| 96 | 15024-0127.DWG | 51.14K |
| 97 | 15024-0127.SLDDRW | 690.50K |
| 98 | 15024-0127.SLDPRT | 147.89K |
| 99 | 15024-0128.SLDDRW | 1.10M |
| 100 | 15024-0128.sldprt | 732.50K |
| 101 | 15024-0129.SLDDRW | 705.50K |
| 102 | 15024-0129.SLDPRT | 109.30K |
| 103 | 15024-0130.SLDDRW | 560.50K |
| 104 | 15024-0130.SLDPRT | 43.28K |
| 105 | 15024-0131.SLDDRW | 746.00K |
| 106 | 15024-0131.SLDPRT | 128.46K |
| 107 | 15024-0132.SLDDRW | 917.00K |
| 108 | 15024-0132.SLDPRT | 181.74K |
| 109 | 15024-0133.SLDDRW | 635.50K |
| 110 | 15024-0133.SLDPRT | 61.63K |
| 111 | 15024-0134.SLDDRW | 720.50K |
| 112 | 15024-0134.SLDPRT | 104.23K |
| 113 | 15024-0135.SLDDRW | 717.50K |
| 114 | 15024-0135.SLDPRT | 101.34K |
| 115 | 15024-0136.SLDDRW | 625.00K |
| 116 | 15024-0136.SLDPRT | 64.15K |
| 117 | 15024-0137.SLDDRW | 704.50K |
| 118 | 15024-0137.SLDPRT | 98.50K |
| 119 | 15024-0138.SLDDRW | 846.50K |
| 120 | 15024-0138.SLDPRT | 158.72K |
| 121 | 15024-0139.SLDDRW | 613.00K |
| 122 | 15024-0139.SLDPRT | 433.50K |
| 123 | 15024-0140.SLDDRW | 619.00K |
| 124 | 15024-0140.SLDPRT | 576.00K |
| 125 | 15024-0141.SLDDRW | 822.50K |
| 126 | 15024-0141.SLDPRT | 735.50K |
| 127 | 15024-0142.SLDDRW | 900.00K |
| 128 | 15024-0142.SLDPRT | 563.00K |
| 129 | 15024-0143.DWG | 47.11K |
| 130 | 15024-0143.SLDDRW | 607.00K |
| 131 | 15024-0143.SLDPRT | 98.69K |
| 132 | 15024-0144.SLDDRW | 575.00K |
| 133 | 15024-0144.SLDPRT | 439.50K |
| 134 | 15024-0145.SLDDRW | 599.50K |
| 135 | 15024-0145.SLDPRT | 416.00K |
| 136 | 15024-0146.SLDDRW | 659.00K |
| 137 | 15024-0146.SLDPRT | 79.64K |
| 138 | 15024-0147.SLDDRW | 1.15M |
| 139 | 15024-0147.SLDPRT | 712.50K |
| 140 | 15024-0148.SLDDRW | 754.00K |
| 141 | 15024-0148.SLDPRT | 134.52K |
| 142 | 15024-0149.SLDDRW | 600.50K |
| 143 | 15024-0149.SLDPRT | 140.17K |
| 144 | 15024-0150.SLDDRW | 581.00K |
| 145 | 15024-0150.SLDPRT | 103.02K |
| 146 | 15032-0000.bak | 241.18K |
| 147 | 15032-0000.DWG | 217.69K |
| 148 | 15032-0000.SLDASM | 3.98M |
| 149 | 15032-0000.SLDDRW | 780.00K |
| 150 | 15032-0000.STEP | 24.37M |
| 151 | 15032-0000皮带称重机20151126.xlsx | 23.76K |
| 152 | 15032-0002.DWG | 419.38K |
| 153 | 15032-0002.SLDDRW | 2.66M |
| 154 | 15032-0002.SLDPRT | 2.11M |
| 155 | 15032-0003.DWG | 283.22K |
| 156 | 15032-0003.SLDDRW | 120.52K |
| 157 | 15032-0003.SLDPRT | 83.96K |
| 158 | 15032-0004.DWG | 283.21K |
| 159 | 15032-0004.SLDDRW | 120.84K |
| 160 | 15032-0004.SLDPRT | 83.91K |
| 161 | 15032-0104.SLDDRW | 1.12M |
| 162 | 15032-0104.SLDPRT | 347.98K |
| 163 | 15032-0105.SLDDRW | 1.11M |
| 164 | 15032-0105.SLDPRT | 402.21K |
| 165 | 15032-0106.SLDDRW | 630.00K |
| 166 | 15032-0106.SLDPRT | 110.69K |
| 167 | 15032-0107.DWG | 52.76K |
| 168 | 15032-0107.SLDDRW | 947.00K |
| 169 | 15032-0107.SLDPRT | 132.66K |
| 170 | 15032-0111.SLDDRW | 740.00K |
| 171 | 15032-0111.SLDPRT | 127.86K |
| 172 | 15032-0115.SLDDRW | 662.50K |
| 173 | 15032-0115.SLDPRT | 163.35K |
| 174 | 15032-0117.SLDDRW | 787.00K |
| 175 | 15032-0117.SLDPRT | 164.05K |
| 176 | 15032-0118.SLDDRW | 692.00K |
| 177 | 15032-0118.SLDPRT | 160.10K |
| 178 | 15032-0119.SLDDRW | 822.00K |
| 179 | 15032-0119.SLDPRT | 110.93K |
| 180 | 15032-0123.SLDDRW | 2.22M |
| 181 | 15032-0123.SLDPRT | 353.55K |
| 182 | 15032-0124.SLDDRW | 1.11M |
| 183 | 15032-0124.SLDPRT | 409.51K |
| 184 | 15032-0125.DWG | 52.75K |
| 185 | 15032-0125.SLDDRW | 946.00K |
| 186 | 15032-0125.SLDPRT | 134.54K |
| 187 | 15032-0128.SLDDRW | 1.02M |
| 188 | 15032-0128.sldprt | 382.05K |
| 189 | 15032-0139.DWG | 41.03K |
| 190 | 15032-0139.SLDDRW | 586.00K |
| 191 | 15032-0139.SLDPRT | 97.30K |
| 192 | 15032-0140.DWG | 47.41K |
| 193 | 15032-0140.SLDDRW | 588.50K |
| 194 | 15032-0140.SLDPRT | 117.74K |
| 195 | 15032-0141.DWG | 74.45K |
| 196 | 15032-0141.SLDDRW | 833.50K |
| 197 | 15032-0141.SLDPRT | 162.70K |
| 198 | 15032-0142.DWG | 66.88K |
| 199 | 15032-0142.SLDDRW | 880.00K |
| 200 | 15032-0142.SLDPRT | 247.94K |
| 201 | 15032-0144.DWG | 48.26K |
| 202 | 15032-0144.SLDDRW | 560.00K |
| 203 | 15032-0144.SLDPRT | 102.16K |
| 204 | 15032-0145.DWG | 41.43K |
| 205 | 15032-0145.SLDDRW | 575.50K |
| 206 | 15032-0145.SLDPRT | 93.57K |
| 207 | 15032-0147.SLDDRW | 1.10M |
| 208 | 15032-0147.SLDPRT | 316.88K |
| 209 | 15032-0150.SLDDRW | 691.00K |
| 210 | 15032-0150.SLDPRT | 645.50K |
| 211 | 15032-0151.SLDDRW | 820.50K |
| 212 | 15032-0151.SLDPRT | 280.50K |
| 213 | 15032-0152.SLDDRW | 1.12M |
| 214 | 15032-0152.SLDPRT | 424.80K |
| 215 | 15032-0153.DWG | 56.72K |
| 216 | 15032-0153.SLDDRW | 676.00K |
| 217 | 15032-0153.SLDPRT | 135.33K |
| 218 | 15032-0154.SLDDRW | 670.50K |
| 219 | 15032-0154.SLDPRT | 123.00K |
| 220 | 15032-0155.SLDDRW | 714.00K |
| 221 | 15032-0155.SLDPRT | 130.65K |
| 222 | 15032-0160.SLDDRW | 144.61K |
| 223 | 15032-0160.SLDPRT | 88.20K |
| 224 | 15032-0161.SLDDRW | 146.68K |
| 225 | 15032-0161.SLDPRT | 82.72K |
| 226 | 15032-0501.SLDDRW | 840.50K |
| 227 | 15032-0501.SLDPRT | 177.25K |
| 228 | 15032-0602.SLDPRT | 179.50K |
| 229 | 200W试验.SLDASM | 285.50K |
| 230 | 801-00500-01002.slddrw | 841.00K |
| 231 | 801-00500-01002.SLDPRT | 154.27K |
| 232 | CP03-317-0010.SLDDRW | 916.00K |
| 233 | CP03-317-0010.sldprt | 63.19K |
| 234 | CP03-336-0009.SLDDRW | 1005.00K |
| 235 | CP03-336-0009.SLDPRT | 104.70K |
| 236 | CP03-336-0010.SLDDRW | 928.00K |
| 237 | CP03-336-0010.SLDPRT | 131.55K |
| 238 | CP03-336-0022.SLDDRW | 1.11M |
| 239 | CP03-336-0022.SLDPRT | 360.94K |
| 240 | DT86BL100-3120-G210W直流无刷电机.SLDPRT | 184.37K |
| 241 | G6BLD500-220GU30S-6GU9K15-T500W直流无刷电机.SLDPRT | 450.50K |
| 242 | hexboltgradeab_iso.sldprt | 853.00K |
| 243 | hexnutstructuralgradea9_iso.sldprt | 783.50K |
| 244 | L6WC3G重力传感器.SLDPRT | 147.26K |
| 245 | [Schneider]隔离开关V01C操作手柄KCD1PZC.SLDPRT | 902.28K |
| 246 | [成钢]三相电机L200-10S.SLDPRT | 200.02K |
| 247 | 万向脚轮-2.5寸.SLDPRT | 271.00K |
| 248 | 喷墨输送带.SLDASM | 1.13M |
| 249 | 喷头HP-HRIJET300.SLDPRT | 373.88K |
| 250 | 安装架.SLDASM | 1.17M |
| 251 | 工控机.SLDPRT | 625.28K |
| 252 | 急停开关.SLDPRT | 703.37K |
| 253 | 深沟球轴承.sldprt | 394.90K |
| 254 | 深沟球轴承618／6d6D13b3.5.SLDPRT | 946.36K |
| 255 | 电木.SLDPRT | 70.39K |
| 256 | 简易喷头调节架.DWG | 65.82K |
| 257 | 简易喷头调节架.SLDASM | 788.69K |
| 258 | 简易喷头调节架.SLDDRW | 486.50K |
| 259 | 箱子.SLDPRT | 54.58K |
| 260 | 脚支撑M16x160.SLDPRT | 331.69K |
| 261 | 输送带组件.SLDASM | 1.23M |
| 262 | 零件3.SLDPRT | 51.13K |
| 263 | 高东方案.dwg | 308.31K |
