LMS 3990 立式铣床（ID:474800）

机械设备 / 机加工设备 / LMS 3990 立式铣床

©非原创

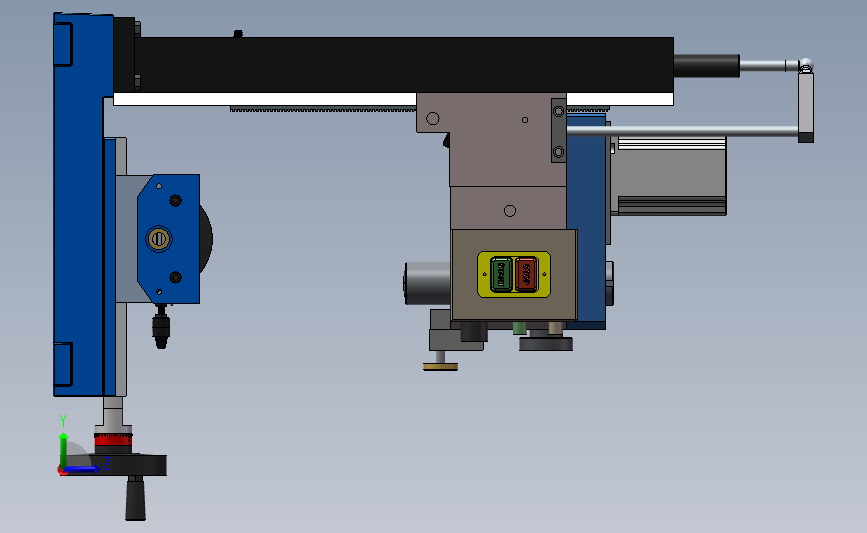

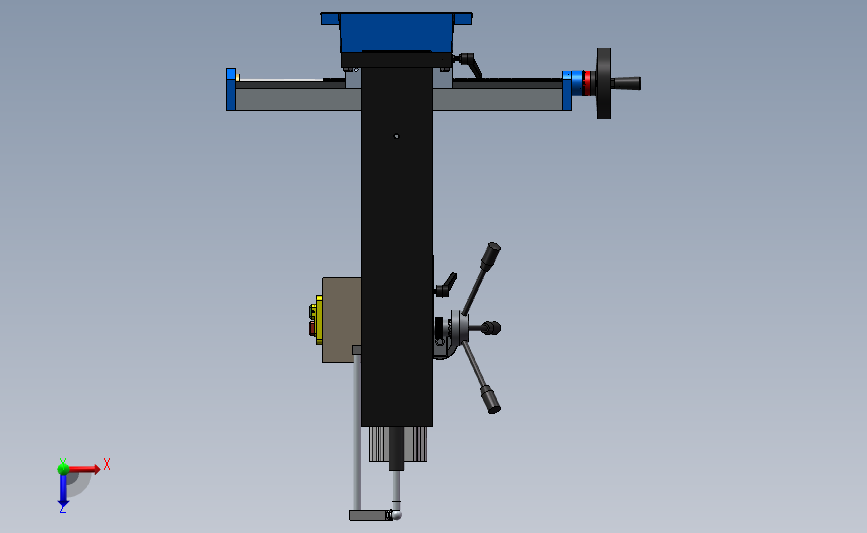

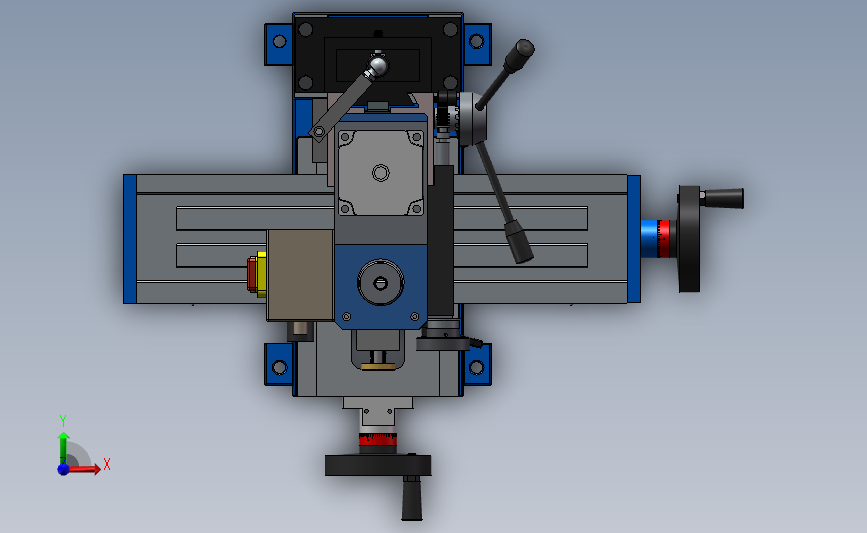

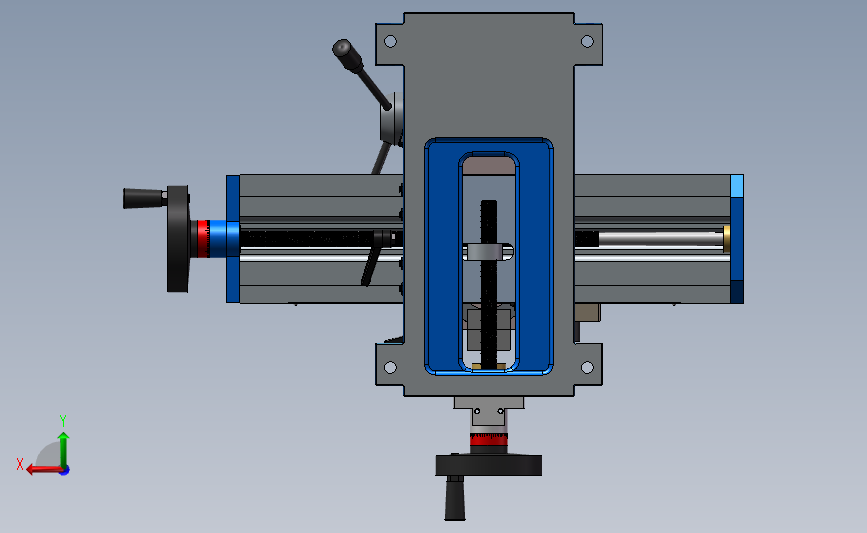

平面图

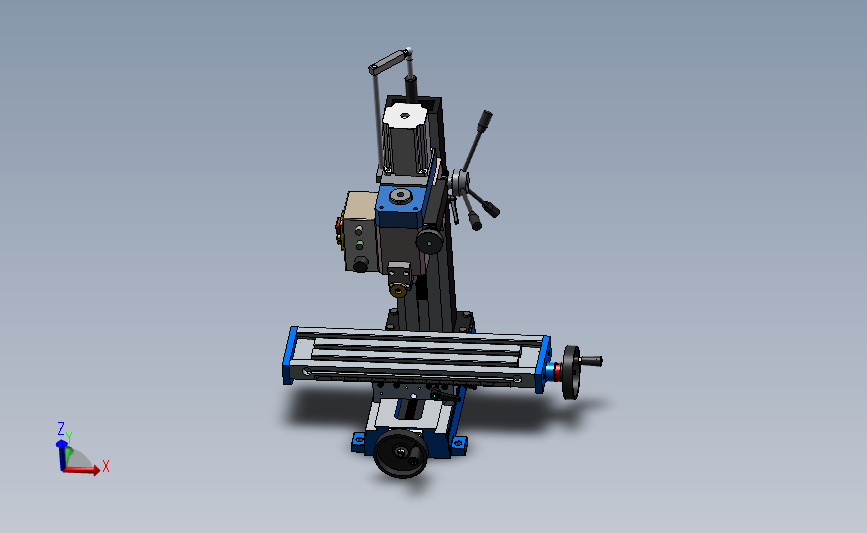

3D视图

文件列表

#	文件名称	文件大小
1	16753093887794.rar	41.70M
2	1_2R8Collet.SLDPRT	133.81K
3	22mmx6SHSS.SLDPRT	827.80K
4	6mmlocknut.SLDPRT	296.82K
5	6mmx10SHSS.SLDPRT	614.93K
6	8mmx35HHCS.SLDPRT	102.33K
7	Button.SLDPRT	39.77K
8	Column.SLDPRT	55.18K
9	Component39.SLDPRT	44.04K
10	Crank.SLDPRT	47.48K
11	CrankHandle.SLDPRT	39.63K
12	CrankHandleassy.SLDASM	1.95M
13	CrankHandleNut.SLDPRT	54.81K
14	CrankHandleScrew.SLDPRT	133.01K
15	CrankWasher.SLDPRT	38.60K
16	dial.SLDPRT	188.87K
17	GasSpringAssembly16stroke.SLDASM	40.74K
18	GasSpringBallStud_4138T843.SLDPRT	92.90K
19	GasSpringCylinder_4138T843.SLDPRT	42.65K
20	GasSpringLowerBar.SLDPRT	44.50K
21	GasSpringRod_4138T843.SLDPRT	40.41K
22	GasSpringTopBar.SLDPRT	44.16K
23	GasSupportShaft.SLDPRT	39.94K
24	LeadScrew.SLDPRT	742.98K
25	Leadscrewbearing.SLDPRT	94.20K
26	LeadScrewBearingAssy.SLDASM	393.23K
27	Leadscrewbearingball.SLDPRT	37.42K
28	Leadscrewbearingwasher.SLDPRT	40.97K
29	LeadScrewYaxis.SLDPRT	2.00M
30	LeftEndCover.SLDPRT	84.77K
31	LMS3990Mill.SLDASM	13.41M
32	LMS3990Mill.stp	17.03M
33	LockHandle.SLDPRT	188.60K
34	LockHandleScrew.SLDPRT	791.83K
35	Longgib.SLDPRT	44.15K
36	M6x1x20SHCS.SLDPRT	169.27K
37	M8x1_25nut.SLDPRT	77.83K
38	MillBase.SLDPRT	428.28K
39	MillBaseAssembly.SLDASM	3.13M

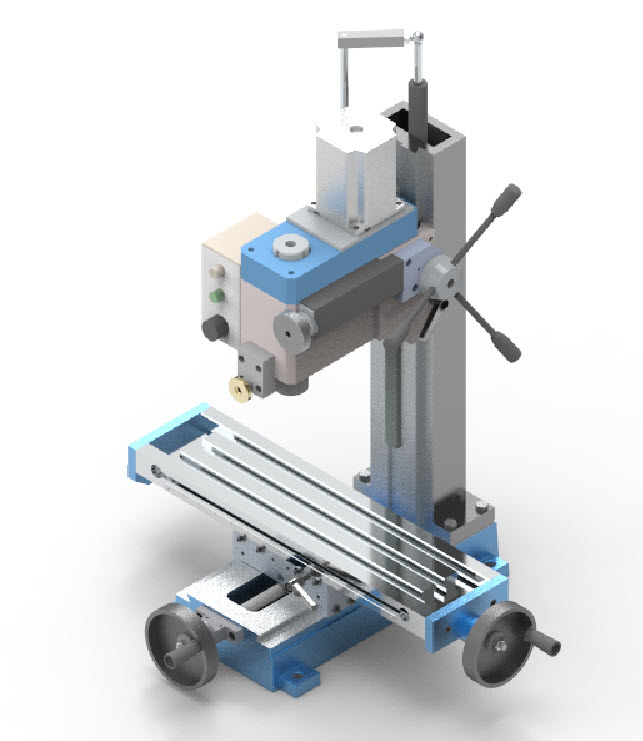

40	Millcomplete1-8-23.jpg	57.10K
41	rack.SLDPRT	623.23K
42	RightEndCover.SLDPRT	90.06K
43	Ruler.SLDPRT	810.72K
44	RulerRivet.SLDPRT	39.47K
45	SeigX2powerhead.SLDASM	48.73K
46	ShaftIndexAssyv4-1.SLDPRT	46.91K
47	ShaftIndexAssyv4.SLDASM	39.23K
48	ShaftIndexBack.SLDASM	37.43K
49	ShaftIndexPin.SLDPRT	42.12K
50	Shortgib.SLDPRT	44.22K
51	StartButton.SLDPRT	112.45K
52	Start_StopSwitch-0.SLDPRT	103.52K
53	Start_StopSwitch.SLDASM	38.56K
54	StopButton.SLDPRT	112.02K
55	Table.SLDPRT	161.00K
56	TaperedLeverHandle.SLDPRT	40.07K
57	WoodruffKeyCrank.SLDPRT	42.91K
58	X-AxisScrewNut.SLDPRT	81.94K
59	X2-zhub.SLDPRT	69.12K
60	X2controlbox.SLDPRT	48.92K
61	X2gearbox.SLDPRT	56.27K
62	x2head2.SLDPRT	74.72K
63	X2motor.SLDPRT	85.25K
64	X2motormountingplate.SLDPRT	40.77K
65	x2quill.SLDPRT	41.22K
66	X2quillnut.SLDPRT	51.28K
67	X2quillplate.SLDPRT	43.40K
68	X2quillroundthing.SLDPRT	40.18K
69	X2zblock.SLDPRT	43.62K
70	x2zcover.SLDPRT	48.58K
71	X2Zdriveshaft.SLDASM	39.54K
72	X2Zgear.SLDPRT	142.52K
73	x2Zinputshaft.SLDPRT	48.07K
74	X2Zrackpinion.SLDPRT	98.24K
75	X2Zshaft2.SLDPRT	57.02K
76	XTableAssy.SLDASM	8.14M
77	Y-AxisLeadScrewSeat.SLDPRT	99.04K
78	Y-AxisScrewNut.SLDPRT	82.53K
79	YSlide.SLDPRT	194.05K
80	YTableSlide.SLDASM	2.06M
