Cylinder Head (Creo 2.0)发动机（ID:505755）

交通运输 / 车辆相关 / Cylinder Head (Creo 2.0)发动机

©非原创

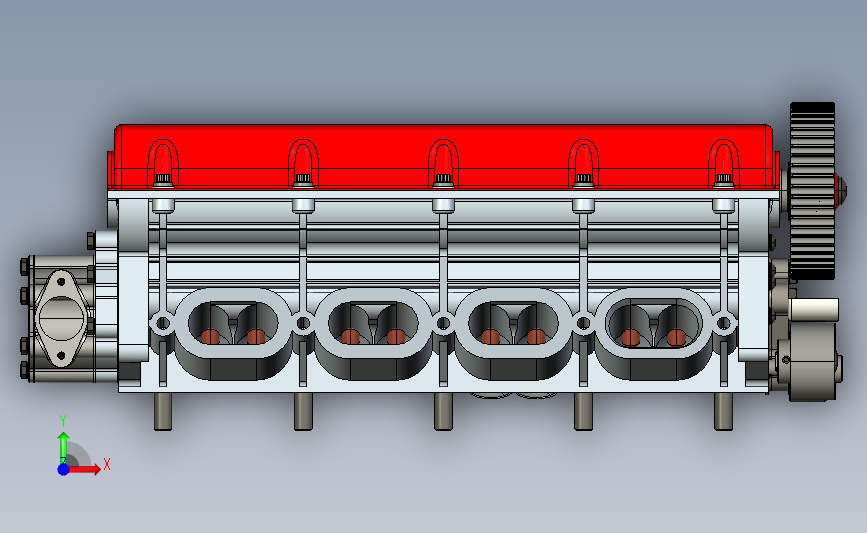

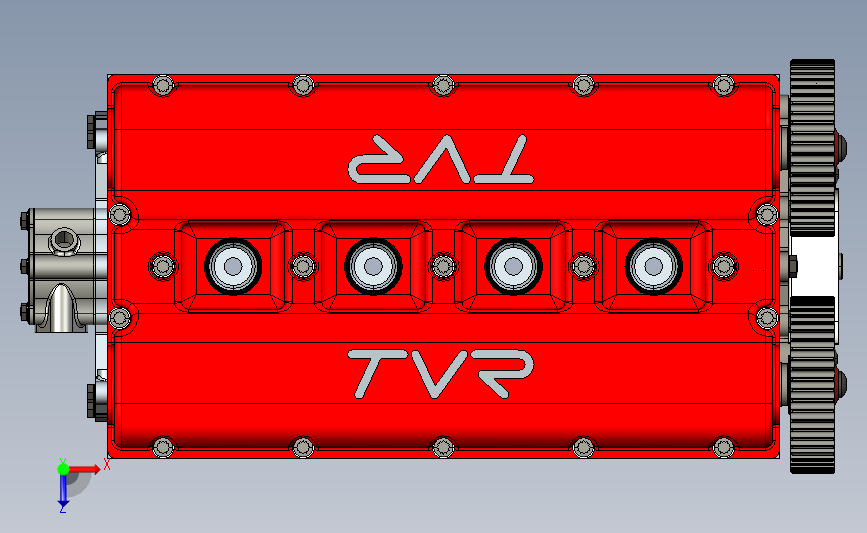

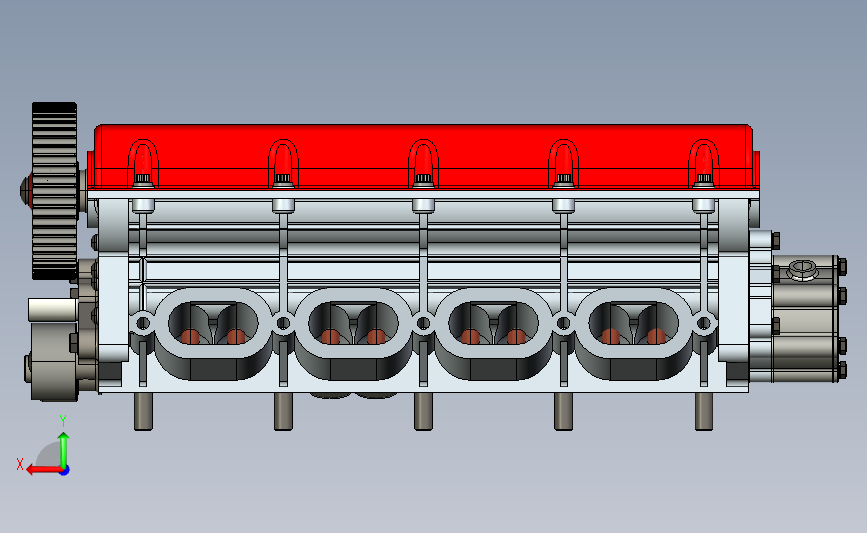

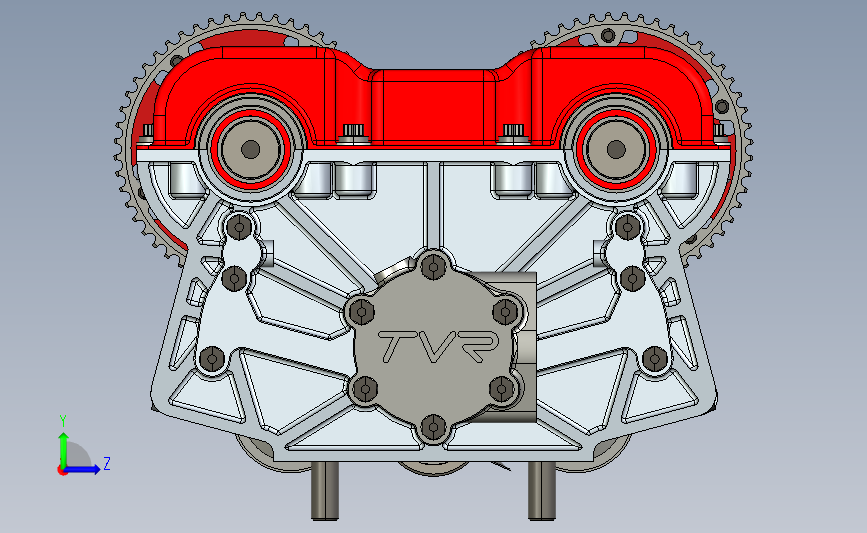

平面图

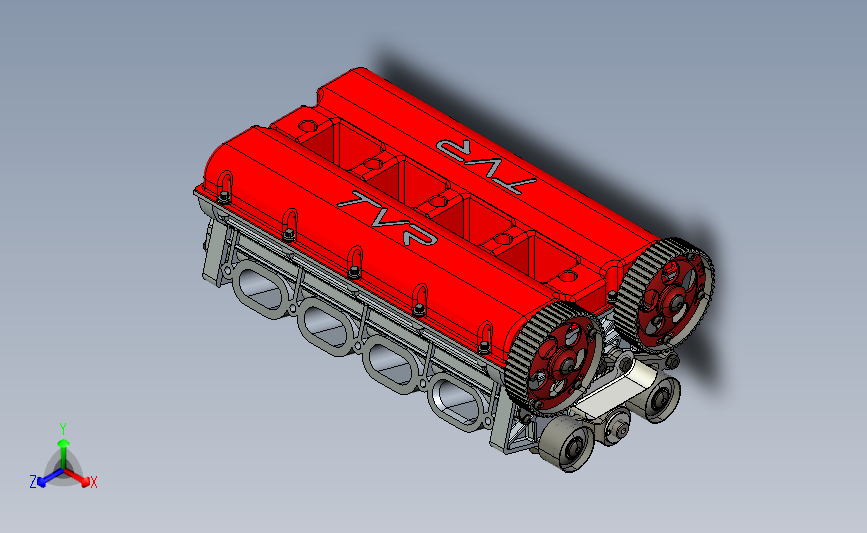

3D视图

文件列表

#	文件名称	文件大小
1	16775437987777.zip	28.55M
2	arm_belt_tensioner_01.prt.1	712.41K
3	base_belt_tensioner_01.prt.1	1.38M
4	bearing_belt_tensioner_01_sc.prt.1	261.73K
5	bearing_camshaft_main_01.prt.1	153.54K
6	bearing_camshaft_thrust_01.prt.1	185.45K
7	bearing_cap_camshaft_main_01.asm.1	67.63K
8	bearing_cap_camshaft_main_01.prt.1	556.89K
9	bearing_cap_camshaft_thrust_01.prt.1	522.04K
10	bearing_cap__camshaft_thrust_01.asm.1	63.54K
11	bearing_housing_camshaft_end.prt.1	578.68K
12	bearing_thrust_camshaft_sc.prt.1	288.24K
13	belt_guard.prt.1	236.21K
14	bolt_m12x90.prt.1	144.78K
15	bolt_m6x35.prt.1	145.98K
16	bolt_m6x70.prt.1	142.38K
17	bolt_m8x25.prt.1	157.50K
18	bolt_m8x50.prt.1	154.80K
19	bolt_shoulder_m10x12x45.prt.1	197.84K
20	bushing_tensioner_pivot.prt.1	133.29K
21	button_head_shcs_m10.prt.1	213.18K
22	button_head_shcs_m6.prt.1	184.00K
23	camshaft_exhaust_01.prt.1	1.40M
24	camshaft_intake_01.prt.1	1.39M
25	clip_retainer_valve_01.prt.1	217.32K
26	coolant_inlet_port_01.prt.1	1.21M
27	coolant_inlet_port_housing.prt.1	1.92M
28	cover_coolant_inlet.prt.1	468.55K
29	cover_front_l_coolant_port_01.prt.1	296.11K
30	cover_front_r_coolant_port_01.prt.1	331.15K
31	cylinder_head_01.asm.1	2.79M
32	cylinder_head_tvr_01.prt.1	36.84M
33	gasket_coolant_inlet_port.prt.1	228.41K
34	gasket_inlet_port_housing_01.prt.1	577.54K
35	gasket_valve_cover_01.prt.1	552.21K
36	gear_timing_01.prt.1	2.92M
37	grommet_spark_plug_sealing.prt.1	205.95K
38	key_5x7x15_01.prt.1	99.27K
39	lifter_hydraulic_27mm_01.prt.1	199.89K
40	plate_pressure_timing_gear_face.prt.1	210.31K
41	pulley_tensioner_timing_belt_01.prt.1	196.09K
42	retainer_valve_spring_01.prt.1	215.46K
43	screw_12pt_m8.prt.1	198.46K
44	set_screw_m6x10.prt.1	127.15K
45	shaft_tensioner_pulley_01.prt.1	222.45K
46	spacer_thrust_camshaft_front_01.prt.1	247.18K
47	spring_return_belt_tensioner_01.prt.1	403.46K
48	spring_return_valve_01.prt.1	604.70K
49	tensioner_guide_timing_belt_01.asm.1	201.30K
50	timing_gear_camshaft_01.asm.1	125.65K
51	timing_plate_camshaft_01.prt.1	1.71M
52	valve_cover.asm.1	101.13K
53	valve_cover_01.prt.1	7.67M
54	valve_generic_01.asm.1	128.95K
55	valve_generic_91mm_01.prt.1	165.30K
56	valve_guide_01.prt.1	161.49K
57	washer_12mm.prt.1	158.98K
58	washer_6mm.prt.1	148.34K
59	washer_m10.prt.1	97.43K
60	washer_m6.prt.1	155.77K
61	washer_m8.prt.1	90.06K
62	washer_thrust_12x35x1.prt.1	107.90K
63	washer_thrust_12x35x3.prt.1	205.08K
