生产线-输送装备（ID:511243）

机械设备 / 非标机械 / 生产线-输送装备

©非原创

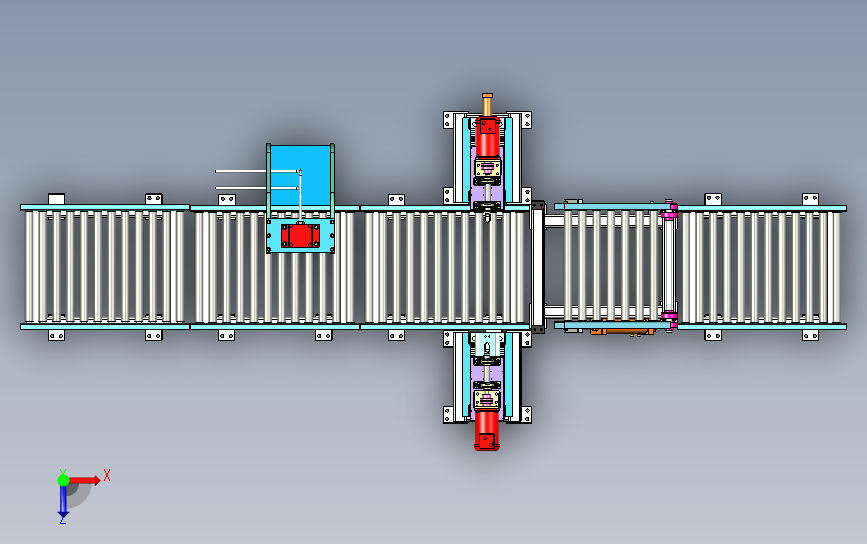

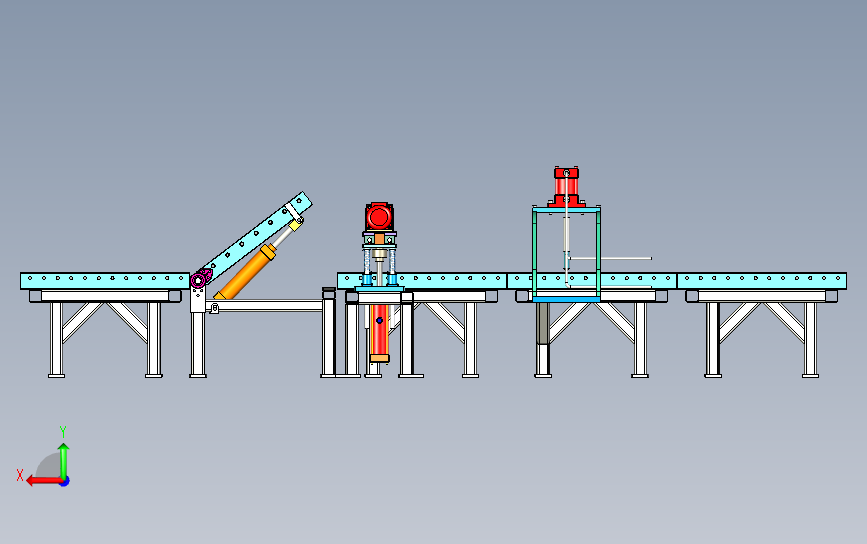

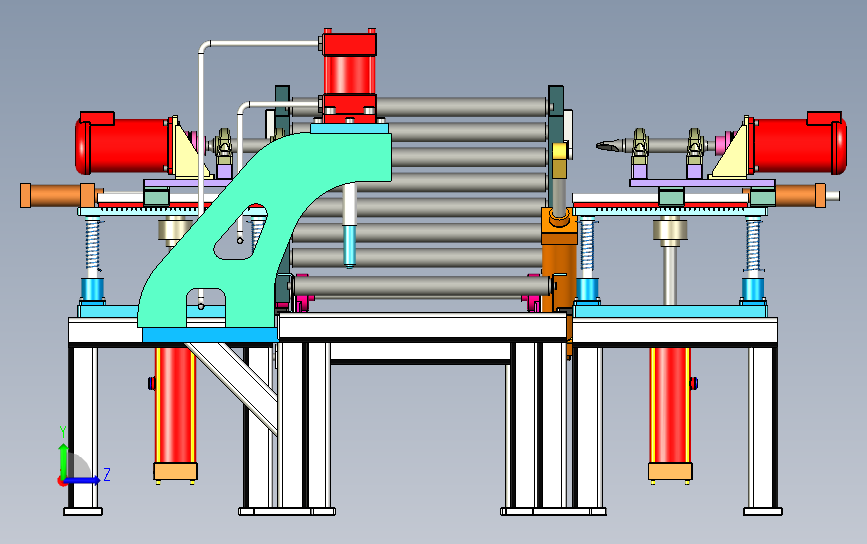

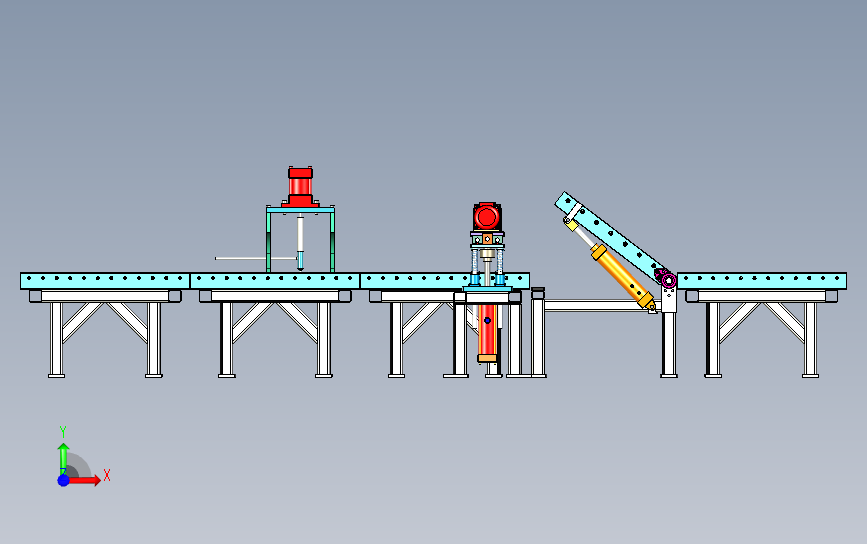

平面图

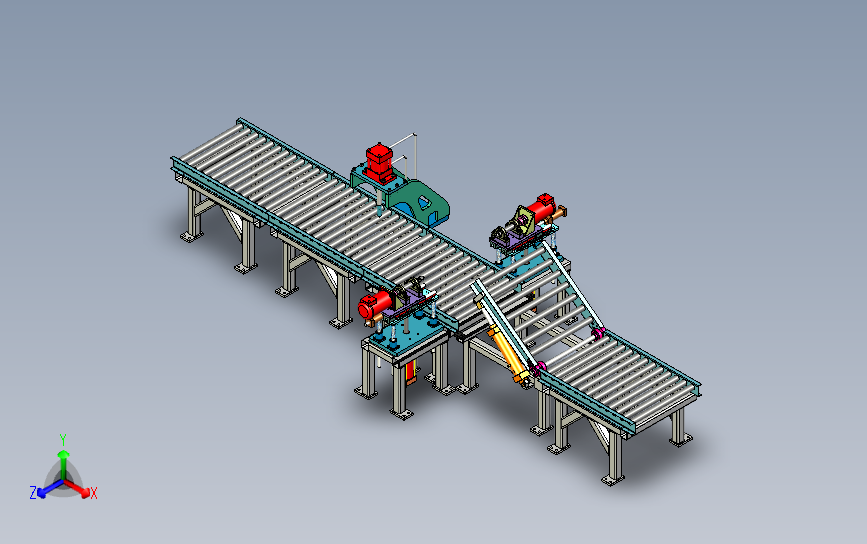

3D视图

文件列表

#	文件名称	文件大小
1	16780178689537.zip	14.46M
2	.25-20x1.00LONGSHCS.SLDPRT	103.50K
3	.25LOCKWASHER.SLDPRT	92.50K
4	.375-16x1.25LONGSHCS.sldprt	156.00K
5	.375LOCKWASHER.sldprt	84.50K
6	.500-13x1.50LONGSHCS.sldprt	184.50K
7	.500LOCKWASHER.sldprt	87.50K
8	.625-11x2.00LONGSHCS.SLDPRT	126.00K
9	.625LOCKWASHER.SLDPRT	82.00K
10	.750-10x2.50LONGSHCS.SLDPRT	118.00K
11	.750NPTPIPEFITTING.SLDPRT	95.50K
12	3_bolt_flange.SLDPRT	417.50K
13	Arbor.SLDPRT	111.00K
14	baseplate.SLDPRT	1.99M
15	box-envelope.SLDPRT	59.00K

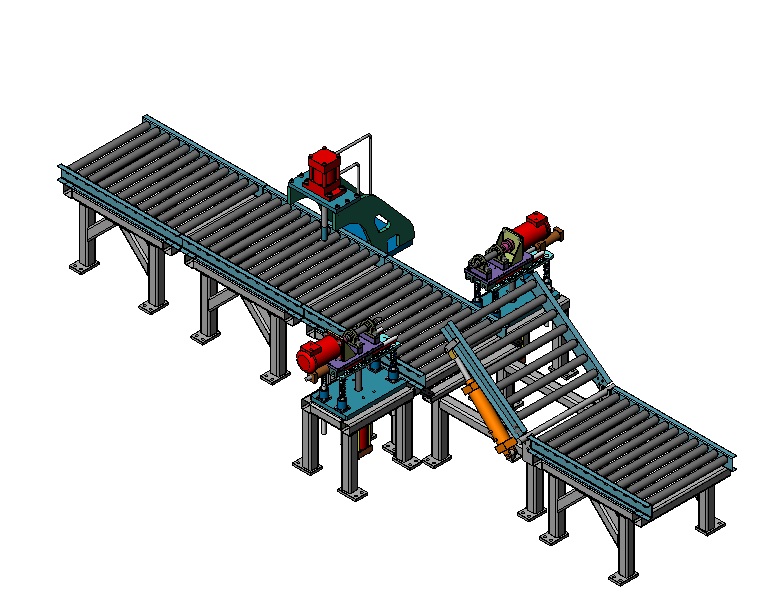

16	comp_parts.jpg	122.36K
17	COMP_PARTS.SLDASM	10.45M
18	comp_parts.tif	1.34M
19	conveyor.SLDASM	230.50K
20	conveyor_frame.SLDASM	282.50K
21	CONVEYOR_SUB.SLDASM	405.50K
22	conv_left_rail.SLDPRT	109.50K
23	conv_right_rail.SLDPRT	191.00K
24	coupling.SLDPRT	105.50K
25	cylinder.SLDPRT	1.48M
26	cylinder4.00bore.SLDPRT	487.50K
27	cylinder6.00bore.SLDPRT	661.00K
28	cylrod2.00dia.SLDPRT	91.00K
29	CylRodAlignerRA-100.SLDPRT	119.00K
30	fixedplate.SLDPRT	138.00K
31	L3.5X3X0.25.SLDPRT	83.00K
32	LayoutSketch.SLDASM	184.00K
33	motor.SLDPRT	474.50K
34	motorbracket.SLDPRT	367.00K
35	mountingbracket.SLDASM	285.00K
36	overendershaft.SLDPRT	190.50K
37	overturnframe.SLDASM	499.50K
38	OverturningMechanism.SLDASM	564.00K
39	overturn_ts3x15_hor10.SLDPRT	122.00K
40	overturn_ts3x3_hor21.SLDPRT	121.50K
41	overturn_ts3x3_vert.SLDPRT	123.50K
42	OVER_H2.SLDPRT	141.50K
43	pbbearing_1.50bore.SLDPRT	402.00K
44	pin.75x3.0.SLDPRT	74.00K
45	PISTON_BRACKET_L.SLDPRT	193.00K
46	PISTON_BRACKET_R.SLDPRT	199.50K
47	PISTON_SUB.SLDASM	117.50K
48	pivotbumper.SLDPRT	187.00K
49	pivotcylrod.SLDPRT	80.50K
50	pivotshaft.SLDPRT	96.50K
51	pivot_cylinder.SLDPRT	512.00K
52	pivot_lh_rail1.SLDPRT	114.00K
53	pivot_rh_rail1.SLDPRT	150.50K
54	PIV_END_PLATE.SLDPRT	199.00K
55	PIV_H1.SLDPRT	125.00K
56	PIV_H2.SLDPRT	122.00K
57	PIV_H3.SLDPRT	127.50K
58	PIV_V1.SLDPRT	123.00K
59	PIV_V2.SLDPRT	126.00K
60	press.SLDASM	851.50K
61	Pressbottomplate.SLDPRT	89.00K
62	presscylrod.SLDPRT	94.00K
63	PRESSSIDEPLATE.SLDPRT	231.00K
64	Presstopplate.SLDPRT	123.50K
65	rail.SLDPRT	89.00K
66	rail_slide.SLDPRT	271.50K
67	RLLR.SLDPRT	241.00K
68	rod_clevis.SLDPRT	91.00K
69	rod_guide.SLDPRT	293.00K
70	roller_frame.SLDASM	201.50K
71	slidecylrod.SLDPRT	81.00K
72	slideplate.SLDPRT	388.50K
73	slide_plate.SLDASM	465.00K
74	slide_shaft.SLDPRT	87.50K
75	spring.SLDPRT	1.84M
76	SquareHeadNut.SLDPRT	1.16M
77	supp_base_pl.SLDPRT	172.50K
78	supp_ts3x3_ang45.SLDPRT	130.00K
79	supp_ts3x3_hor295.SLDPRT	111.00K
80	supp_ts3x3_hor30.SLDPRT	126.00K
81	supp_ts3x3_vert.SLDPRT	123.50K
82	SWIVELPLATE.SLDPRT	227.00K
83	tiltframe.SLDASM	330.00K
84	tilt_roller.SLDASM	375.50K
85	TUBING_1.SLDPRT	162.00K
86	TUBING_2.SLDPRT	166.00K
87	USING_SUBS.SLDASM	1.46M
88	verticalplate.SLDASM	256.50K
