发动机2 Cylinder Horizontal Steam Engine（ID:535724）
查找相似图纸
截图
AI截图渲染
✨AI图片渲染

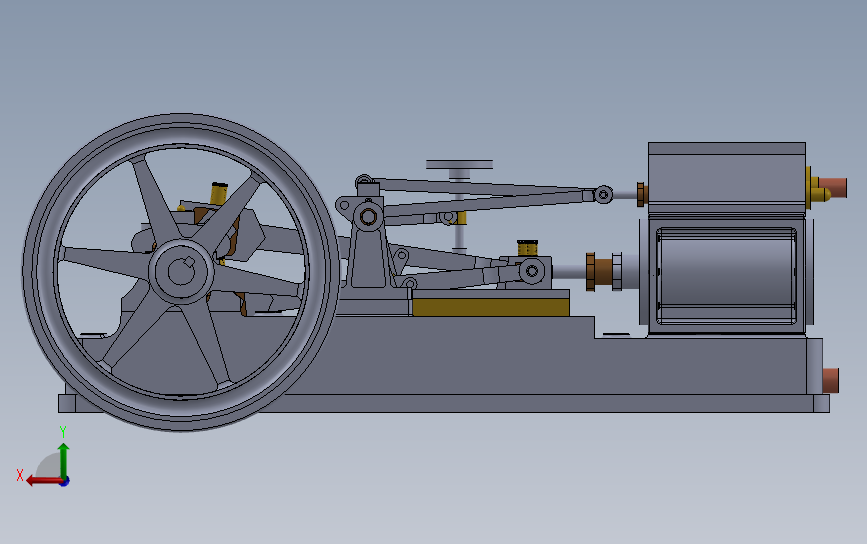

0.png)

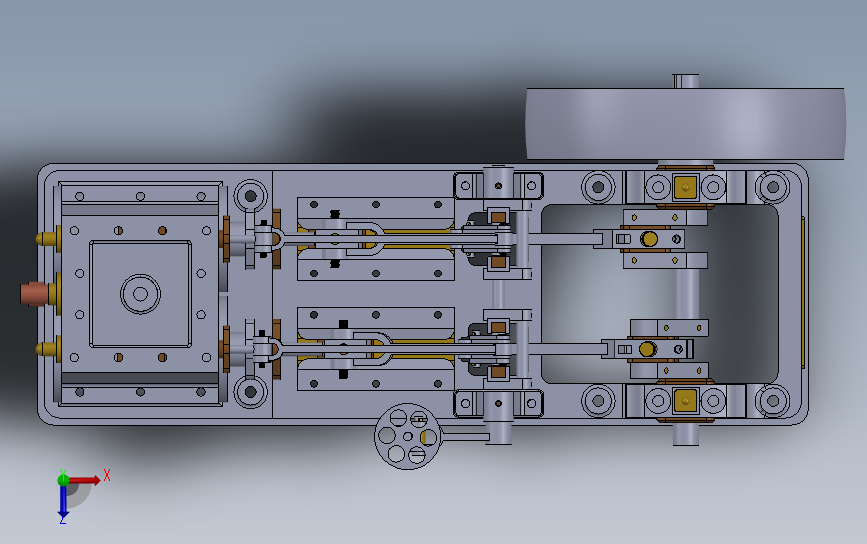

1.png)

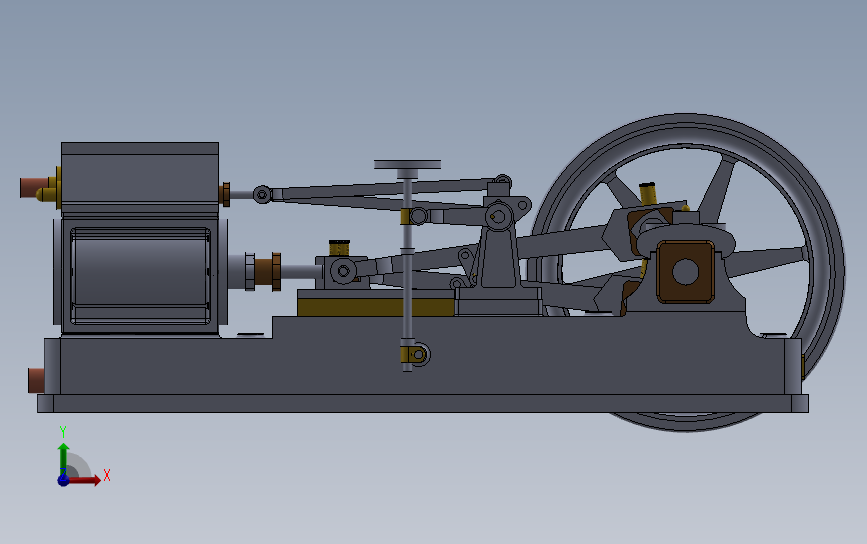

2.png)

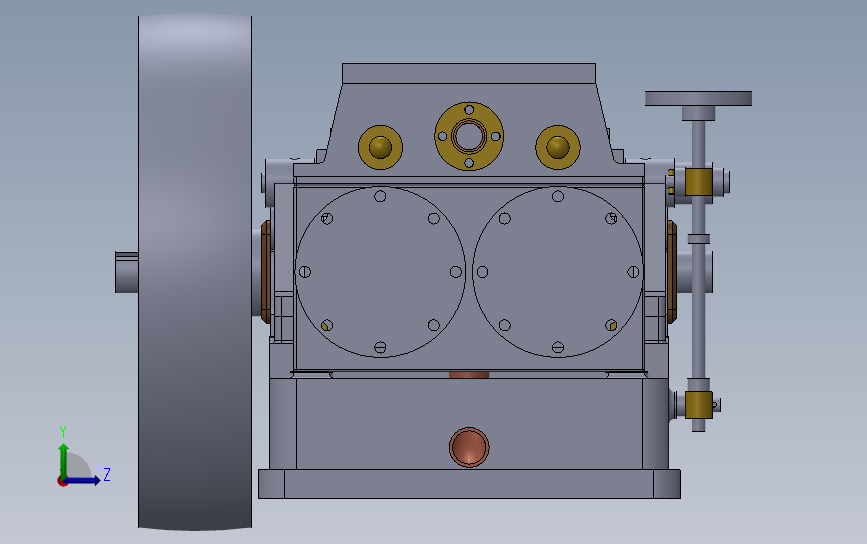

3.png)
4.png)
| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 16788387014681.zip | 49.84M |
| 2 | BedPlate.SLDPRT | 2.89M |
| 3 | ConnectingRodBigEndBearing.SLDPRT | 92.23K |
| 4 | CrossheadGuideSlide.SLDPRT | 106.21K |
| 5 | CylinderFrontCover.SLDPRT | 80.06K |
| 6 | GuideSlideKeeper.SLDPRT | 65.55K |
| 7 | LinkNut.SLDPRT | 45.38K |
| 8 | LowerRockingShaft.SLDPRT | 266.36K |
| 9 | NamePlate.SLDPRT | 735.51K |
| 10 | PortPlate.SLDPRT | 111.46K |
| 11 | SA-2-205.SLDASM | 171.81K |
| 12 | SpindleBearingBlock.SLDPRT | 70.84K |
| 13 | SteamInletPipe.SLDPRT | 86.63K |
| 14 | SteamOutletPipe.SLDPRT | 122.34K |
| 15 | swxJRNL.swj | 86.96K |
| 16 | UnderAxleBracket.SLDPRT | 131.32K |
| 17 | ValveChestCover.SLDPRT | 103.00K |
| 18 | ValveEngineCompleteAssembly.SLDASM | 12.00M |
| 19 | ValveRodEndCap.SLDPRT | 294.29K |
| 20 | ValveRodGland.SLDPRT | 80.11K |
| 21 | BearingOilHoleCover.SLDPRT | 222.65K |
| 22 | CrankshaftBearingHousing.SLDASM | 87.65K |
| 23 | CrankshaftBearingHousingwithbearingoilholecover.SLDASM | 200.33K |
| 24 | CombinationLever.SLDASM | 132.07K |
| 25 | CombinationLever1.SLDPRT | 59.36K |
| 26 | CombinationLever2.SLDPRT | 60.69K |
| 27 | CombinationLever3.SLDPRT | 60.90K |
| 28 | CombinationLever4.SLDPRT | 55.24K |
| 29 | CombinationLever5.SLDPRT | 56.28K |
| 30 | CombinationLever6.SLDPRT | 84.07K |
| 31 | ConnectingRod1.SLDPRT | 166.40K |
| 32 | ConnectingRod2.SLDPRT | 230.04K |
| 33 | ConnectingRod3.SLDPRT | 37.85K |
| 34 | ConnectingRod4.SLDPRT | 43.92K |
| 35 | ConnectingRod5.SLDPRT | 62.33K |
| 36 | ConnectingRodASMBLY.SLDASM | 860.66K |
| 37 | ConnectingRodBigEndBearing.SLDPRT | 103.41K |
| 38 | ConnectingRodOiler.SLDPRT | 1.41M |
| 39 | ConnectingRodOiler2.SLDPRT | 432.16K |
| 40 | ConnectingRodOilerAsmbly.SLDASM | 679.33K |
| 41 | CrankShaft.SLDASM | 137.31K |
| 42 | CrankshaftPart1.SLDPRT | 83.30K |
| 43 | CrankshaftPart2.SLDPRT | 83.48K |
| 44 | CrankshaftPart3.SLDPRT | 85.38K |
| 45 | CrankshaftPart4.SLDPRT | 71.97K |
| 46 | CrankshaftPart5.SLDPRT | 70.64K |
| 47 | CrankshaftPart6.SLDPRT | 57.97K |
| 48 | CrankshaftPart7.SLDPRT | 44.57K |
| 49 | CrankshaftBearing.SLDASM | 214.30K |
| 50 | CrankshaftBearing.SLDPRT | 122.41K |
| 51 | CrankshaftBearingHousingwithbearingoilholecover.SLDASM | 200.32K |
| 52 | CrankshaftBearingHousing.SLDASM | 82.01K |
| 53 | CrankshaftBearingHousing1.SLDPRT | 128.93K |
| 54 | CrankshaftBearingHousing2.SLDPRT | 85.97K |
| 55 | CrossHeadOiler.SLDASM | 567.39K |
| 56 | CrossheadOiler2.SLDPRT | 470.39K |
| 57 | Part8.SLDPRT | 606.32K |
| 58 | CylinderBlock.SLDPRT | 7.75M |
| 59 | CylinderBockAsmbly.SLDASM | 5.53M |
| 60 | CylinderFrontCover.SLDPRT | 81.95K |
| 61 | CylinderRearCoverwithpistonRodGland.SLDASM | 225.00K |
| 62 | CylinderRearCover.SLDASM | 269.40K |
| 63 | CylinderRearCover1.SLDPRT | 330.46K |
| 64 | CylinderRearCover2.SLDPRT | 51.56K |
| 65 | CylinderRearCover3.SLDPRT | 48.17K |
| 66 | EcentricRod.SLDASM | 62.14K |
| 67 | EcentricRodPart1.SLDPRT | 71.65K |
| 68 | EcentricRodPart2.SLDPRT | 61.13K |
| 69 | EXP.Linkleft.SLDPRT | 66.77K |
| 70 | EXP.Linkright.SLDPRT | 46.17K |
| 71 | ExpansionLinkShaftSupport.SLDASM | 79.56K |
| 72 | ExpansionLinkShaftSupport1.SLDPRT | 178.28K |
| 73 | ExpansionLinkShaftSupport2.SLDPRT | 68.50K |
| 74 | CrankShaft.SLDASM | 137.13K |
| 75 | Crankshaftandflywheelasmbly.SLDASM | 295.44K |
| 76 | Flywheel.SLDPRT | 285.98K |
| 77 | LiftingLink.SLDASM | 84.84K |
| 78 | LiftingLinkPart1.SLDPRT | 140.84K |
| 79 | LiftingLinkPart2.SLDPRT | 57.42K |
| 80 | LinkHousingLeftHand.SLDPRT | 101.57K |
| 81 | LinkHousingRightHand.SLDPRT | 102.27K |
| 82 | LinkHousingLinkBar1.SLDPRT | 48.62K |
| 83 | LinkHousingLinkBar2.SLDPRT | 38.70K |
| 84 | LinkHousingShaft1.SLDASM | 37.30K |
| 85 | LinkHousingShaft1part1.SLDPRT | 39.38K |
| 86 | LinkHousingShaft2.SLDPRT | 37.05K |
| 87 | LinkHousingShaft2part2.SLDPRT | 57.87K |
| 88 | ORing1.SLDPRT | 95.73K |
| 89 | PistonandRodAsmbly.SLDASM | 987.43K |
| 90 | PistonHead.SLDPRT | 125.86K |
| 91 | Platform.SLDPRT | 46.19K |
| 92 | Rod.SLDPRT | 553.33K |
| 93 | RodPart1.SLDPRT | 65.31K |
| 94 | RodPart2.SLDPRT | 45.95K |
| 95 | CylinderRearCoverwithpistonRodGland.SLDASM | 281.78K |
| 96 | PistonRodgland.SLDPRT | 84.23K |
| 97 | RadiusBar.SLDASM | 96.31K |
| 98 | RadiusBar1.SLDPRT | 66.54K |
| 99 | RadiusBar2.SLDPRT | 57.52K |
| 100 | RadiusBar3.SLDPRT | 46.28K |
| 101 | RadiusBar4.SLDPRT | 84.13K |
| 102 | REV.Spindle.SLDASM | 1001.44K |
| 103 | Spindle1.SLDPRT | 36.43K |
| 104 | Spindle2.SLDPRT | 271.67K |
| 105 | SlideValve.SLDASM | 568.38K |
| 106 | SlideValve.SLDPRT | 92.62K |
| 107 | SlideValveSpindle.SLDPRT | 702.73K |
| 108 | SlideValveConnectingRodPart.SLDASM | 198.04K |
| 109 | SlideValveConnectingRodPart1.SLDPRT | 108.00K |
| 110 | SlideValveConnectingRodPart2.SLDPRT | 218.94K |
| 111 | SteamInletPipe.SLDPRT | 87.49K |
| 112 | ValveChest.SLDASM | 1.18M |
| 113 | ValveChest1.SLDPRT | 1.31M |
| 114 | Valvechest2.SLDPRT | 49.19K |
| 115 | ValveChest3.SLDPRT | 45.19K |
| 116 | ValveRodEndCap.SLDPRT | 299.49K |
| 117 | ValveRodGland.SLDPRT | 80.11K |
此图纸下载需要45金币
立即下载
发布者
过了夏天就立秋
创作: 138987
粉丝: 393
加入时间：2022-04-21
模型信息
图纸ID：535724
图纸格式：sldprt,sldasm
文件大小：51.03M
所需金币：45
上传时间：2023-03-15 08:05:08
是否可编辑：可修改，包括参数
软件版本：SOLIDWORKS 2015
标签
图纸简介
