管虎钳

（ID:547799）

改图/画图

机械设备 / 非标机械 / 管虎钳

©非原创

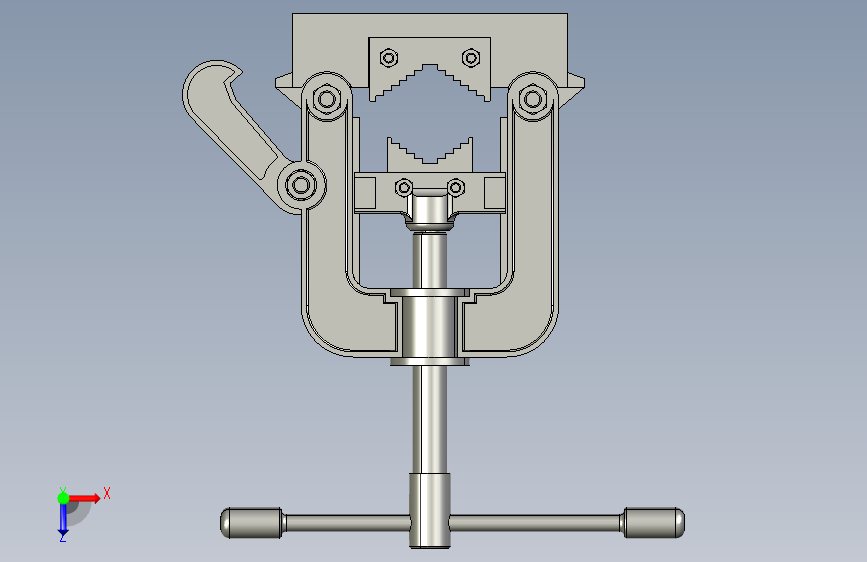

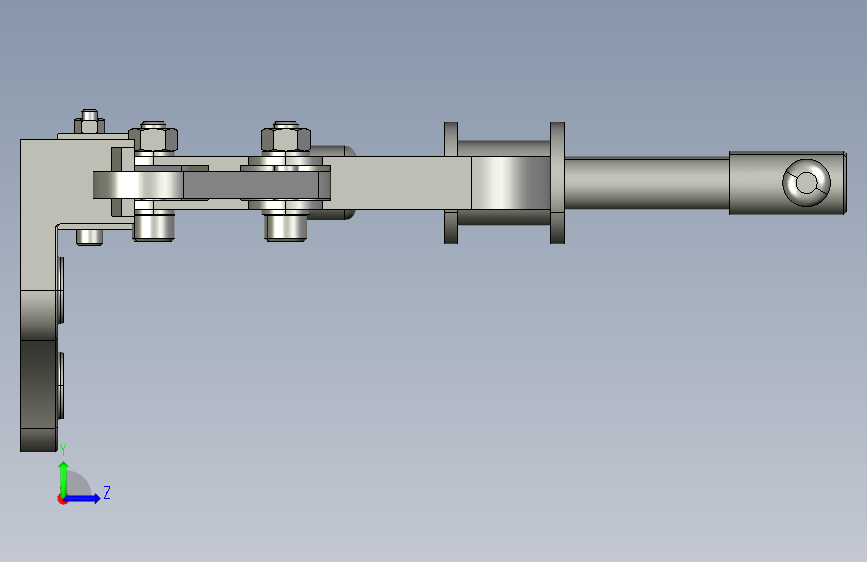

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	ANSI_B_18_3_1M_M10x35_STEEL_HEXAGON_SOCKET_HEAD_CAP_SCREW.CATPart	1.24M
2	ANSI_B_18_3_1M_M6x25_STEEL_HEXAGON_SOCKET_HEAD_CAP_SCREW.CATPart	1.24M
3	ANSI_B_18_3_1M_M6x45_STEEL_HEXAGON_SOCKET_HEAD_CAP_SCREW.CATPart	1.24M
4	ASME_B18_2_4_1M_M10_STEEL_HEXAGON_STYLE_1_NUT.CATPart	449.56K
5	ASME_B18_2_4_1M_M6_STEEL_HEXAGON_STYLE_1_NUT.CATPart	448.00K
6	assemblage.CATProduct	137.81K

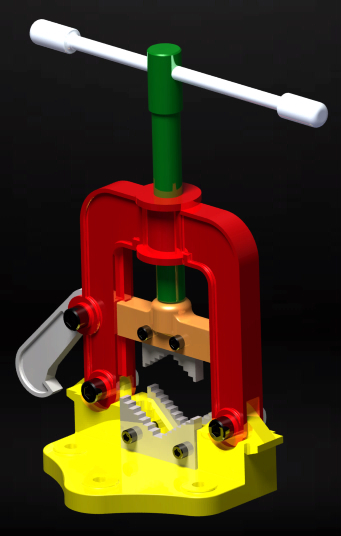

7	assemblage.jpg	110.26K
8	base.CATPart	1.86M
9	lucchetto.CATPart	490.83K
10	manglia.CATPart	469.97K
11	mascellainf.CATPart	461.24K
12	mascellasup.CATPart	438.11K
13	supporto.CATPart	1.86M
14	supporto2.CATPart	626.10K
15	vite.CATPart	1.17M
16	ANSI_B_18_3_1M_M10x35_STEEL_HEXAGON_SOCKET_HEAD_CAP_SCREW.stp	44.85K
17	ANSI_B_18_3_1M_M6x25_STEEL_HEXAGON_SOCKET_HEAD_CAP_SCREW.stp	44.86K
18	ANSI_B_18_3_1M_M6x45_STEEL_HEXAGON_SOCKET_HEAD_CAP_SCREW.stp	44.86K
19	ASME_B18_2_4_1M_M10_STEEL_HEXAGON_STYLE_1_NUT.stp	32.96K
20	ASME_B18_2_4_1M_M6_STEEL_HEXAGON_STYLE_1_NUT.stp	28.44K
21	assemblage.stp	1.02M
22	base.stp	234.84K
23	lucchetto.stp	45.10K
24	manglia.stp	28.06K
25	mascellainf.stp	56.22K
26	mascellasup.stp	44.89K
27	supporto.stp	271.90K
28	supporto2.stp	100.03K
29	vite.stp	32.12K
