D12-Team 999 2018 Switchback机器人比赛小车3D图纸 Solidworks设计

（ID:565762）

改图/画图查找相似图纸

机械设备 / 智能装置 / D12-Team 999 2018 Switchback机器人比赛小车3D图纸 Solidworks设计

©非原创

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

D12-Team 999 2018 Switchback机器人比赛小车3D图纸 Solidworks设计

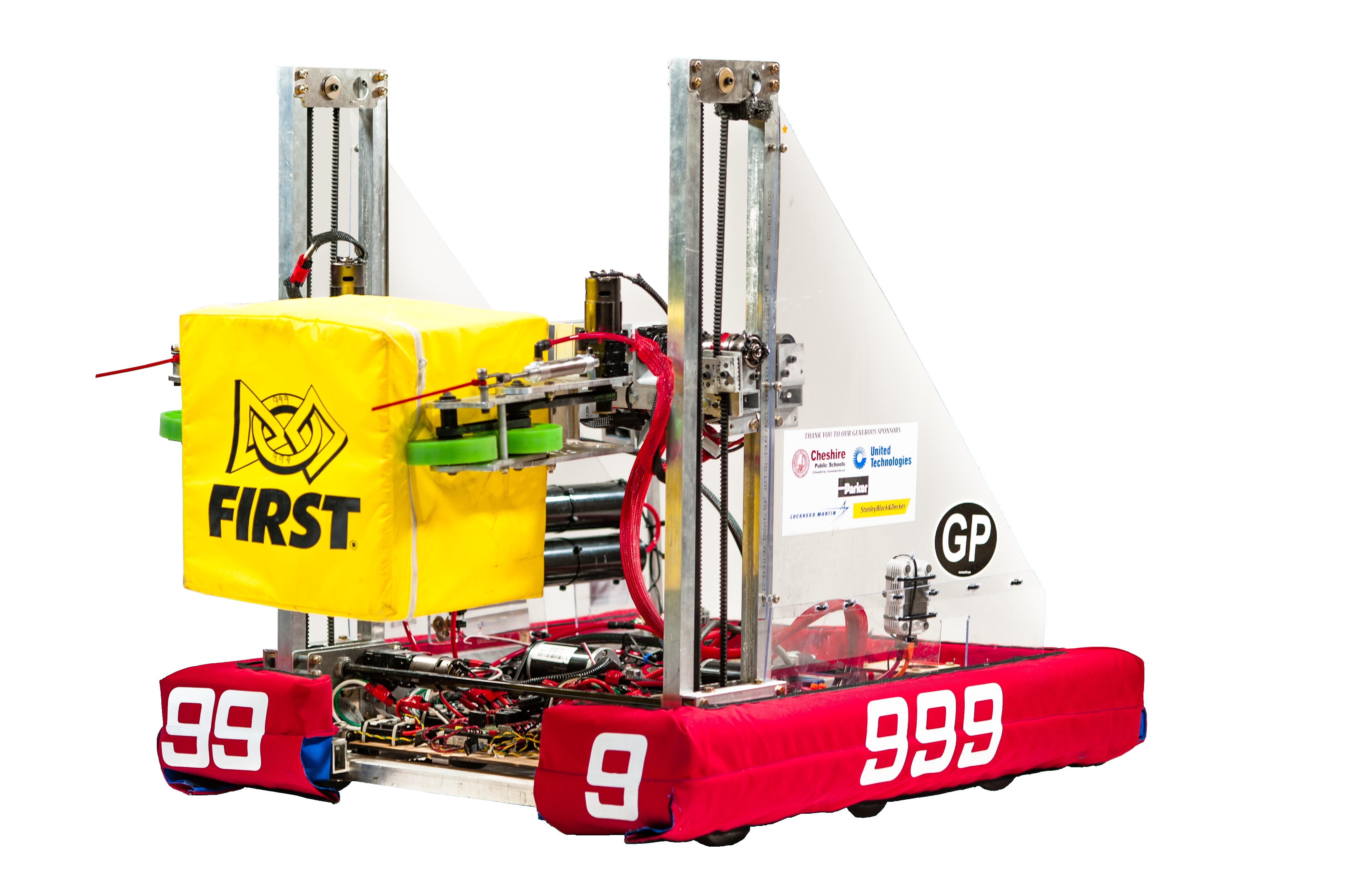

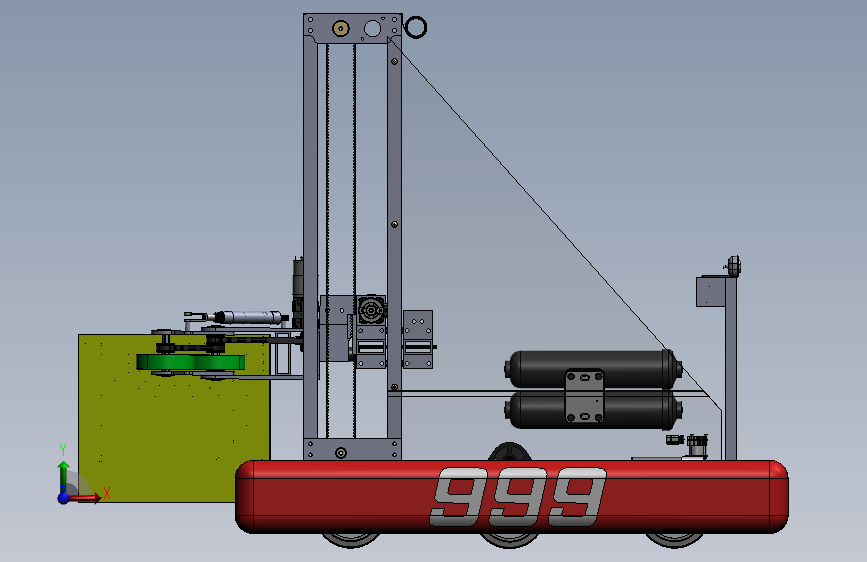

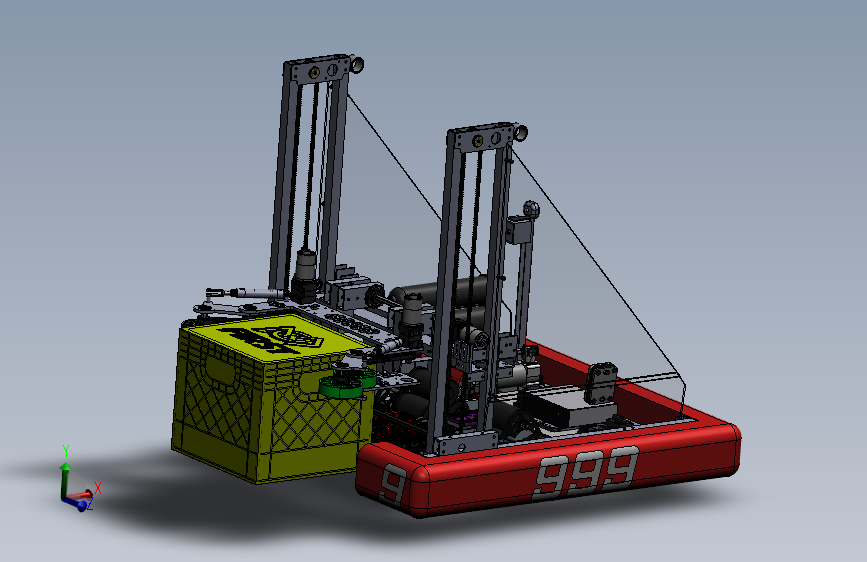

D12-Team 999 2018 Switchback机器人比赛小车3D图纸 Solidworks设计主视图

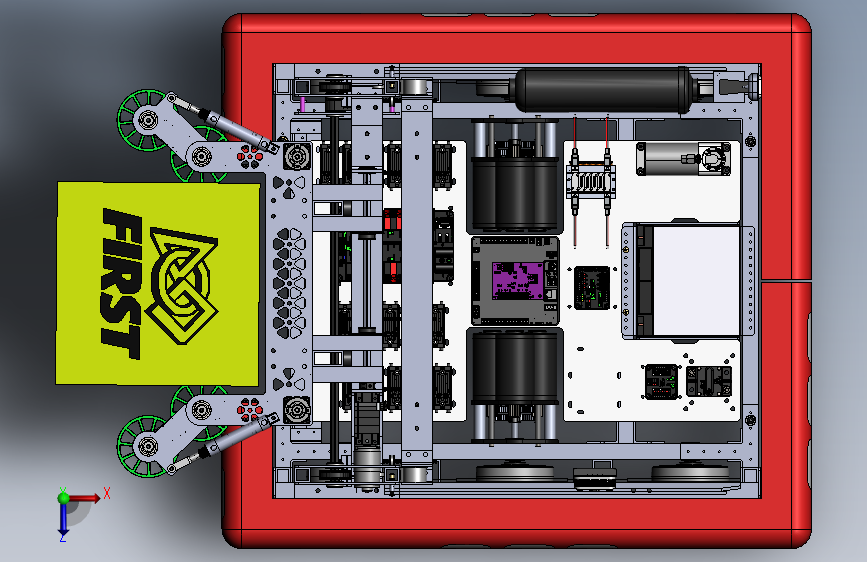

D12-Team 999 2018 Switchback机器人比赛小车3D图纸 Solidworks设计俯视图

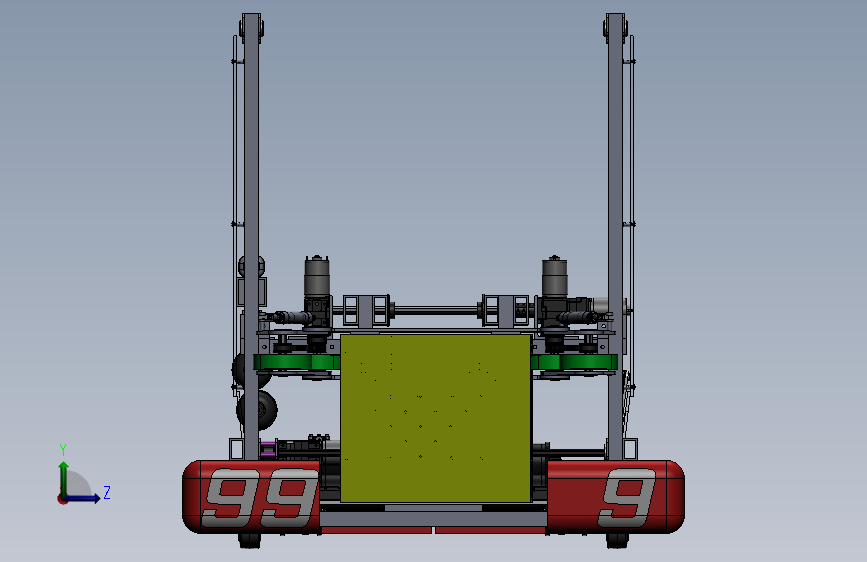

D12-Team 999 2018 Switchback机器人比赛小车3D图纸 Solidworks设计左侧视图

D12-Team 999 2018 Switchback机器人比赛小车3D图纸 Solidworks设计正面视图

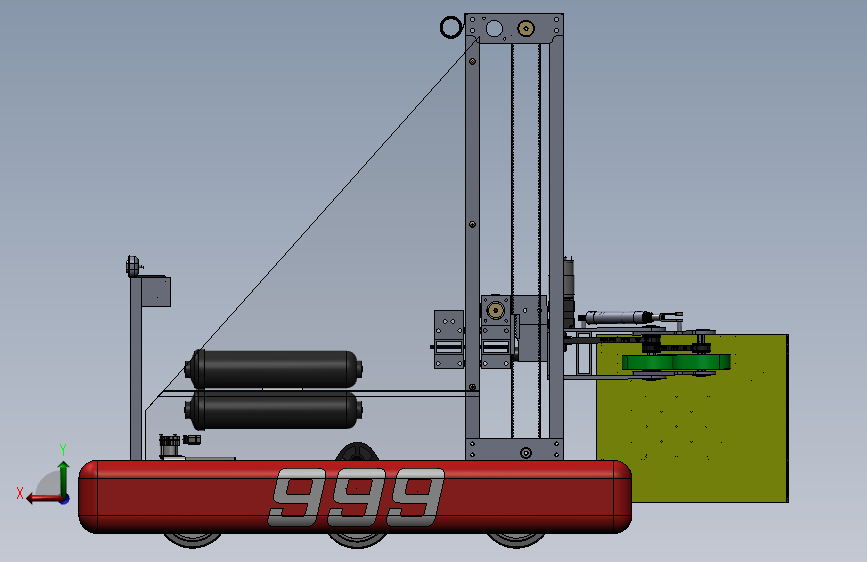

D12-Team 999 2018 Switchback机器人比赛小车3D图纸 Solidworks设计背面视图

#	文件名称	文件大小
1	..999-18-Switchback...SLDASM	87.84M
2	120Amp_Circuit_Breaker.SLDASM	382.29K
3	2018robot.jpg	1.34M
4	13_75mm_1_2_ThunderHex_ID_x_1_125_OD_x_0_313_WD_Flanged_Bearing_217-4006.sldprt	36.18K
5	18t_x_15mm_Wide_Aluminum_Pulley_HTD_5mm_1_2_Hex_217-4100.SLDPRT	459.54K
6	18t_x_15mm_Wide_Aluminum_Pulley_HTD_5mm_1_2_Hex_217-4100.STEP	934.74K
7	18t_x_9mm_Wide_Double_Flange_Aluminum_Pulley_HTD_5mm_1_2_Hex_Bore_217-3225.SLDPRT	444.71K
8	18t_x_9mm_Wide_Double_Flange_Aluminum_Pulley_HTD_5mm_1_2_Hex_Bore_217-3225.STEP	934.46K
9	1_2_Hex_Bore_Aluminum_VersaHub_217-2592.SLDPRT	191.15K
10	1_2_Hex_Bore_Aluminum_VersaHub_217-2592.STEP	219.16K
11	1_2_Hex_Shaft_Coupler_217-4008.SLDASM	252.46K
12	1_2_Hex_Shaft_Coupler_217-4008.STEP	255.89K
13	217-2000-1.sldprt	40.58K
14	217-2614-002_98430A132-1.sldprt	133.49K
15	217-2625-003cutintakerotate.SLDPRT	3.46M
16	217-2625-003Rev1-3.sldprt	3.78M
17	217-2625-005Rev1_Planet_Revolving_Follower01-2.sldprt	177.74K
18	217-2625-005Rev1_Planet_Revolving_Follower01-3.sldprt	178.51K
19	217-2625-005Rev1_Planet_Revolving_Follower01-5.sldprt	176.23K
20	217-2625-007Rev1_Public-1.sldprt	201.96K
21	217-2625-007Rev1_Public-3.sldprt	202.14K
22	217-2625-007Rev1_Public.sldprt	200.76K
23	217-2625-008Rev1-2.sldprt	115.28K
24	217-2625-008Rev1-3.sldprt	115.29K
25	217-2625-008Rev1-5.sldprt	116.19K
26	217-2625-010Rev1-2.sldprt	16.25K
27	217-2625-010Rev1-3.sldprt	17.31K
28	217-2625-010Rev1-5.sldprt	16.45K
29	217-2625-013Rev2-1.sldprt	24.20K
30	217-2625-013Rev2-3.sldprt	24.29K
31	217-2625-013Rev2.sldprt	24.68K
32	217-2625-017Rev1_9714K61-3.sldprt	18.75K
33	217-2625-017Rev1_9714K61-4.sldprt	20.35K
34	217-2625-017Rev1_9714K61-6.sldprt	19.67K
35	217-2625-018Rev1_98541A410-3.sldprt	27.20K
36	217-2625-018Rev1_98541A410-4.sldprt	27.44K
37	217-2625-018Rev1_98541A410-6.sldprt	28.09K
38	217-2625-025Rev1-1.sldprt	100.32K
39	217-2625-025Rev1-3.sldprt	93.58K
40	217-2625-025Rev1.sldprt	93.65K
41	217-2625-026Rev1-1.sldprt	84.20K
42	217-2625-026Rev1-3.sldprt	76.82K
43	217-2625-026Rev1.sldprt	76.95K
44	217-2625-100_1_-10.sldasm	22.13K
45	217-2625-100_1_-7.sldasm	24.25K
46	217-2625-100_1_-8.sldasm	22.77K
47	217-2625-100_2_.sldasm	22.54K
48	217-2711-002Rev1_50t-1.sldprt	258.02K
49	217-2714-002Rev1_60t-1.sldprt	303.00K
50	217-2731-1.sldprt	24.51K
51	217-2733-1.sldprt	25.02K
52	217-2742-001Rev4-2.sldprt	20.62K
53	217-2742-001Rev4-3.sldprt	20.35K
54	217-2742-001Rev4-5.sldprt	20.69K
55	217-2761-001rev1-1.sldprt	25.18K
56	217-2816-001Rev1-3.sldprt	282.36K
57	217-2816-001Rev1-4.sldprt	290.15K
58	217-2816-001Rev1-6.sldprt	290.67K
59	217-2820Rev1_Public_1_-1.sldasm	365.56K
60	217-2820Rev1_Public_1_-3.sldasm	21.12K
61	217-2822-002Rev4-2.sldprt	129.74K
62	217-2822-002Rev4-3.sldprt	130.93K
63	217-2822-002Rev4-5.sldprt	128.08K
64	217-2897intake.SLDPRT	3.73M
65	217-2948-000Rev1_1_-3b.SLDASM	25.53K
66	217-2948-001Rev1_40-2b.SLDPRT	116.24K
67	217-2948-002Rev1_L-1-4.sldprt	25.56K
68	217-2948-002Rev1_L-1-5b.SLDPRT	81.64K
69	217-2948-003Rev1_SingleA-2b.SLDPRT	28.90K
70	217-2948-004Rev1_Std-3b.SLDPRT	56.42K
71	217-2948-005Rev1_P-2b.SLDPRT	24.21K
72	217-2954-001Rev1_41-1.sldprt	314.68K
73	217-2954-002Rev1_1000-50A-N7-1.sldprt	25.74K
74	217-3099-001_12t-1.sldprt	78.72K
75	217-3100-001_14t-1.sldprt	100.09K
76	217-3257-001Rev1-1.sldprt	27.37K
77	217-3261-001Rev1-1.sldprt	27.76K
78	217-3421-001Rev1-1.sldprt	262.47K
79	217-3421-002Rev1-1.sldprt	201.77K
80	217-3421-009Rev1-1.sldprt	34.59K
81	217-3421-010Rev1-2.sldprt	89.68K
82	217-3421-011Rev2_97633A200-1.sldprt	34.13K
83	217-3422-001Rev1-1.sldprt	30.77K
84	217-3422-002Rev1-1.sldprt	22.90K
85	217-3422-003Rev1-1.sldprt	22.71K
86	217-3422-005Rev1-1.sldprt	34.96K
87	217-3422-006Rev1-1.sldprt	35.66K
88	217-3422-STEP_1_-2.sldasm	35.90K
89	217-4244.ipt	19.27M
90	217-4347-000Rev1-1.sldprt	87.45K
91	217-4347-000Rev1-3.sldprt	87.76K
92	217-4347-000Rev1.sldprt	89.88K
93	217-4649-001Rev1-1.sldprt	126.66K
94	217-4649-001Rev1-3.sldprt	126.17K
95	217-4649-001Rev1.sldprt	127.04K
96	217-4649-002Rev1_SSA0832-0500ZC-1.sldprt	23.55K
97	217-4649-002Rev1_SSA0832-0500ZC-3.sldprt	23.32K
98	217-4649-002Rev1_SSA0832-0500ZC.sldprt	23.53K
99	217-4649-006Rev1_SSA0004-008BA-1.sldprt	23.70K
100	217-4649-006Rev1_SSA0004-008BA-3.sldprt	23.31K
101	217-4649-006Rev1_SSA0004-008BA.sldprt	22.93K
102	217-4649-007Rev1_94105A824-1.sldprt	32.65K
103	217-4649-007Rev1_94105A824-3.sldprt	32.37K
104	217-4649-007Rev1_94105A824.sldprt	32.61K
105	217-4973_1stage_775pro2.SLDASM	1.05M
106	217-8080-baseRev4_nowires-3.sldprt	2.40M
107	217_3stage_775pro.SLDASM	9.17M
108	30t_x_9mm_Wide_Double_Flange_Aluminum_Pulley_HTD_5mm_1_2_Hex_Bore_217-3229.SLDPRT	874.13K
109	30t_x_9mm_Wide_Double_Flange_Aluminum_Pulley_HTD_5mm_1_2_Hex_Bore_217-3229.STEP	1.82M
110	60355K440_BALLBEARING.SLDPRT	501.90K
111	6071K120_FORGEDCLEVISRODEND.SLDPRT	767.24K
112	832-1750-Ring-Gear-Screw_SSA0832-0500ZC-1.sldprt	23.17K
113	832-1750-Ring-Gear-Screw_SSA0832-0500ZC-3.sldprt	24.18K
114	832-1750-Ring-Gear-Screw_SSA0832-0500ZC.sldprt	23.41K
115	8926T230_SILICONERUBBERLOAD-RATEDBUMPER.SLDPRT	331.95K
116	90313A107_18-8STAINLESSSTEELOVERSIZEDWASHER.SLDPRT	72.15K
117	90313A109_18-8STAINLESSSTEELOVERSIZEDWASHER.SLDPRT	69.78K
118	92141A029_TYPE18-8STAINLESSSTEELFLATWASHER.SLDPRT	77.38K
119	9293K120_CONSTANT-FORCESPRING.SLDPRT	233.23K
120	95105A139_ZINC-PLATEDSTEELHEAVY-DUTYRIVETNUT.SLDPRT	815.84K
121	95105A152_ZINC-PLATEDSTEELHEAVY-DUTYRIVETNUT.SLDPRT	756.68K
122	999-18-1x1.SLDPRT	96.69K
123	999-18-1x1to1x2.SLDPRT	118.40K
124	999-18-1x1tobackbeamleft.SLDPRT	114.40K
125	999-18-1x1tobackbeamright.SLDPRT	122.06K
126	999-18-1x1x.5gus.SLDPRT	80.05K
127	999-18-1x2Lguss.SLDPRT	82.77K
128	999-18-5inwheelhub.SLDPRT	166.38K
129	999-18-5inwheelrim.SLDPRT	209.92K
130	999-18-5inwheeltire.SLDPRT	161.11K
131	999-18-60Tx9mmWideTimingBeltHTD5mm217-3456vex.SLDPRT	3.01M
132	999-18-80Tx9mmWideTimingBeltHTD5mm217-3456vex.SLDPRT	3.05M
133	999-18-avt-pp-35.SLDASM	172.92K
134	999-18-backbeam-drivetrain.SLDPRT	149.38K
135	999-18-batterboxstandoff.SLDPRT	54.43K
136	999-18-belttoelevator.SLDPRT	65.80K
137	999-18-bottomgus.SLDPRT	69.63K
138	999-18-bumperbolt.SLDPRT	988.80K
139	999-18-bumpers.SLDPRT	1.63M
140	999-18-camer_back.SLDPRT	52.15K
141	999-18-camer_case_box.SLDPRT	56.25K
142	999-18-camer_front_plate.SLDPRT	65.34K
143	999-18-drivetrainasm.SLDASM	81.65M
144	999-18-Eboard.SLDPRT	303.72K
145	999-18-elevator-1.5.SLDPRT	106.86K
146	999-18-elevator-1.x1back.SLDPRT	94.06K
147	999-18-elevator-1.x1front.SLDPRT	79.90K
148	999-18-elevator-bearingmount-constantforcesping.SLDPRT	89.19K
149	999-18-elevator-bearingmount.SLDPRT	77.22K
150	999-18-elevator-moterplate-spacer.SLDPRT	47.70K
151	999-18-elevator-moterplate.SLDPRT	74.23K
152	999-18-elevator-small-thunderhex.SLDPRT	435.18K
153	999-18-elevator-thunderhex.SLDPRT	494.45K
154	999-18-elevator1x2.SLDPRT	169.33K
155	999-18-front-left-drivetrain.SLDPRT	115.20K
156	999-18-front-right-drivetrain.SLDPRT	107.38K
157	999-18-frontbeam-drivetrain.SLDPRT	88.84K
158	999-18-https__shop.polybelt.com_5M-06-Aluminum-Timing-Belt-Clamp-Plate-C5M-6A.htm.SLDPRT	195.95K
159	999-18-intake4stage_775pro.SLDASM	8.51M
160	999-18-intakearms.SLDPRT	95.40K
161	999-18-intakeaxlelong.SLDPRT	487.13K
162	999-18-intakeaxleshort.SLDPRT	619.95K
163	999-18-intakemotermount.SLDPRT	90.90K
164	999-18-intakeplate.SLDPRT	358.36K
165	999-18-intakespacer.SLDPRT	93.83K
166	999-18-intaketoaxle1x2.SLDPRT	122.93K
167	999-18-intaketoaxle1x2withhole.SLDPRT	119.65K
168	999-18-intaketoelevatoraxle.SLDPRT	290.44K
169	999-18-intaketorotate1x2.SLDPRT	87.58K
170	999-18-LR-1x2-drivetrain.SLDPRT	174.03K
171	999-18-mid-beam-2x2gus.SLDPRT	68.29K
172	999-18-mid-beam.SLDPRT	65.82K
173	999-18-navx-mxp.SLDPRT	50.20M
174	999-18-polecam.SLDPRT	55.33K
175	999-18-polybelt.com.SLDPRT	1.56M
176	999-18-polybelt.comelevator.SLDPRT	8.43M
177	999-18-Polycarbonatesignboard.sldprt	73.03K
178	999-18-Polycarbonatesignboardbottom.sldprt	61.95K
179	999-18-spacer92510A565.SLDPRT	53.54K
180	999-18-spacertocylinderandintakearm.SLDPRT	51.20K
181	999-18-SRXMAGENCODERadaptertoWCPSSGearbox.sldprt	108.22K
182	999-18-tguss-drivetrain.SLDPRT	71.97K
183	999-18-thunderhex.5bearing.SLDPRT	162.29K
184	999-18-uprightbraket-outside.SLDPRT	70.25K
185	999-18-uprightbraket.SLDPRT	64.29K
186	999-18_.25-20treadedrodelevator.SLDPRT	1.62M
187	am-2005Pneumatic_Compressor_VIAIR_00090.STEP	5.23M
188	am-34804IN500HexBoreCompliantWheelREV2.STEP	2.22M
189	am-34804IN500HexBoreCompliantWheelREV2green.SLDASM	1.56M
190	avt-pp-35_01.SLDPRT	101.84K
191	avt-pp-35_02.SLDPRT	91.11K
192	avt-pp-35_03.SLDPRT	169.67K
193	avt-pp-35_04.SLDPRT	92.99K
194	Battery.SLDPRT	252.98K
195	cotsbatterbox.SLDPRT	821.88K
196	frcMilk_Crate.SLDPRT	5.73M
197	frc_Radio.SLDPRT	725.69K
198	MSLifeCamHD3000BODY.stp	365.84K
199	MSLifeCamHD3000BODY2.SLDPRT	510.81K
200	MSLifeCamHD3000BODY2tail.SLDPRT	55.94K
201	navXCover-1.sldprt	1.08M
202	NIroboRIO.ipt	35.71M
203	PANHEADPHILLIPSMACHINESCREW10-321.25.SLDPRT	693.94K
204	pneumaticblockb.SLDASM	383.93K
205	pneumaticplateb.SLDPRT	489.03K
206	pneumaticsolenoidb.SLDASM	178.98K
207	Pneumatic_Control_Module_217-4243.STEP	25.34M
208	SRXMAGENCODER.SLDPRT	542.45K
209	udr-12-1_1_2_01.SLDPRT	475.63K
210	udr-12-1_1_2_02.SLDPRT	345.23K
211	UserLibrary-electrical_circuitbreaker_tsc_cb3-sm-120_BUSS-BASE-1.sldprt	154.75K
212	UserLibrary-electrical_circuitbreaker_tsc_cb3-sm-120_BUSS-COVER-1.sldprt	582.48K
213	UserLibrary-electrical_circuitbreaker_tsc_cb3-sm-120_BUSS-RIVET-1.sldprt	16.59K
214	UserLibrary-electrical_circuitbreaker_tsc_cb3-sm-120_BUSS-SAFTY-TRIP-1.sldprt	20.60K
215	UserLibrary-electrical_circuitbreaker_tsc_cb3-sm-120_BUSS-STUD-250X50-1.sldprt	17.23K
216	UserLibrary-electrical_circuitbreaker_tsc_cb3-sm-120_ExternalToothLockWasher-TypeAInch1-4-CarbonSteel-1.sldprt	53.58K
217	UserLibrary-electrical_circuitbreaker_tsc_cb3-sm-120_HexNut-UNCRegularThread-Inch1-4-20-1.sldprt	40.74K
218	VersaPlanetary_Integrated_Encoder_217-5046.SLDASM	7.49M
219	VersaPlanetary_Integrated_Encoder_217-5046.STEP	13.11M
220	VersaPlanetary_v2_Single_Stage_10_1_with_775_Series2.SLDASM	2.40M
221	Voltage_Regulator_Module_217-4245.STEP	15.30M
222	WCP3422.SLDASM	947.63K
