电子元器件系列 (11)（ID:586656）

机械设备 / 非标机械 / 电子元器件系列 (11)

©非原创

平面图

3D视图

文件列表

#	文件名称	文件大小
1	16820843647298.zip	46.53M
2	Ensamblaje2.png	1.00M
3	0.22uF50Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	465.53K
4	0.47uF100Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	462.18K
5	0.47uF50Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	453.41K
6	1000uF100Velectr22x36mm-P.diameter11mm-Blue-Black.stp	750.07K
7	1000uF16Velectr10x16mm-P.diameter5mm-Blue-Black.stp	585.45K
8	1000uF25Velectr10x20mm-P.diameter5mm-Blue-Black.stp	584.79K
9	1000uF25Velectr13x20mm-P.diameter5.5mm-Blue-Black.stp	582.67K
10	1000uF35Velectr13x20mm-P.diameter6.5mm-Blue-Black.stp	605.59K
11	1000uF50Velectr16x26mm-P.diameter8mm-Blue-Black.stp	612.19K
12	1000uF63Velectr16x26mm-P.diameter7.5mm-Blue-Black.stp	634.42K
13	1000uF63Velectr16x33mm-P.diameter8mm-Blue-Black.stp	771.37K
14	100uF100Velectr13x20mm-P.diameter6.5mm-Blue-Black.stp	573.49K
15	100uF16Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	436.22K
16	100uF25Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	434.57K
17	100uF35Velectr8x12mm-P.diameter4mm-Blue-Black.stp	527.82K
18	100uF50Velectr8x14mm-P.diameter4mm-Blue-Black.stp	515.14K
19	100uF63Velectr8x16mm-P.diameter4mm-Blue-Black.stp	564.43K
20	100uF63Velectr9.5x12mm-P.diameter4.6mm-Blue-Black.stp	448.81K
21	10uF50Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	445.35K
22	10uF63Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	457.15K
23	10uF63Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	434.05K
24	1uF100Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	434.29K
25	1uF50Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	425.64K
26	1uF63Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	437.06K
27	2.2uF100Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	453.37K
28	2.2uF50Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	444.77K
29	2.2uF63Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	456.67K
30	2200uF100Velectr25x50mm-P.diameter12.5mm-Blue-Black.stp	1.03M
31	2200uF16Velectr13x20mm-P.diameter6.5mm-Blue-Black.stp	580.33K
32	2200uF16Velectr13x25mm-P.diameter5mm-Blue-Black.stp	582.40K
33	2200uF25Velectr13x26mm-P.diameter6.5mm-Blue-Black.stp	580.10K
34	2200uF35Velectr16x26mm-P.diameter8mm-Blue-Black.stp	608.68K
35	2200uF50Velectr18x35mm-P.diameter9mm-Blue-Black.stp	738.41K
36	2200uF63Velectr20x42mm-P.diameter10mm-Blue-Black.stp	771.47K
37	220uF100Velectr13x26mm-P.diameter6.5mm-Blue-Black.stp	582.61K
38	220uF16Velectr6.3x12mm-P.diameter3.2mm-Blue-Black.stp	433.19K
39	220uF25Velectr8x12mm-P.diameter3mm-Blue-Black.stp	504.43K
40	220uF25Velectr8x12mm-P.diameter4mm-Blue-Black.stp	504.23K
41	220uF35Velectr8x16mm-P.diameter4mm-Blue-Black.stp	557.62K
42	220uF50Velectr10x16mm-P.diameter5mm-Blue-Black.stp	557.38K
43	220uF63Velectr10x20mm-P.diameter5mm-Blue-Black.stp	580.54K
44	22uF100Velectr8x12mm-P.diameter4mm-Blue-Black.stp	493.90K
45	22uF25Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	434.54K
46	22uF35Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	447.63K
47	22uF50Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	419.56K
48	22uF63Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	431.08K
49	22uF63Velectr6x11mm-P.diameter2.5mm-Blue-Black.stp	431.52K
50	3.3uF100Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	480.28K
51	3.3uF50Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	471.05K
52	3300uF16Velectr13x26mm-P.diameter6.5mm-Blue-Black.stp	629.13K
53	3300uF25Velectr16x26mm-P.diameter8mm-Blue-Black.stp	645.73K
54	3300uF50Velectr22x42mm-P.diameter11mm-Blue-Black.stp	939.16K
55	330uF25Velectr8x14mm-P.diameter4mm-Blue-Black.stp	551.47K
56	330uF50Velectr10x20mm-P.diameter5mm-Blue-Black.stp	608.12K
57	33uF100Velectr8x14mm-P.diameter4mm-Blue-Black.stp	542.82K
58	33uF16Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	463.13K
59	33uF25Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	461.53K
60	33uF50Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	445.89K
61	33uF63Velectr8x12mm-P.diameter4mm-Blue-Black.stp	550.40K
62	4.7uF100Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	443.16K
63	4.7uF50Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	434.48K
64	4.7uF63Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	446.23K
65	4700uF16Velectr16x26mm-P.diameter8mm-Blue-Black.stp	572.16K
66	4700uF25Velectr16x35mm-P.diameter8mm-Blue-Black.stp	674.89K
67	4700uF35Velectr20x35mm-P.diameter10mm-Blue-Black.stp	705.77K
68	4700uF50VElectr18x37-P.diameter7mm-Blue-Black.stp	694.68K
69	4700uF50Velectr22x42mm-P.diameter11mm-Blue-Black.stp	791.33K
70	4700uF63Velectr22x41mm-P.diameter10mm-Blue-Black.stp	839.00K
71	4700uF63Velectr22x50mm-P.diameter10mm-Blue-Black.stp	1014.72K

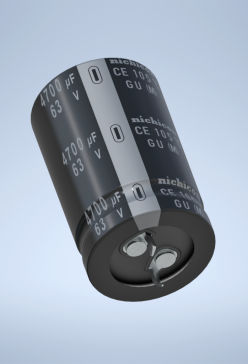

72	4700uF63Velectr25x50mm-P.diameter10mm-Blue-Black.stp	1011.44K
73	470uF100Velectr16x33mm-P.diameter8mm-Blue-Black.stp	662.77K
74	470uF16Velectr8x12mm-P.diameter3.5mm-Blue-Black.stp	481.31K
75	470uF16Velectr8x14mm-P.diameter4mm-Blue-Black.stp	480.17K
76	470uF25Velectr8x16mm-P.diameter4mm-Blue-Black.stp	509.80K
77	470uF35Velectr10x16mm-P.diameter5mm-Blue-Black.stp	545.62K
78	470uF50Velectr13x20mm-P.diameter6.5mm-Blue-Black.stp	532.12K
79	470uF63Velectr13x20mm-P.diameter6.5mm-Blue-Black.stp	553.74K
80	47uF100Velectr10x16mm-P.diameter5mm-Blue-Black.stp	511.77K
81	47uF16Velectr5x11mm-P.diameter2.5mm-Blue-Black.stp	425.04K
82	47uF25Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	400.41K
83	47uF35Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	413.97K
84	47uF35Velectr8x11mm-P.diameter3.5mm-Blue-Black.stp	474.22K
85	47uF50Velectr6.3x11mm-P.diameter3.2mm-Blue-Black.stp	408.25K
86	47uF63Velectr8x12mm-P.diameter4mm-Blue-Black.stp	479.73K
