空气冷却器（ID:594446）

机械设备 / 非标机械 / 空气冷却器

©非原创

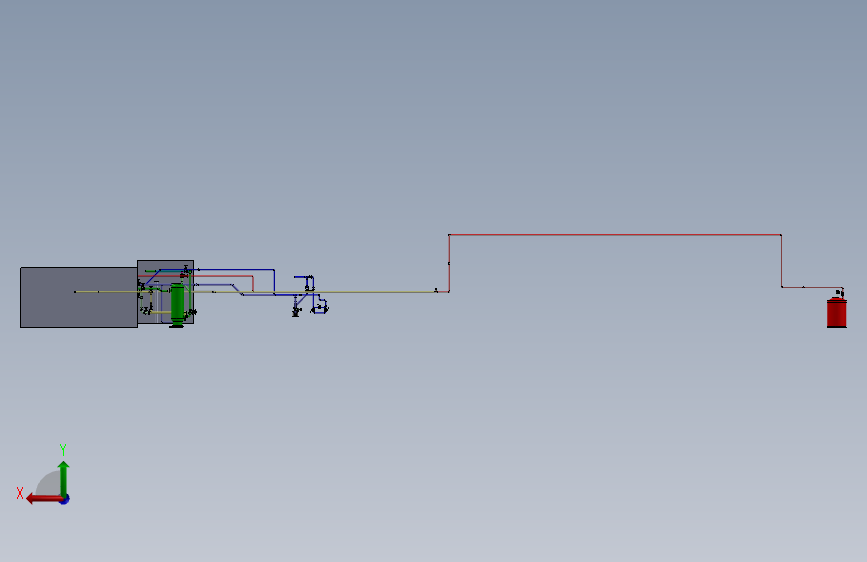

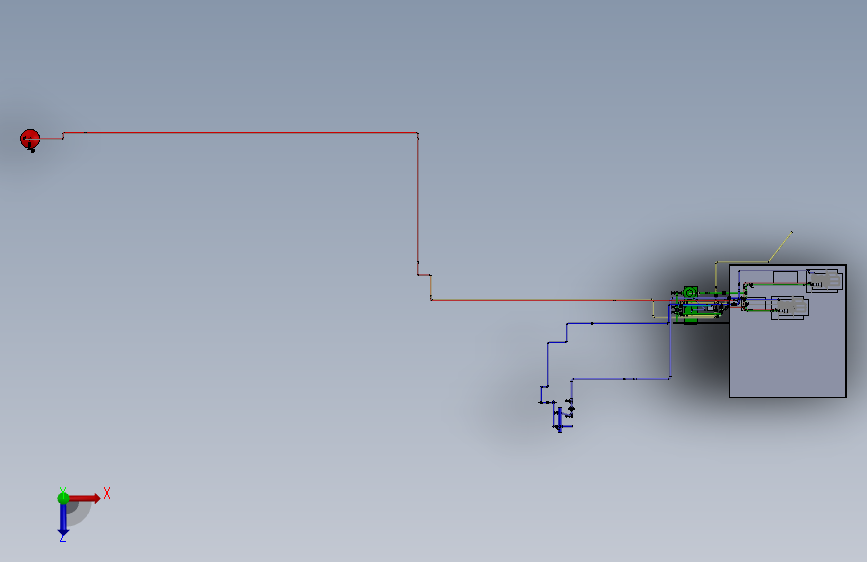

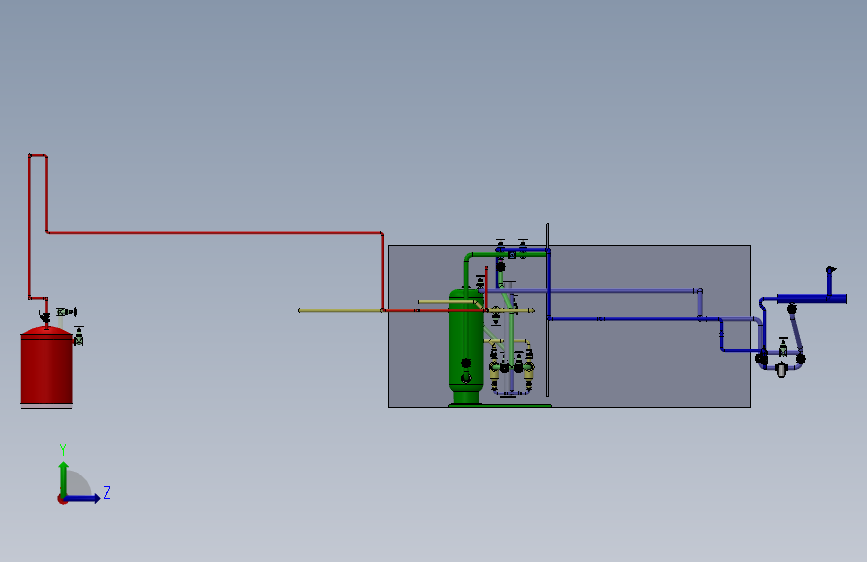

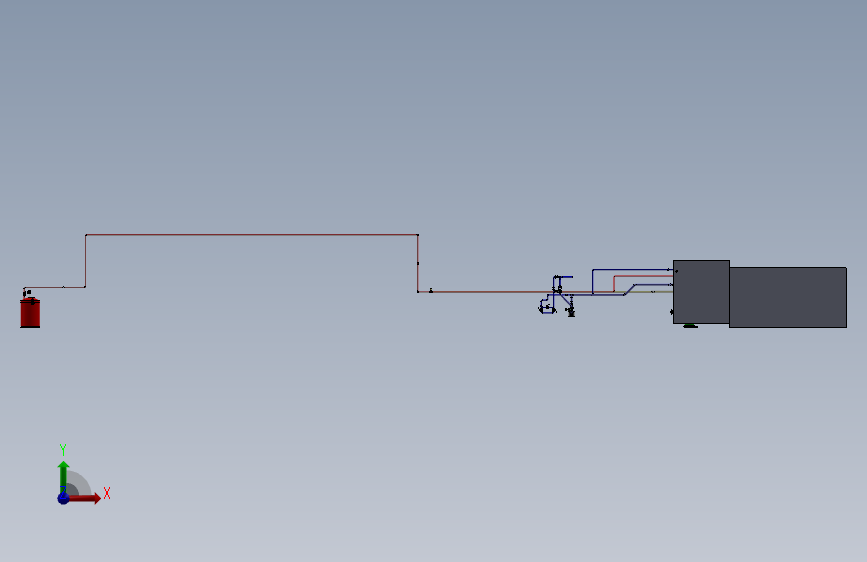

平面图

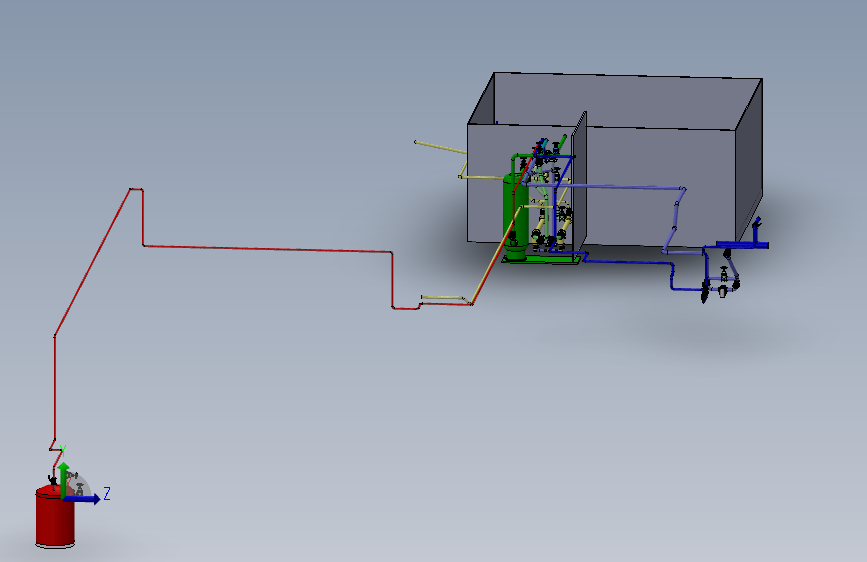

3D视图

文件列表

#	文件名称	文件大小
1	15000gallonairreceiver.SLDPRT	612.50K
2	16825160322949.zip	67.84M
3	3.SLDPRT	80.54K
4	3insliponflange.sldprt	475.11K
5	3Valve.SLDPRT	581.42K
6	6inchflg.SLDPRT	212.83K
7	6inchGateValveOutage.SLDPRT	1000.43K
8	6teeandAirConnectPiping.SLDPRT	239.00K
9	6teeandAirPiping.SLDPRT	151.94K
10	6teeforSupplyWater.SLDPRT	234.81K
11	6teetoAirDryer.SLDPRT	212.51K

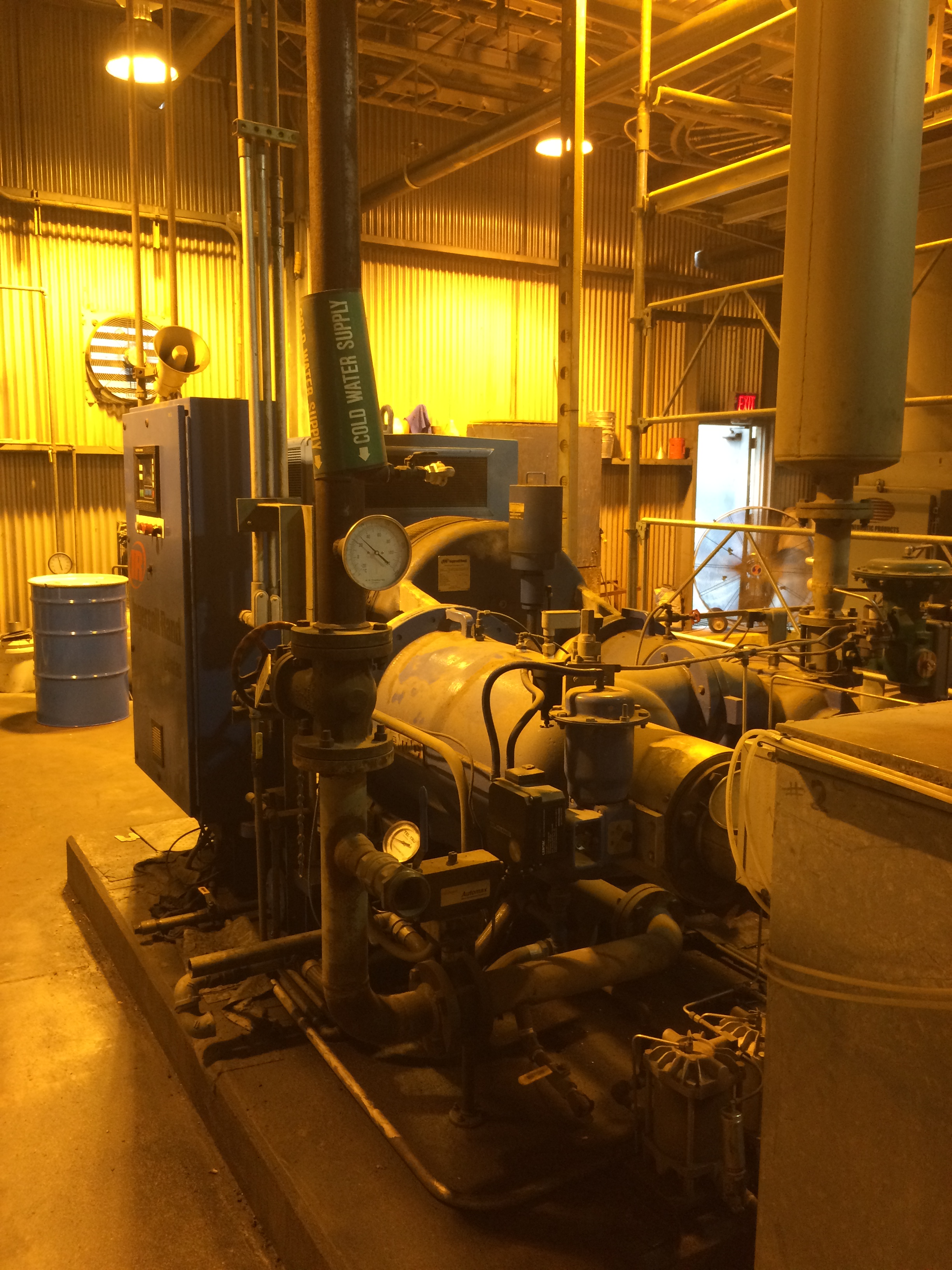

12	750hpAirCompressor.JPG	1.94M
13	8inchflg.SLDPRT	145.07K
14	8inValve.SLDPRT	486.66K
15	8X6ConcReducer1.SLDPRT	158.18K
16	8X6EccentricReducerStainless.SLDPRT	208.82K
17	AfterCoolerReplacement.SLDPRT	211.00K
18	AirCompressor.SLDPRT	193.96K

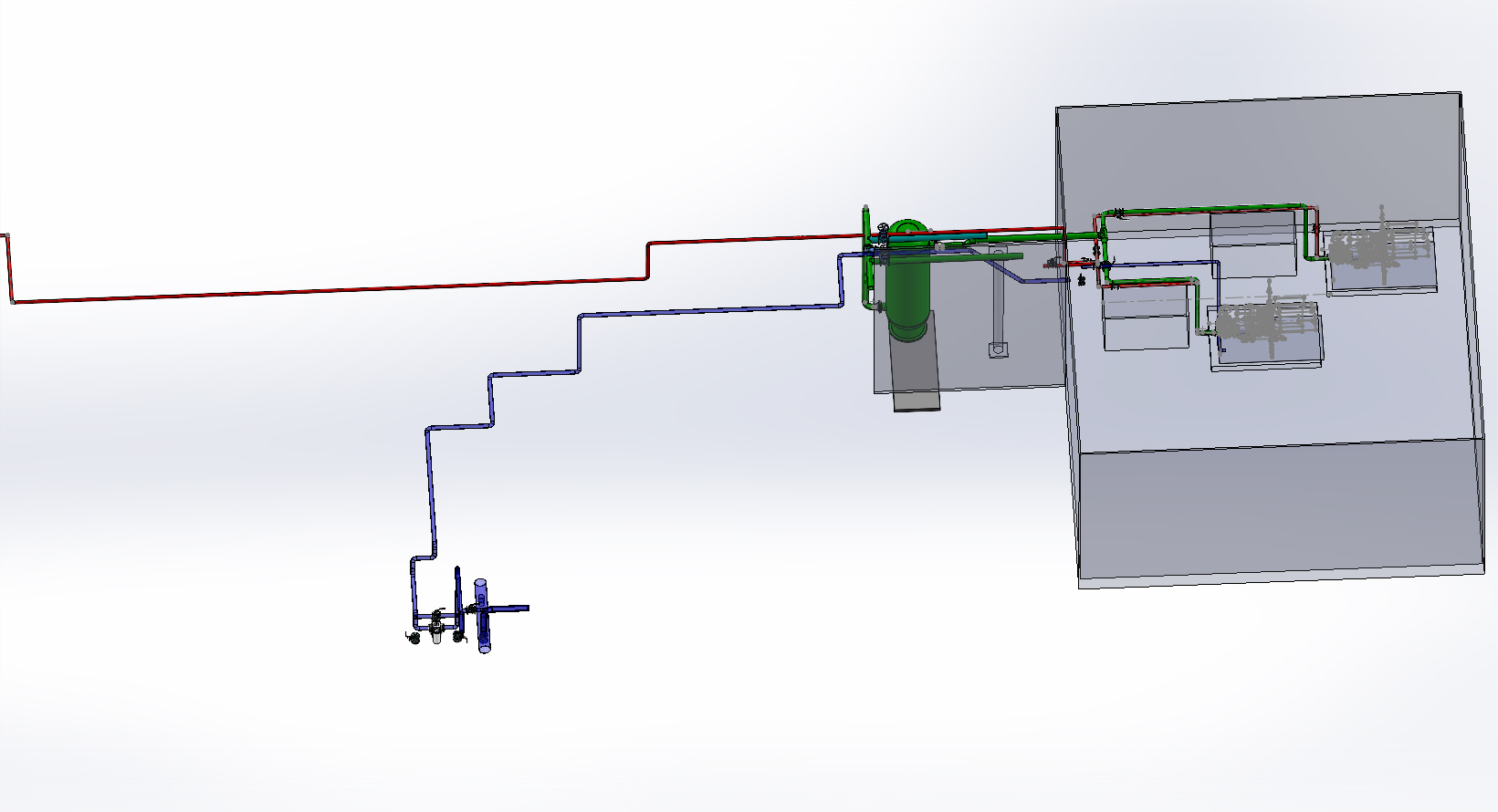

19	AirCompressor1withPiping.JPG	225.50K
20	AirCompressor1withPiping.SLDASM	3.29M
21	AirCompressorCoolingWaterPipingBeforeMillOutage.SLDDRW	3.27M
22	AirCompressorHotWaterReturnPipingBeforeMillOutage.SLDDRW	3.28M
23	AirCompressorMillOutage.SLDDRW	4.29M
24	AirCompressorPipingBeforeMillOutage.SLDASM	3.30M
25	AirCompressorPipingBeforeMillOutageView1.SLDDRW	3.26M

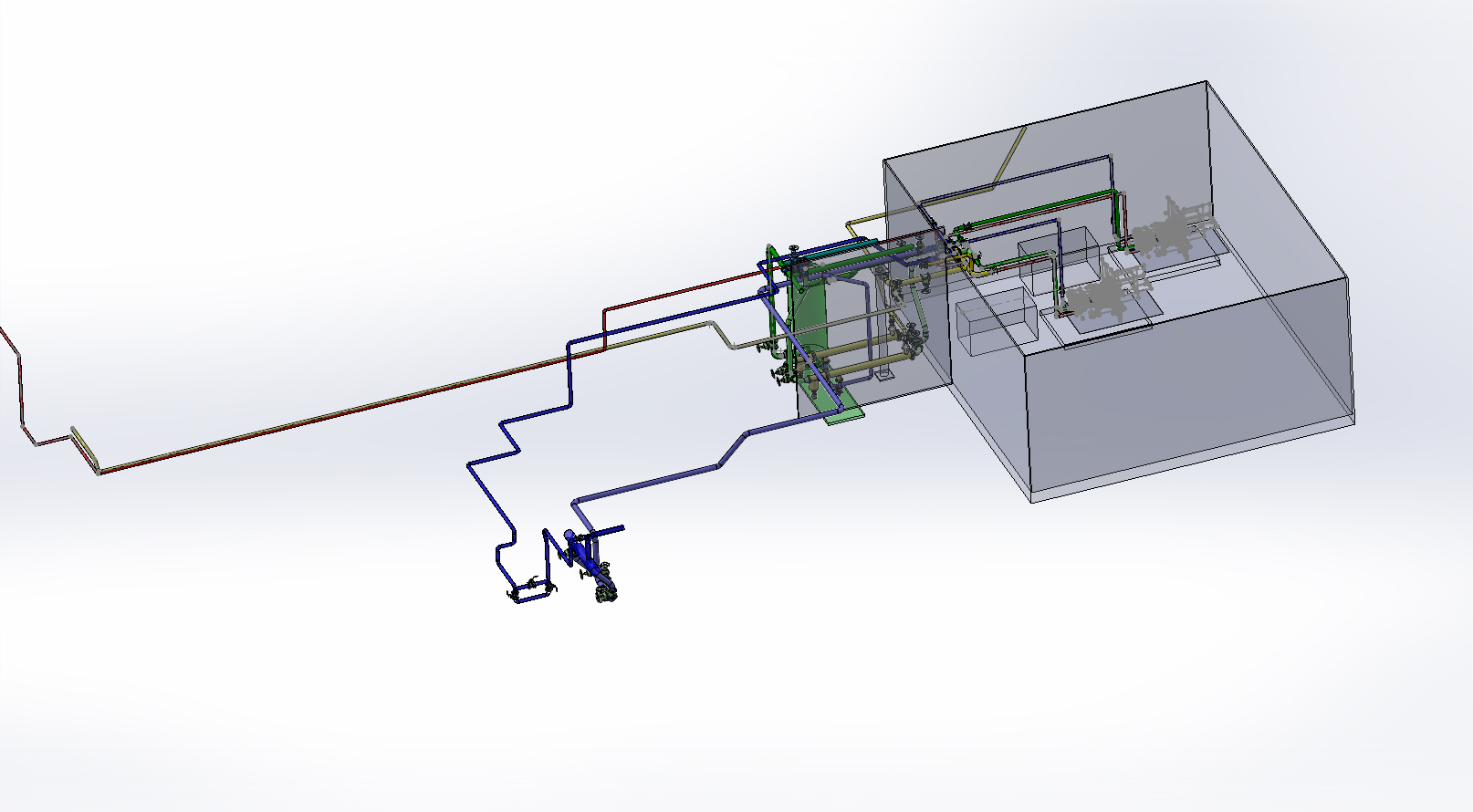

26	AirCompressorPipingDuringMillOutage.JPG	301.46K
27	AirCompressorPipingDuringMillOutage.SLDASM	4.93M
28	AirCompressorPipingDuringMillOutageDwg1.SLDDRW	4.51M
29	AirCompressorPipingDuringMillOutageDwg2.SLDDRW	5.00M
30	AirCompressorPipingDuringMillOutageDwg3.SLDDRW	4.41M
31	AirCompressorPipingDuringMillOutageDwg4.SLDDRW	4.87M
32	AirCompressorPipingwithairtrimcoolers.SLDDRW	5.08M
33	AirCompressorRoom.SLDPRT	115.23K

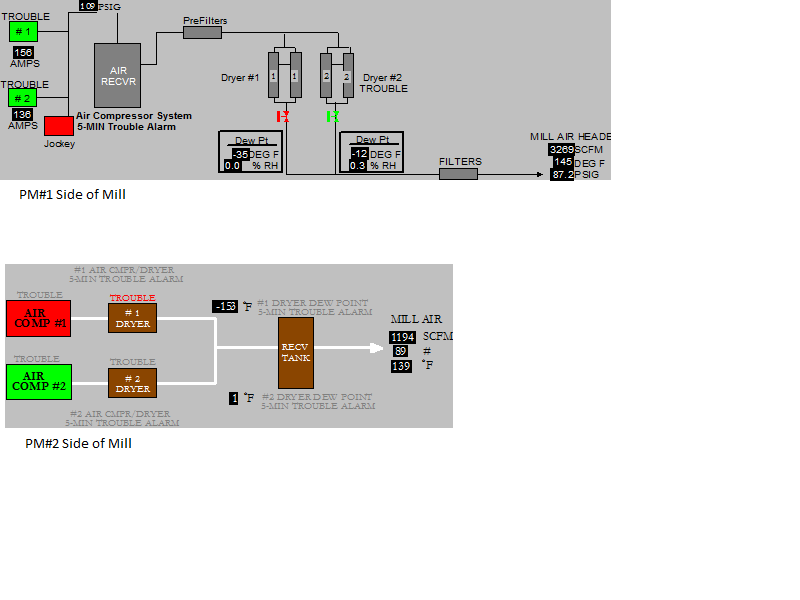

34	AirCompressorSystemPictures.png	23.58K

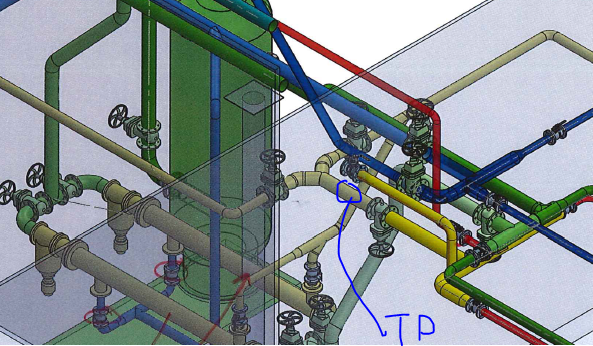

35	AirCooler.png	469.35K
36	AirCoolerHeader.SLDPRT	139.14K
37	AirCoolerHeaderDis.SLDPRT	121.46K
38	AirDischargePiping.SLDASM	509.41K
39	AirDischargePiping.SLDPRT	119.03K
40	AirDischargePipingMillOutage.SLDPRT	145.22K
41	AirDischargePipingNew.SLDPRT	110.73K
42	AirPiping.SLDPRT	160.30K
43	AirPipingMillOutage.SLDPRT	206.90K
44	AirPipingtoTrimCooler.SLDPRT	93.78K
45	AirTank.SLDASM	297.80K
46	AirTankWet.SLDPRT	167.44K
47	ButterflyValve.SLDPRT	1.03M
48	ColdWaterSupplyPipingtoTrimCoolers.SLDPRT	162.95K
49	CoolingWaterOutletonAirComp.2.SLDPRT	378.33K
50	CoolingWatertoTrimCooler.SLDPRT	86.23K
51	DuplexBasketStrainer.SLDPRT	1.13M
52	HotWaterfromTrimCooler.SLDPRT	90.66K
53	HotWaterOutletfromAirComp.MillOutage.SLDPRT	499.43K
54	knifevalve.SLDPRT	1.69M
55	MillAirAsBuiltDrawings2010.PDF	53.20K
56	MillAirAsBuiltDrawings2010.SLDPRT	83.97K
57	NewColdWaterSupplyLine.SLDPRT	263.93K
58	SupplyWater.SLDPRT	483.65K
59	SupplyWaterDuringMillOutage.SLDPRT	687.19K
60	SupplyWaterNew.SLDPRT	748.37K
61	TrimCoolerDischargeAirPiping.SLDPRT	134.72K
62	TrimCoolerSupplyAirPiping.SLDPRT	206.06K
63	TrimCoolersupplywaterpiping.SLDPRT	190.98K
