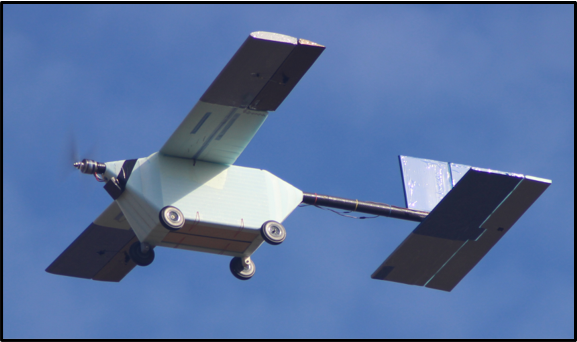

固定翼无人机（ID:600832）

交通运输 / 航空航天 / 固定翼无人机

©非原创

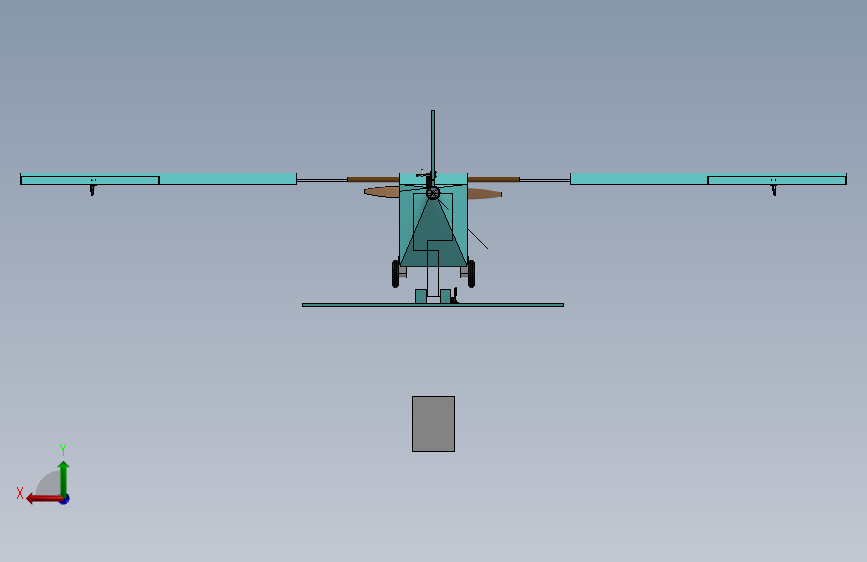

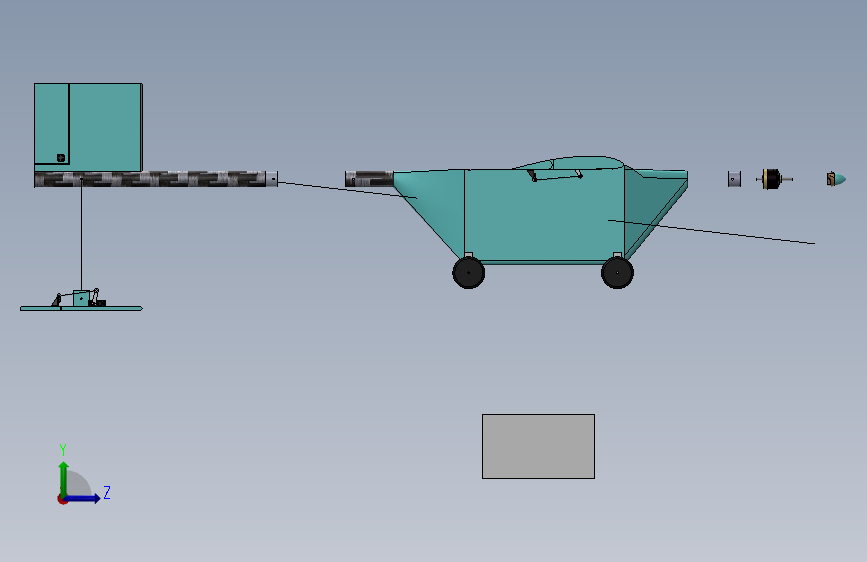

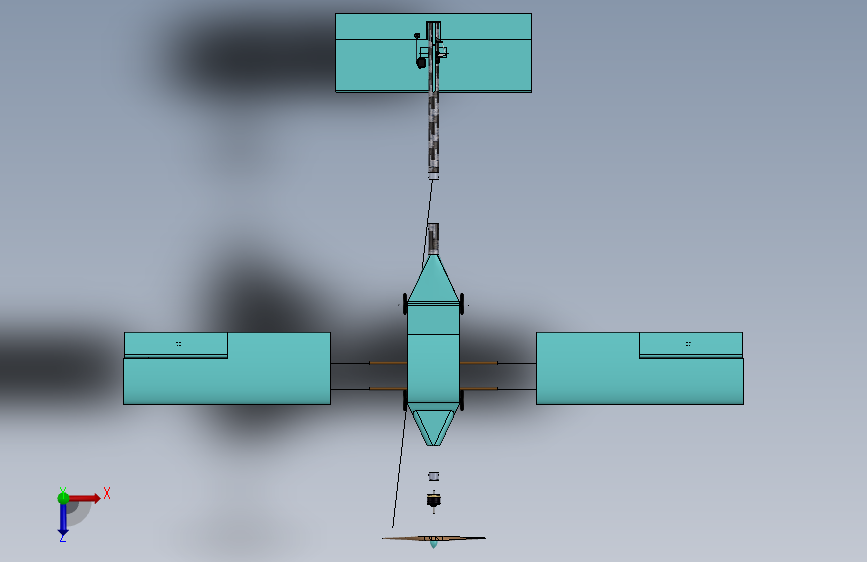

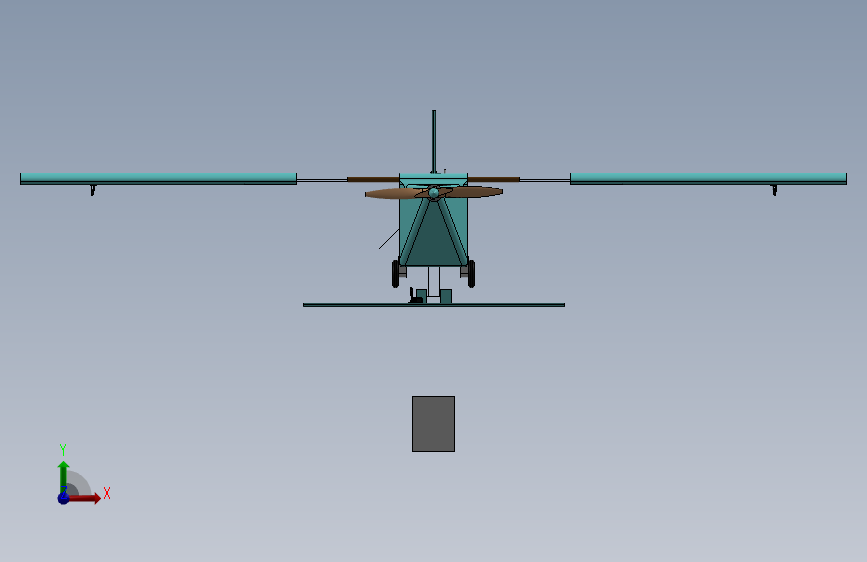

平面图

3D视图

文件列表

#	文件名称	文件大小
1	168286343550.zip	23.07M
2	0000_Assembly.SLDASM	1.80M
3	0001_Upper_Body_Assembly.SLDASM	223.11K
4	0002_Lower_Body_Assembly.SLDASM	293.49K
5	0003_Wing_Assembly.SLDASM	570.03K
6	0004_Horizantal_StabalizerAssembly.SLDASM	377.24K
7	0004_Horizantal_Stabalizer_Assembly.SLDASM	350.22K
8	0005_TailAssembly.SLDASM	418.55K
9	0005_Tail_Assembly.SLDASM	477.40K
10	20x10Propeller.SLDPRT	3.63M
11	AileronBeam.SLDPRT	89.26K
12	AssemblyDrawing.SLDDRW	733.56K
13	Battery5sx2.SLDPRT	53.78K
14	Beam_Back.SLDPRT	61.14K
15	Beam_Front.SLDPRT	67.76K
16	CentralSpar.SLDPRT	222.26K
17	ElectricSpeedControler.SLDPRT	334.87K
18	ElevatorBeam.SLDPRT	88.28K
19	ElevatorCrossBeam.SLDPRT	77.57K
20	EngineMount.SLDPRT	95.40K
21	EngineMountold.SLDPRT	100.69K
22	EngineMountPlug.SLDPRT	90.29K
23	Fuselage.SLDPRT	1.04M
24	Hinge.SLDASM	82.09K
25	Hinge.SLDPRT	104.79K
26	HorizontalStabalizer.SLDPRT	174.36K
27	HS-645MG.SLDPRT	773.23K
28	Landing.SLDPRT	67.39K
29	MillitaryBox.SLDPRT	158.81K
30	NoseCone.SLDPRT	93.40K
31	Payload.SLDPRT	349.64K
32	PayloadDoors.SLDPRT	69.37K
33	Reciever.SLDPRT	83.10K
34	RoundOakDowel.SLDPRT	118.19K
35	RudderBeam.SLDPRT	62.96K
36	ServoCover.SLDPRT	61.75K
37	ServoHinge.SLDPRT	64.28K
38	ServoStrut.SLDPRT	235.31K
39	spar_coupler.SLDPRT	99.21K
40	VerticleStabilizer.SLDPRT	142.93K
41	Wheel.SLDPRT	133.97K
42	WheeleMount.SLDPRT	136.96K
43	Wing.SLDPRT	950.54K
44	0001.SLDDRW	114.99K
45	CentralSparCuttingDocument.pdf	36.23K
46	E-flitePower160BrushlessOutrunnerMotor245kV.SLDASM	137.62K
47	E-flitePower160BrushlessOutrunnerMotorBase.SLDPRT	228.32K
48	E-flitePower160BrushlessOutrunnerMotorCase.SLDPRT	243.42K
49	Motor.SLDPRT	76.92K
50	HS-645MG.SLDPRT	804.53K
51	2x5sBattery.SLDPRT	54.21K
52	8sBattery.SLDPRT	54.80K
53	Aileron.SLDPRT	183.23K
54	CutWingL.SLDPRT	154.57K
55	CutWingLold.SLDPRT	154.57K
56	CutWingR.SLDPRT	158.14K
57	CutWingRold.SLDPRT	158.14K
58	Elevator.SLDPRT	80.81K
59	Fuselageold.SLDPRT	719.24K
60	fuselage_rod.SLDPRT	124.00K
61	HorizontalStabalizer.SLDPRT	58.02K
62	HorizontalStabalizerwithoutElevator.SLDPRT	84.74K
63	LeftWingwithoutAileron.SLDPRT	152.91K
64	RearWingSpar.SLDPRT	97.67K
65	RibbedWingTest.SLDPRT	690.07K
66	RightWingwithoutAileron.SLDPRT	132.26K
67	Rudder.SLDPRT	95.90K
68	Skis.SLDPRT	80.83K
69	VerticleStabilizerwithoutRudder.SLDPRT	105.10K
70	VerticleStablalizerTail.SLDPRT	84.46K
71	WingCutoutBackx2.SLDPRT	167.46K
72	WingCutoutFrontx2.SLDPRT	157.05K
73	connector.SLDPRT	225.28K
74	DropMech.SLDASM	271.89K
75	LAS.SLDPRT	239.54K
76	PayloadBoxitr1.SLDPRT	92.27K

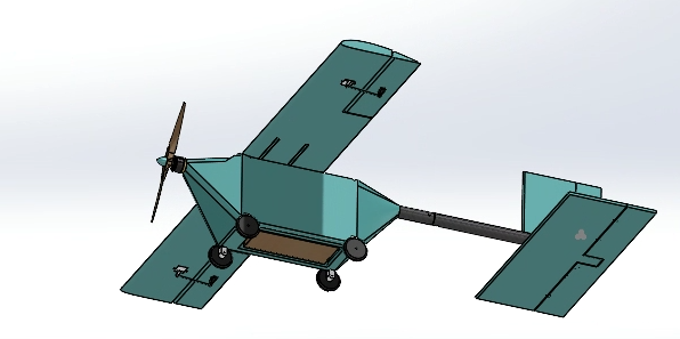

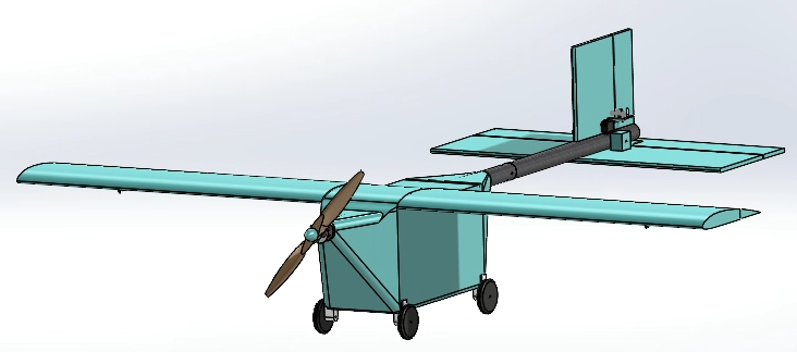

77	000.CADISOF.png	181.89K

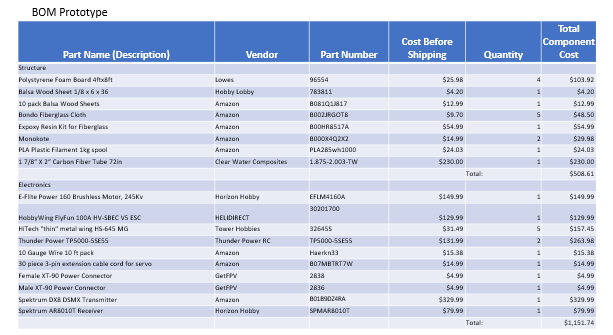

78	BOM.PNG	29.92K
79	CADISOR.png	143.72K

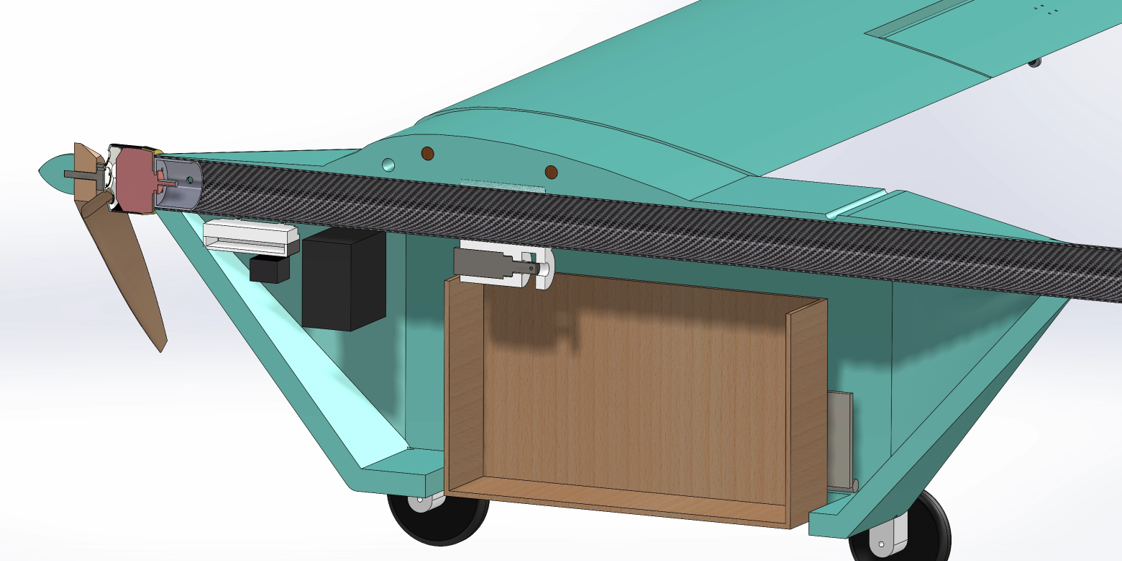

80	Center-Cut.png	534.84K
81	CFD.PNG	289.90K

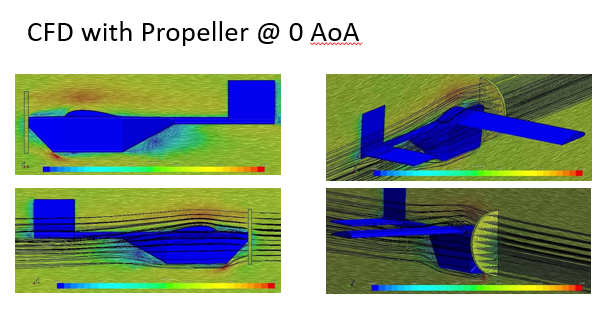

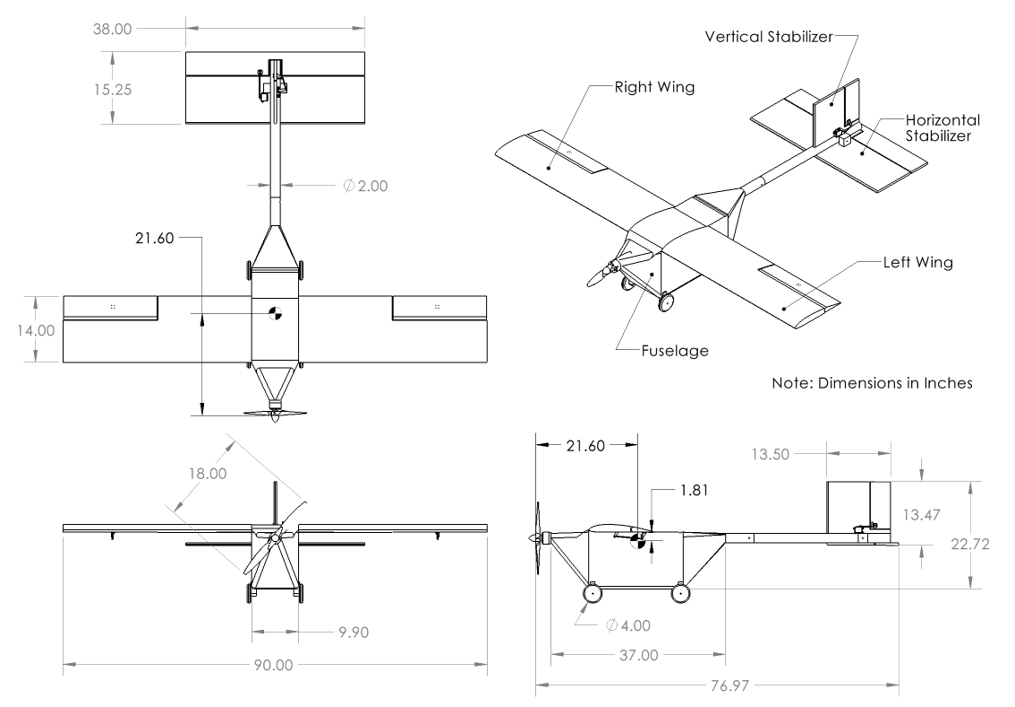

82	Drawing.png	89.56K

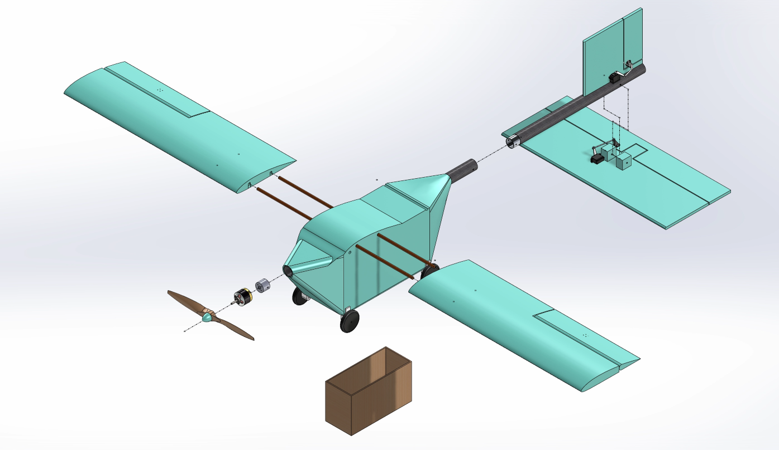

83	Exploded.png	179.46K
