GE快速连接组件12F（ID:67004）

机械设备 / 非标机械 / GE快速连接组件12F

©非原创

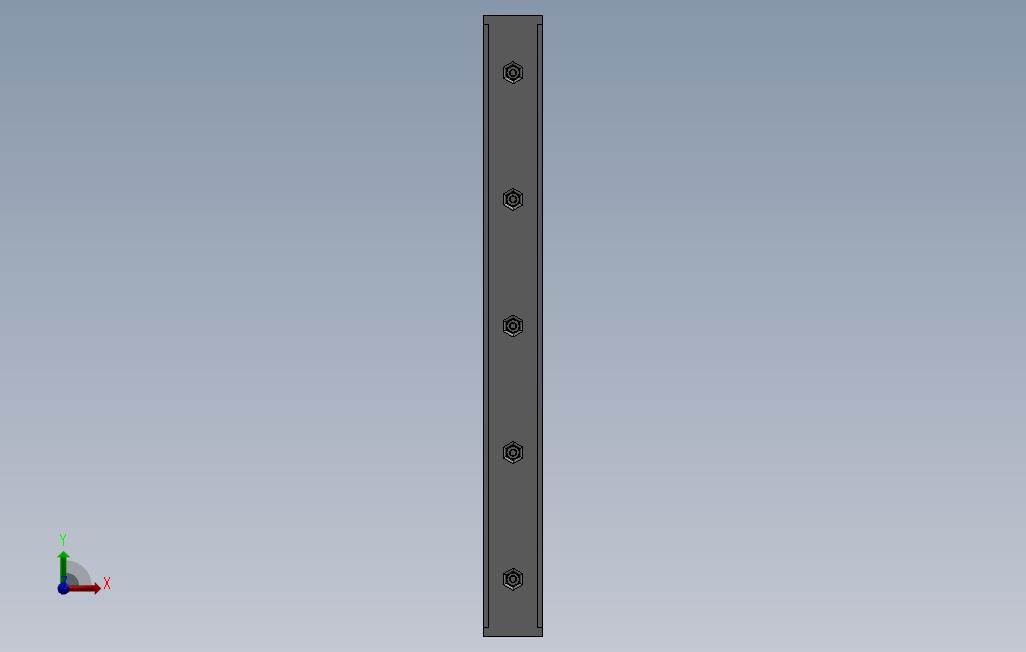

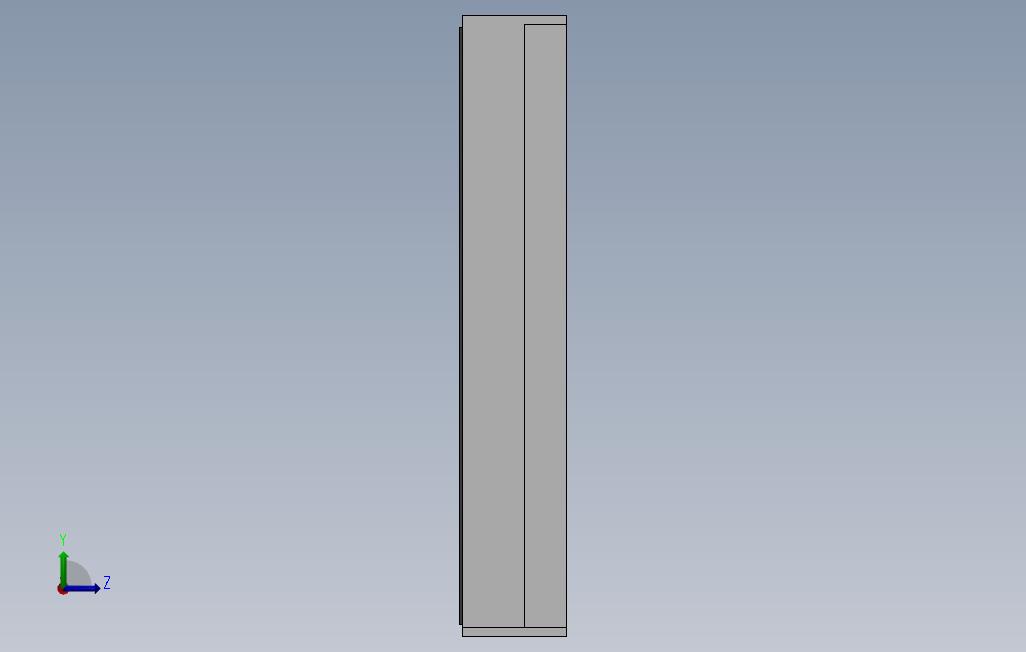

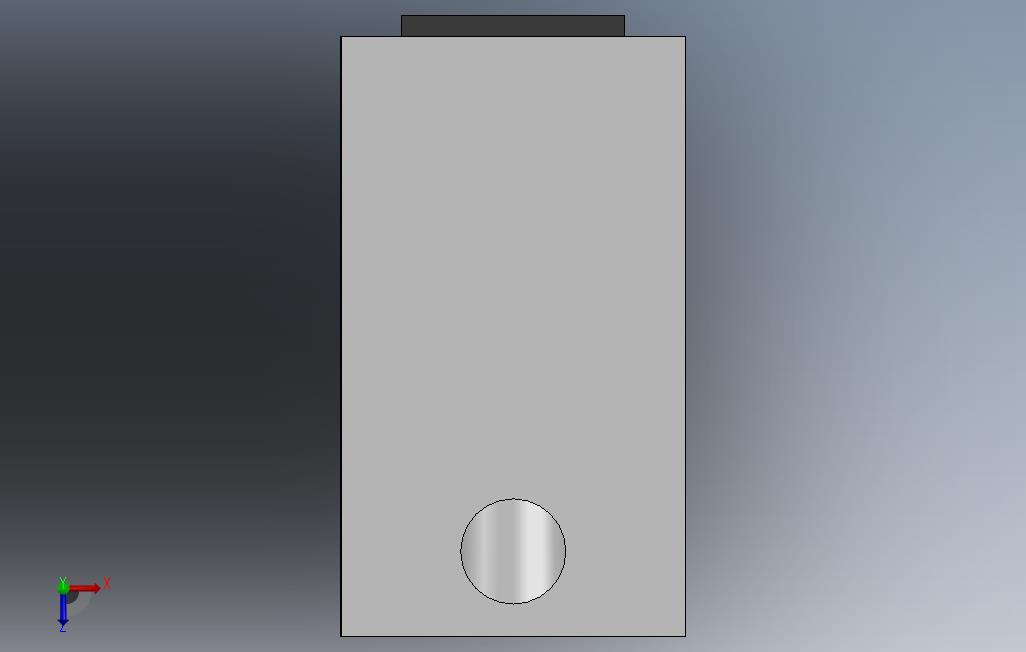

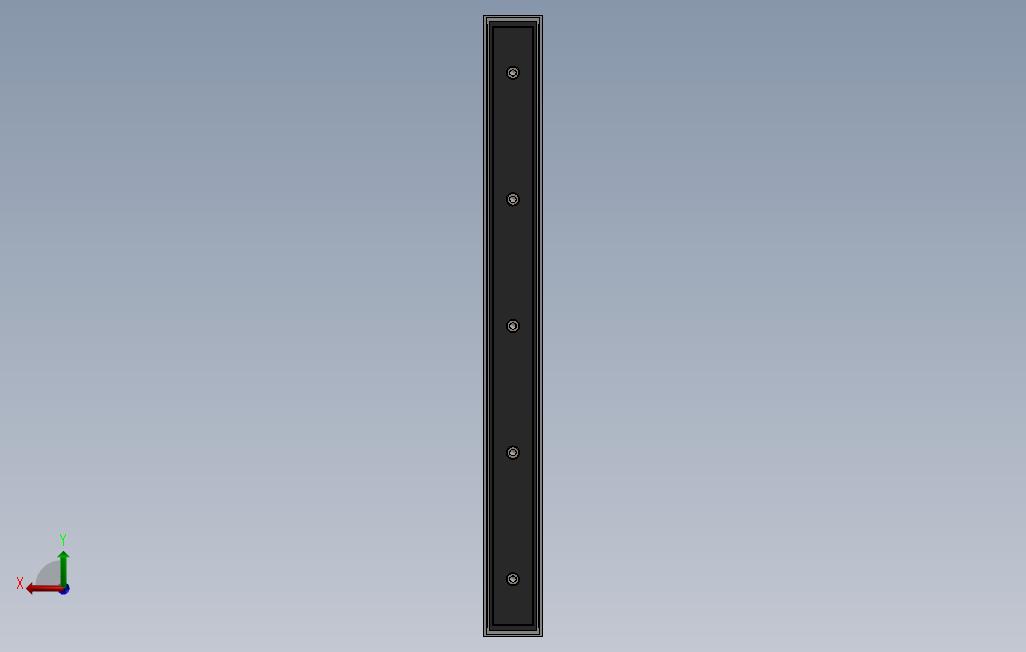

平面图

3D视图

文件列表

#	文件名称	文件大小
1	Brick1_1st SHOT BLOCK.sldprt	148.94K
2	Cavity_A.sldprt	199.83K
3	Europass-CV-20150224-Stren_an-EN_GrabCAD.pdf	332.23K
4	Quick connect assy 12F - Brick1_1st SHOT BLOCK-1.STL	114.63K
5	Quick connect assy 12F - Cavity_A-1.STL	474.50K
6	Quick connect assy 12F - hex nut gradec_iso-2.STL	54.38K
7	Quick connect assy 12F - hex nut gradec_iso-3.STL	54.38K
8	Quick connect assy 12F - hex nut gradec_iso-4.STL	54.38K
9	Quick connect assy 12F - hex nut gradec_iso-5.STL	54.38K
10	Quick connect assy 12F - hex nut gradec_iso-6.STL	54.38K
11	Quick connect assy 12F - Seal-1.STL	1.64K
12	Quick connect assy 12F - socket head cap screw_iso-1.STL	109.26K
13	Quick connect assy 12F - socket head cap screw_iso-2.STL	109.26K
14	Quick connect assy 12F - socket head cap screw_iso-3.STL	109.26K
15	Quick connect assy 12F - socket head cap screw_iso-4.STL	109.26K
16	Quick connect assy 12F - socket head cap screw_iso-5.STL	109.26K
17	Quick connect assy 12F-exploded view.JPG	139.33K
18	Quick connect assy 12F-section view (long).JPG	107.61K
19	Quick connect assy 12F-section view (short).JPG	96.55K
20	Quick connect assy 12F-Static Simulation.docx	1.76M
21	Quick connect assy 12F.SLDASM	255.82K
22	Quick connect assy 12F.STEP	751.52K
23	重复_Quick connect assy 12F-Static Simulation.docx	1.76M
24	Seal.SLDPRT	56.67K
