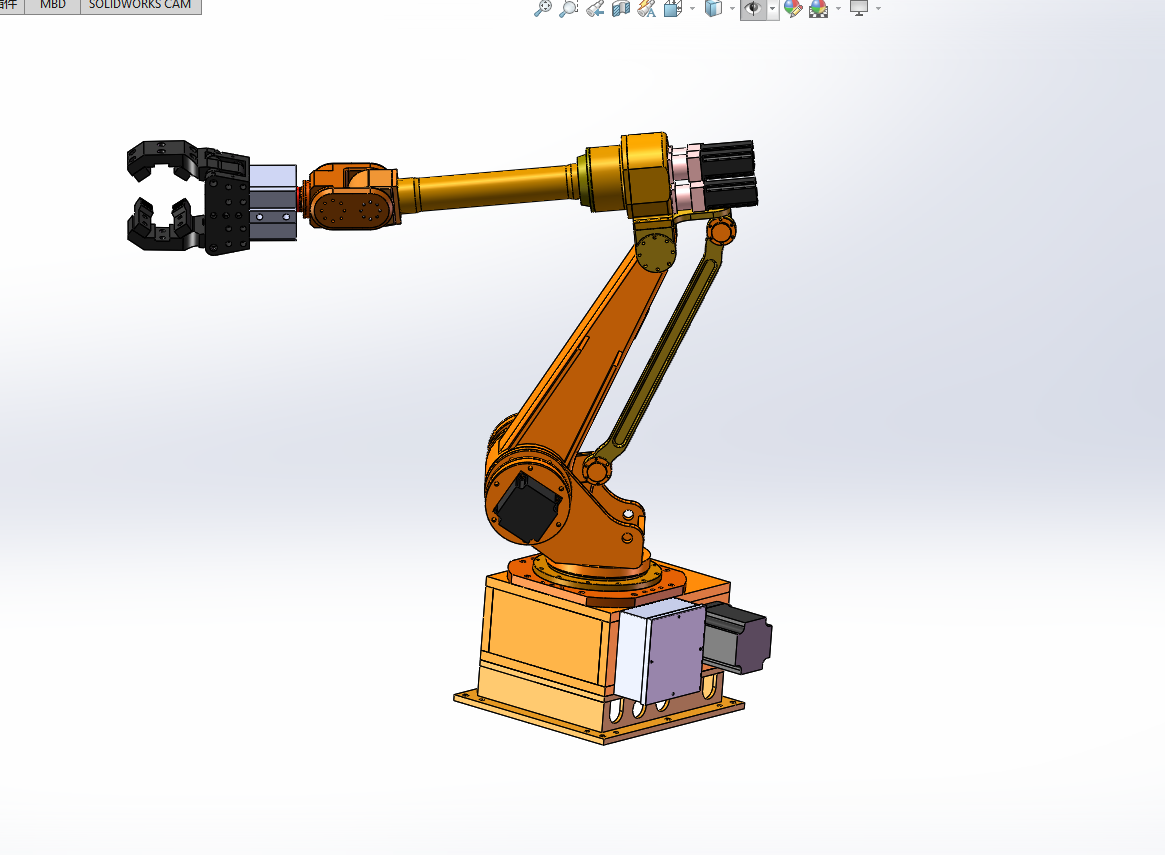

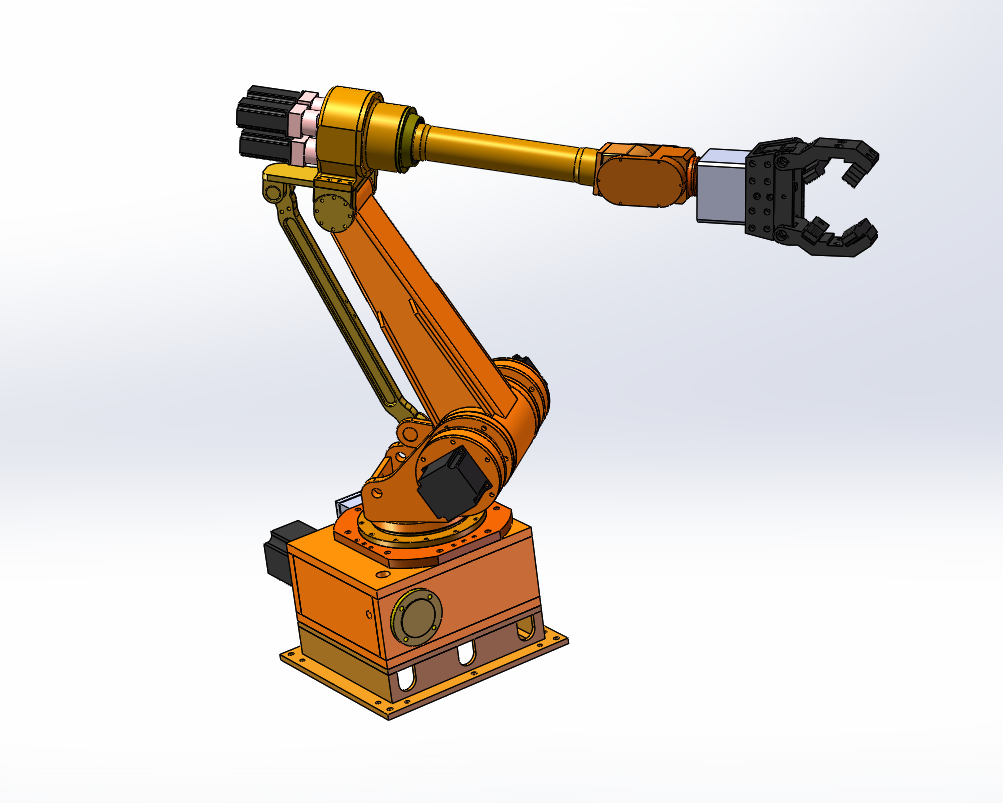

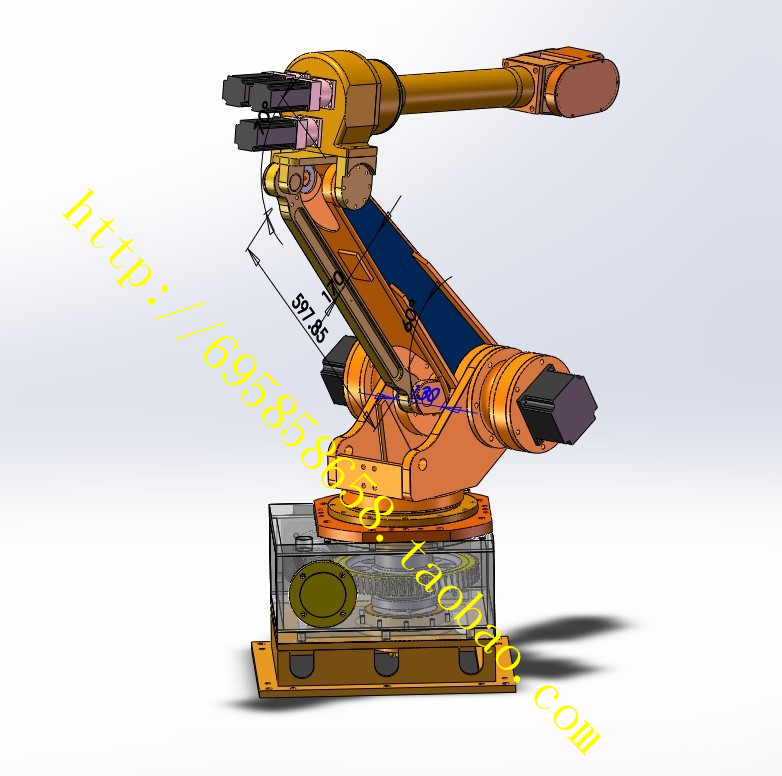

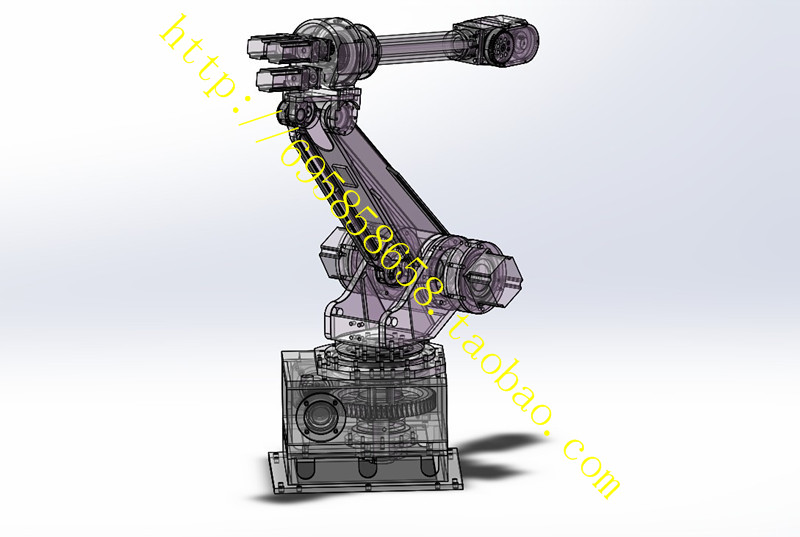

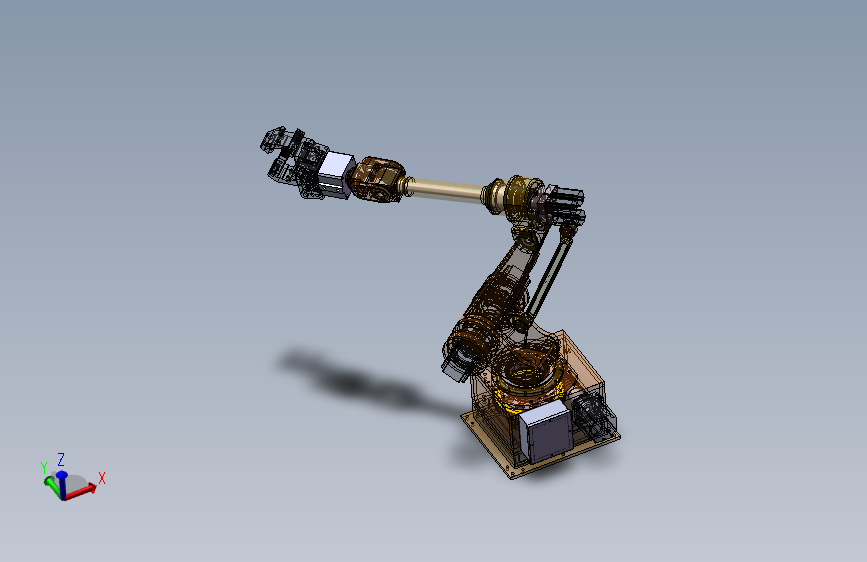

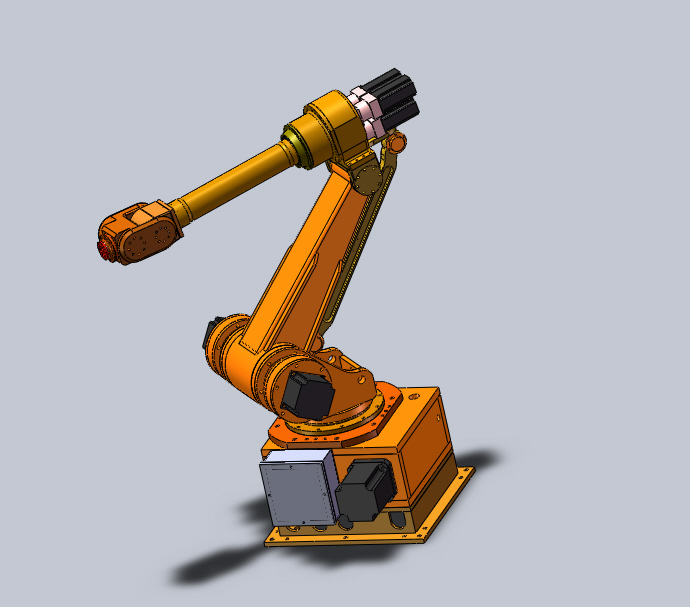

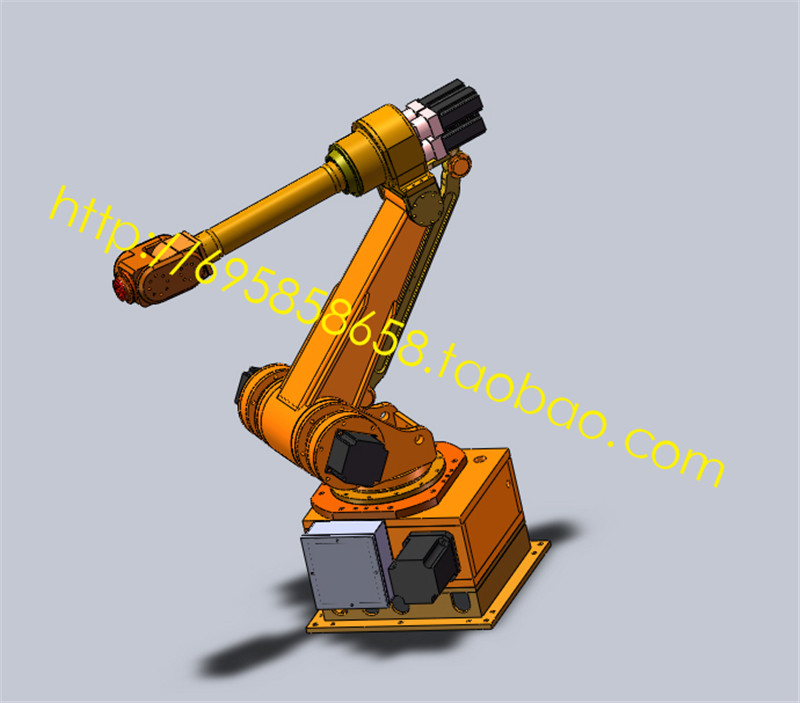

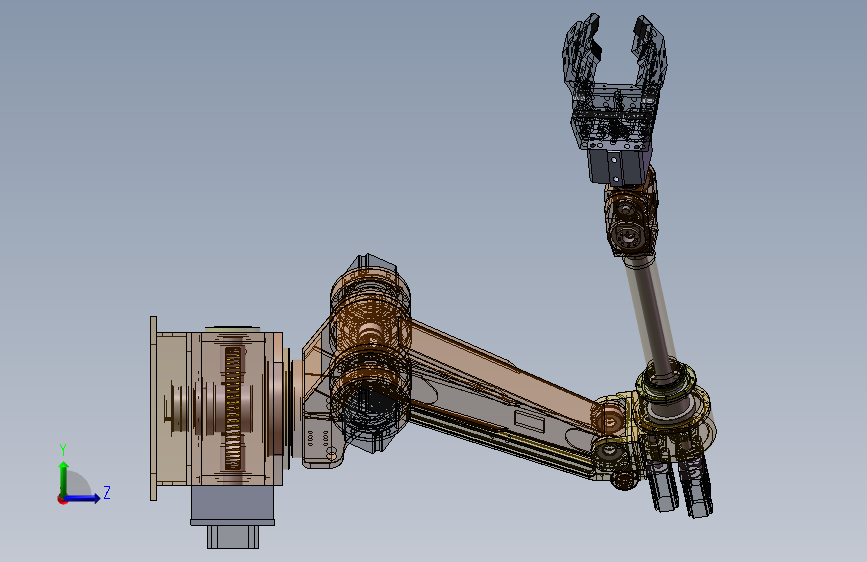

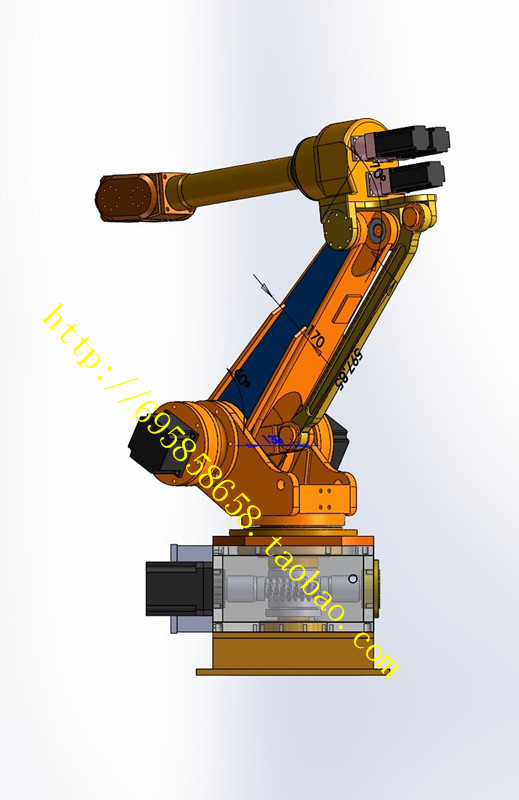

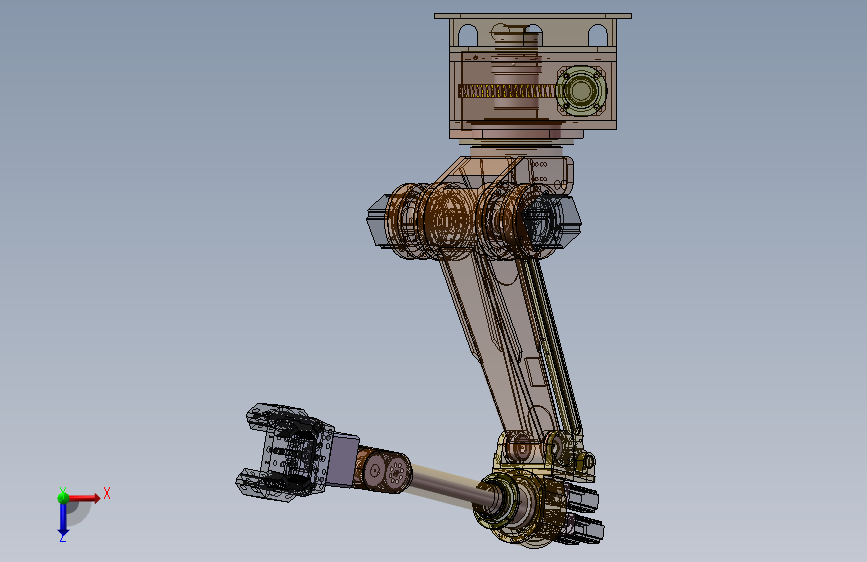

六自由度工业机械手臂 机器人手臂关节 包含3D、2D图纸（ID:771247）
0.png)
3.png)
4.png)
1.png)
2.png)
| # | 文件名称 | 文件大小 |
|---|---|---|

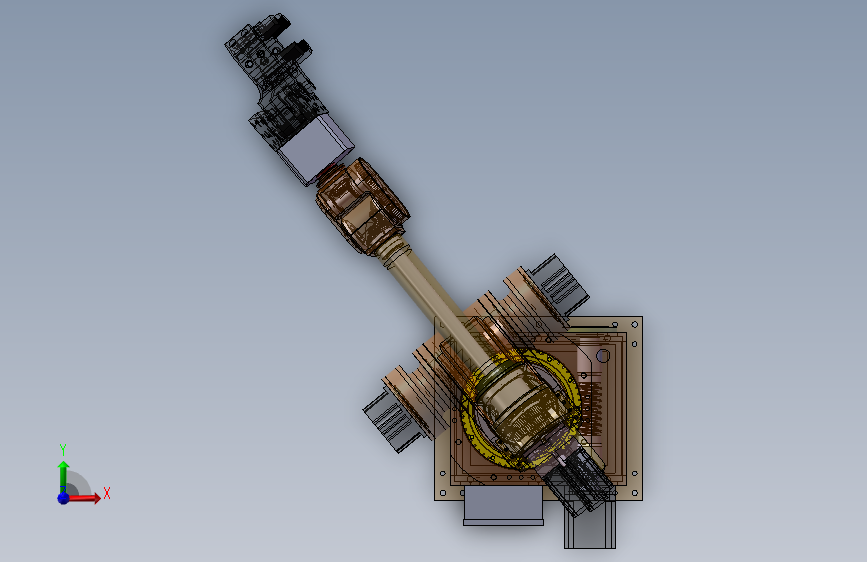

| 1 | 0三维预览1.png | 231.23K |

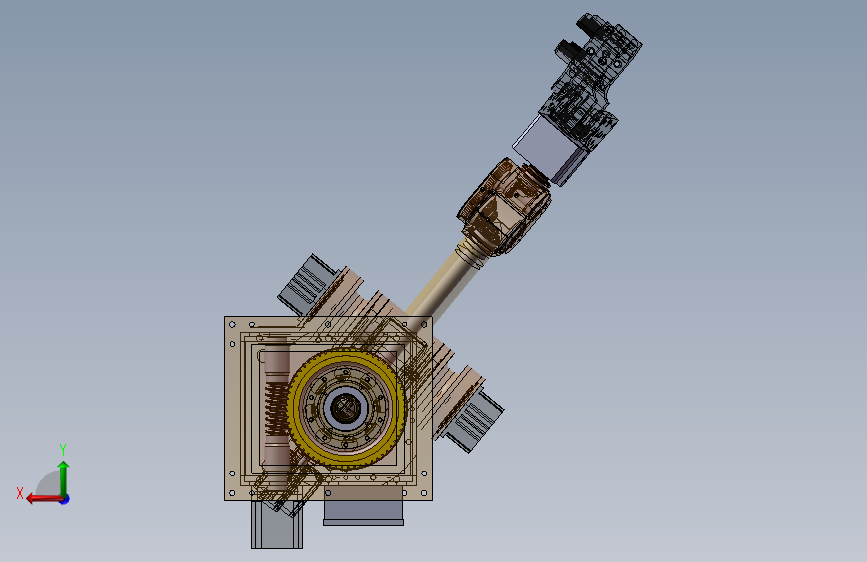

| 2 | 0三维预览2.png | 242.76K |
| 3 | 16991149105584.zip | 63.94M |
| 4 | CES-4横梁伺服电机.SLDPRT | 199.50K |
| 5 | CHK-3前爪固定座.SLDDRW | 838.50K |
| 6 | CHK-3前爪固定座.SLDPRT | 322.00K |
| 7 | CHK-3前爪法兰.SLDDRW | 958.00K |
| 8 | CHK-3前爪法兰.SLDPRT | 379.50K |
| 9 | CHK-3前爪法兰侧盖.SLDDRW | 1009.00K |
| 10 | CHK-3前爪法兰侧盖.SLDPRT | 251.00K |
| 11 | CHK-3前爪法兰侧钣金盖.SLDDRW | 832.00K |
| 12 | CHK-3前爪法兰侧钣金盖.SLDPRT | 137.50K |
| 13 | CHX-3TVM-611摆线减速机.SLDPRT | 465.00K |
| 14 | CHX-3中心轴2手腕直齿轴承隔套.SLDDRW | 737.00K |
| 15 | CHX-3中心轴2手腕直齿轴承隔套.SLDPRT | 132.50K |
| 16 | CHX-3大手臂.SLDDRW | 860.50K |
| 17 | CHX-3大手臂2.SLDPRT | 1.02M |
| 18 | CHX-3大手臂大法兰.SLDDRW | 875.00K |
| 19 | CHX-3大手臂大法兰.SLDPRT | 295.00K |
| 20 | CHX-3大手臂小法兰.SLDDRW | 778.00K |
| 21 | CHX-3大手臂小法兰.SLDPRT | 188.50K |
| 22 | CHX-3大手臂折弯图.SLDDRW | 628.00K |
| 23 | CHX-3大手臂折弯图.SLDPRT | 508.50K |
| 24 | CHX-3大手臂摆线减速机安装法兰.SLDDRW | 911.00K |
| 25 | CHX-3大手臂摆线减速机安装法兰.SLDPRT | 269.00K |
| 26 | CHX-3大手臂摆线减速机手臂安装法兰.SLDDRW | 841.50K |
| 27 | CHX-3大手臂摆线减速机手臂安装法兰.SLDPRT | 260.50K |
| 28 | CHX-3小手腕前端法兰.SLDDRW | 977.50K |
| 29 | CHX-3小手腕前端法兰.SLDPRT | 217.00K |
| 30 | CHX-3小手腕前端法兰轴承隔套.SLDPRT | 129.50K |
| 31 | CHX-3小手腕旋转齿轮-2.SLDDRW | 674.50K |
| 32 | CHX-3小手腕旋转齿轮-2.SLDPRT | 535.50K |
| 33 | CHX-3小手腕旋转齿轮.SLDDRW | 704.00K |
| 34 | CHX-3小手腕旋转齿轮.SLDPRT | 534.50K |
| 35 | CHX-3小手腕锥齿轮旋转中心轴.SLDDRW | 994.00K |
| 36 | CHX-3小手腕锥齿轮旋转中心轴.SLDPRT | 304.00K |
| 37 | CHX-3小手臂.SLDPRT | 14B |
| 38 | CHX-3小手臂关节轴承.SLDPRT | 170.50K |
| 39 | CHX-3小手臂关节轴芯.SLDDRW | 835.00K |
| 40 | CHX-3小手臂关节轴芯.SLDPRT | 197.00K |
| 41 | CHX-3小手臂座.SLDDRW | 989.00K |
| 42 | CHX-3小手臂座.SLDPRT | 485.00K |
| 43 | CHX-3小手臂座连杆连接轴.SLDPRT | 229.00K |
| 44 | CHX-3小手臂座连杆连接轴座.SLDPRT | 146.00K |
| 45 | CHX-3小手臂旋转后法兰.SLDDRW | 866.00K |
| 46 | CHX-3小手臂旋转后法兰.SLDPRT | 228.50K |
| 47 | CHX-3小手臂旋转法兰.SLDDRW | 1013.50K |
| 48 | CHX-3小手臂旋转法兰.SLDPRT | 343.00K |
| 49 | CHX-3小手臂旋转法兰轴承隔套.SLDPRT | 142.50K |
| 50 | CHX-3小手臂旋转轴主动齿轮.SLDPRT | 225.00K |
| 51 | CHX-3小手臂旋转轴承法兰.SLDDRW | 865.00K |
| 52 | CHX-3小手臂旋转轴承法兰.SLDPRT | 243.00K |
| 53 | CHX-3小手臂骨架油封.SLDPRT | 274.50K |
| 54 | CHX-3小电箱.SLDDRW | 901.50K |
| 55 | CHX-3小电箱.SLDPRT | 185.50K |
| 56 | CHX-3小电箱盖.SLDDRW | 860.00K |
| 57 | CHX-3小电箱盖.SLDPRT | 129.50K |
| 58 | CHX-3底盘旋转51315轴承.SLDPRT | 221.50K |
| 59 | CHX-3底盘旋转大齿轮.SLDPRT | 14B |
| 60 | CHX-3底盘旋转小齿轮.SLDPRT | 14B |
| 61 | CHX-3底盘旋转涡杆.SLDDRW | 790.00K |
| 62 | CHX-3底盘旋转涡杆.SLDPRT | 964.00K |
| 63 | CHX-3底盘旋转涡杆电机法兰.SLDDRW | 563.50K |
| 64 | CHX-3底盘旋转涡杆电机法兰.SLDPRT | 298.00K |
| 65 | CHX-3底盘旋转涡杆轴承法兰.SLDPRT | 206.50K |
| 66 | CHX-3底盘旋转涡轮.SLDPRT | 2.37M |
| 67 | CHX-3底盘旋转涡轮箱.SLDDRW | 716.00K |
| 68 | CHX-3底盘旋转涡轮箱.SLDPRT | 497.50K |
| 69 | CHX-3底盘旋转涡轮箱1.SLDPRT | 489.00K |
| 70 | CHX-3底盘旋转涡轮轴.SLDDRW | 743.00K |
| 71 | CHX-3底盘旋转涡轮轴.SLDPRT | 422.50K |
| 72 | CHX-3底盘旋转涡轮轴上法兰16032轴承.SLDPRT | 173.00K |
| 73 | CHX-3底盘旋转涡轮轴上法兰油封.SLDPRT | 286.50K |
| 74 | CHX-3底盘旋转涡轮轴上法兰盖.SLDDRW | 594.00K |
| 75 | CHX-3底盘旋转涡轮轴上法兰盖.SLDPRT | 326.50K |
| 76 | CHX-3底盘旋转涡轮轴下法兰.SLDDRW | 667.50K |
| 77 | CHX-3底盘旋转涡轮轴下法兰.SLDPRT | 378.00K |
| 78 | CHX-3底盘旋转涡轮轴下法兰6215轴承.SLDPRT | 182.00K |
| 79 | CHX-3底盘旋转电机SGMGH-13A-B键8X7.SLDPRT | 230.50K |
| 80 | CHX-3底盘旋转行星减速机.SLDPRT | 14B |
| 81 | CHX-3底盘法兰盖.SLDDRW | 543.50K |
| 82 | CHX-3底盘法兰盖.SLDPRT | 407.00K |
| 83 | CHX-3手腕16011轴承.SLDPRT | 177.00K |
| 84 | CHX-3手腕6002轴承.SLDPRT | 193.00K |
| 85 | CHX-3手腕6007轴承.SLDPRT | 170.00K |
| 86 | CHX-3手腕61902轴承.SLDPRT | 185.00K |
| 87 | CHX-3手腕61907轴承.SLDPRT | 176.50K |
| 88 | CHX-3手腕61908轴承.SLDPRT | 180.00K |
| 89 | CHX-3手腕6204轴承.SLDPRT | 265.50K |
| 90 | CHX-3手腕前爪连接轴.SLDDRW | 931.00K |
| 91 | CHX-3手腕前爪连接轴.SLDPRT | 210.00K |
| 92 | CHX-3手腕前端旋转法兰.SLDDRW | 1.29M |
| 93 | CHX-3手腕前端旋转法兰.SLDPRT | 748.00K |
| 94 | CHX-3手腕前端轴承顶套.SLDDRW | 955.50K |
| 95 | CHX-3手腕前端轴承顶套.SLDPRT | 244.50K |
| 96 | CHX-3手腕前端锥齿1.SLDDRW | 857.00K |
| 97 | CHX-3手腕前端锥齿1.SLDPRT | 777.50K |
| 98 | CHX-3手腕前端锥齿2.SLDDRW | 868.50K |
| 99 | CHX-3手腕前端锥齿2.SLDPRT | 831.50K |
| 100 | CHX-3手腕大齿-2.SLDDRW | 960.00K |
| 101 | CHX-3手腕大齿-2.SLDPRT | 1.05M |
| 102 | CHX-3手腕大齿2.SLDDRW | 858.00K |
| 103 | CHX-3手腕大齿2.SLDPRT | 1.03M |
| 104 | CHX-3手腕小齿.SLDDRW | 869.50K |
| 105 | CHX-3手腕小齿.SLDPRT | 782.50K |
| 106 | CHX-3手腕电机齿轮连接轴.SLDDRW | 922.00K |
| 107 | CHX-3手腕电机齿轮连接轴.SLDPRT | 336.50K |
| 108 | CHX-3手腕电机齿轮连接轴2.SLDDRW | 957.50K |
| 109 | CHX-3手腕电机齿轮连接轴2.SLDPRT | 287.50K |
| 110 | CHX-3手腕直齿1.SLDDRW | 1.00M |
| 111 | CHX-3手腕直齿1.SLDPRT | 773.00K |
| 112 | CHX-3手腕直齿2.SLDDRW | 708.00K |
| 113 | CHX-3手腕直齿2.SLDPRT | 656.00K |
| 114 | CHX-3手腕直齿3.SLDDRW | 607.50K |
| 115 | CHX-3手腕直齿3.SLDPRT | 397.00K |
| 116 | CHX-3手腕直齿4.SLDDRW | 602.00K |
| 117 | CHX-3手腕直齿4.SLDPRT | 332.00K |
| 118 | CHX-3手腕轴1.SLDDRW | 847.50K |
| 119 | CHX-3手腕轴1.SLDPRT | 290.50K |
| 120 | CHX-3旋转臂座.SLDPRT | 348.00K |
| 121 | CHX-3旋转臂电机.SLDPRT | 310.00K |
| 122 | CHX-3箱体底座.SLDDRW | 1.04M |
| 123 | CHX-3箱体底座.SLDPRT | 381.50K |
| 124 | CHX-3腕部中心轴1.SLDDRW | 931.00K |
| 125 | CHX-3腕部中心轴1.SLDPRT | 418.50K |
| 126 | CHX-3腕部中心轴2.SLDDRW | 876.50K |
| 127 | CHX-3腕部中心轴2.SLDPRT | 264.50K |
| 128 | CHX-3腕部中心轴3.SLDDRW | 961.00K |
| 129 | CHX-3腕部中心轴3.SLDPRT | 439.00K |
| 130 | CHX-3腕部中心轴前端锁帽.SLDDRW | 825.00K |
| 131 | CHX-3腕部中心轴前端锁帽.SLDPRT | 205.00K |
| 132 | CHX-3腕部中心轴骨架油封.SLDPRT | 341.00K |
| 133 | CHX-3腕部前端中心轴.SLDDRW | 978.50K |
| 134 | CHX-3腕部前端中心轴.SLDPRT | 295.50K |
| 135 | CHX-3腕部前端中心轴轴承隔套.SLDDRW | 748.00K |
| 136 | CHX-3腕部前端中心轴轴承隔套.SLDPRT | 125.50K |
| 137 | CHX-3腕部电机齿轮箱.SLDDRW | 1.09M |
| 138 | CHX-3腕部电机齿轮箱.SLDPRT | 740.00K |
| 139 | CHX-3腕部电机齿轮箱轴承法兰.SLDPRT | 171.50K |
| 140 | CHX-3腕部行星减速机.SLDPRT | 238.50K |
| 141 | CHX-3装配图.SLDASM | 6.68M |
| 142 | CHX-3装配图.SLDDRW | 995.00K |
| 143 | CHX-3轴承1.SLDPRT | 179.00K |
| 144 | CHX-3连杆.SLDDRW | 1.03M |
| 145 | CHX-3连杆.SLDPRT | 527.00K |
| 146 | CHX-3连杆伺服电机.SLDPRT | 227.00K |
| 147 | CHX-3连杆轴传动轴.SLDDRW | 923.50K |
| 148 | CHX-3连杆轴传动轴.SLDPRT | 359.00K |
| 149 | CHX-3连杆轴传动轴芯.SLDPRT | 248.50K |
| 150 | CHX-3连杆轴承套.SLDDRW | 817.00K |
| 151 | CHX-3连杆轴承套.SLDPRT | 219.00K |
| 152 | CHX-3连杆轴承盖.SLDDRW | 1.14M |
| 153 | CHX-3连杆轴承盖.SLDPRT | 181.50K |
| 154 | CHX-3驱动臂座.SLDDRW | 1.10M |
| 155 | CHX-3驱动臂座.SLDPRT | 809.00K |
| 156 | CHX-3驱动臂摆线减速机.SLDPRT | 746.00K |
| 157 | CHX-3驱动臂支撑法兰.SLDPRT | 168.00K |
| 158 | CHX-3驱动臂电机法兰.SLDPRT | 282.00K |
| 159 | CJES-7夹头指夹.SLDPRT | 889.00K |
| 160 | ~$CHX-3小手臂座.SLDDRW | 14B |
| 161 | ~$CHX-3小手臂座连杆连接轴.SLDPRT | 14B |
| 162 | ~$CHX-3小手臂座连杆连接轴座.SLDPRT | 14B |
| 163 | 装配体1.SLDASM | 277.00K |
| 164 | 零件1.SLDPRT | 90.50K |
| 165 | 2011款CJE-7机座侧板2.SLDPRT | 14B |
| 166 | 2011款CJES-7大手臂挡板.SLDDRW | 14B |
| 167 | 2011款CJES-7大手臂方孔盖.SLDPRT | 14B |
| 168 | 2011款CJES-7大手臂浮动接头座.SLDPRT | 14B |
| 169 | 2011款CJES-7大手臂浮动接头座盖.SLDPRT | 14B |
| 170 | 2011款CJES-7大手臂滑台.SLDPRT | 14B |
| 171 | 2011款CJES-7大手臂滑台前后板.SLDPRT | 14B |
| 172 | 2011款CJES-7大手臂滑台加强筋.SLDPRT | 14B |
| 173 | 2011款CJES-7大手臂滑台右板.SLDPRT | 14B |
| 174 | 2011款CJES-7大手臂滑台左板.SLDDRW | 14B |
| 175 | 2011款CJES-7大手臂滑台左板.SLDPRT | 14B |
| 176 | 2011款CJES-7小手臂支撑轴法兰.SLDPRT | 14B |
| 177 | 2011款CJES-7支撑臂轴承盖.SLDPRT | 14B |
| 178 | 2011款CJES-7支撑臂连接法兰.SLDPRT | 14B |
| 179 | 2011款CJES-7支撑轴.SLDPRT | 14B |
| 180 | 2011款CJES-7椭圆型63气缸.SLDPRT | 14B |
| 181 | 2011款CJES-7横行拖链拖板.SLDPRT | 14B |
| 182 | 2011款CJES-7气控箱.SLDPRT | 14B |
| 183 | 2011款CJES-7气控箱盖.SLDPRT | 14B |
| 184 | 2011款CJES-7驱动臂.SLDPRT | 14B |
| 185 | 2011款CJES-7驱动臂端盖.SLDDRW | 14B |
| 186 | 2011款CJES-7驱动臂端盖.SLDPRT | 14B |
| 187 | 2011款CJES-7（VSS-175-40-B减速机）.SLDPRT | 14B |
| 188 | 2011款手臂轴承.SLDPRT | 14B |
| 189 | CJES-5-7手臂第一电子工业（株）伺服电机.SLDDRW | 14B |
| 190 | CJES-7升降底座中间丝杆.SLDPRT | 14B |
| 191 | CJES-7升降底座中间顶杆.SLDDRW | 14B |
| 192 | CJES-7升降底座中间顶杆.SLDPRT | 14B |
| 193 | CJES-7城邦电机（CV750-10-S）.SLDPRT | 14B |
| 194 | CJES-7大手臂后钣金盖.SLDPRT | 14B |
| 195 | CJES-7大手臂旋转气缸盖.SLDPRT | 14B |
| 196 | CJES-7底座升降座.SLDPRT | 14B |
| 197 | CJES-7支撑臂.SLDPRT | 14B |
| 198 | CJES-7横向丝杆编码器法兰.SLDPRT | 14B |
| 199 | CJES-7横行齿轮减速电机法兰.SLDPRT | 14B |
| 200 | CJES-7滑台63气缸轴.SLDPRT | 14B |
| 201 | CJES-7箱体上盖板.SLDPRT | 14B |
| 202 | CJES-7箱体直线导轨滑块垫块.SLDPRT | 14B |
| 203 | CJES-7驱动臂.SLDPRT | 14B |
| 204 | 装配体2.SLDASM | 14B |
| 205 | 2011款CJES-7气爪装配体-CJES-7夹头H连杆-2.STL | 91.29K |
| 206 | 2011款CJES-7气爪装配体-CJES-7夹头H连杆-3.STL | 91.29K |
| 207 | 2011款CJES-7气爪装配体-CJES-7夹头H连杆-4.STL | 91.29K |
| 208 | 2011款CJES-7气爪装配体-CJES-7夹头H连杆-5.STL | 91.29K |
| 209 | 2011款CJES-7气爪装配体-CJES-7夹头H连杆2-1.STL | 33.58K |
| 210 | 2011款CJES-7气爪装配体-CJES-7夹头侧板定位销（米思米型号JPMA-P30-B15-H13）-4.STL | 19.81K |
| 211 | 2011款CJES-7气爪装配体-CJES-7夹头侧板定位销（米思米型号JPMA-P30-B15-H13）-5.STL | 19.81K |
| 212 | 2011款CJES-7气爪装配体-CJES-7夹头侧板定位销（米思米型号JPMA-P30-B15-H13）-6.STL | 19.81K |
| 213 | 2011款CJES-7气爪装配体-CJES-7夹头侧板定位销（米思米型号JPMA-P30-B15-H13）-7.STL | 19.81K |
| 214 | 2011款CJES-7气爪装配体-CJES-7夹头指夹-1.STL | 152.52K |
| 215 | 2011款CJES-7气爪装配体-CJES-7夹头指夹2-1.STL | 152.72K |
| 216 | 2011款CJES-7气爪装配体-CJES-7夹头指尖-10.STL | 26.64K |
| 217 | 2011款CJES-7气爪装配体-CJES-7夹头指尖-11.STL | 26.64K |
| 218 | 2011款CJES-7气爪装配体-CJES-7夹头指尖-8.STL | 26.64K |
| 219 | 2011款CJES-7气爪装配体-CJES-7夹头指尖-9.STL | 26.64K |
| 220 | 2011款CJES-7气爪装配体-CJES-7夹头本体-3.STL | 482.41K |
| 221 | 2011款CJES-7气爪装配体-CJES-7夹头本体定位销-1.STL | 23.23K |
| 222 | 2011款CJES-7气爪装配体-CJES-7夹头本体定位销-2.STL | 23.23K |
| 223 | 2011款CJES-7气爪装配体-CJES-7气爪气缸-1.STL | 93.34K |
| 224 | 2011款CJES-7气爪装配体-CJES-7气爪气缸轴芯-1.STL | 28.60K |
| 225 | 2011款CJES-7气爪装配体.SLDASM | 974.50K |
| 226 | CJES-7夹头H连杆.SLDDRW | 760.50K |
| 227 | CJES-7夹头H连杆.SLDPRT | 206.50K |
| 228 | CJES-7夹头H连杆2.SLDPRT | 225.50K |
| 229 | CJES-7夹头侧板1.SLDPRT | 202.50K |
| 230 | CJES-7夹头侧板2.SLDPRT | 240.00K |
| 231 | CJES-7夹头侧板定位销（米思米型号JPMA-P30-B15-H13）.SLDPRT | 133.00K |
| 232 | CJES-7夹头指夹.SLDDRW | 956.50K |
| 233 | CJES-7夹头指夹.SLDPRT | 848.00K |
| 234 | CJES-7夹头指夹2.SLDDRW | 904.50K |
| 235 | CJES-7夹头指夹2.SLDPRT | 843.00K |
| 236 | CJES-7夹头指夹挡套.SLDDRW | 684.50K |
| 237 | CJES-7夹头指尖.SLDDRW | 747.50K |
| 238 | CJES-7夹头指尖.SLDPRT | 321.00K |
| 239 | CJES-7夹头本体.SLDDRW | 939.50K |
| 240 | CJES-7夹头本体.SLDPRT | 542.00K |
| 241 | CJES-7夹头本体定位销.SLDDRW | 671.50K |
| 242 | CJES-7夹头本体定位销.SLDPRT | 139.50K |
| 243 | CJES-7夹头配体连接螺杆.SLDPRT | 1.04M |
| 244 | CJES-7夹头铰耳.SLDDRW | 709.00K |
| 245 | CJES-7夹头铰耳.SLDPRT | 109.00K |
| 246 | CJES-7无油衬挡板.SLDPRT | 131.50K |
| 247 | CJES-7气爪无油衬套挡板.SLDDRW | 1.05M |
| 248 | CJES-7气爪气缸.IGS | 299.89K |
| 249 | CJES-7气爪气缸.SLDPRT | 198.00K |
| 250 | CJES-7气爪气缸轴芯.SLDPRT | 152.00K |
| 251 | CJES-7气缸加长轴.SLDPRT | 313.50K |
| 252 | CHK-3前爪固定座.DWG | 56.96K |
| 253 | CHK-3前爪法兰.DWG | 74.65K |
| 254 | CHK-3前爪法兰侧钣金盖.DWG | 42.70K |
| 255 | CHX-3中心轴2手腕直齿轴承隔套.DWG | 33.04K |
| 256 | CHX-3大手臂.DWG | 129.72K |
| 257 | CHX-3大手臂大法兰.DWG | 71.41K |
| 258 | CHX-3大手臂小法兰.DWG | 51.40K |
| 259 | CHX-3大手臂折弯图.DWG | 66.71K |
| 260 | CHX-3大手臂摆线减速机安装法兰.DWG | 69.62K |
| 261 | CHX-3大手臂摆线减速机手臂安装法兰.DWG | 58.60K |
| 262 | CHX-3小手腕前端法兰.DWG | 58.14K |
| 263 | CHX-3小手腕旋转齿轮-2.DWG | 97.08K |
| 264 | CHX-3小手腕旋转齿轮.DWG | 107.02K |
| 265 | CHX-3小手腕锥齿轮旋转中心轴.DWG | 71.47K |
| 266 | CHX-3小手臂关节轴芯.DWG | 54.94K |
| 267 | CHX-3小手臂座.DWG | 154.65K |
| 268 | CHX-3小手臂旋转后法兰.DWG | 44.44K |
| 269 | CHX-3小手臂旋转法兰.DWG | 65.47K |
| 270 | CHX-3小手臂旋转轴承法兰.DWG | 42.36K |
| 271 | CHX-3小电箱.DWG | 52.12K |
| 272 | CHX-3小电箱盖.DWG | 39.82K |
| 273 | CHX-3底盘旋转涡杆.DWG | 121.17K |
| 274 | CHX-3底盘旋转涡杆电机法兰.DWG | 59.73K |
| 275 | CHX-3底盘旋转涡轮箱.DWG | 90.28K |
| 276 | CHX-3底盘旋转涡轮轴.DWG | 95.30K |
| 277 | CHX-3底盘旋转涡轮轴上法兰盖.DWG | 64.99K |
| 278 | CHX-3底盘旋转涡轮轴下法兰.DWG | 73.00K |
| 279 | CHX-3底盘法兰盖.DWG | 68.13K |
| 280 | CHX-3手腕前爪连接轴.DWG | 50.42K |
| 281 | CHX-3手腕前端旋转法兰.DWG | 163.51K |
| 282 | CHX-3手腕前端轴承顶套.DWG | 55.12K |
| 283 | CHX-3手腕前端锥齿1.DWG | 117.75K |
| 284 | CHX-3手腕前端锥齿2.DWG | 82.65K |
| 285 | CHX-3手腕大齿-2.DWG | 98.95K |
| 286 | CHX-3手腕大齿2.DWG | 111.94K |
| 287 | CHX-3手腕小齿.DWG | 120.65K |
| 288 | CHX-3手腕电机齿轮连接轴.DWG | 57.69K |
| 289 | CHX-3手腕电机齿轮连接轴2.DWG | 62.68K |
| 290 | CHX-3手腕直齿1.DWG | 95.11K |
| 291 | CHX-3手腕直齿2.DWG | 122.47K |
| 292 | CHX-3手腕直齿3.DWG | 78.17K |
| 293 | CHX-3手腕直齿4.DWG | 56.07K |
| 294 | CHX-3手腕轴1.DWG | 45.45K |
| 295 | CHX-3箱体底座.DWG | 88.54K |
| 296 | CHX-3腕部中心轴1.DWG | 85.22K |
| 297 | CHX-3腕部中心轴2.DWG | 68.29K |
| 298 | CHX-3腕部中心轴3.DWG | 76.48K |
| 299 | CHX-3腕部中心轴前端锁帽.DWG | 34.54K |
| 300 | CHX-3腕部前端中心轴.DWG | 60.57K |
| 301 | CHX-3腕部前端中心轴轴承隔套.DWG | 38.00K |
| 302 | CHX-3腕部电机齿轮箱.DWG | 133.83K |
| 303 | CHX-3装配图.DWG | 435.00K |
| 304 | CHX-3连杆.DWG | 113.17K |
| 305 | CHX-3连杆轴传动轴.DWG | 82.58K |
| 306 | CHX-3连杆轴承套.DWG | 52.21K |
| 307 | CHX-3连杆轴承盖.DWG | 46.50K |
| 308 | CHX-3驱动臂座.DWG | 164.03K |
| 309 | CJES-7夹头H连杆.DWG | 47.75K |
| 310 | CJES-7夹头指夹.DWG | 80.91K |
| 311 | CJES-7夹头指夹2.DWG | 73.69K |
| 312 | CJES-7夹头指夹挡套.DWG | 40.53K |
| 313 | CJES-7夹头指尖.DWG | 55.22K |
| 314 | CJES-7夹头本体.DWG | 74.69K |
| 315 | CJES-7夹头本体定位销.DWG | 41.28K |
| 316 | CJES-7夹头铰耳.DWG | 45.03K |
| 317 | CJES-7气爪无油衬套挡板.DWG | 39.78K |
| 318 | CHX-3装配图.err | 357B |
| 319 | CHX-3装配图.STEP | 39.26M |
| 320 | 1.jpg | 119.32K |
| 321 | 2.jpg | 135.23K |
| 322 | 3.jpg | 80.49K |
| 323 | 4.jpg | 71.29K |
| 324 | 5.jpg | 114.31K |

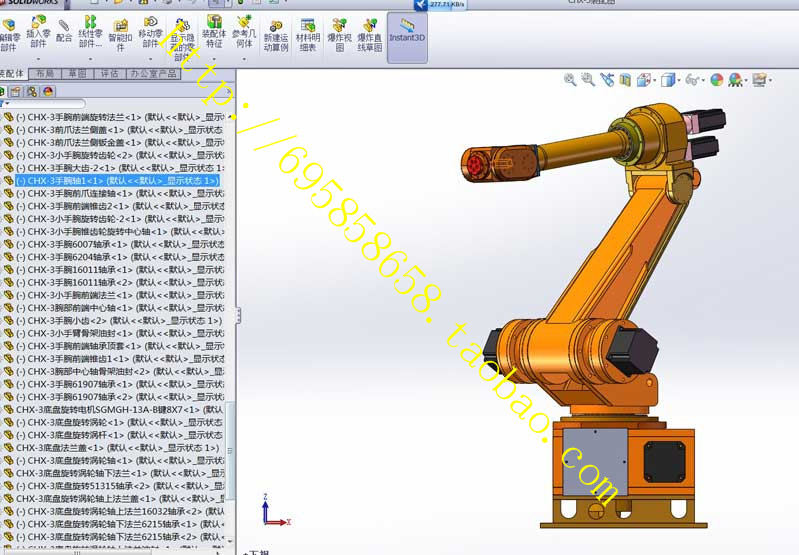

| 325 | 6.jpg | 133.43K |

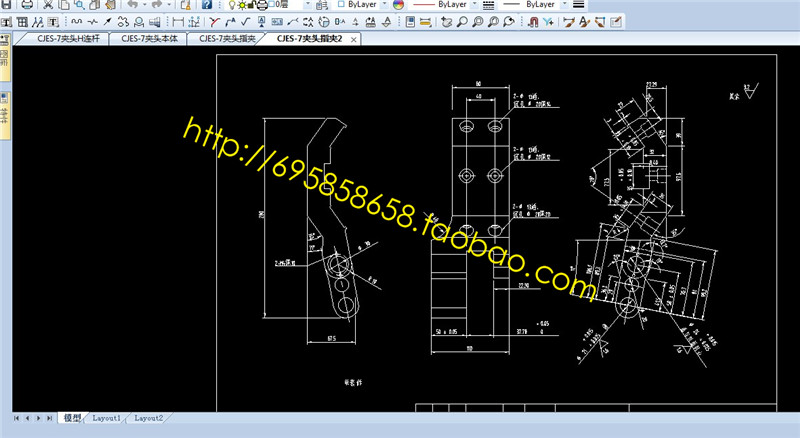

| 326 | SOGLH{8WT{3C_6G[_M[H_副本.jpg | 79.87K |

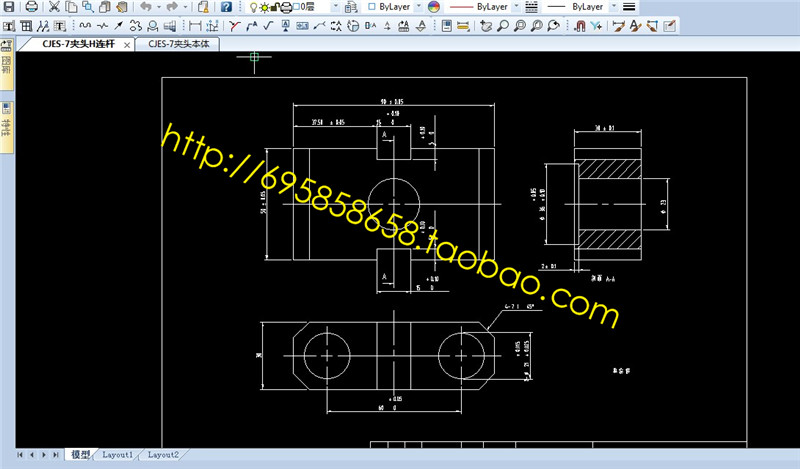

| 327 | Y{T58H_V_C{84`FREX_副本.jpg | 75.17K |

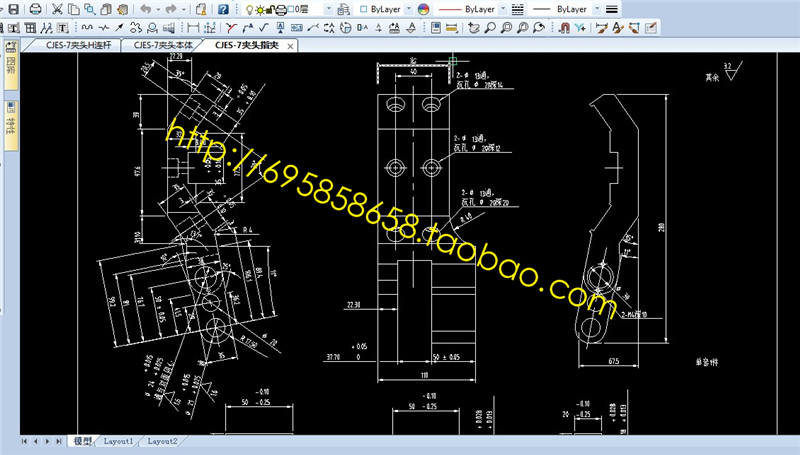

| 328 | `DMA{IQ1OQ390Y{KCV7AB_副本.jpg | 95.88K |
| 329 | 关节机械手.JPG | 138.35K |
| 330 | 关节机械手1_副本.jpg | 234.00K |
| 331 | 关节机械手_副本.jpg | 94.63K |
此图纸下载需要98金币
立即下载
发布者
高大的钻石
创作: 22582
粉丝: 594
加入时间：2023-06-16
模型信息
图纸格式：sldprt,slddrw,sldasm,stl,igs,dwg,step
文件大小：65.47M
所需金币：98
上传时间：2023-11-05 00:22:21
是否可编辑：可修改，包括参数
版本：SOLIDWORKS 2012
标签
图纸简介
版权说明
用户在本站上传的作品如侵犯到您的权益，请与本站管理员联系删除。用户在本站下载的原创作品，只拥有作品的使用权，著作权归原作者所有，未经合法授权，用户不得以任何形式发布、传播、复制、转售该作品。
0.png)
0.png)
0.png)
0_0_364.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0.png)
0_0_364.png)
0.png)
0.png)
0.png)
0.png)
QQ在线客服
官方QQ群
