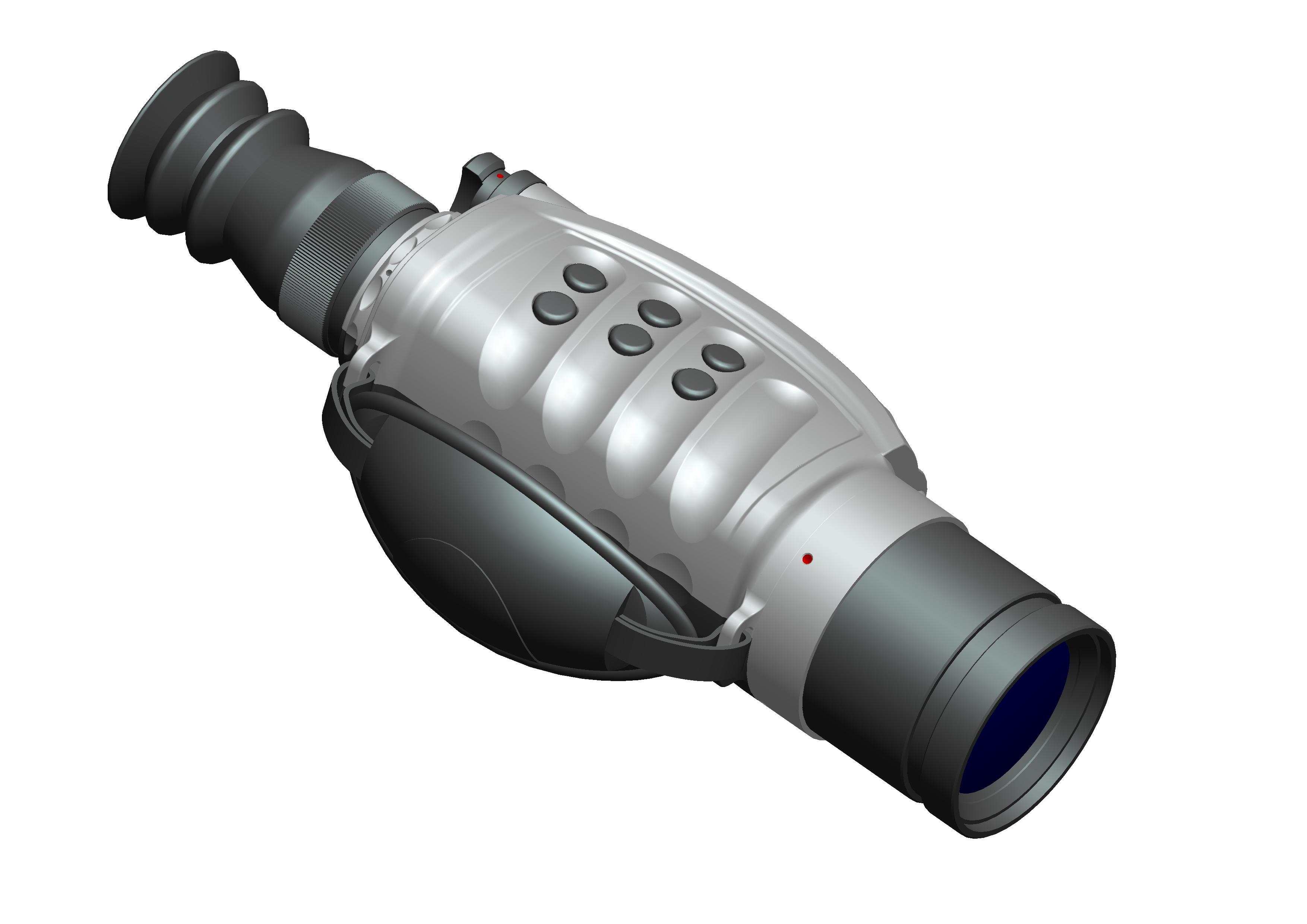

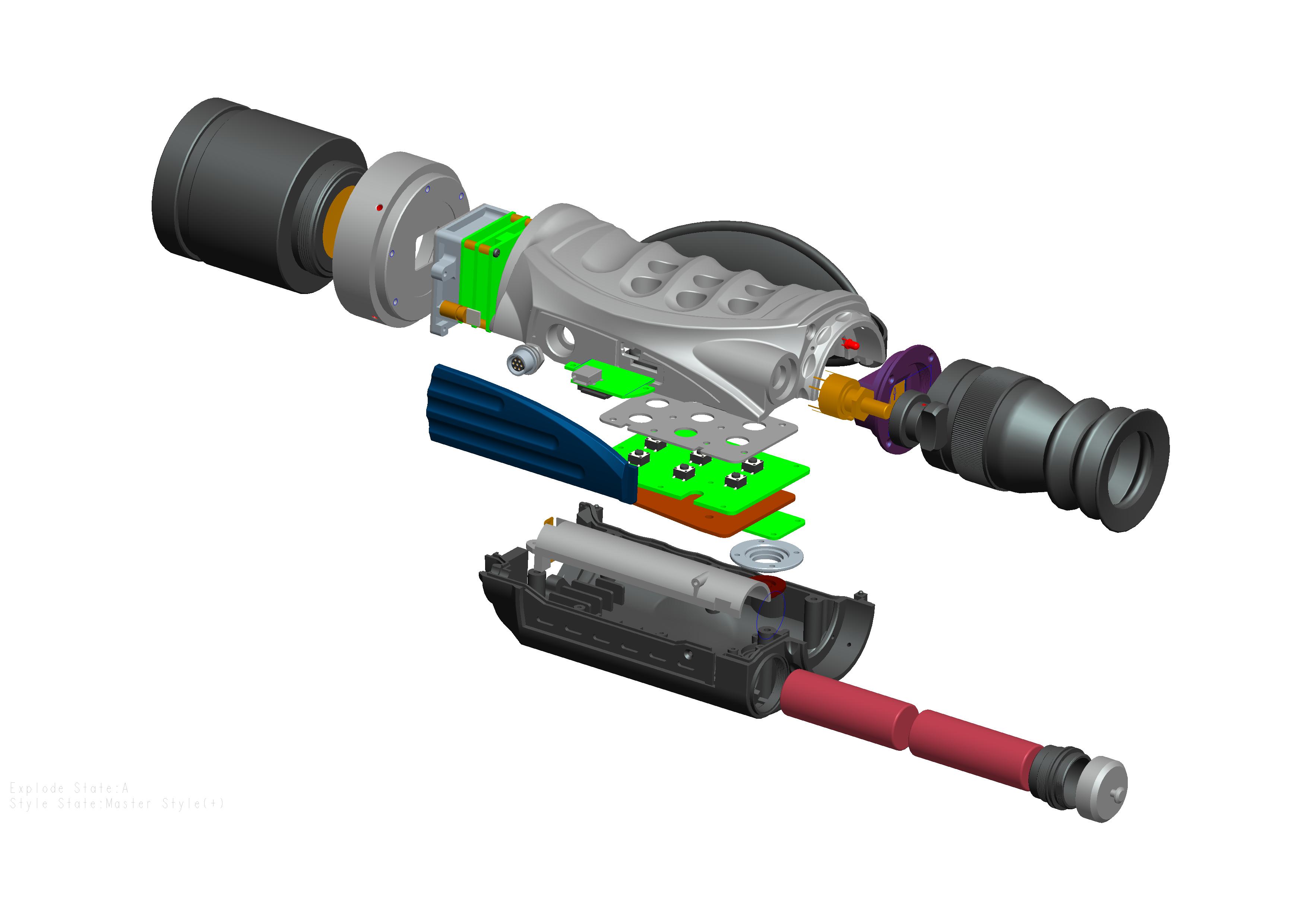

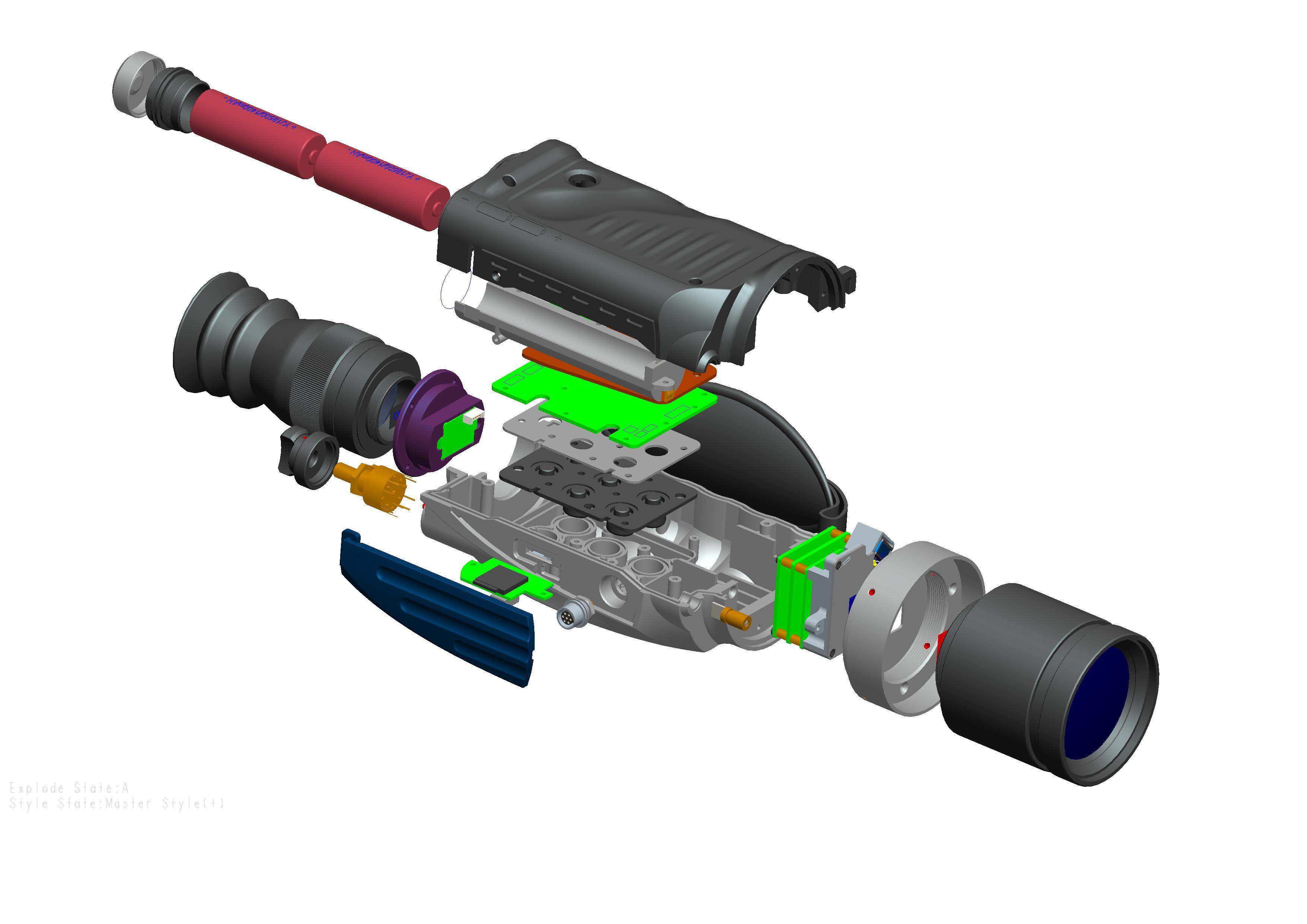

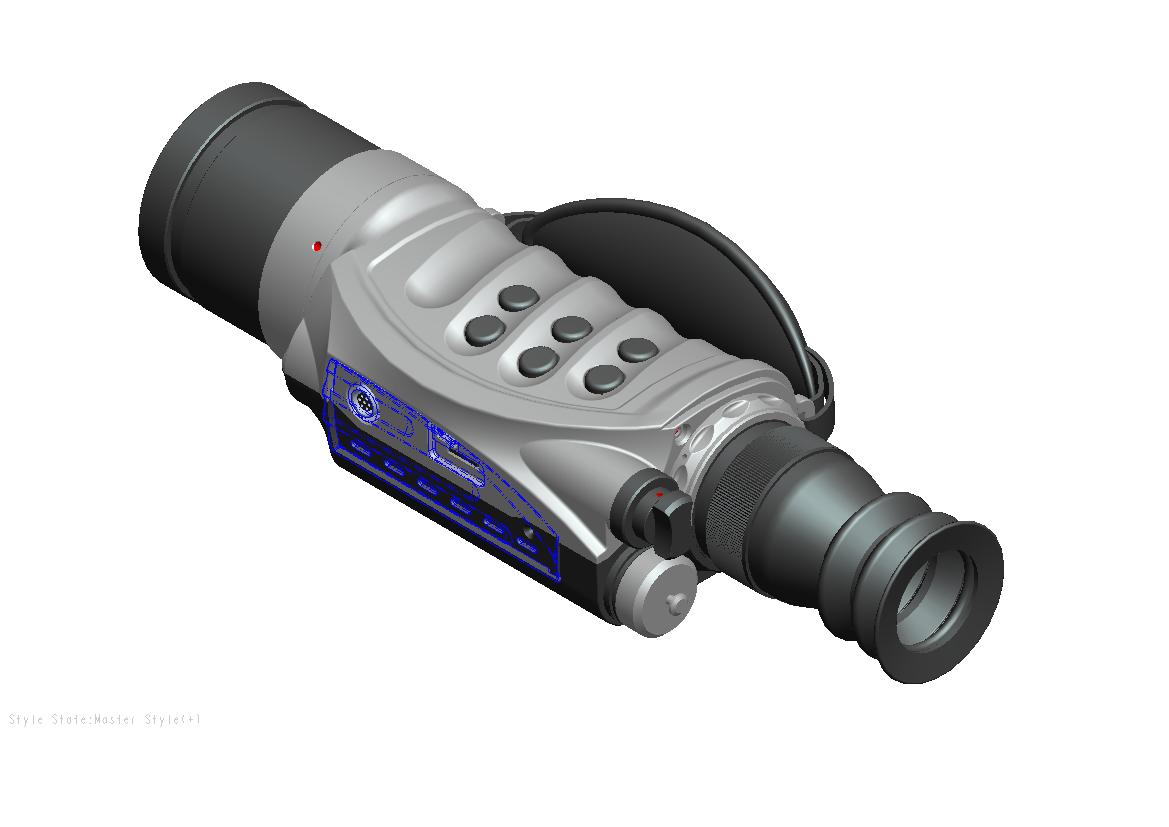

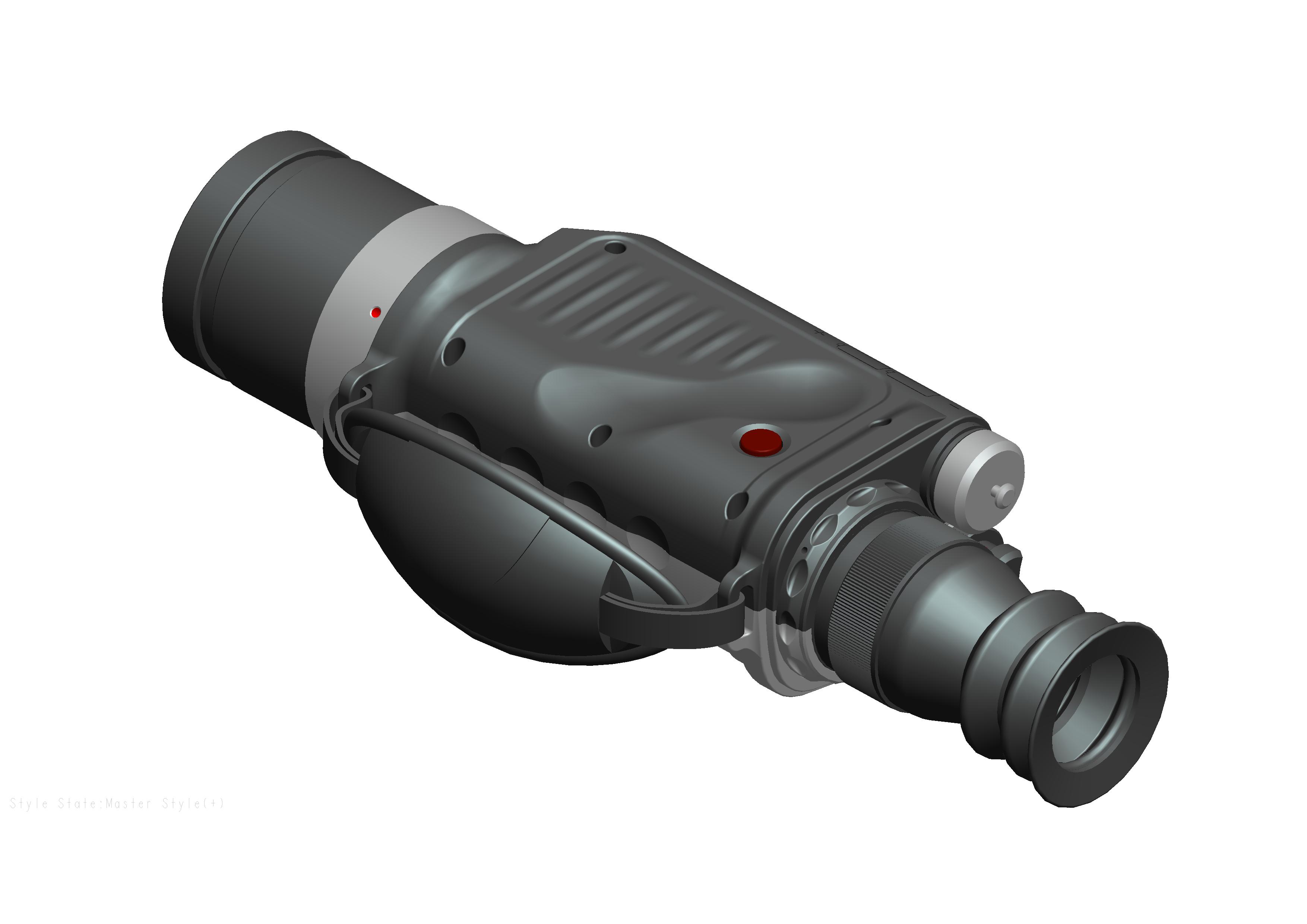

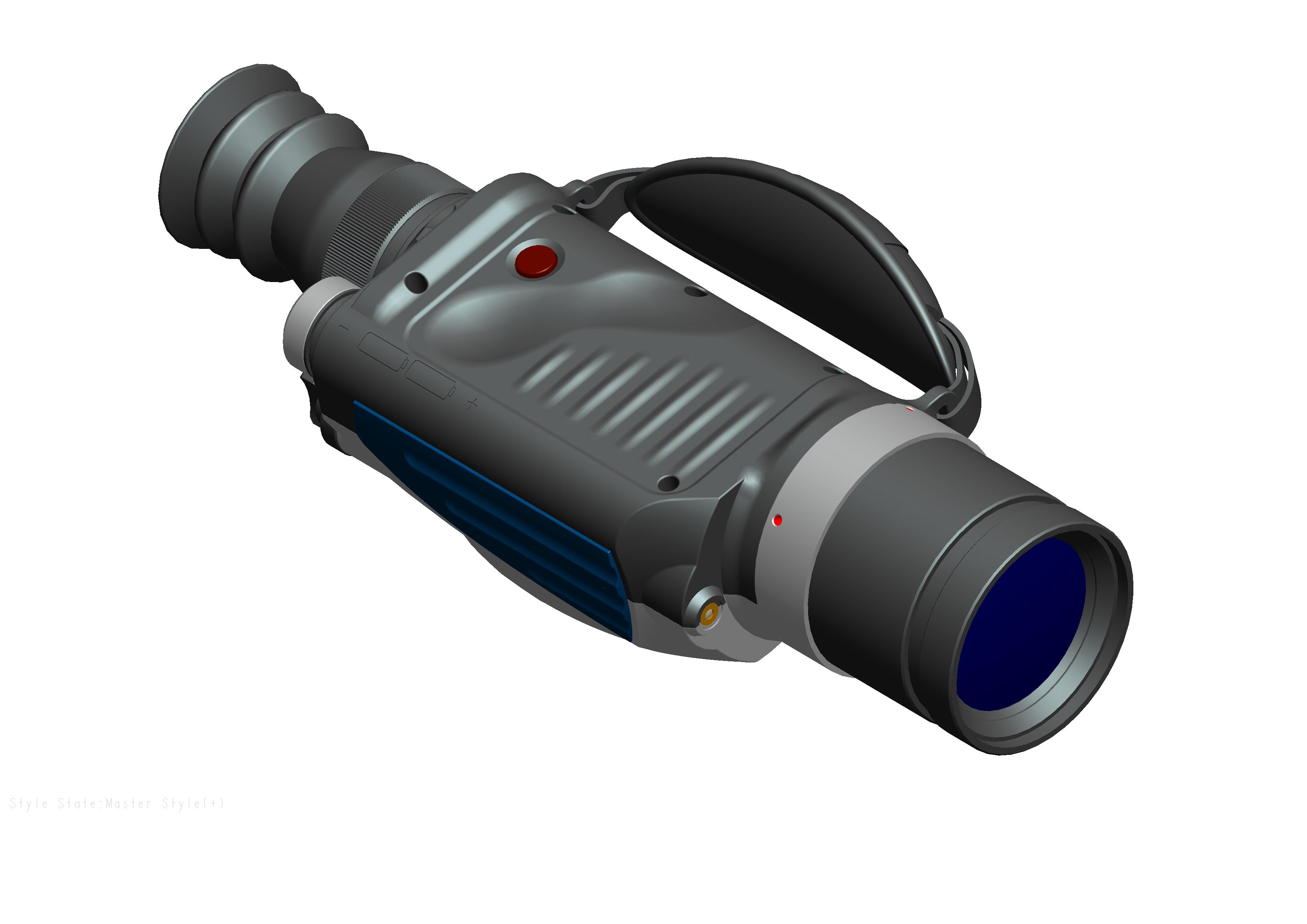

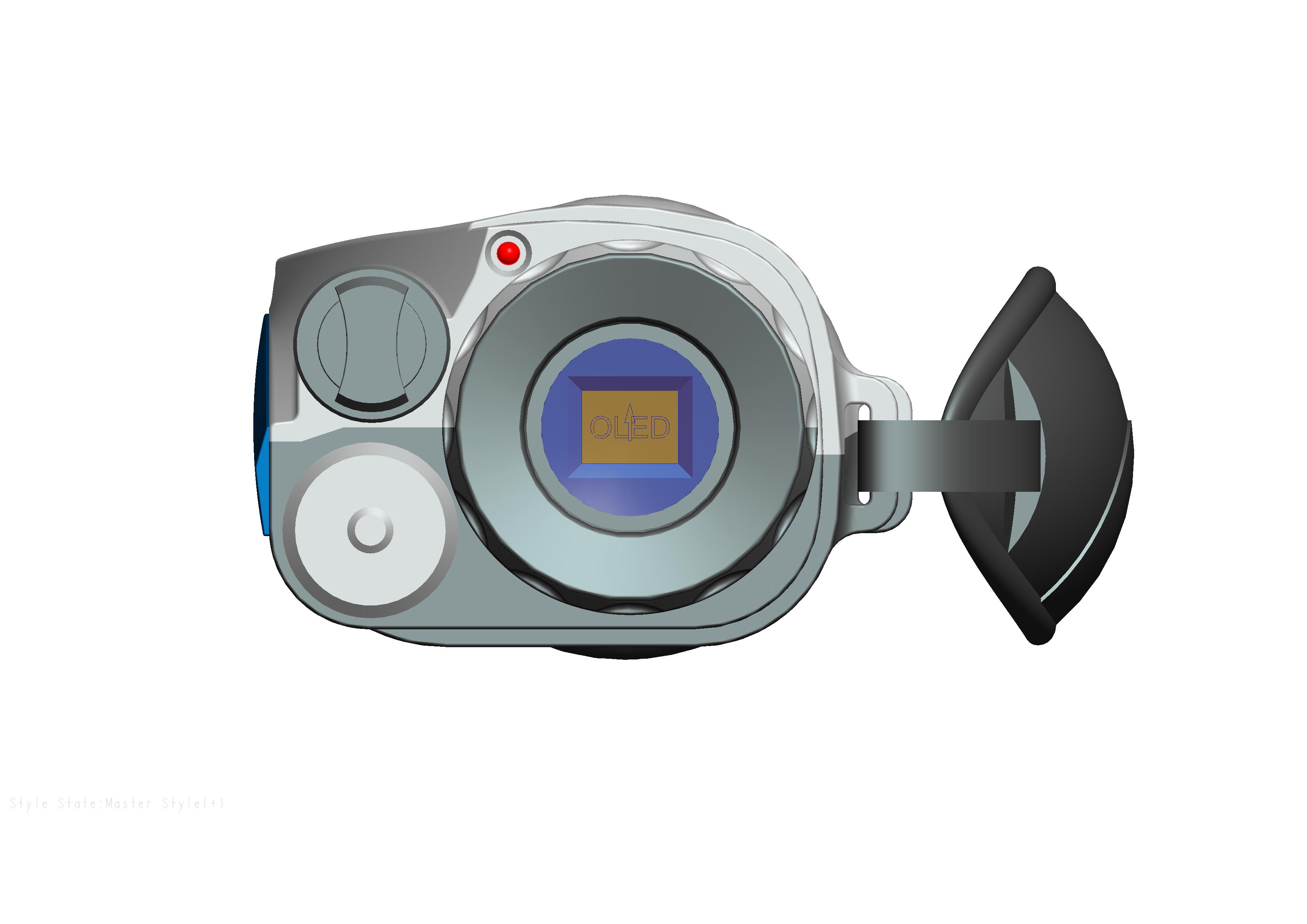

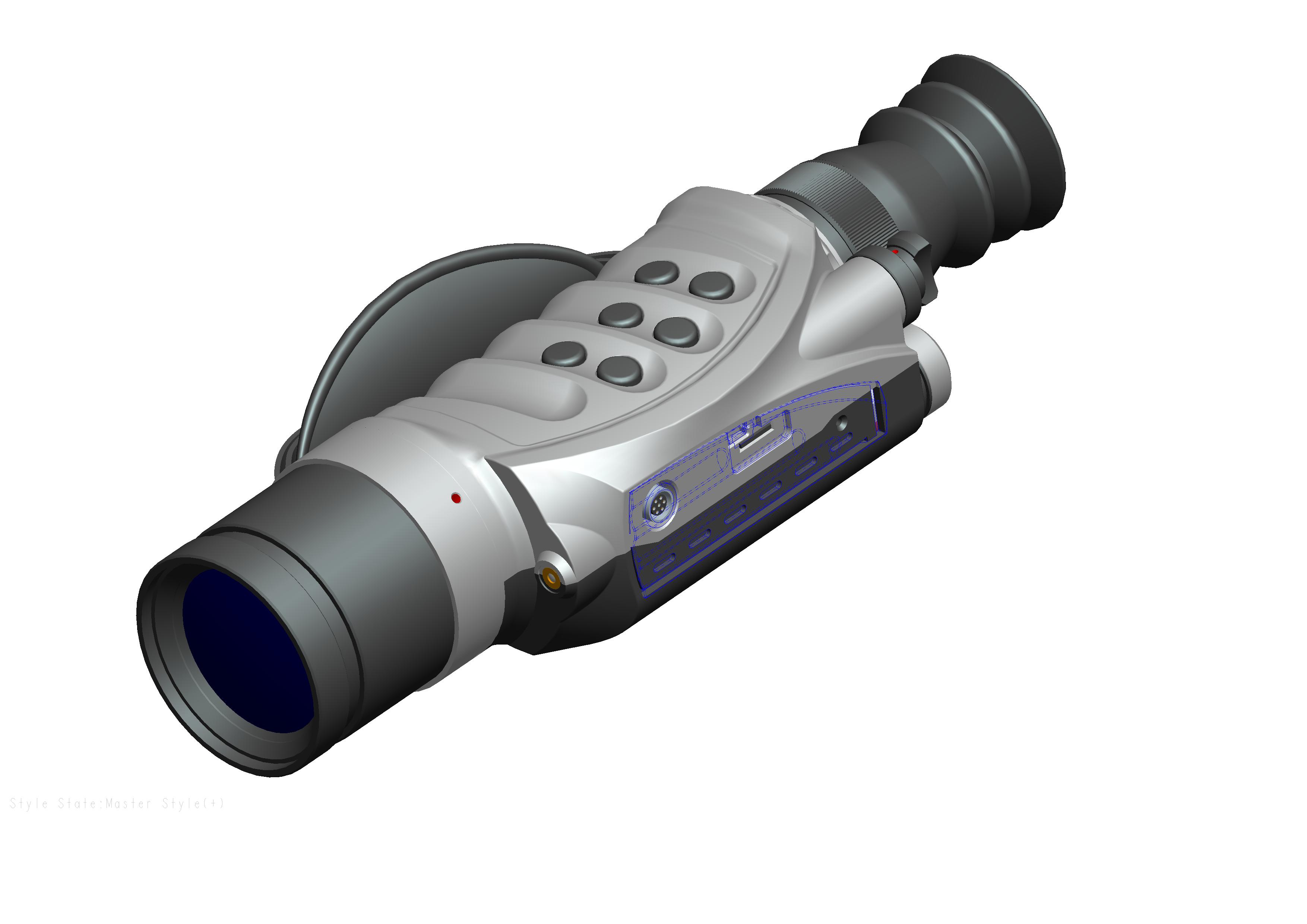

红外热成像夜视仪单目望远镜全结构图（ID:850087）

数码电器 / 数码产品 / 红外热成像夜视仪单目望远镜全结构图

©原创

142

平面图

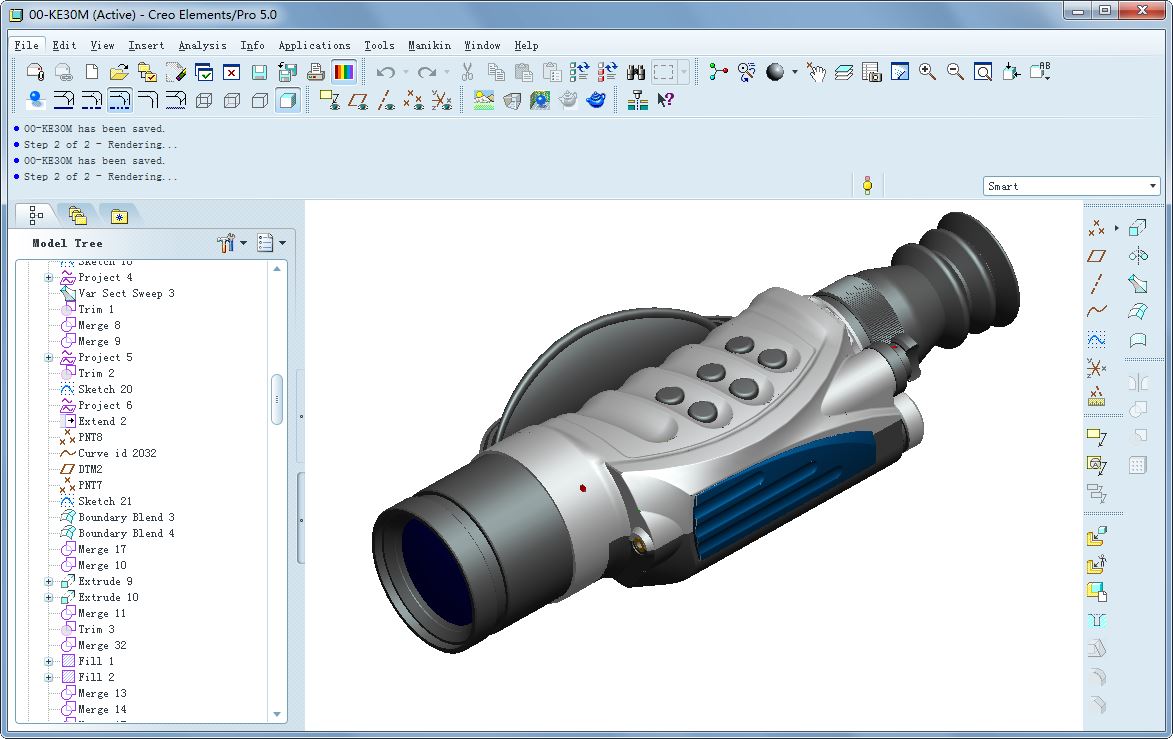

3D视图

文件列表

#	文件名称	文件大小
1	00-mono_telescope.mtl	583B
2	00-mono_telescope.obj	29.75M
3	00-mono_telescope_asm.igs	43.12M
4	00-mono_telescope_asm.stp	26.91M
5	17030745037124.rar	51.92M
6	手持单目镜机构件BOM.xls	1.28M
7	PCB.dwg	160.34K
8	手持单目镜CNC加工说明.pptx	806.40K
9	按键防水压板.dwg	134.91K
10	旋钮帽.dwg	156.84K

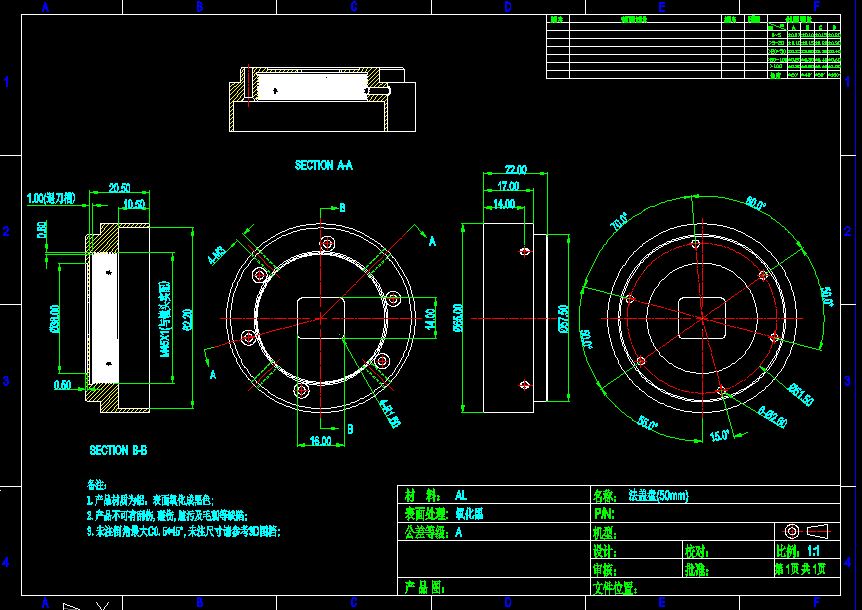

11	法兰盘50.dwg	214.09K
12	电池盖.dwg	155.59K
13	电池负极圈.dwg	162.78K
14	目镜支架.dwg	192.78K
15	00-mono_telescope.asm.2	1.33M
16	00-mono_telescope_skel.prt.1	1.91M
17	7pin-connector-female.prt.1	660.68K
18	7pin-connector-male.prt.1	5.06M
19	7pin-connector-nut.prt.1	281.55K
20	7pin-self_locking-connector.asm.1	89.97K
21	battary-cathode.prt.1	600.97K
22	battary-cover-inner.prt.1	267.37K
23	battary-cover.prt.1	491.15K
24	battery-18550.prt.1	565.40K
25	bolt-5mm.prt.1	496.19K
26	bottom.prt.1	6.54M
27	core-384-std.asm.1	147.83K
28	dianchipian-3_19.prt.1	614.95K
29	electromagnet.prt.1	424.00K
30	erji-2-6.prt.1	119.61K
31	flange-for-50.prt.1	2.16M
32	flange-for-75.prt.1	1.93M
33	handle-strap.prt.1	781.76K
34	key-60x60x45-smt.prt.1	166.53K
35	key-pcb.asm.1	63.28K
36	key-pcb.prt.1	229.76K
37	key1-press-plate.prt.1	254.08K
38	key1.prt.1	1011.44K
39	key2-pcb-assy.asm.1	47.93K
40	key2-pcb.prt.1	87.39K
41	key2-press-block.prt.1	246.83K
42	key2.prt.1	206.08K
43	knob-cap.prt.1	500.90K
44	knob.asm.1	74.97K
45	laser-emitter.prt.1	96.01K
46	led-d3.prt.1	124.11K
47	lens-350iib-50.prt.1	1.77M
48	lens-assy.asm.1	99.41K
49	lens-hgl375b.prt.1	430.34K
50	m2x4-k.prt.1	1.74M
51	m2x4-p.prt.1	1.82M
52	mimi-sd.prt.1	88.35K
53	monocular-oled-170138006.prt.1	891.33K
54	monocular-unit-tzg-060.prt.1	3.42M
55	oled-assy.asm.1	69.23K
56	oled-bracket.prt.1	636.36K
57	pcb-driver.prt.1	146.05K
58	pcb-function.prt.1	1.60M
59	pcb-import.prt.1	97.18K
60	pcb-sensor-384x288.prt.1	491.37K
61	pcba-mf-384.asm.1	1.51M
62	rubber-cover-male.prt.1	638.11K
63	rubber-pad.prt.1	69.21K
64	rubber.prt.1	1.63M
65	sensor-384x288.prt.1	233.84K
66	sensor-cover-std.prt.1	759.03K
67	sheet-cover-std.prt.1	260.33K
68	sheet-std.prt.1	122.42K
69	top.prt.1	7.99M
70	twist-switch-housing.prt.1	367.32K
71	usb.prt.1	173.10K
72	usbpcb-asm.asm.1	62.88K
73	usbpcb.prt.1	123.33K
74	washer-d12.prt.1	71.53K
75	waterproof-cover.prt.1	250.69K
76	xuanniu_1.prt.1	228.80K
