斯特林发动机(27)（ID:869727）

交通运输 / 车辆相关 / 斯特林发动机(27)

©非原创

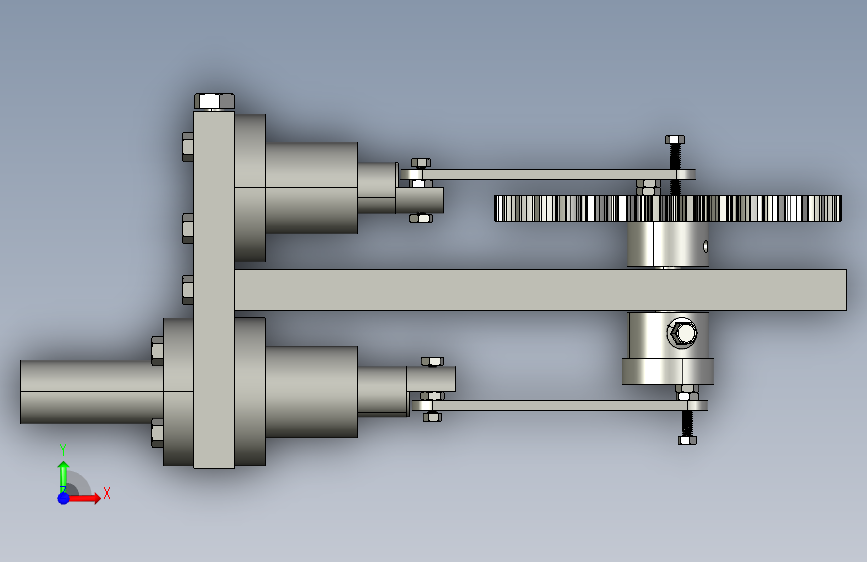

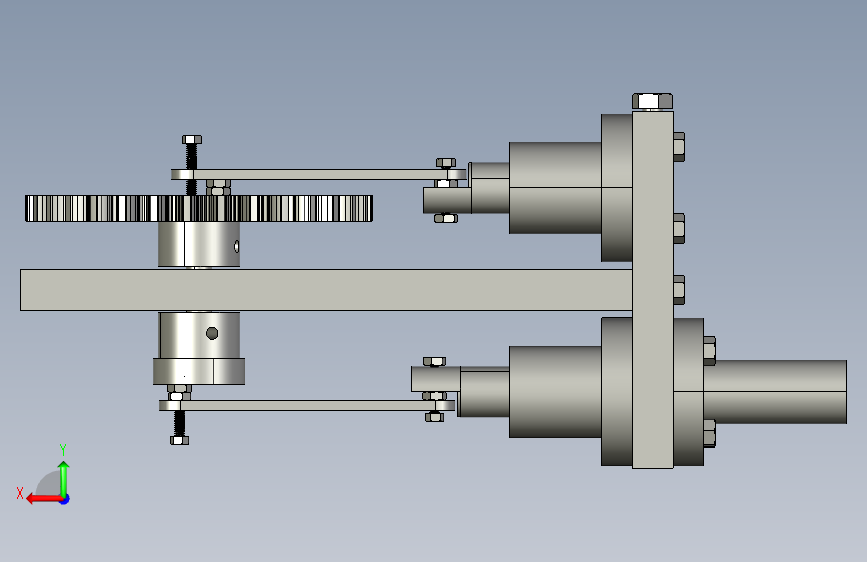

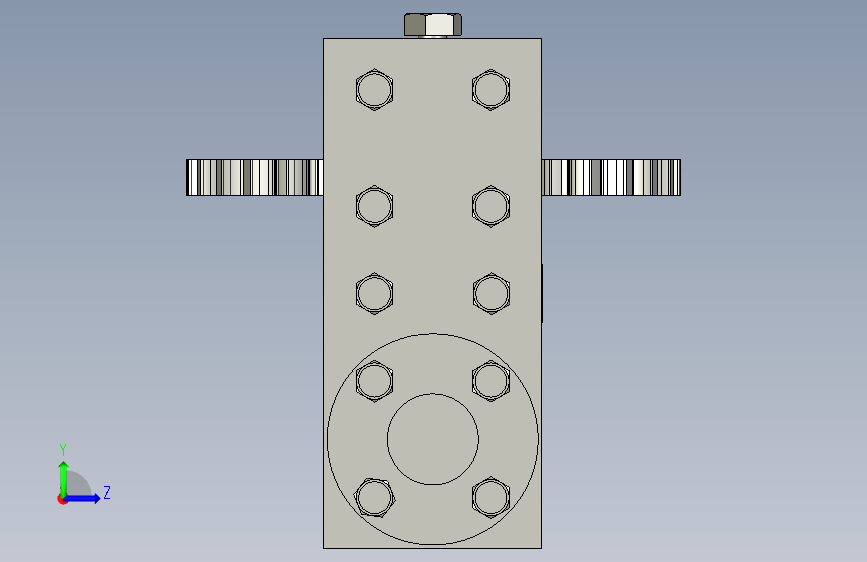

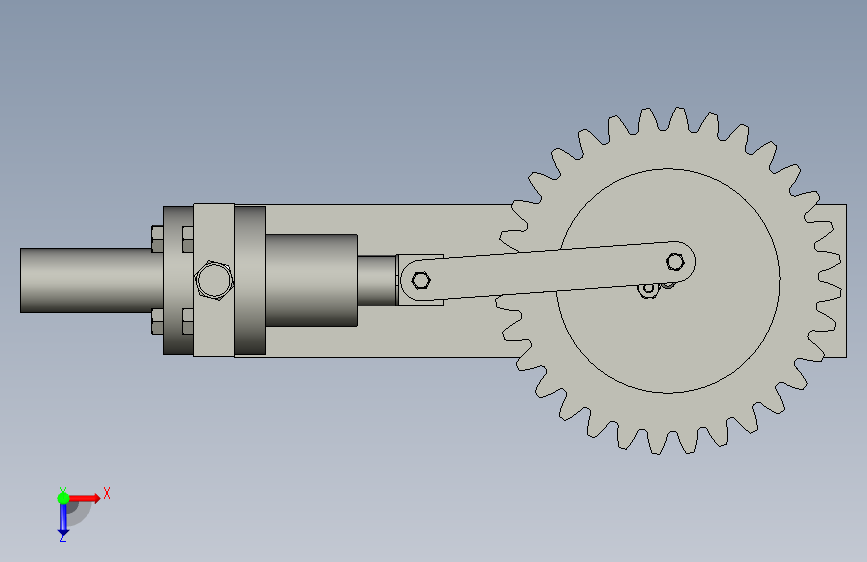

平面图

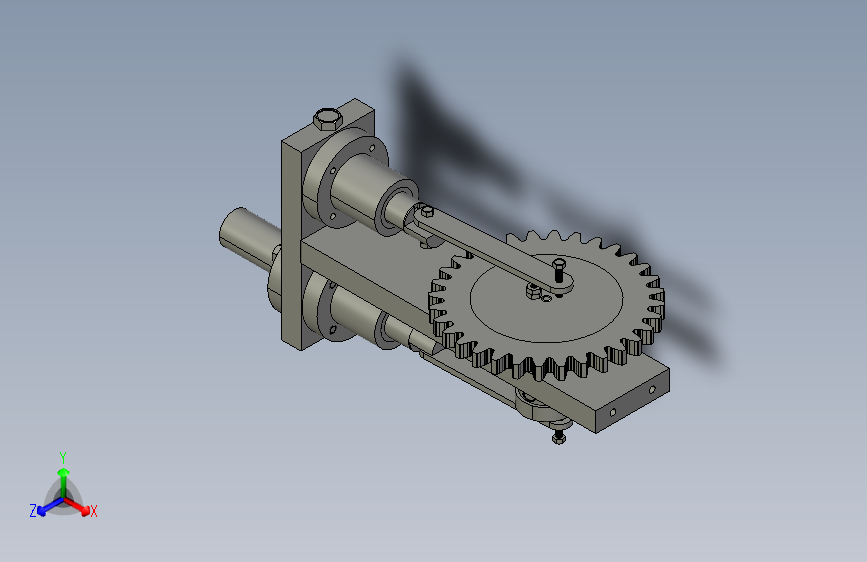

3D视图

文件列表

#	文件名称	文件大小
1	17036791821729.zip	10.96M
2	ASSEMBLYBASE.prt	411.00K
3	assemblyheatexchangecylinder.prt	122.00K
4	assemblyheatexchangepiston.prt	131.00K
5	BASE.prt	1.23M
6	BEARINGSUPPORT.prt	568.00K
7	COUNTERWEIGHTA.prt	283.50K
8	COUNTERWEIGHTB.prt	315.50K
9	CRANKRODE.prt	616.00K
10	CRANKSHAFT.prt	249.00K
11	CROSSHEAD.prt	564.00K
12	CYLINDER.prt	321.50K
13	CYLINDERCOVER.prt	239.00K
14	CYLINDERPACKING.prt	197.00K
15	din625_-_625_0_x_t.prt	80.00K
16	din_128_a6_x_t.prt	118.00K
17	din_en_iso_8734_3x16_x_t.prt	101.00K
18	FLYWHEEL.prt	457.50K
19	FLYWHEELSHAFT.prt	216.00K
20	HEATEXCHAHEPISTONEXHAUST.prt	276.00K
21	HEATEXCHANGECYLINDER.prt	489.00K
22	HEATEXCHANGECYLINDERHEAD.prt	198.50K
23	HEATEXCHANGEPISTONHEAD.prt	197.00K
24	HEATEXCHANGEPISTONSHAFT.prt	178.00K
25	HEATEXCHANGEPISTONTUBE.prt	187.50K
26	PISTONPIN.prt	187.50K
27	screw_din_912-m4x0_7-12-10_9_x_t.prt	121.00K
28	screw_din_912-m6x1-16-10_9_x_t.prt	120.50K
29	screw_din_912-m6x1-20-10_9_x_t.prt	131.50K
30	screw_din_912-m6x1-25-10_9_x_t.prt	121.00K
31	screw_din_913-m8x12-45h_x_t.prt	116.50K
32	SLIDE2.003.prt	227.00K
33	STANDARD2.002.prt	1.41M
34	SUPPORT2.001.prt	396.50K
35	movie.avi	5.14M
36	movie2.avi	2.88M
37	movie3.avi	2.36M
38	KochihitaraStirlingAssem.STEP	7.41M
39	KochihitaraStirlingAssem.stl	5.99M
