植树挖坑机设计三维inventor（ID:890370）
截图
AI截图渲染
✨AI图片渲染
1.png)
2.png)
4.png)
0.png)
3.png)

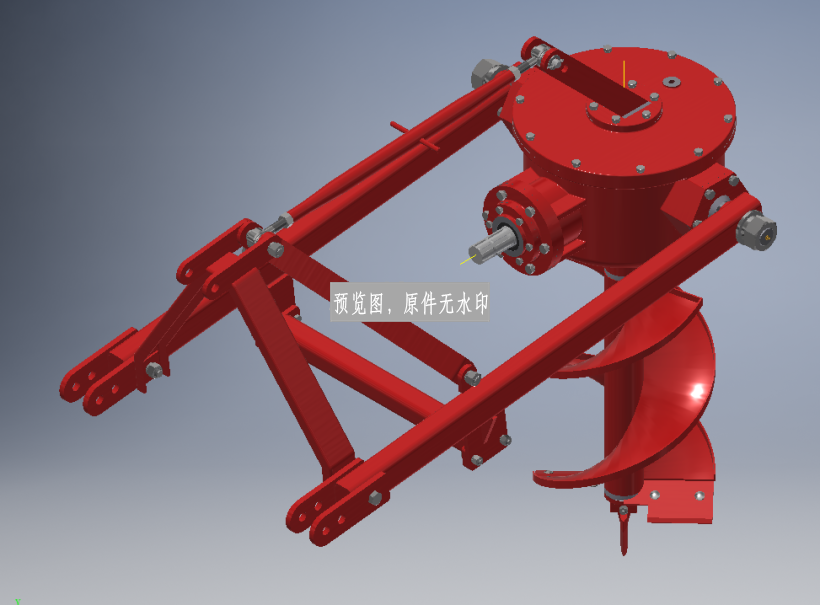

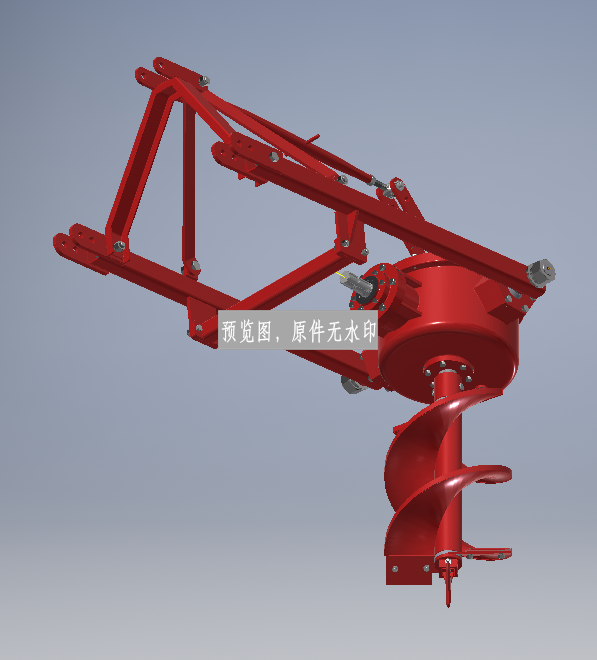

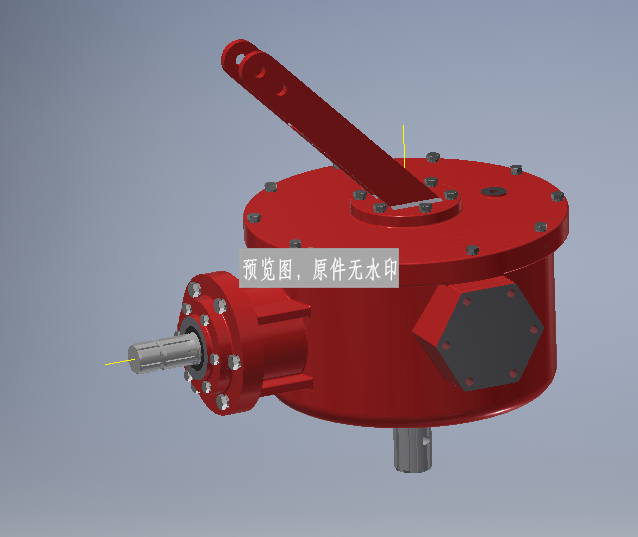

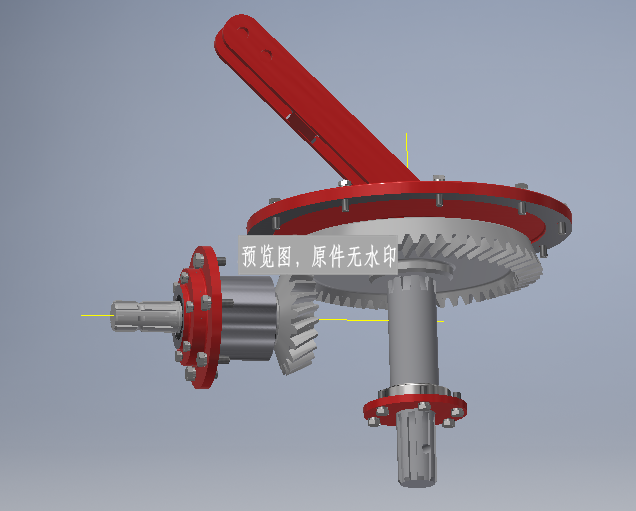

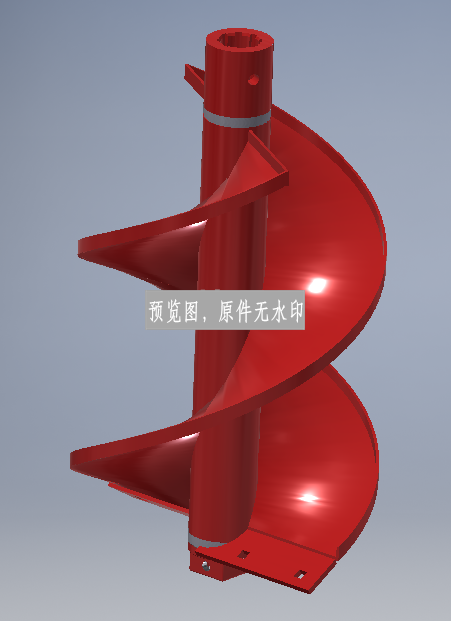

| # | 文件名称 | 文件大小 |
|---|---|---|
| 1 | 1577024722148.png | 420.20K |
| 2 | 1577024736515.png | 291.63K |
| 3 | 1577024742986.png | 230.86K |
| 4 | 1577024746260.png | 227.59K |
| 5 | 1577024752143.png | 188.29K |
| 6 | 1577024755910.png | 76.87K |
| 7 | 17054049907063.zip | 59.56M |
| 8 | lockfile.lck | 16.00K |
| 9 | 上悬挂板.ipt | 101.00K |
| 10 | 上悬挂板2.ipt | 90.00K |
| 11 | 上悬挂板焊接.iam | 268.00K |
| 12 | 上盖.ipt | 233.50K |
| 13 | 上盖轴承盖.ipt | 153.50K |
| 14 | 弯悬挂板.ipt | 136.00K |
| 15 | 总装配.iam | 1.97M |
| 16 | 总装配.stp | 4.82M |
| 17 | 挖坑机.ipj | 9.10K |
| 18 | 直通式油杯M8X1.ipt | 175.00K |
| 19 | 箱体.ipt | 886.00K |
| 20 | 箱体装配.iam | 1023.00K |
| 21 | 输入轴轴承座.ipt | 207.00K |
| 22 | 输入轴轴承座盖.ipt | 175.00K |
| 23 | 输出轴.ipt | 330.50K |
| 24 | 输出轴透盖.ipt | 165.00K |
| 25 | 齿轮组.iam | 320.50K |
| 26 | 上悬挂板.0001.ipt | 101.00K |
| 27 | 上盖.0001.ipt | 233.50K |
| 28 | 总装配.0001.iam | 1.34M |
| 29 | 总装配.0002.iam | 1.30M |
| 30 | 总装配.0003.iam | 1.54M |
| 31 | 总装配.0004.iam | 8.15M |
| 32 | 总装配.0005.iam | 1.38M |
| 33 | 总装配.0006.iam | 1.72M |
| 34 | 总装配.0007.iam | 1.67M |
| 35 | 总装配.0008.iam | 1.79M |
| 36 | 挖坑机.ipj.bak | 9.10K |
| 37 | 箱体.0001.ipt | 238.00K |
| 38 | 箱体.0002.ipt | 236.00K |
| 39 | 箱体.0003.ipt | 278.00K |
| 40 | 箱体.0004.ipt | 417.50K |
| 41 | 箱体.0005.ipt | 884.50K |
| 42 | 箱体装配.0001.iam | 402.00K |
| 43 | 箱体装配.0002.iam | 501.50K |
| 44 | 箱体装配.0003.iam | 527.00K |
| 45 | 箱体装配.0004.iam | 549.00K |
| 46 | 箱体装配.0005.iam | 581.50K |
| 47 | 箱体装配.0006.iam | 779.50K |
| 48 | 箱体装配.0007.iam | 920.50K |
| 49 | 箱体装配.0008.iam | 887.00K |
| 50 | 箱体装配.0009.iam | 970.50K |
| 51 | 箱体装配.0010.iam | 1.01M |
| 52 | 箱体装配.0011.iam | 1.20M |
| 53 | 箱体装配.0012.iam | 1.17M |
| 54 | 输入轴轴承座.0001.ipt | 184.00K |
| 55 | 输入轴轴承座盖.0001.ipt | 176.00K |
| 56 | 输出轴.0001.ipt | 214.50K |
| 57 | 输出轴.0002.ipt | 217.50K |
| 58 | 输出轴.0003.ipt | 227.50K |
| 59 | 输出轴透盖.0001.ipt | 165.50K |
| 60 | 齿轮组.0001.iam | 76.00K |
| 61 | 齿轮组.0002.iam | 249.50K |
| 62 | 齿轮组.0003.iam | 308.00K |
| 63 | 齿轮组.0004.iam | 320.50K |
| 64 | 中间拉杆装配.iam | 174.50K |
| 65 | 中间杆.ipt | 158.50K |
| 66 | 中间杆杠杆.ipt | 93.50K |
| 67 | 中间杆焊接.iam | 146.00K |
| 68 | 球型接头.ipt | 154.50K |
| 69 | 调节杆.ipt | 158.00K |
| 70 | 调节杆铆接.iam | 141.00K |
| 71 | 中间杆.0001.ipt | 154.50K |
| 72 | 中间杆杠杆.0001.ipt | 94.00K |
| 73 | 下悬挂安装板.ipt | 131.00K |
| 74 | 下悬挂安装板_MIR.ipt | 121.00K |
| 75 | 悬挂臂.ipt | 160.00K |
| 76 | 悬挂臂_MIR.ipt | 176.00K |
| 77 | 悬挂臂上连接板.ipt | 114.00K |
| 78 | 悬挂臂上连接板_MIR.ipt | 107.00K |
| 79 | 悬挂臂套.ipt | 148.50K |
| 80 | 悬挂臂套_MIR.ipt | 145.50K |
| 81 | 悬挂臂横梁连接加强板.ipt | 89.50K |
| 82 | 悬挂臂横梁连接加强板_MIR.ipt | 79.50K |
| 83 | 悬挂臂横梁连接板.ipt | 111.00K |
| 84 | 悬挂臂横梁连接板_MIR.ipt | 104.00K |
| 85 | 悬挂臂焊接.iam | 154.50K |
| 86 | 悬挂臂焊接_MIR.iam | 137.50K |
| 87 | 横梁.ipt | 123.00K |
| 88 | 横梁焊接.iam | 120.00K |
| 89 | 横梁连接板.ipt | 116.50K |
| 90 | 下悬挂安装板.0001.ipt | 106.50K |
| 91 | 下悬挂安装板.0002.ipt | 121.00K |
| 92 | 悬挂臂.0001.ipt | 123.50K |
| 93 | 悬挂臂.0002.ipt | 158.50K |
| 94 | 悬挂臂上连接板.0001.ipt | 108.00K |
| 95 | 悬挂臂套.0001.ipt | 116.50K |
| 96 | 悬挂臂横梁连接加强板.0001.ipt | 90.00K |
| 97 | 悬挂臂横梁连接板.0001.ipt | 111.00K |
| 98 | 悬挂臂横梁连接板.0002.ipt | 111.50K |
| 99 | 悬挂臂焊接.0001.iam | 177.00K |
| 100 | 横梁.0001.ipt | 123.00K |
| 101 | 横梁连接板.0001.ipt | 116.50K |
| 102 | lockfile.lck | 16.00K |
| 103 | 螺栓GB12M12x50.ipt | 185.50K |
| 104 | GB13871-92TypeF-50x70x8.ipt | 187.50K |
| 105 | GB13871-92TypeF-60x80x8.ipt | 187.00K |
| 106 | 螺母GB810M52x1.5.ipt | 191.00K |
| 107 | 垫圈GB85852.ipt | 220.00K |
| 108 | 垫圈GB93-8710.ipt | 123.00K |
| 109 | 垫圈GB93-8712.ipt | 123.00K |
| 110 | 垫圈GB93-8714.ipt | 123.00K |
| 111 | 垫圈GB93-8720.ipt | 123.00K |
| 112 | 垫圈GB93-8745.ipt | 123.00K |
| 113 | 滚动轴承30211GB_T297-94.ipt | 326.00K |
| 114 | 滚动轴承30212GB_T297-94.ipt | 327.00K |
| 115 | 螺栓GB_T5783M10x20.ipt | 187.50K |
| 116 | 螺栓GB_T5783M12x30.ipt | 186.00K |
| 117 | 螺栓GB_T5783M12x40.ipt | 186.00K |
| 118 | 螺栓GB_T5783M12x80.ipt | 183.00K |
| 119 | 螺栓GB_T5783M14x30.ipt | 186.50K |
| 120 | 螺栓GB_T5783M14x40.ipt | 186.00K |
| 121 | 螺栓GB_T5783M14x45.ipt | 185.50K |
| 122 | 螺栓GB_T5783M20x120.ipt | 184.00K |
| 123 | 螺栓GB_T5783M20x130.ipt | 184.00K |
| 124 | 螺栓GB_T5783M20x50.ipt | 187.00K |
| 125 | 螺母GB_T6170M12.ipt | 167.00K |
| 126 | 螺母GB_T6170M14.ipt | 166.50K |
| 127 | 螺母GB_T6170M20.ipt | 166.50K |
| 128 | 螺母GB_T6170M45.ipt | 167.00K |
| 129 | 螺栓GB_T801M12x30.ipt | 184.00K |
| 130 | 销GB_T9110x45.ipt | 173.00K |
| 131 | 销GB_T913.2x25.ipt | 168.50K |
| 132 | 销GB_T915x25.ipt | 170.50K |
| 133 | 销GB_T915x32.ipt | 170.00K |
| 134 | 平垫圈GB_T9516.ipt | 103.00K |
| 135 | 平垫圈GB_T9520.ipt | 102.50K |
| 136 | 平垫圈GB_T9545.ipt | 102.50K |
| 137 | PINGB_T882-1986B20x90.ipt | 153.50K |
| 138 | PINGB_T882B16x100.ipt | 151.50K |
| 139 | PINGB_T882B16x120.ipt | 151.50K |
| 140 | 侧连接件焊接.iam | 186.00K |
| 141 | 侧连接板.ipt | 121.50K |
| 142 | 侧连接轴.ipt | 164.50K |
| 143 | 侧连接轴.0001.ipt | 151.00K |
| 144 | 侧连接轴.0002.ipt | 170.50K |
| 145 | 侧连接轴.0003.ipt | 166.00K |
| 146 | 分土铲.ipt | 291.50K |
| 147 | 花键套.ipt | 233.00K |
| 148 | 螺旋导板.ipt | 118.00K |
| 149 | 螺旋护板.ipt | 113.00K |
| 150 | 螺旋护板2.ipt | 92.00K |
| 151 | 钻头导板座.ipt | 119.50K |
| 152 | 钻头座.ipt | 242.00K |
| 153 | 钻头焊接.iam | 292.50K |
| 154 | 钻轴.ipt | 113.50K |
| 155 | 铲板.ipt | 116.50K |
| 156 | 分土铲.0001.ipt | 277.00K |
| 157 | 花键套.0001.ipt | 230.50K |
| 158 | 螺旋导板.0001.ipt | 122.50K |
| 159 | 螺旋导板.0002.ipt | 128.00K |
| 160 | 螺旋护板.0001.ipt | 113.00K |
| 161 | 螺旋护板2.0001.ipt | 89.00K |
| 162 | 螺旋护板2.0002.ipt | 91.00K |
| 163 | 钻头导板座.0001.ipt | 101.00K |
| 164 | 钻头焊接.0001.iam | 280.00K |
| 165 | 钻头焊接.0002.iam | 302.00K |
| 166 | 铲板.0001.ipt | 116.50K |
| 167 | 锥齿轮1.iam | 315.00K |
| 168 | 锥齿轮11.ipt | 885.50K |
| 169 | 锥齿轮21.ipt | 1.14M |
| 170 | 锥齿轮1.0001.iam | 242.50K |
| 171 | 锥齿轮1.0002.iam | 315.00K |
| 172 | 锥齿轮11.0001.ipt | 623.00K |
| 173 | 锥齿轮11.0002.ipt | 881.00K |
| 174 | 锥齿轮11.0003.ipt | 879.50K |
| 175 | 锥齿轮11.0004.ipt | 878.50K |
| 176 | 锥齿轮21.0001.ipt | 919.50K |
| 177 | 锥齿轮21.0002.ipt | 1.11M |
| 178 | 锥齿轮21.0003.ipt | 1.11M |
| 179 | 龙门悬挂板.ipt | 116.50K |
| 180 | 龙门悬挂架焊接.iam | 151.50K |
| 181 | 龙门架.ipt | 194.50K |
| 182 | 龙门架加强板.ipt | 96.50K |
| 183 | 龙门悬挂板.0001.ipt | 115.00K |
此图纸下载需要100金币
立即下载
发布者
咨询设计 QQ加3278627871
创作: 27931
粉丝: 749
加入时间：2023-06-16
模型信息
图纸格式：ipt,iam,stp
文件大小：60.99M
所需金币：100
上传时间：2024-01-16 19:36:42
是否可编辑：可修改，包括参数
版本：Inventor
标签
图纸简介
