压力传感器（电路）设计模型

（ID:956322）

改图/画图

电力仪表 / 仪器仪表 / 压力传感器（电路）设计模型

©非原创

339

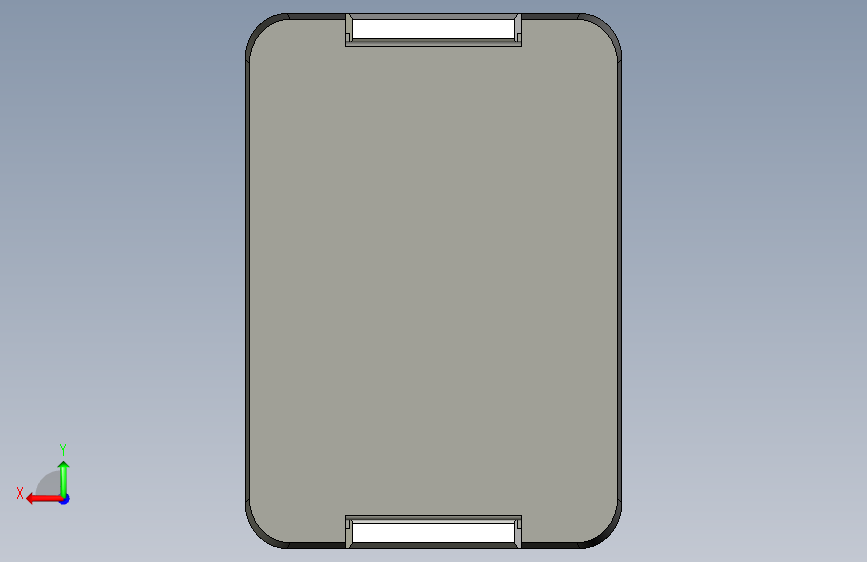

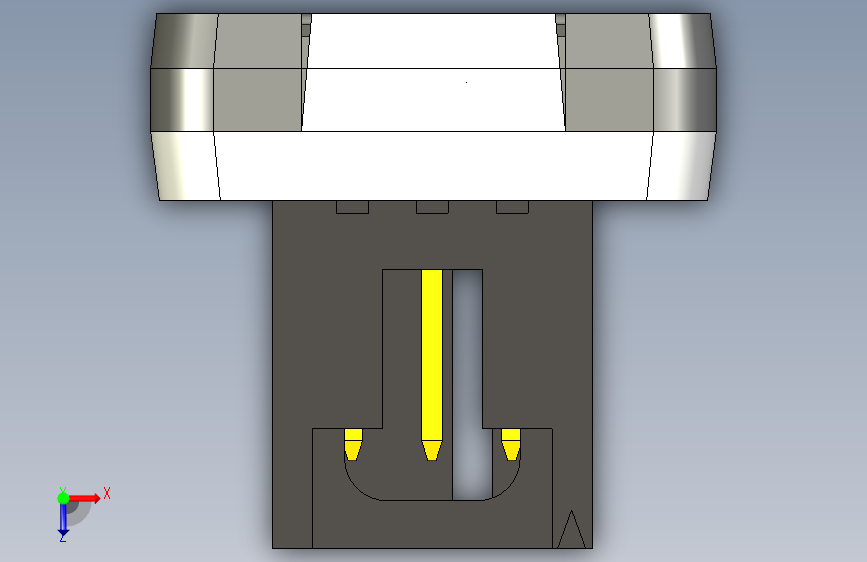

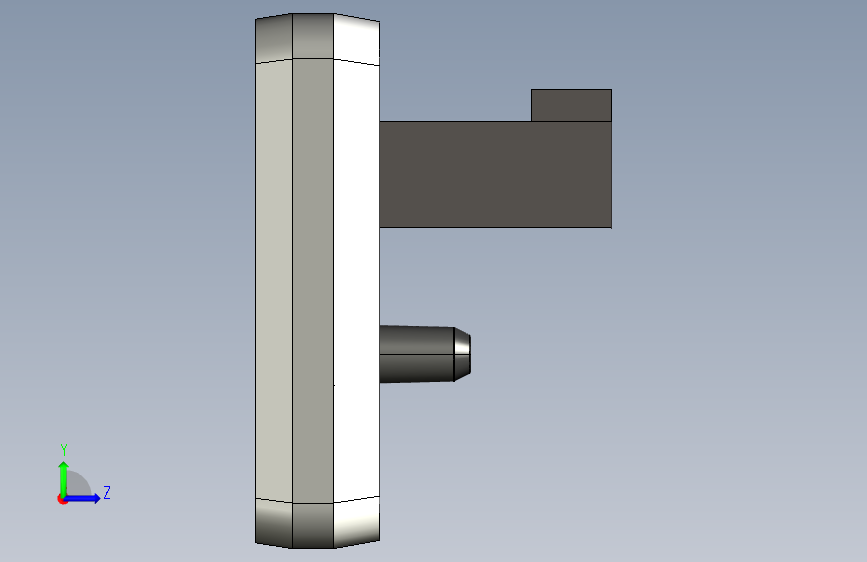

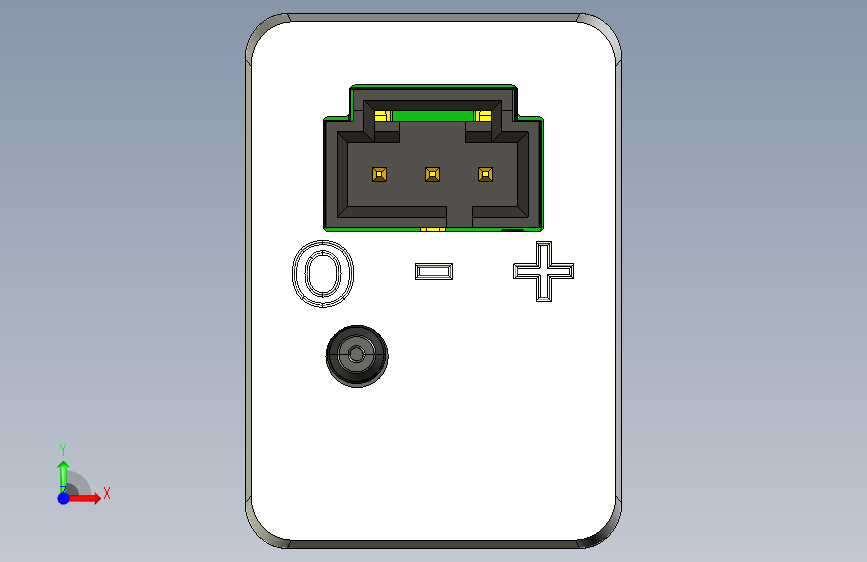

平面图

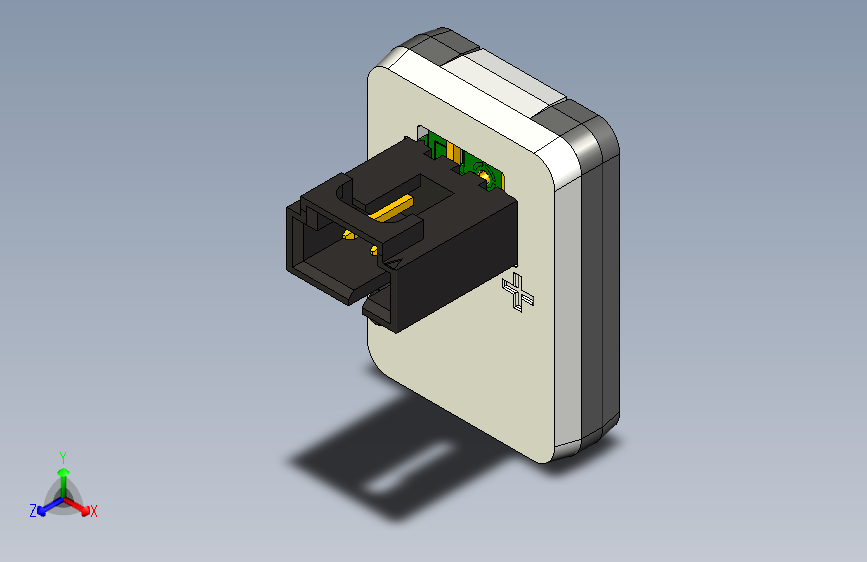

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小
1	Onlythecase.stp	1.49M
2	SinglePCBwithoutcase.stp	10.46M
3	压力传感器（电路）设计模型.stp	12.02M
4	Maxim-MAX1454-PrecisionSensorSignalConditioner.pdf	1.39M
5	MAXIM-MAX1454EvaluationSystem.pdf	4.50M
6	MOLEX-0740990603_PCB_HEADERS.pdf	37.05K
7	MOLEX-740990603-SMDTHRConnector.pdf	177.26K
8	OMRON-2SMPP-022SMPP-03-MEMSGaugePressureSensor.pdf	490.77K
9	SensethePressureChallengeBillofMaterialsB1A2016-05-15-1.PDF	20.17K
10	SensethePressureChallengeCircuitDesignB1A2016-05-15-1.PDF	1.88M
11	SensethePressureChallengePanelCircuitDesignB1A2016-05-15-1.PDF	4.67M
12	GerberFilesPDFSensethePressureChallengeB1A2016-05-15-1.PDF	824.51K
13	GerberFilesPDFSensethePressureChallengePanelB1A2016-05-15-1.PDF	142.73K

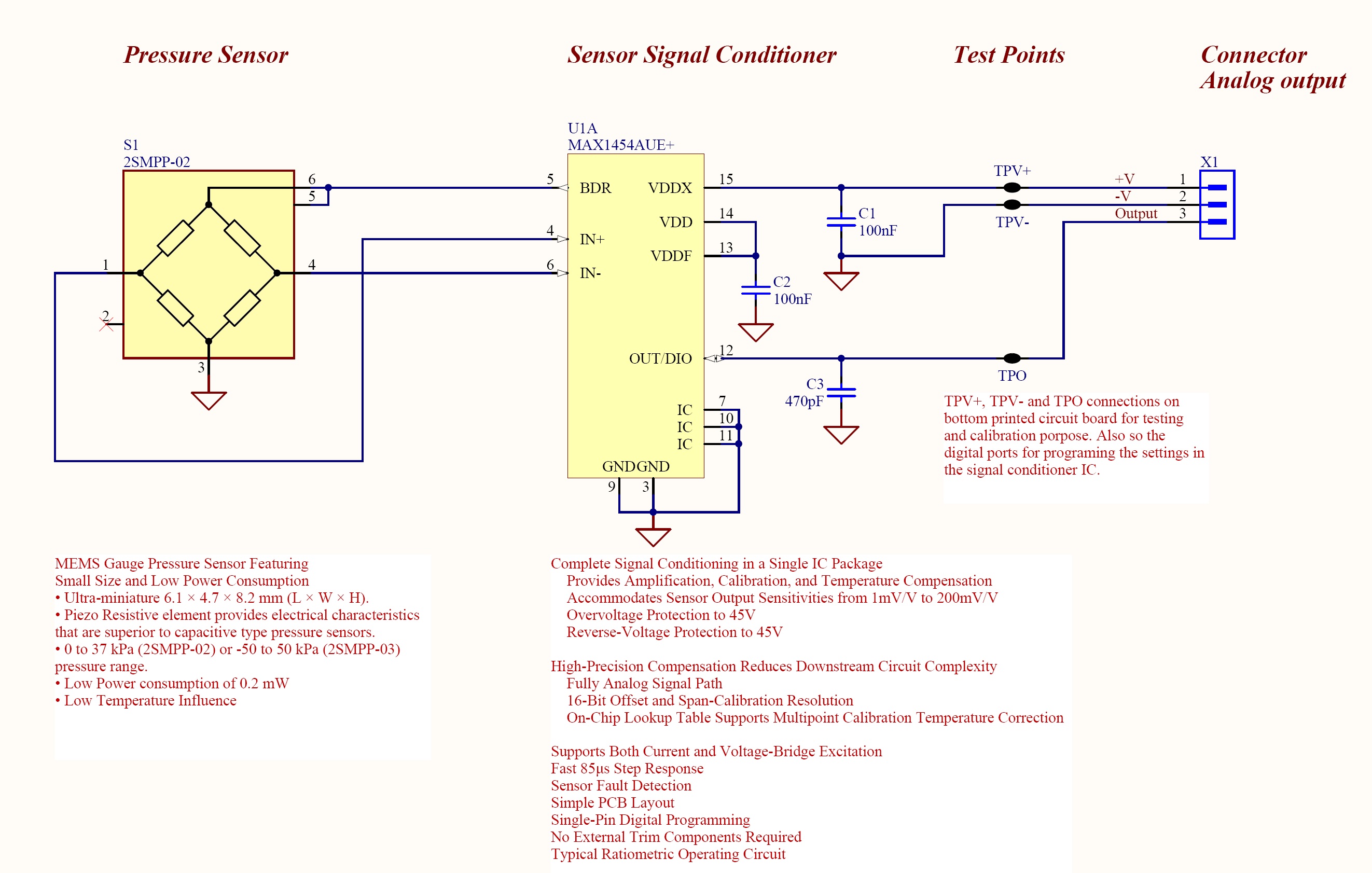

14	CircuitDesign.jpg	590.92K

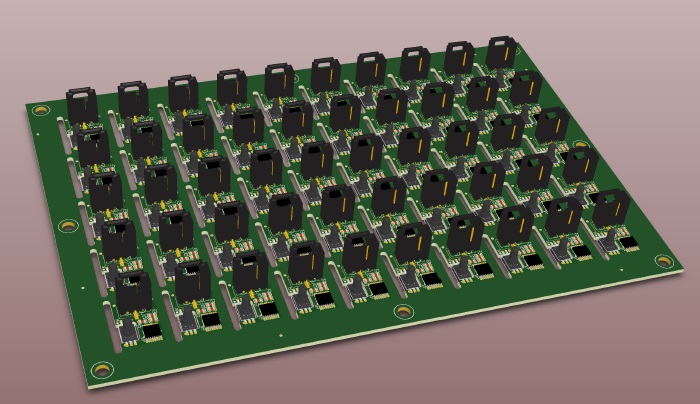

15	PCBPanalization.jpg	98.47K
16	PCBPanalizationbottomtestpoints.jpg	84.12K

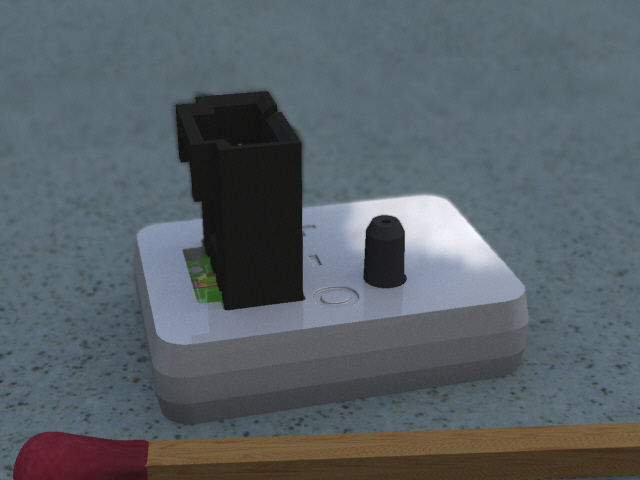

17	presentation1.jpg	243.27K

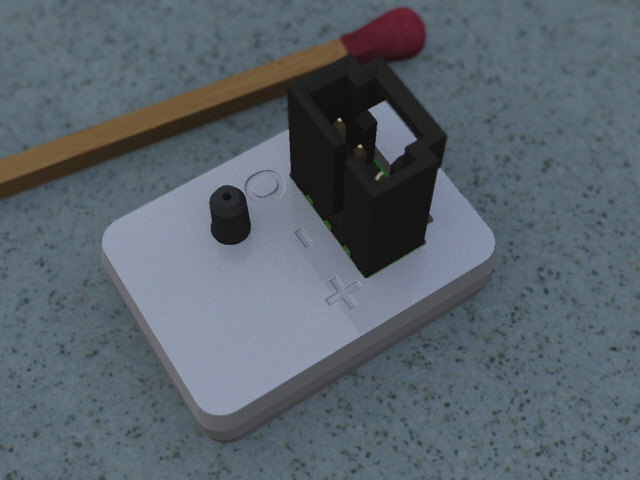

18	presentation2.jpg	257.87K

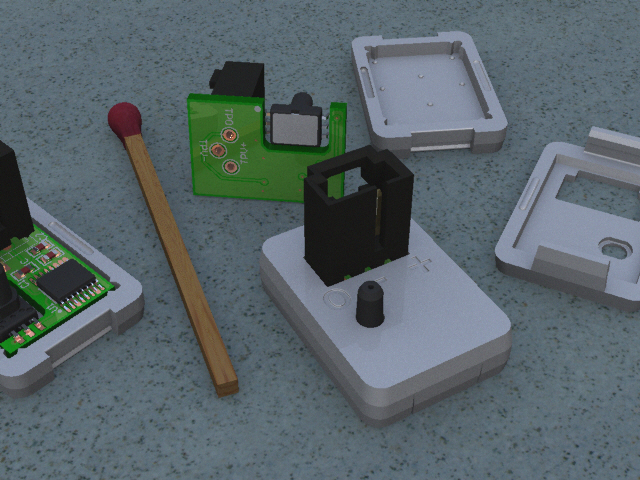

19	presentation3.jpg	311.90K

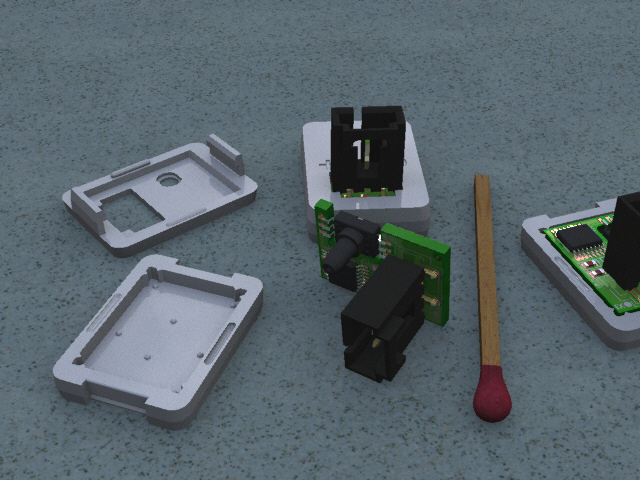

20	presentation4.jpg	317.72K

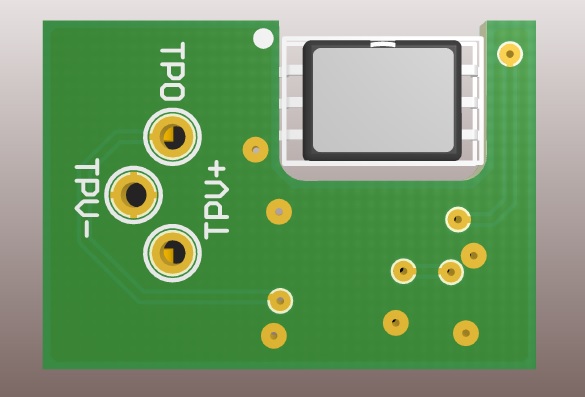

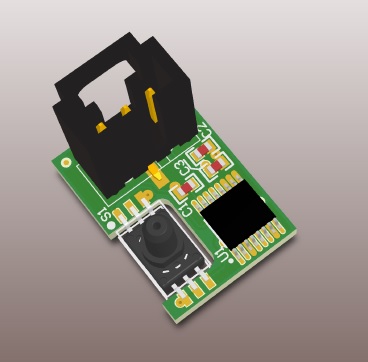

21	SinglePCB.jpg	27.93K
22	SinglePCBbottomtestpoints.jpg	41.81K
