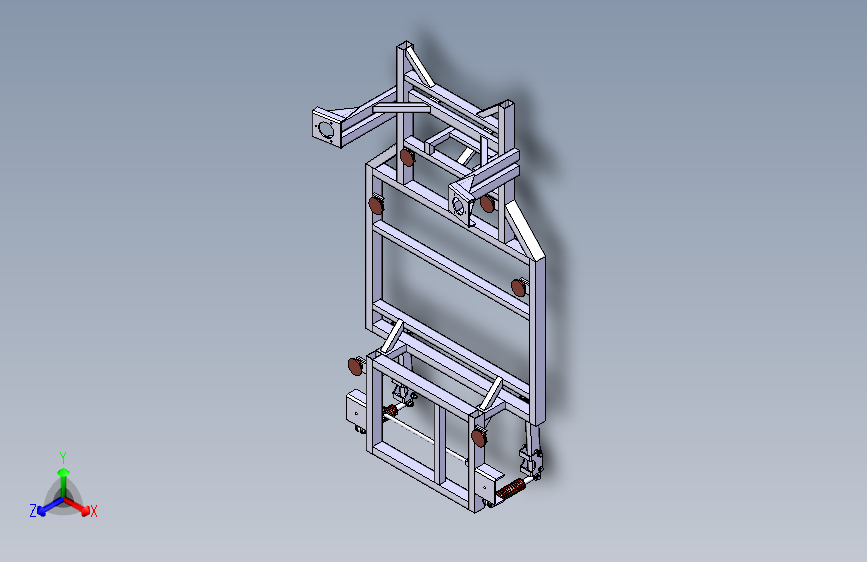

低速电动车底盘模型设计图==238688=120（ID:990642）

交通运输 / 车辆工程 / 低速电动车底盘模型设计图==238688=120

©非原创

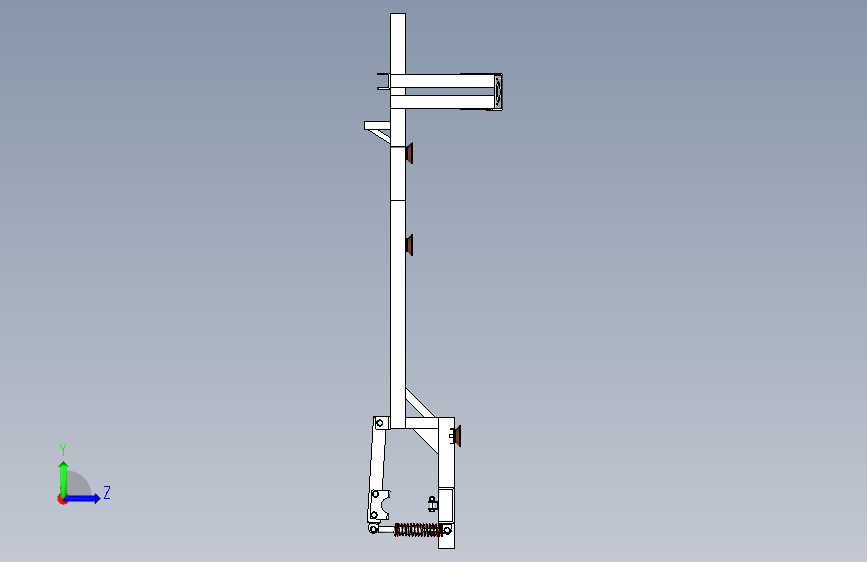

平面图

3D视图

文件列表

#	文件名称	文件大小
1	17094742031214.zip	37.88M

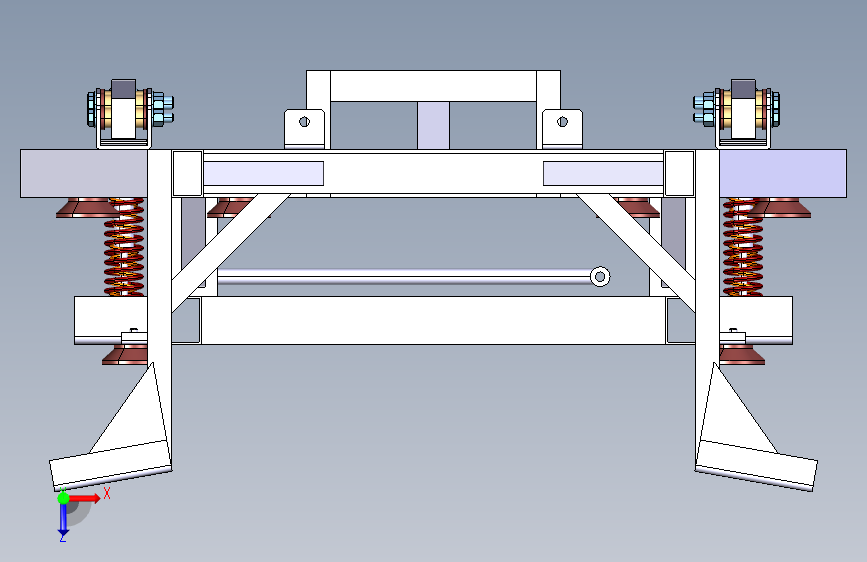

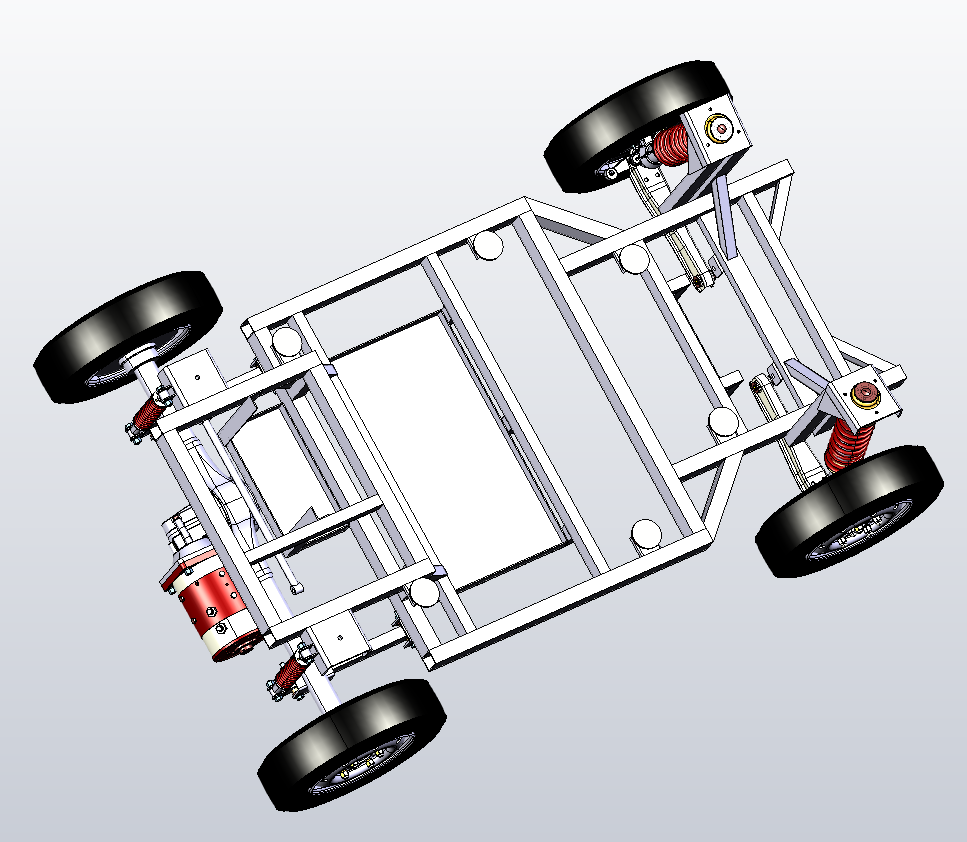

2	上面.png	153.06K
3	下面.png	124.39K

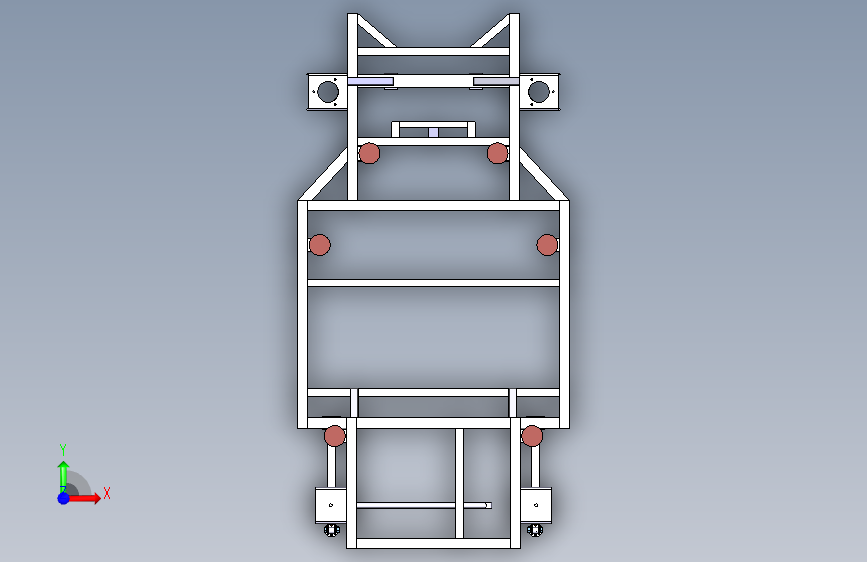

4	前面.png	125.43K

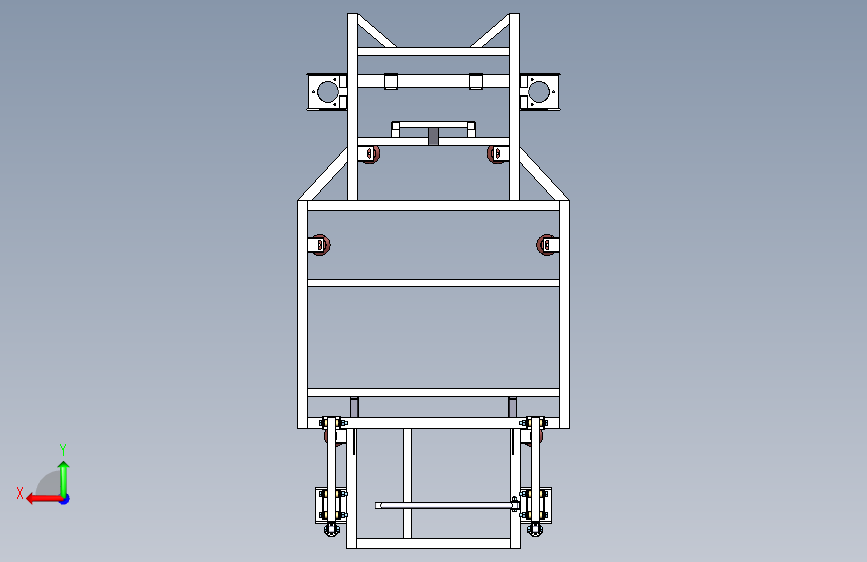

5	后面.png	133.89K

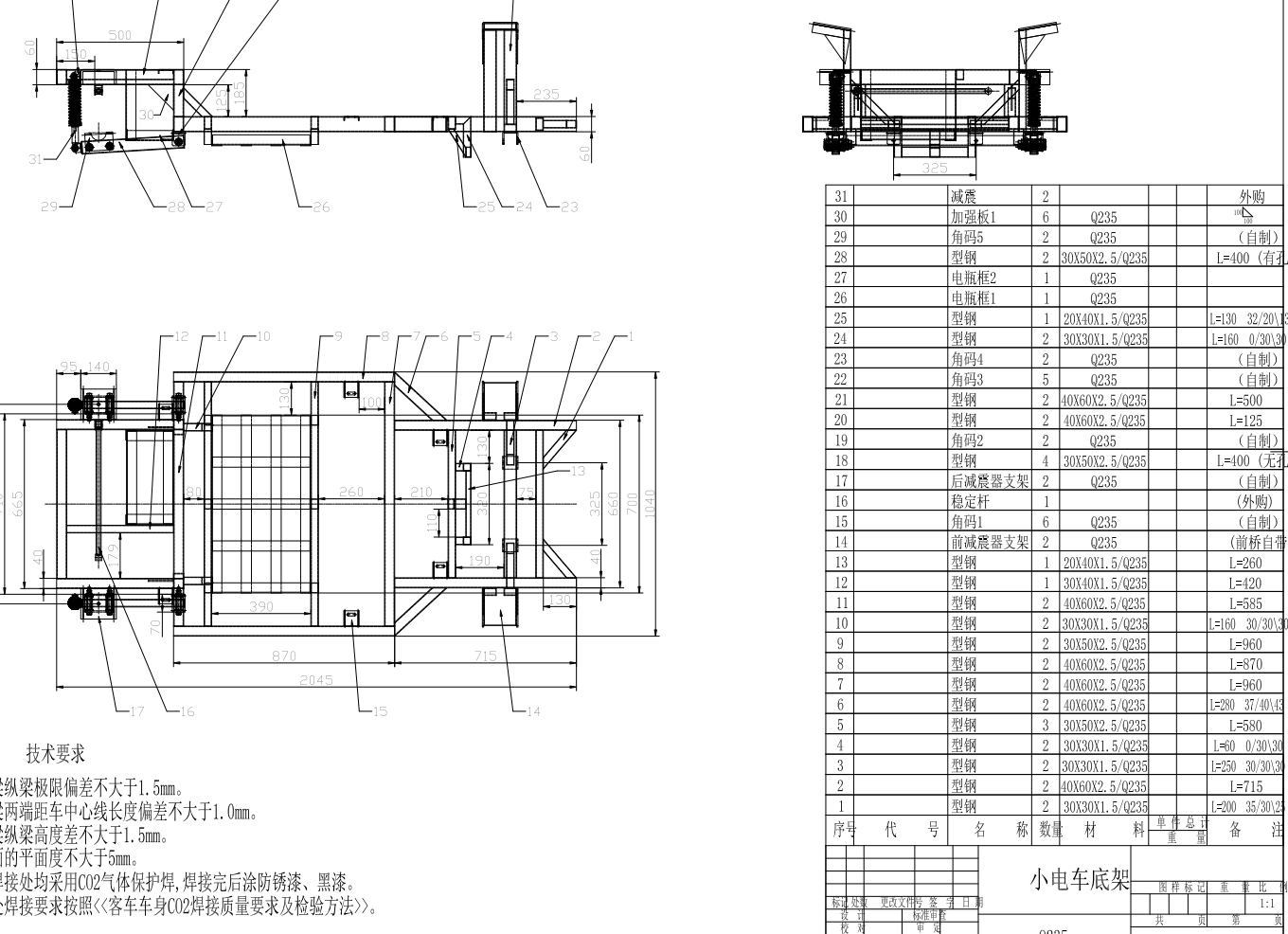

6	底架.png	269.09K

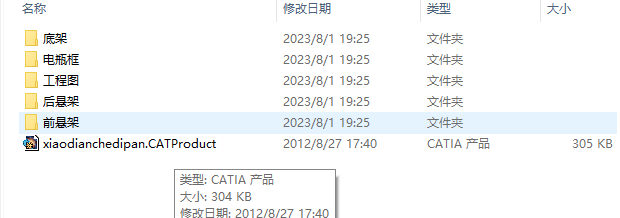

7	微信截图_20230831070528.png	13.59K

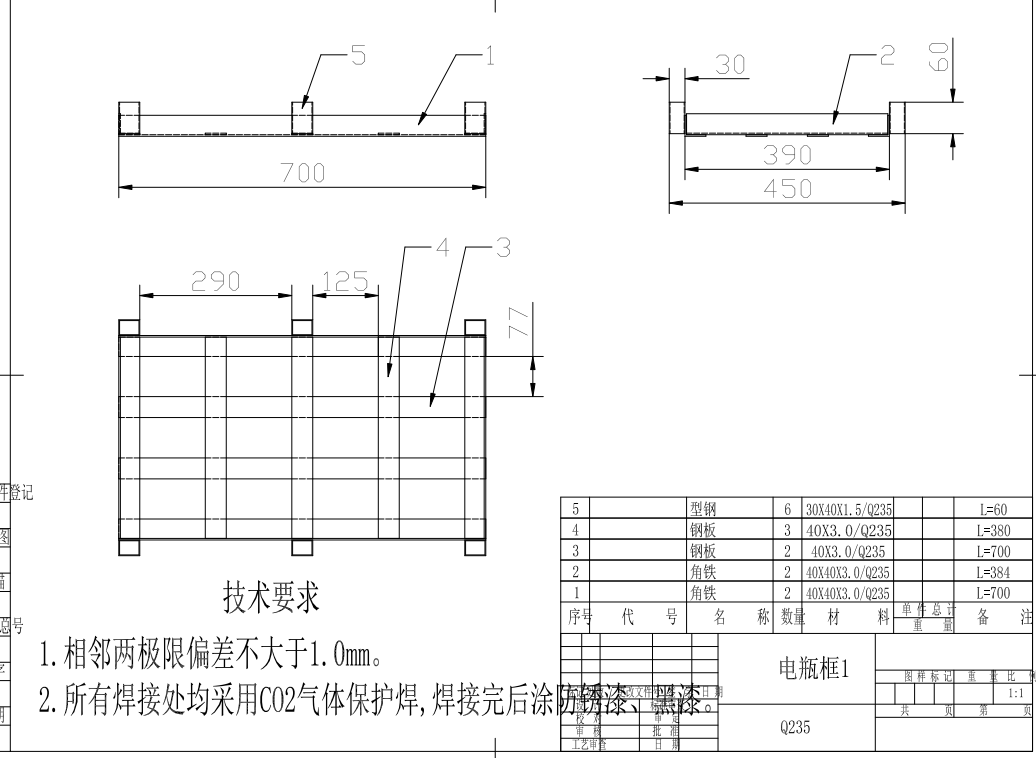

8	电瓶框.png	94.23K
9	电瓶框2.png	78.99K

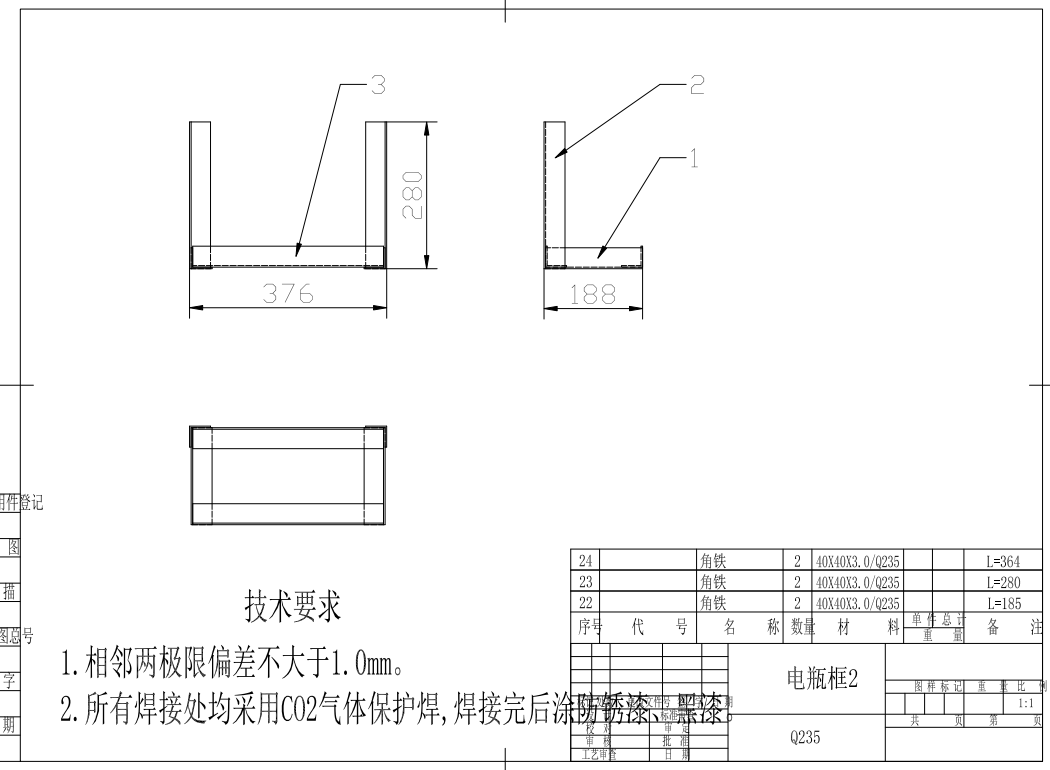

10	小电车1.dwg	1018.47K
11	标准图框1.dwg	65.78K
12	用料.dwg	125.88K
13	xiaodianchedipan.CATProduct	304.07K
14	0001.CATPart	1.83M
15	0002.CATPart	822.05K
16	0003.CATPart	7.51M
17	0004.CATPart	7.49M
18	0005.CATPart	1.26M
19	0006.CATPart	1.66M
20	6204-RS.CATPart	125.42K
21	6205-2RS.CATPart	127.94K
22	ISO_4014_M6x30_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	163.24K
23	ISO_4014_M8x40_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	166.14K
24	ISO_4034_M6_STEEL_GRADE_C_HEXAGON_HEAD_NUT.CATPart	152.40K
25	ISO_7091_6x12_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	71.67K
26	ISO_7091_8x16_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	72.03K
27	luntai.CATPart	3.48M
28	luomu1.CATPart	160.18K
29	luomu2.CATPart	141.88K
30	luoshuan1.CATPart	97.83K
31	qianxuanjia.CATProduct	93.16K
32	qianxuanjiayou.CATProduct	188.70K
33	qianxuanjiazuo.CATProduct	187.06K
34	wendinggan.CATPart	1.88M
35	dianji.CATPart	2.54M
36	houjianzhenqi.CATPart	3.22M
37	houqiao.CATPart	8.43M
38	houxuanjia.CATProduct	128.58K
39	ISO_4014_M12x50_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	168.14K
40	ISO_4034_M12_STEEL_GRADE_C_HEXAGON_HEAD_NUT.CATPart	155.02K
41	ISO_7089_12x24_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	74.55K
42	luntai.CATPart	3.48M
43	luomu.CATPart	156.21K
44	dianpingkuang1.CATDrawing	348.23K
45	dianpingkuang2.CATDrawing	327.44K
46	houjianzhenqizhijia.CATDrawing	362.37K
47	jiaoma1.CATDrawing	439.49K
48	jiaoma2.CATDrawing	383.88K
49	jiaoma3.CATDrawing	362.13K
50	jiaoma4.CATDrawing	366.32K
51	jiaoma5.CATDrawing	363.01K
52	jiaqiangban.CATDrawing	339.95K
53	xiaodianchedijia.CATDrawing	6.26M
54	xiaodianchedipan.CATDrawing	5.81M
55	20X40X1.5-130.CATPart	72.11K
56	20X40X1.5-260.CATPart	69.94K
57	30X30X1.5-160.CATPart	69.50K
58	30X30X1.5-170.CATPart	69.48K
59	30X30X1.5-200.CATPart	69.31K
60	30X30X1.5-250.CATPart	71.70K
61	30X30X1.5-60.CATPart	70.11K
62	30X40X1.5-420.CATPart	69.90K
63	30X50X2.5-400-2.CATPart	344.37K
64	30X50X2.5-400.CATPart	69.60K
65	30X50X2.5-580.CATPart	69.80K
66	30X50X2.5-960.CATPart	69.64K
67	40X40X2.5-125.CATPart	70.14K
68	40X60X2.5-280.CATPart	78.13K
69	40X60X2.5-500.CATPart	70.06K
70	40X60X2.5-585.CATPart	69.88K
71	40X60X2.5-715.CATPart	69.90K
72	40X60X2.5-870.CATPart	69.82K
73	40X60X2.5-960.CATPart	69.66K
74	ISO_4014_M12x100_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	167.91K
75	ISO_4014_M12x50_STEEL_GRADE_A_HEXAGON_HEAD_BOLT.CATPart	168.37K
76	ISO_4034_M12_STEEL_GRADE_C_HEXAGON_HEAD_NUT.CATPart	155.01K
77	ISO_7089_12x24_STEEL_GRADE_A_NORMAL_SERIES_PLAIN_WASHER.CATPart	74.55K
78	jiaoma1.CATPart	131.91K
79	jiaoma2.CATPart	176.15K
80	jiaoma3.CATPart	90.24K
81	jiaoma4.CATPart	131.28K
82	jiaoma5.CATPart	130.88K
83	jiaoma6.CATPart	111.83K
84	jiaqiangban1.CATPart	55.81K
85	qianjianzhenqizhijia.CATPart	118.51K
86	wendinggan1.CATPart	113.16K
87	xiangjiaozuo.CATPart	118.88K
88	xiaodianchedijia.CATProduct	615.72K
89	xiaojianzhen.CATPart	4.32M
90	30X40X1.5-60.CATPart	70.49K
91	dianpingkuang.CATProduct	106.31K
92	dianpingkuang2.CATProduct	60.21K
93	gangban1.CATPart	58.30K
94	gangban2.CATPart	57.61K
95	jiaotie1.CATPart	63.57K
96	jiaotie2.CATPart	63.45K
97	jiaotie3.CATPart	63.41K
98	jiaotie4.CATPart	64.31K
99	jiaotie5.CATPart	63.43K
100	jueyuanban.CATPart	52.97K
101	jueyuanban2.CATPart	52.72K
