模具翻转设备

（ID:998466）

改图/画图

设备部件 / 模具类 / 模具翻转设备

©非原创

平面图

文件列表

截图

AI截图渲染

✨AI图片渲染

#	文件名称	文件大小

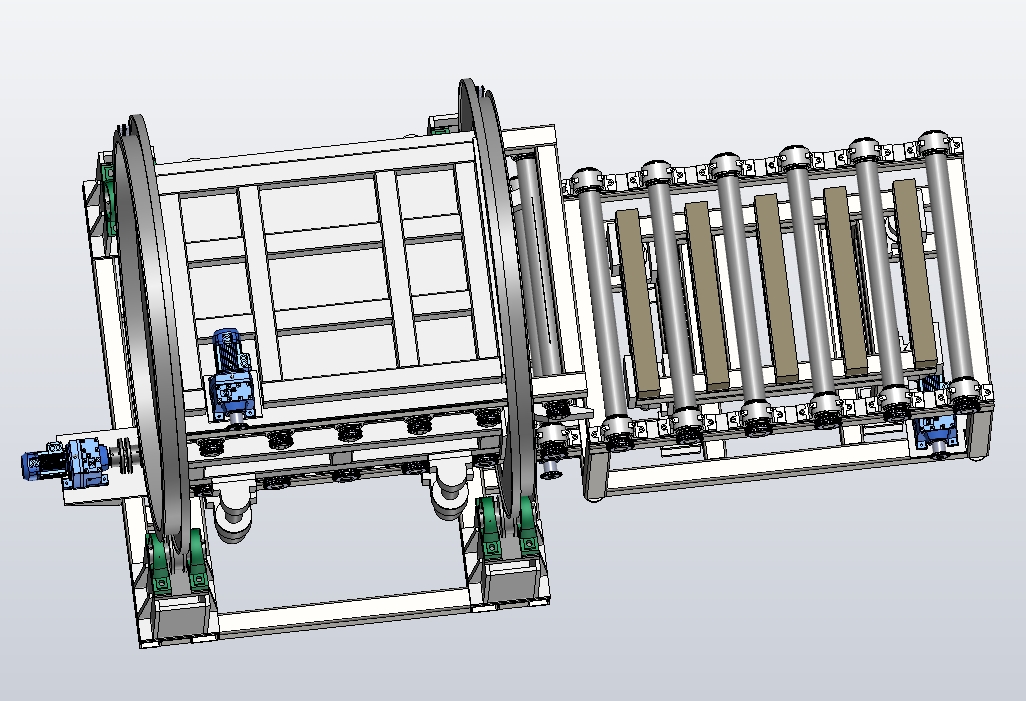

1	上面.png	315.53K

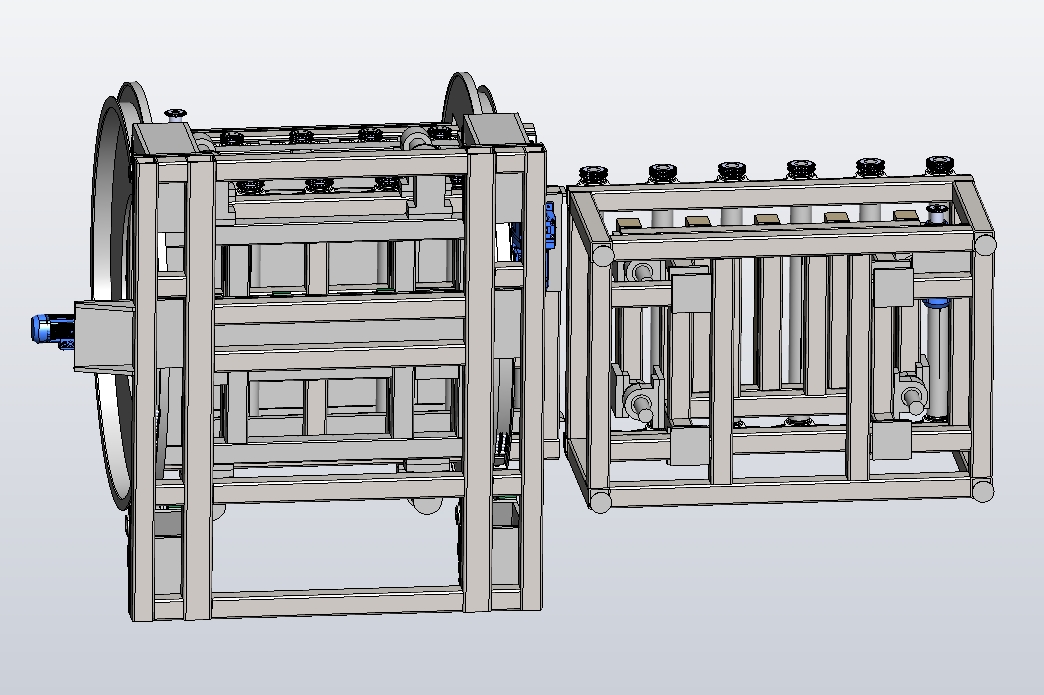

2	下面.png	244.43K

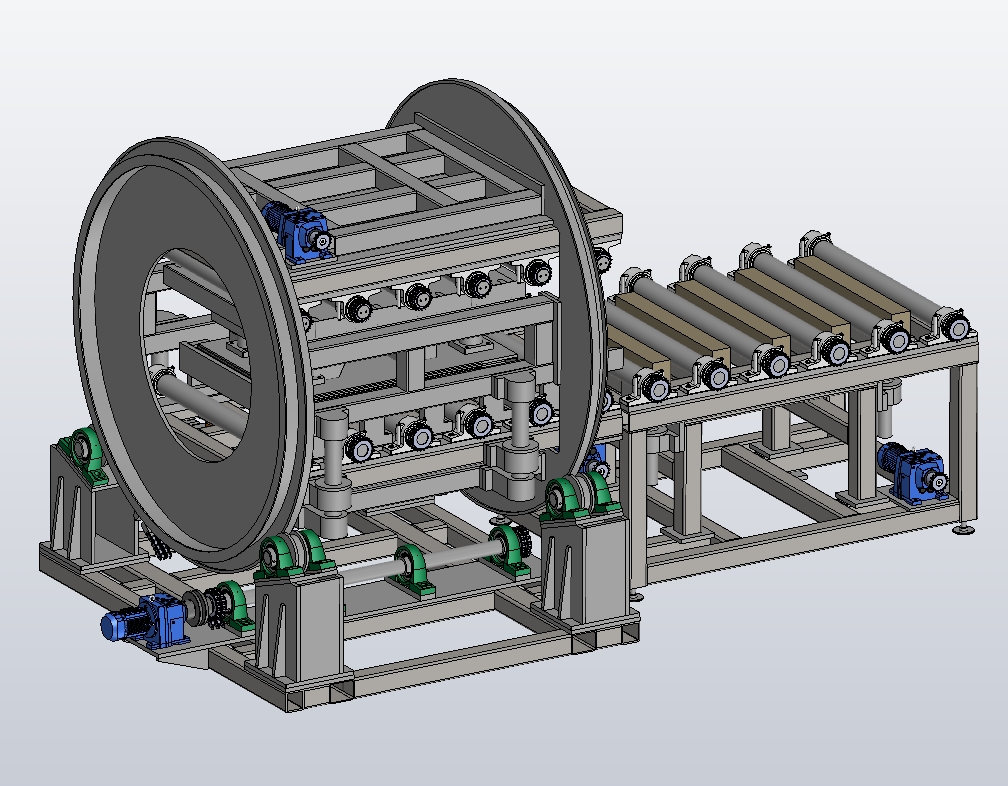

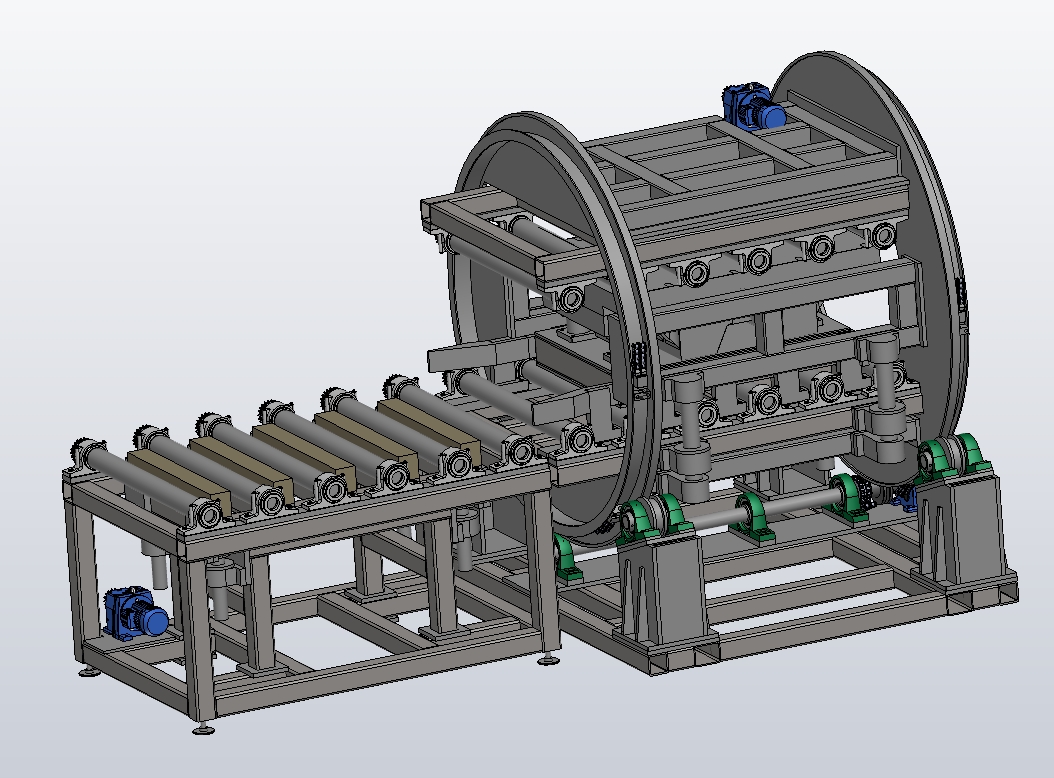

3	前面.png	355.33K
4	后面.png	345.68K
5	-456ZTMFS-B.00-03-1.SLDPRT	115.26K
6	-456ZTMFS-B.00-07-1.SLDPRT	81.15K
7	-456装配体32333222.SLDASM	126.32K
8	-456装配体32333223.SLDPRT	78.54K
9	014.57-08-1.SLDPRT	111.32K
10	014.57-09-1.SLDPRT	77.36K
11	014.57-12-1.SLDPRT	80.00K
12	04.57-10-1.SLDPRT	82.41K
13	1222111-4568.SLDPRT	99.04K
14	1222111.SLDPRT	97.17K
15	DJM型键联结单型弹性膜片联轴器[DJM10-50-80]-广州沃孚机电.SLDPRT	1.60M
16	GB╱T288-2013[调心滚子轴承[20000]23220]-234-784561.sldprt	526.96K
17	GB╱T288-2013[调心滚子轴承[20000]23220]-234.sldprt	526.96K
18	GB╱T288-2013[调心滚子轴承[20000]23220].sldprt	526.96K
19	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1000-2.SLDPRT	87.83K
20	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1000-234-784561-45123.SLDPRT	83.12K
21	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1000-234-784561.SLDPRT	83.38K
22	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1000-234.SLDPRT	83.38K
23	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1000-3.SLDPRT	87.55K
24	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1000-5.SLDPRT	91.36K
25	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1000-550.SLDPRT	92.13K
26	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1000.SLDPRT	82.81K
27	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1255.SLDPRT	85.50K
28	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1256.SLDPRT	84.45K
29	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1257.SLDPRT	84.66K
30	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1425.3-1222-78456.SLDPRT	83.03K
31	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1425.3-1222.SLDPRT	83.10K
32	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1425.3-234-784561-qwert.SLDPRT	84.11K
33	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1425.3-234-784561.SLDPRT	84.37K
34	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1425.3-234.SLDPRT	83.92K
35	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1425.3.SLDPRT	82.83K
36	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L1740.SLDPRT	92.48K
37	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L2500.SLDPRT	91.89K
38	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L500.SLDPRT	84.59K
39	GB╱T6728-2002[冷弯方形空心型钢150×8.01000]L950.SLDPRT	85.36K
40	GB╱T6728-2017[冷弯空心型钢（矩形管）180x65×4.5×1000]L1170.SLDPRT	89.57K
41	GB╱T6728-2017[冷弯空心型钢（矩形管）180x65×4.5×1000]L1300.SLDPRT	90.37K
42	GB╱T6728-2017[冷弯空心型钢（矩形管）180x65×4.5×1000]L1380.SLDPRT	89.93K
43	GB╱T6728-2017[冷弯空心型钢（矩形管）200x100×6×1000]L1000.SLDPRT	92.34K
44	GB╱T6728-2017[冷弯空心型钢（矩形管）200x100×6×1000]L1580.SLDPRT	91.96K
45	GB╱T6728-2017[冷弯空心型钢（矩形管）200x150×8×1000]L1000-1.SLDPRT	96.62K
46	GB╱T7810-1995[带立式座轴承[UCP]UCP320].sldprt	416.10K
47	GB╱T7813-2008[二螺柱立式轴承座SNK系列SNK220]-234-784561.sldprt	301.96K
48	GB╱T7813-2008[二螺柱立式轴承座SNK系列SNK220]-234.sldprt	301.96K
49	GB╱T7813-2008[二螺柱立式轴承座SNK系列SNK220].sldprt	301.96K
50	GB╱T810-1988[小圆螺母M85×2].sldprt	122.35K
51	GB╱T858-1988[圆螺母用止动垫圈85].sldprt	108.07K
52	M36脚杯.SLDPRT	107.00K
53	MANIFOLD_SOLID_BREP_7575_1-1.SLDPRT	892.77K
54	MANIFOLD_SOLID_BREP_7575_1.STEP	2.03M
55	R..Y..斜齿轮减速电机[R87-47.45╱Y2100-4╱M1╱R].sldasm	530.48K
56	R..Y..斜齿轮减速电机[R87-47.45╱Y2100-4╱M1╱R]_R07-R167斜齿轮减速电机.sldprt	952.81K
57	R..Y..斜齿轮减速电机[R87-47.45╱Y2100-4╱M1╱R]_电机.sldprt	1.29M
58	ZTMFS-A.00-00-1.SLDASM	5.11M
59	ZTMFS-A.00-00-2-3-123.SLDPRT	101.54K
60	ZTMFS-A.00-00-2-3-4578.SLDPRT	105.81K
61	ZTMFS-A.00-00-2-3.SLDPRT	106.75K
62	ZTMFS-A.00-00-3.SLDPRT	110.13K
63	ZTMFS-A.00-00-4.SLDPRT	138.76K
64	ZTMFS-A.00-04.SLDPRT	98.37K
65	ZTMFS-A.00-06.SLDPRT	79.83K
66	ZTMFS-A.01-00-1-1456-234-784561.SLDASM	730.79K
67	ZTMFS-A.01-00-1-1456-234.SLDASM	755.39K
68	ZTMFS-A.01-00-1-1456.SLDASM	721.43K
69	ZTMFS-A.02-00-1.SLDASM	171.89K
70	ZTMFS-A.02-00-2-132-1.SLDPRT	84.31K
71	ZTMFS-A.02-00-2-132-234-45678.SLDASM	66.87K
72	ZTMFS-A.02-00-2-132-234.SLDASM	71.14K
73	ZTMFS-A.02-00-2-132-235-45678.SLDPRT	74.78K
74	ZTMFS-A.02-00-2-132-235.SLDPRT	74.78K
75	ZTMFS-A.02-00-2-132.SLDASM	129.51K
76	ZTMFS-A.02-00-2-134.SLDPRT	73.86K
77	ZTMFS-A.02-00-2.SLDASM	118.15K
78	ZTMFS-A.02-00-3-132-234-45678.SLDPRT	58.05K
79	ZTMFS-A.02-00-3-132-234.SLDPRT	58.16K
80	ZTMFS-A.02-00-3-132.SLDPRT	64.31K
81	ZTMFS-A.02-00-3.SLDPRT	59.54K
82	ZTMFS-A.02-00-4.SLDPRT	58.26K
83	ZTMFS-A.02-03-1-456-7456-132-234-45678.SLDPRT	93.20K
84	ZTMFS-A.02-03-1-456-7456-132-234.SLDPRT	93.20K
85	ZTMFS-A.02-03-1-456-7456-132-78456-78456.SLDPRT	93.45K
86	ZTMFS-A.02-03-1-456-7456-132-78456.SLDPRT	93.20K
87	ZTMFS-A.02-03-1-456-7456-132.SLDPRT	93.67K
88	ZTMFS-A.02-03-1-456-7456-2260-132-234-45678.SLDPRT	93.67K
89	ZTMFS-A.02-03-1-456-7456-2260-132-234.SLDPRT	93.67K
90	ZTMFS-A.02-03-1-456-7456-2260-132.SLDPRT	92.91K
91	ZTMFS-A.02-03-1-456-7456-2260.SLDPRT	93.18K
92	ZTMFS-A.02-03-1-456-7456-800-45123.SLDPRT	93.59K
93	ZTMFS-A.02-03-1-456-7456-800.SLDPRT	93.22K
94	ZTMFS-A.02-03-1-456-7456.SLDPRT	93.27K
95	ZTMFS-B.00-01-1.SLDPRT	57.66K
96	ZTMFS-B.00-03-1.SLDPRT	70.06K
97	ZTMFS-B.00-07-1.SLDPRT	81.89K
98	ZTMFS-C.00-00-1-4567.SLDASM	319.21K
99	ZTMFS-C.00-01-1-4567.SLDPRT	113.19K
100	ZTMFS-C.00-02-1-4567.SLDPRT	72.81K
101	ZTMFS-C.00-03-1-4567.SLDPRT	75.52K
102	ZTMFS-C.00-03-2-4567.SLDPRT	74.50K
103	ZTMFS-C.00-04-2.SLDASM	130.40K
104	ZTMFS-C.00-05-4567.SLDASM	84.21K
105	ZTMFS-C.00-05-4568.SLDPRT	52.54K
106	ZTMFS-C.00-05-4569.SLDPRT	74.97K
107	ZTMFS-C.00-06-4567.SLDPRT	108.29K
108	ZTMFS-F.00-00-456.SLDASM	292.61K
109	ZTMFS-F.00-01-456.SLDPRT	119.82K
110	ZTMFS-F.00-02-456.SLDPRT	99.92K
111	ZTMFS-G.00-00-1.SLDASM	1.83M
112	ZTMFS-G.00-00-3.SLDPRT	72.43K
113	ZTMFS-G.00-01-1.SLDPRT	109.11K
114	ZTMFS-H.00-00-1.SLDASM	483.19K
115	ZTMFS-H.00-00-2.SLDASM	113.21K
116	ZTMFS-H.00-00-3.SLDPRT	69.57K
117	ZTMFS-I.00-00-1.SLDASM	117.71K
118	ZTMFS-I.00-00-2.SLDASM	69.63K
119	ZTMFS-I.00-02-1.SLDPRT	109.00K
120	ZTMFS-J.00-00-234-784561.SLDASM	1.66M
121	ZTMFS-J.00-00-234-784562.SLDASM	243.86K
122	ZTMFS-J.00-00-234-784563.SLDPRT	69.96K
123	ZTMFS-J.00-00-234.SLDASM	748.32K
124	ZTMFS-J.00-00.SLDASM	929.48K
125	ZTMFS-J.00-01.SLDPRT	61.41K
126	ZTMFS-J.00-02-234-784561.SLDPRT	47.37K
127	ZTMFS-J.00-02-234.SLDPRT	47.37K
128	ZTMFS-J.00-02.SLDPRT	47.37K
129	ZTMFS-J.00-04.SLDPRT	73.88K
130	主动链轮.SLDPRT	940.21K
131	主动链轮122齿-234-784561.SLDPRT	1.01M
132	主动链轮122齿.SLDPRT	1.01M
133	主动链轮1231.SLDPRT	457.87K
134	主动链轮24A17齿.SLDPRT	900.04K
135	滚筒12-1-1456-234-784561.SLDPRT	105.93K
136	滚筒12-1-1456-234.SLDPRT	144.22K
137	滚筒12-1-1456.SLDPRT	113.05K
138	滚筒装配123-1-1456-234-784561.SLDASM	733.12K
139	滚筒装配123-1-1456-234.SLDASM	750.87K
140	滚筒装配123-1-1456-235.SLDPRT	98.55K
141	滚筒装配123-1-1456.SLDASM	704.77K
142	缸径100，行程80液压缸.SLDPRT	141.04K
143	装配体11222133333-234-784561.SLDASM	364.38K
144	装配体11222133333-234.SLDASM	364.38K
145	装配体11222133333.SLDASM	363.95K
146	装配体21221122222-2.SLDPRT	67.29K
147	装配体21221122222.SLDASM	103.73K
148	装配体2wweeee-2.SLDPRT	59.34K
149	装配体2wweeee-234-784561.SLDASM	168.22K
150	装配体2wweeee-234.SLDASM	107.26K
151	装配体2wweeee.SLDASM	166.10K
152	装配体2wweeee12.SLDPRT	57.84K
153	装配体2wweeee123.SLDPRT	71.74K
154	装配体32333222.SLDASM	123.20K
155	链条24A-456.SLDPRT	1.43M
156	销轴-456.SLDPRT	86.62K
157	零件1012.SLDPRT	102.42K
158	零件101222111.SLDPRT	117.00K
159	零件11222143.SLDPRT	71.24K
160	零件112221ww.SLDPRT	64.48K
161	零件112233111.SLDPRT	67.06K
162	零件12233222.SLDPRT	69.16K
163	零件13122211.SLDPRT	62.82K
164	零件1422211.SLDPRT	74.83K
165	零件17122333.SLDPRT	87.01K
166	零件181222111.SLDPRT	70.18K
167	零件191222111.SLDPRT	99.15K
168	零件212222111.SLDPRT	59.63K
169	零件3221122.SLDPRT	58.62K
170	零件3223333.SLDPRT	59.97K
171	零件411222111.SLDPRT	60.70K
172	零件41222322.SLDPRT	61.41K
173	零件51122112222.SLDPRT	127.13K
174	零件511222112.SLDPRT	76.79K
175	零件5221122.SLDPRT	74.65K
176	零件6122312222.SLDPRT	63.25K
177	零件7122222.SLDPRT	164.18K
178	零件8122211.SLDPRT	68.99K
179	零件8233112222.SLDPRT	95.72K
180	零件912221111.SLDPRT	69.03K
181	零件912222111.SLDPRT	60.05K
