轴承试验机（21年学院项目）（ID:155209）

设备部件 / 传动部件 / 轴承试验机（21年学院项目）

©非原创

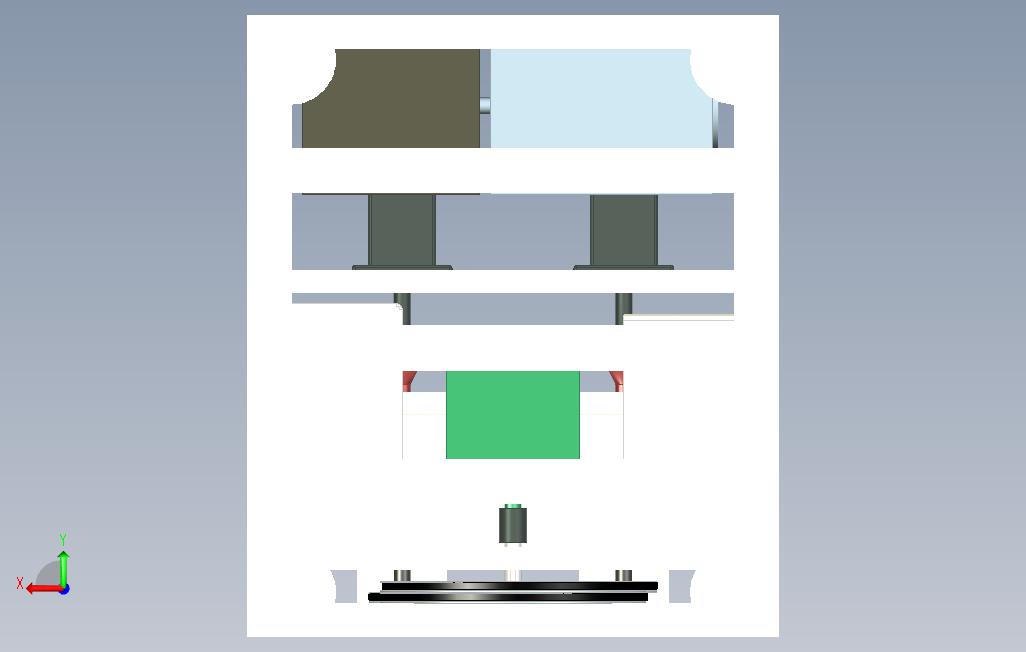

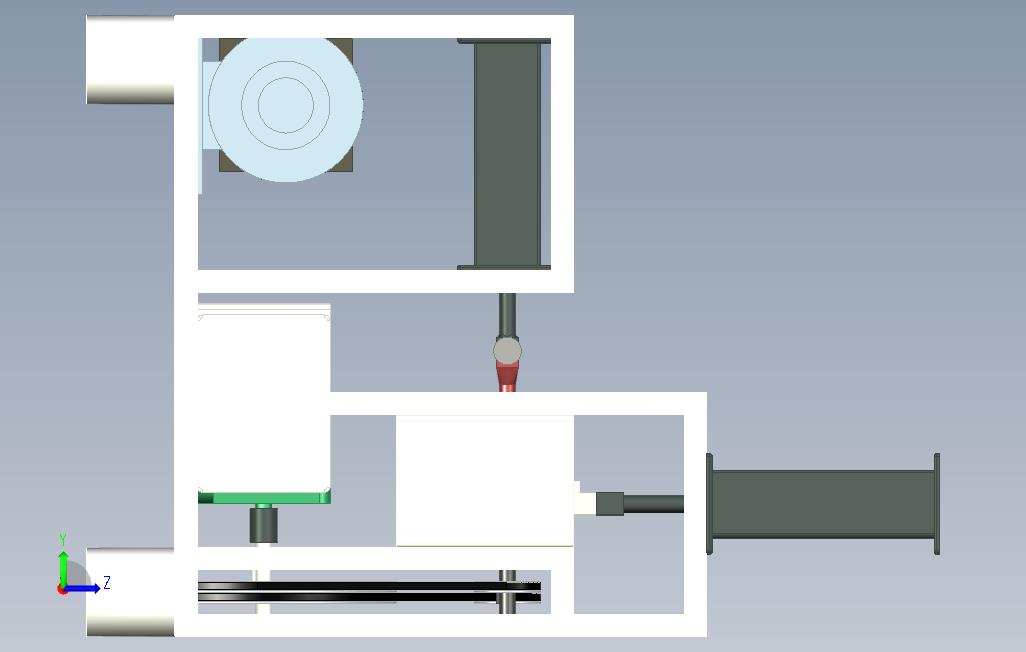

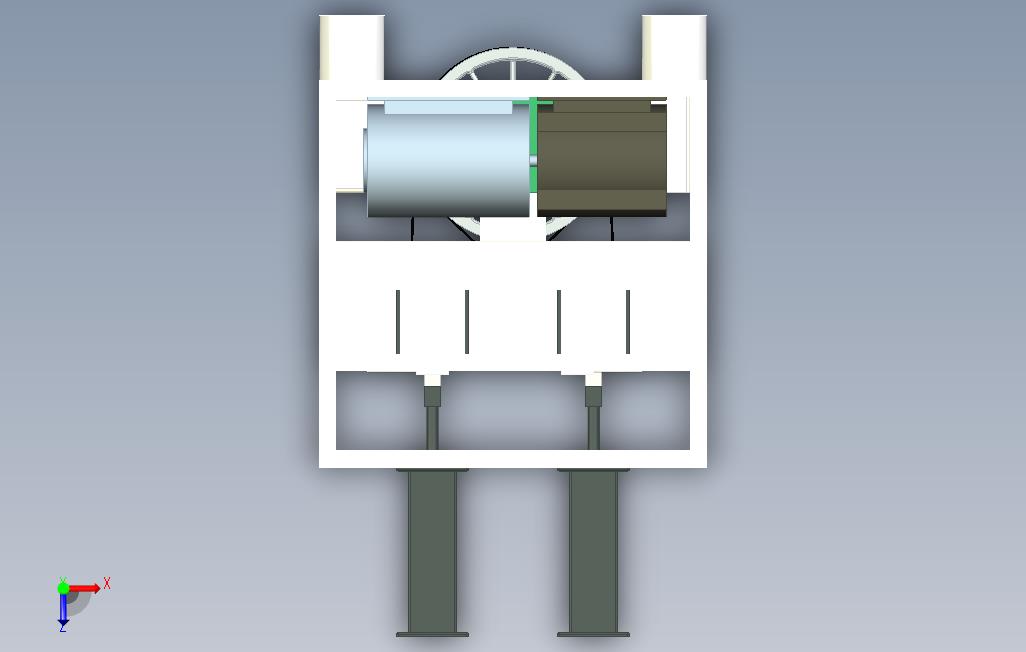

平面图

3D视图

文件列表

#	文件名称	文件大小
1	Ball Bearing Oil Enclosure.ipt	266.50K
2	Ball Bearing Tester.iam	577.50K
3	Ball Bearing Tester_ISO_View_1.png	993.00K
4	Ball Bearing Tester_ISO_View_2.png	960.27K
5	Bearing Test Machine.docx	13.54K
6	Bearing Tester Clamp 1.ipt	125.00K
7	Bearing Tester Clamp 2.ipt	115.00K
8	Bearing Tester Clamp 3.ipt	126.00K
9	Bearing Tester.ipj	7.27K
10	Cost Estimate.xlsx	11.95K
11	coupling.ipt	138.50K
12	Drive Belt.ipt	92.50K
13	Electric Motor.ipt	182.50K
14	Frame Chassis.ipt	699.50K
15	Hydraulic Load Cylinder 1.ipt	163.00K
16	Hydraulic Load Cylinder 2.ipt	202.50K
17	Hydraulic Load Pin.ipt	119.50K
18	Hydraulic Motor.ipt	145.50K
19	Hydraulic Pump.ipt	180.50K
20	Hydraulic Reservior.ipt	205.50K
21	Oil Box.ipt	209.50K
22	oil hose.ipt	139.50K
23	Oil Seal 2 in.ipt	117.50K
24	Oil Tank.ipt	231.50K
25	Pulley 12in.ipt	324.00K
26	pulley 3in.ipt	168.50K
27	Pulley Drive Shaft 1.ipt	110.00K
28	Pulley Drive Shaft 2.ipt	122.00K
29	Pully 4in.ipt	237.50K
30	Pump Motor Group.iam	146.50K
31	Push Rod.ipt	184.50K
32	Small Bearing.ipt	203.00K
33	Tapered bearing.ipt	231.00K
34	Test Bearing.ipt	225.50K
