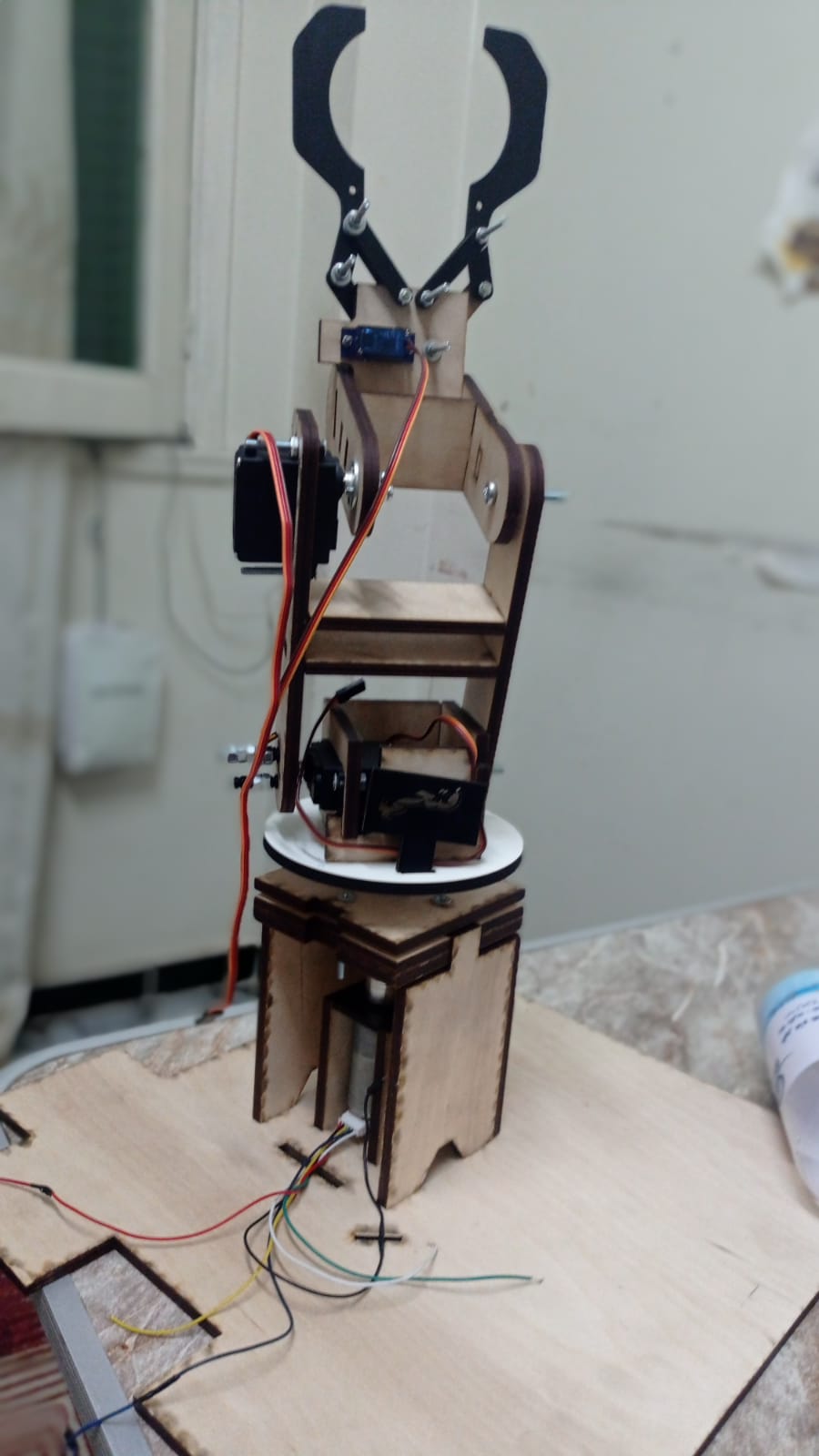

三自由度Prevolute简易机械臂3D数模图纸 Solidworks设计

（ID:1645442）

改图/画图

机械设备 / 非标机械 / 三自由度Prevolute简易机械臂3D数模图纸 Solidworks设计

©非原创

平面图

3D视图

文件列表

截图

AI截图渲染

✨AI图片渲染

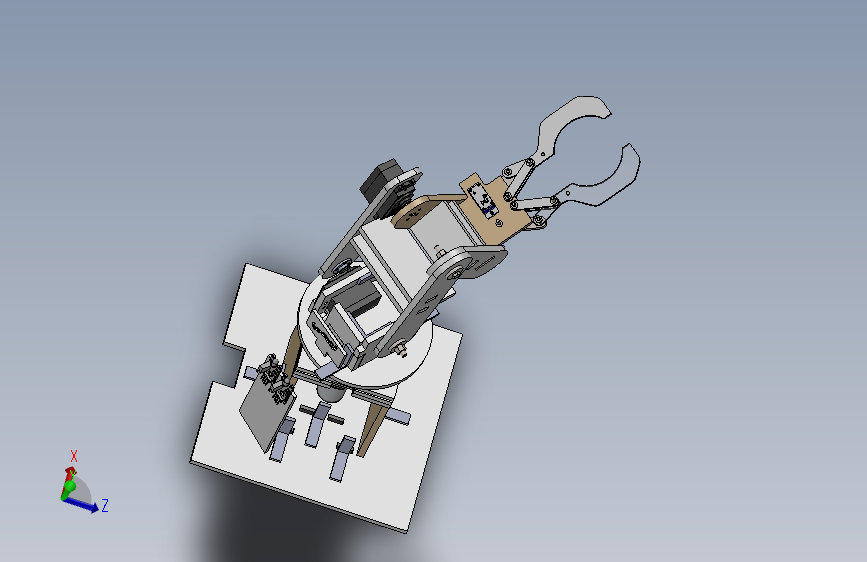

三自由度Prevolute简易机械臂3D数模图纸 Solidworks设计主视图

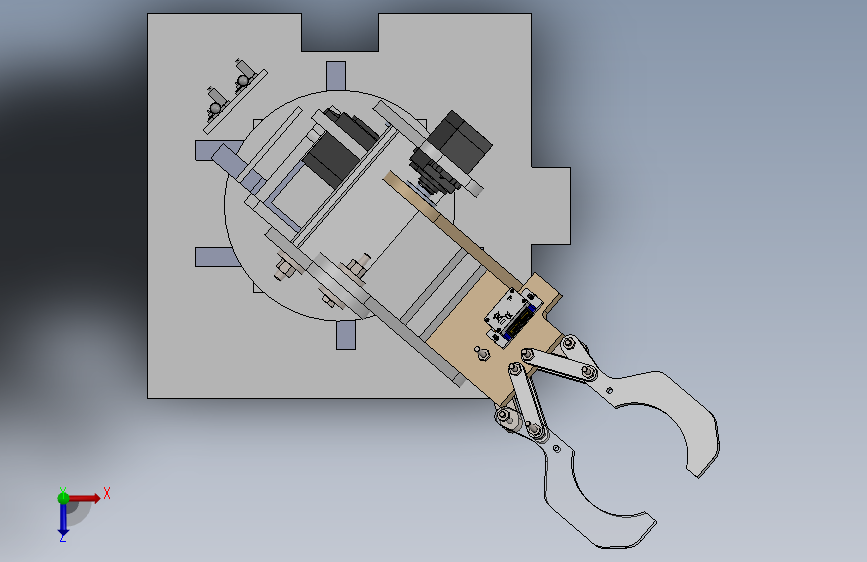

三自由度Prevolute简易机械臂3D数模图纸 Solidworks设计俯视图

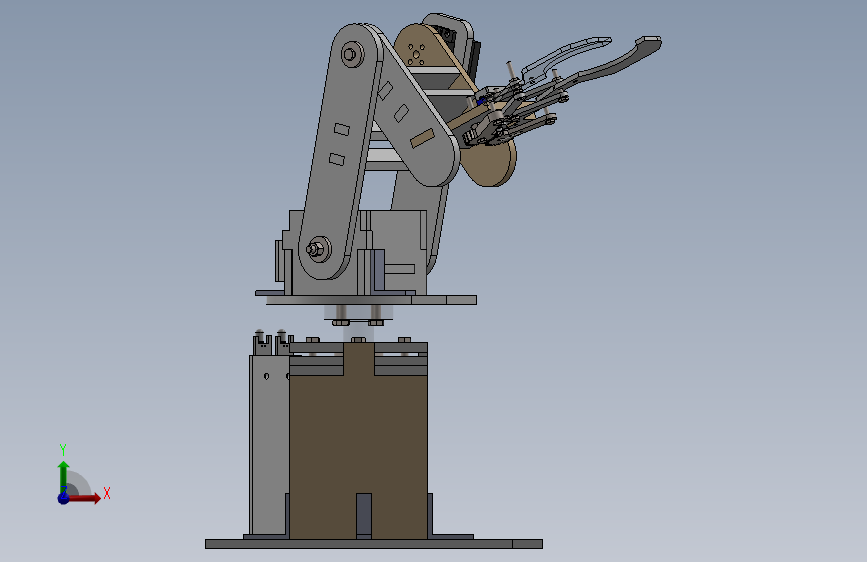

三自由度Prevolute简易机械臂3D数模图纸 Solidworks设计正面视图

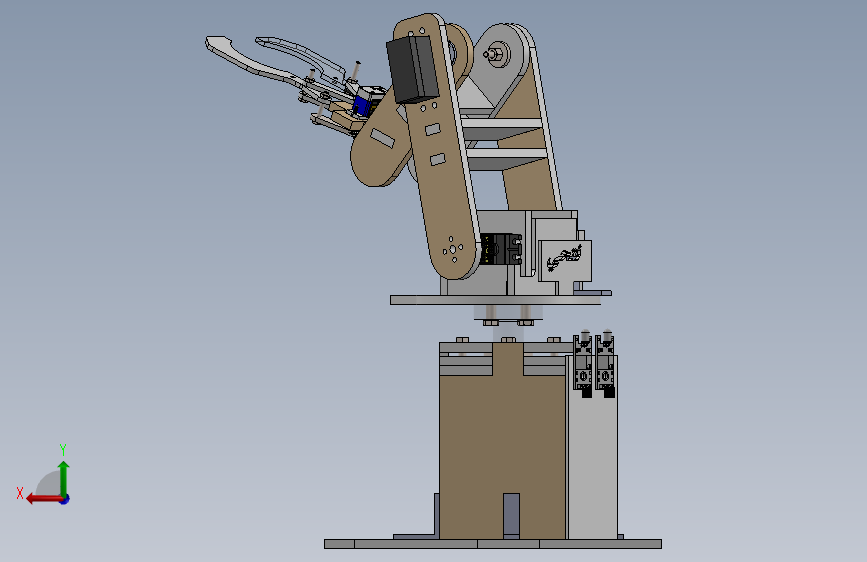

三自由度Prevolute简易机械臂3D数模图纸 Solidworks设计背面视图

三自由度Prevolute简易机械臂3D数模图纸 Solidworks设计左侧视图

#	文件名称	文件大小
1	angle.SLDPRT	69.50K
2	armbasecolumn.SLDPRT	149.05K
3	armbasecolumnforUpperCover.SLDPRT	156.86K
4	ArmRotatingBase.SLDPRT	179.97K
5	BaseMotorConnector.SLDPRT	120.89K
6	clampingdevicewasher_din.sldprt	90.83K
7	fathy.SLDPRT	350.05K
8	FathyRobotics.SLDASM	7.49M
9	finishedash.jpg	61.39K
10	FlexibleCoupler5to10mmAssembly.STEP	3.37M
11	Gear1.SLDPRT	491.08K
12	Gear2.SLDPRT	197.92K
13	grippergear.SLDPRT	249.56K
14	grippergear2.SLDPRT	331.06K
15	Gripperhand2.SLDPRT	116.27K
16	GripperLinker.SLDPRT	78.86K
17	GroundRobot.SLDPRT	214.36K
18	hexboltgradeab_din.sldprt	622.12K
19	hexnutgradec_din.sldprt	309.90K
20	hexthinnutchamferedgradeab_din.sldprt	260.50K
21	hexthinnutgradeb_din.sldprt	167.38K
22	hole12.png	1.28K
23	HomingBase.SLDPRT	118.14K
24	KY-026_flame_IR_sensor.step	706.02K
25	LowerArmedgeforNoServoMotor.SLDPRT	110.27K
26	LowerArmedgeforServoMotor.SLDPRT	192.17K
27	LowerArmEdgeSupporterforNoMotor.SLDPRT	188.65K
28	LowerArmedgeSupportingLink.SLDPRT	190.20K
29	LowerMotorBase.SLDPRT	160.69K
30	LowerMotorBaseSupporter.SLDPRT	168.55K
31	Mg995.STEP	3.85M
32	Motor_25GA370-20.4x.STEP	398.82K
33	NEWLowerMotorBaseSupporter.SLDPRT	177.12K
34	NewLowerServoBaseColumnForMotor.SLDPRT	225.76K
35	polishedash.jpg	64.38K
36	polishedashendgrain.jpg	509.08K
37	polishedbeech.jpg	778.04K
38	radialballbearing_68_din.sldprt	494.86K
39	robotarmbaseForBearingLowerCoverwooden.SLDPRT	191.60K
40	robotarmbaseForBearingUpprtCoverwooden.SLDPRT	187.43K
41	robotarmbaseForBearingwooden.SLDPRT	189.01K
42	RotatingBaseServoBase.SLDPRT	185.64K
43	RotatingBaseServoColumn.SLDPRT	135.87K
44	servohorn.step	891.38K
45	SG90-MicroServo9g-TowerPro.STEP	5.08M
46	softbox.png	69.18K
47	upperArmedgeforNoServo.SLDPRT	208.35K
48	upperArmedgeforServo.SLDPRT	218.17K
49	UpperArmedgeGripperBase.SLDPRT	126.49K
50	upperArmedgeSupportingLink.SLDPRT	152.97K
51	FathyRoboticsMATLAB.SLDASM	6.74M
52	FixedBase.SLDASM	895.35K
53	FixedBase.SLDPRT	1.30M
54	Gripper.SLDASM	2.58M
55	Gripper.SLDPRT	2.99M
56	LowerEdge.SLDASM	2.56M
57	LowerEdge.SLDPRT	2.72M
58	RotatingBase.SLDASM	3.82M
59	RotatingBase.SLDPRT	5.52M
60	UpperEdge.SLDASM	1009.33K
61	UpperEdge.SLDPRT	1.02M

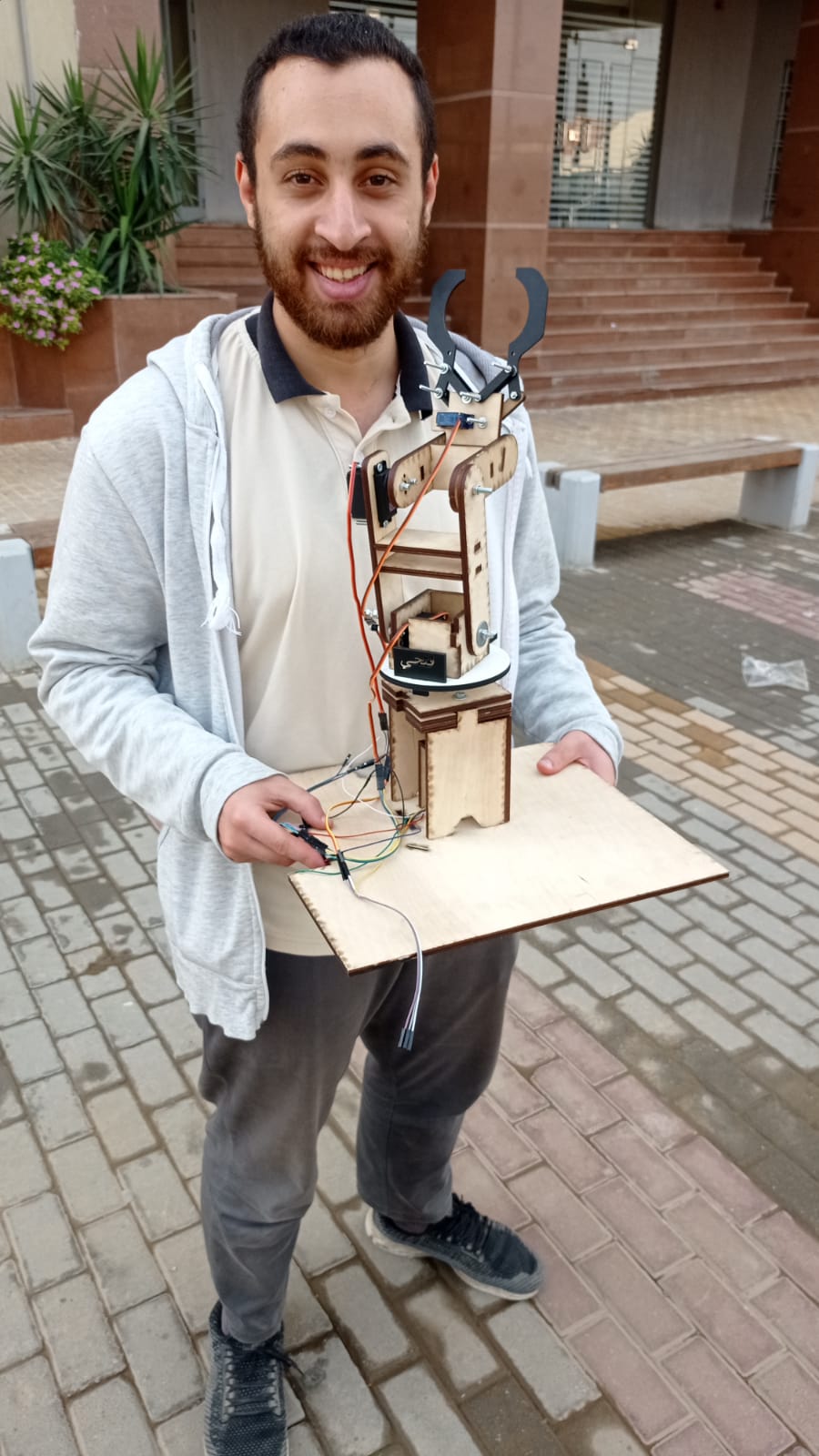

62	WhatsAppImage2024-10-17at08.45.39_6666c7fa.jpg	157.29K
